7-Nano V2 Controller

• Documentation: https://doc.cuav.net/en/

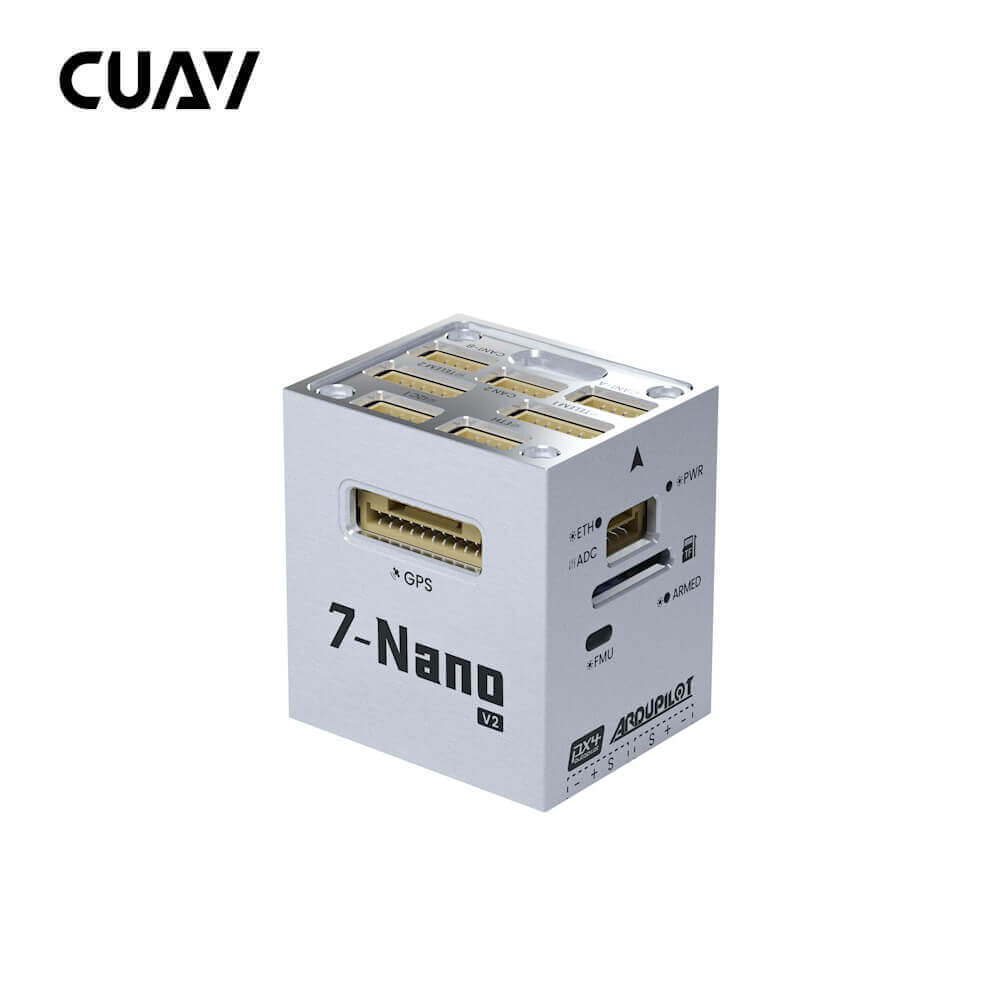

Introduction

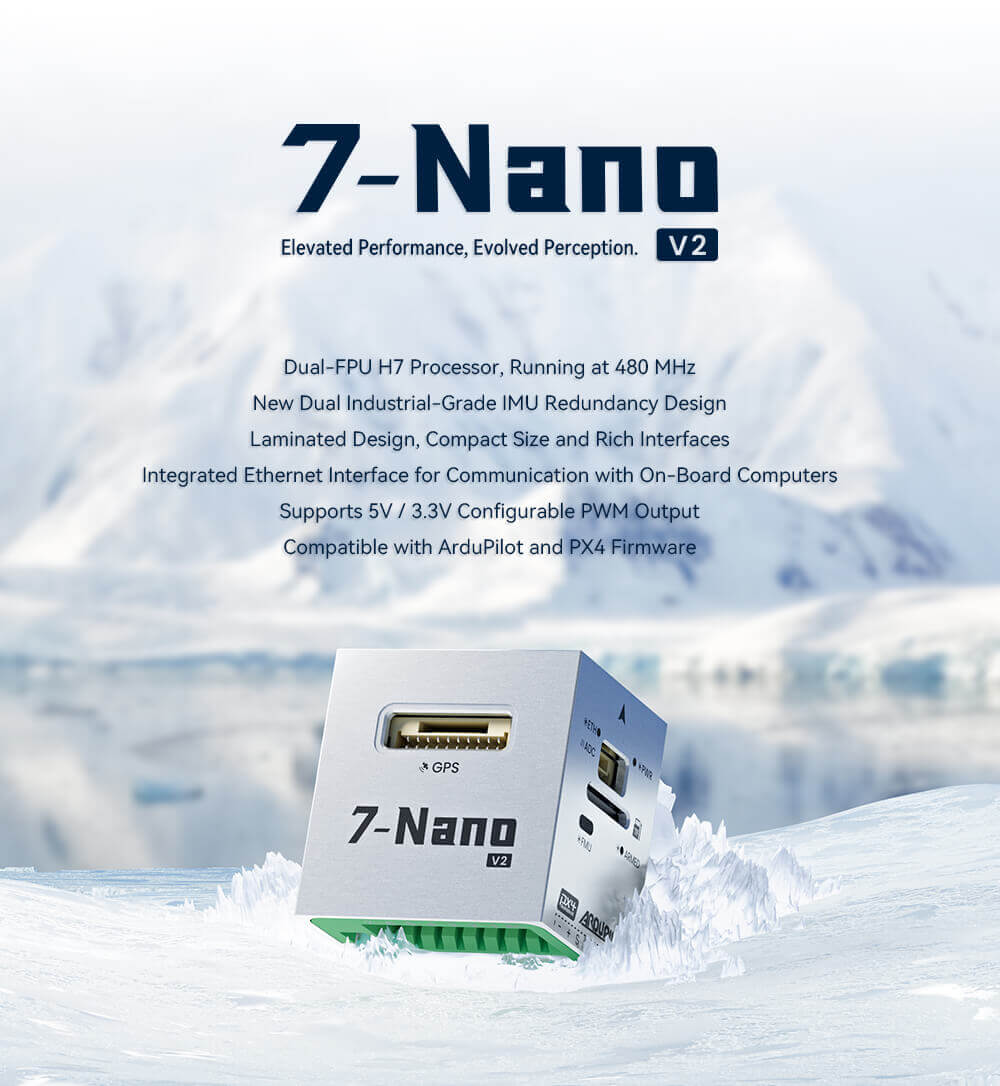

7-Nano V2 is a high-performance, ultra-compact flight controller from CUAV. Featuring a laminated design, dual industrial-grade IMU redundancy, and a powerful STM32H753 processor, it delivers exceptional reliability and precision in a coin-sized form factor. Ideal for FPV drones, micro coaxial helicopters, and other space‑constrained unmanned systems.

Features

• Dual-FPU H7 Processor: STM32H753 @ 480 MHz, 2MB Flash, secure boot & firmware updates.
• Dual Industrial-Grade IMU Redundancy: IIM-42652 / BMI088 with automatic failover.
• Laminated Design, Compact Size: 30.75×31.80×25.75mm, only 33.8g – fits tiny airframes.
• Integrated Ethernet Interface: 100M Ethernet for on-board computer & AI applications.
• Configurable PWM Output: Software-switchable 5V / 3.3V, 14 channels.
• Firmware Compatibility: Supports ArduPilot & PX4, including advanced features (IMU temperature learning, non-GPS navigation, FFT, LUA).

Shipping List

• • • 7-Nano V2 Flight Controller ×1
    • Full Cable Kit ×1
    • 7-VDM Voltage Detection Module ×1
    • Screw Pack ×1
    • Type-C USB Cable ×1
    • Original Packing Box ×1
    • 3M Double-sided Adhesive Tape ×2
    • Carbon Shock-absorbing Plate ×1
    • TF Memory Card ×1

Applications

FPV racing drones; Micro coaxial helicopters; Small UAVs; Unmanned ground vehicles (UGV); Autonomous boats; Research & education platforms; AI vision drones.

Detailed Descriptions

The 7-Nano V2 features a highly integrated laminated design, about the size of a coin, and weighing only 33.8g. Its compact structure allows it to fit easily into space-constrained platforms such as FPV drones or micro coaxial helicopters. Despite its small size, it offers a rich set of functional interfaces with side‑exit wiring for easy installation. Powered by the STM32H753 high‑speed processor with dual‑precision FPU, it supports secure boot and secure firmware updates, and is fully compatible with ArduPilot and PX4 features like IMU temperature learning, non‑GPS navigation, FFT filtering, and LUA scripts. Dual industrial‑grade IMUs (IIM-42652 / BMI088) provide automatic failover, greatly enhancing reliability. The integrated Ethernet interface enables high‑bandwidth communication with onboard computers for AI applications such as drone swarming and visual tracking. With software‑switchable 3.3V/5V PWM outputs, the 7‑Nano V2 adapts to various servos and ESCs. The included 7‑Nano PDB supports 12‑70V input (3‑16S) and up to 79.2A current detection, simplifying power distribution.

Specifications

7-Nano PDB Power Module

7‑Nano V2 Dimensional Drawings

7-Nano V2 PDB Dim Drawings

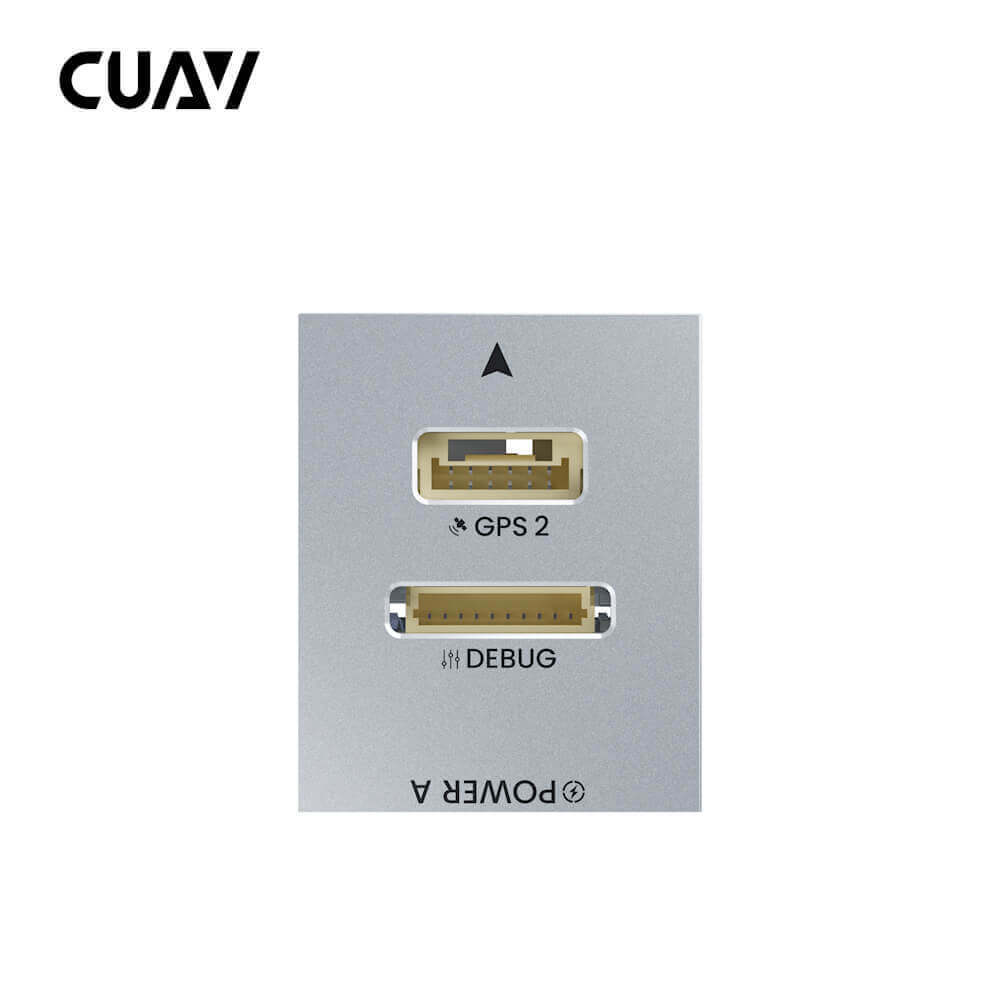

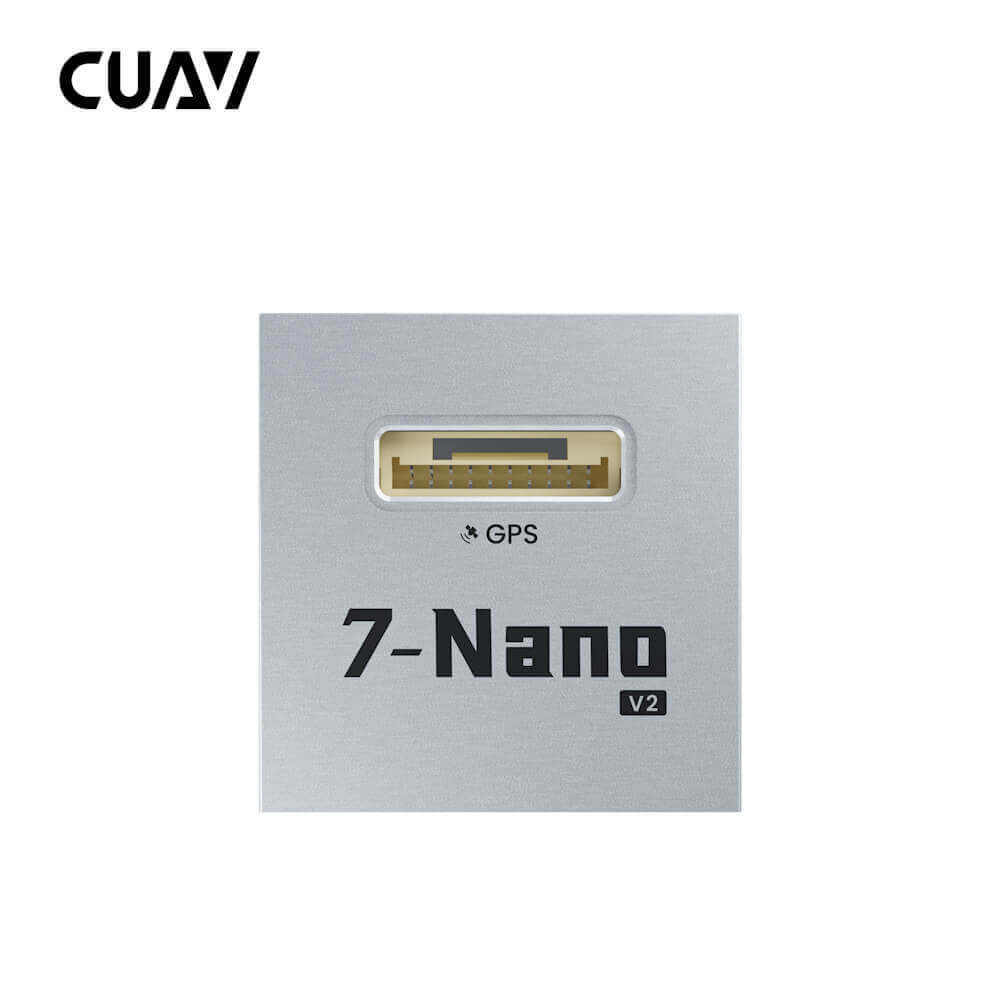

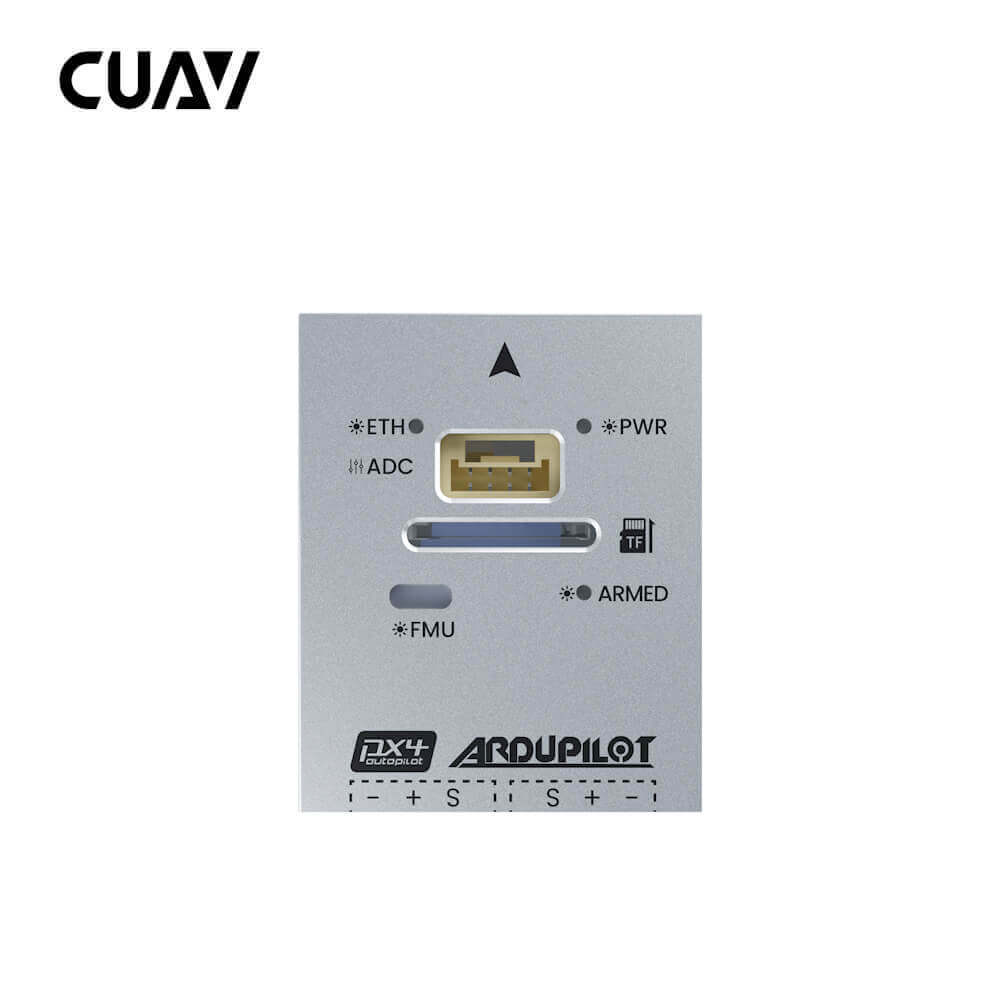

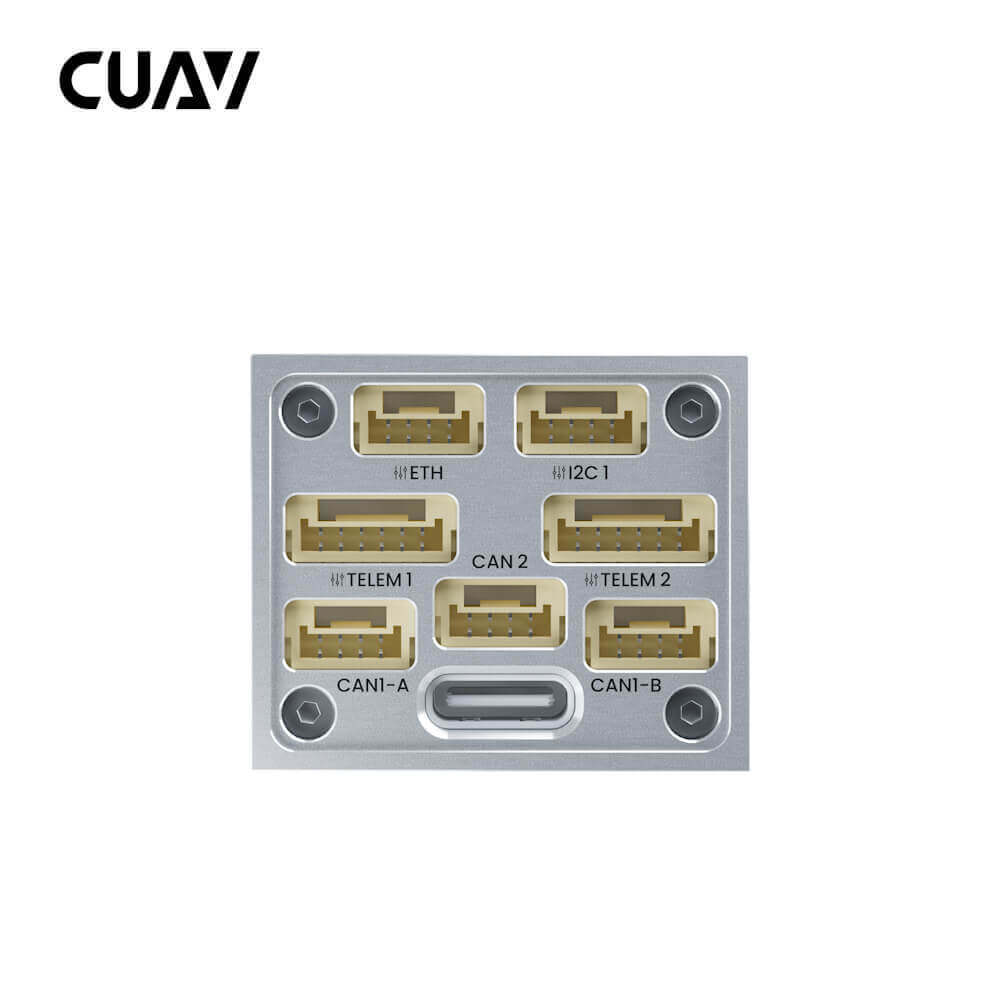

7‑Nano V2 Hardware Interface Definition

7-Nano V2 Controller Description

Compact Size | High-Integration Design

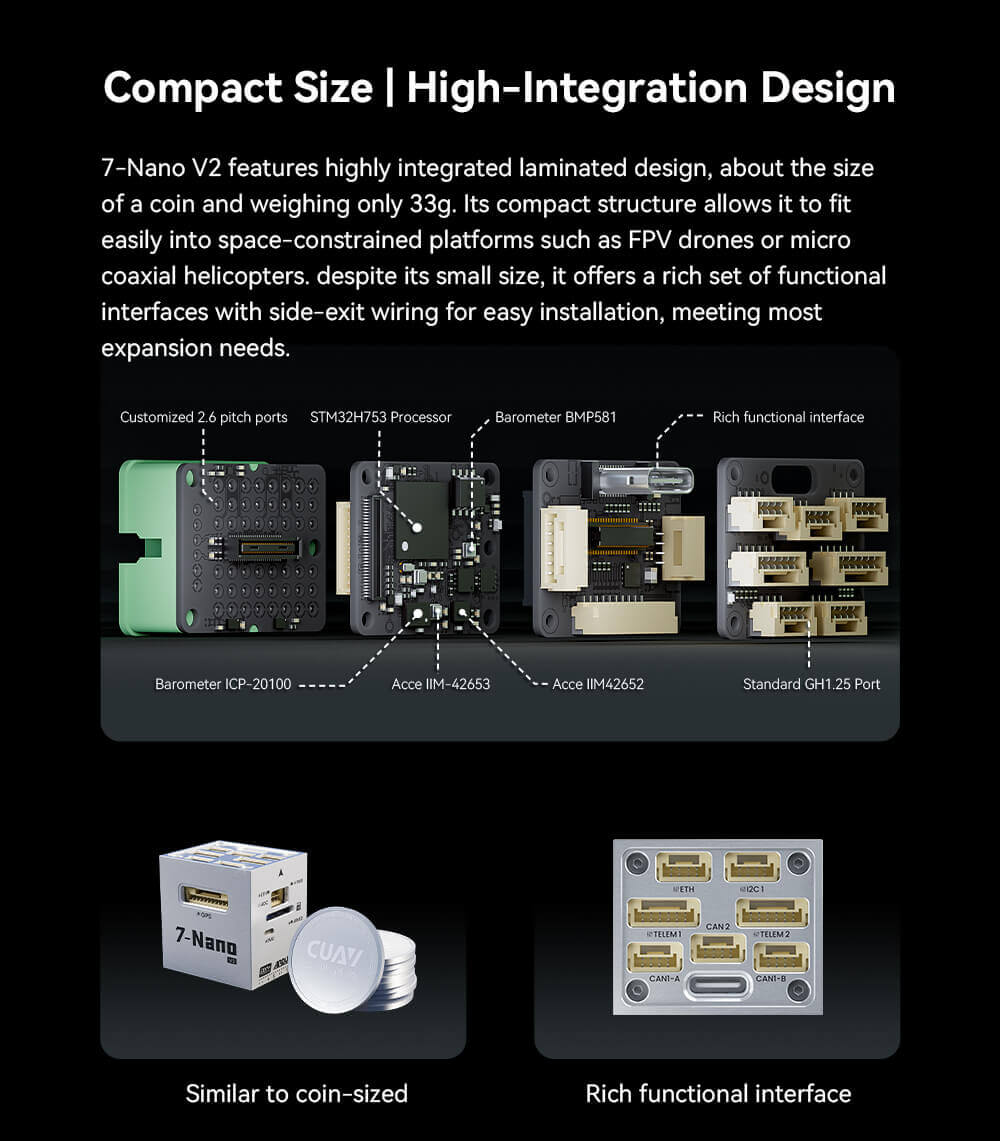

7‑Nano V2 features a highly integrated laminated design, about the size of a coin, and weighing only 33.8g. Its compact structure allows it to fit easily into space‑constrained platforms such as FPV drones or micro coaxial helicopters. Despite its small size, it offers a rich set of functional interfaces with side‑exit wiring for easy installation, meeting most expansion needs.

Powerful Core | H7 High-Speed Processor

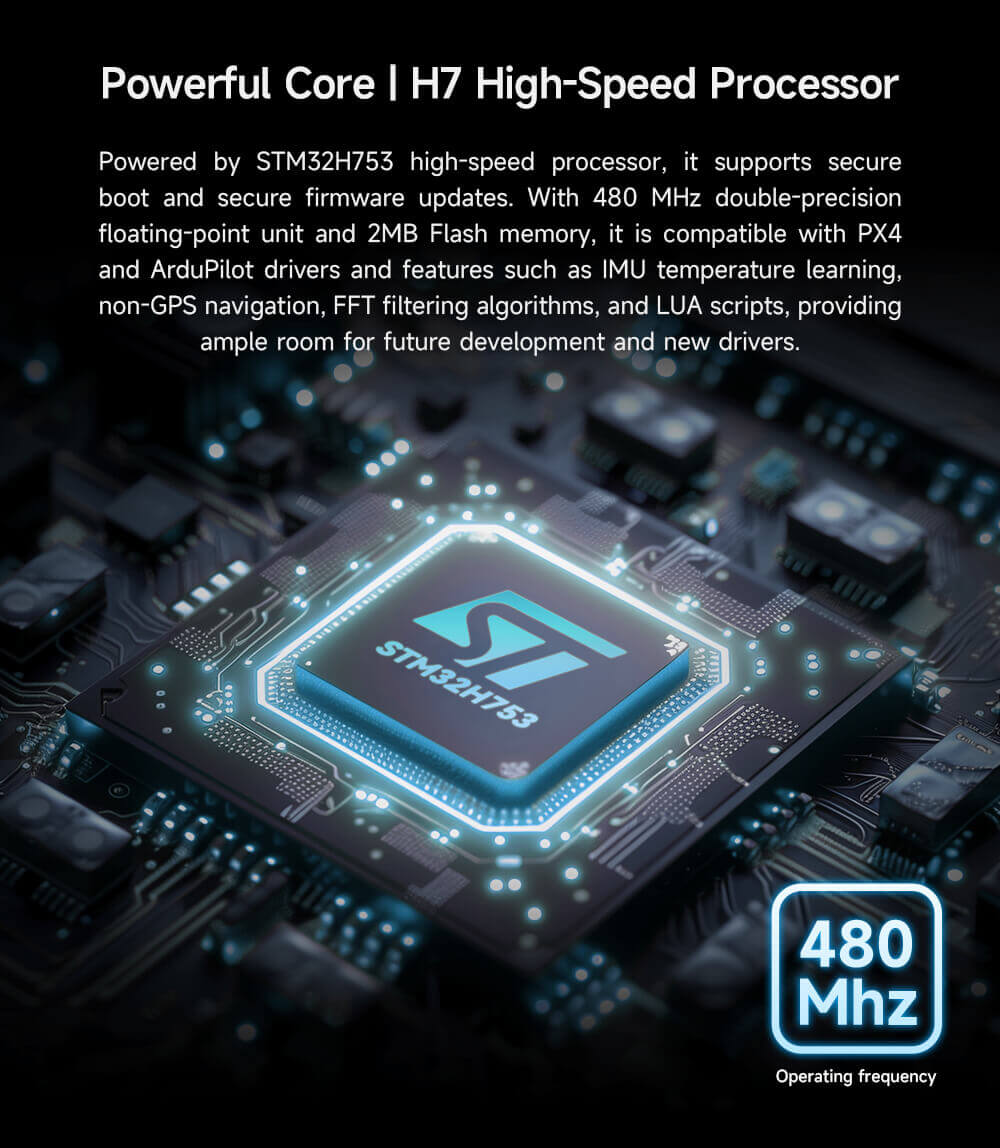

Powered by the STM32H753 high‑speed processor, it supports secure boot and secure firmware updates. With a 480 MHz double‑precision floating‑point unit and 2MB Flash memory, it is compatible with PX4 and ArduPilot drivers and features such as IMU temperature learning, non‑GPS navigation, FFT filtering algorithms, and LUA scripts, providing ample room for future development and new drivers.

Reliability Foundation | Dual-Redundant IMU Design

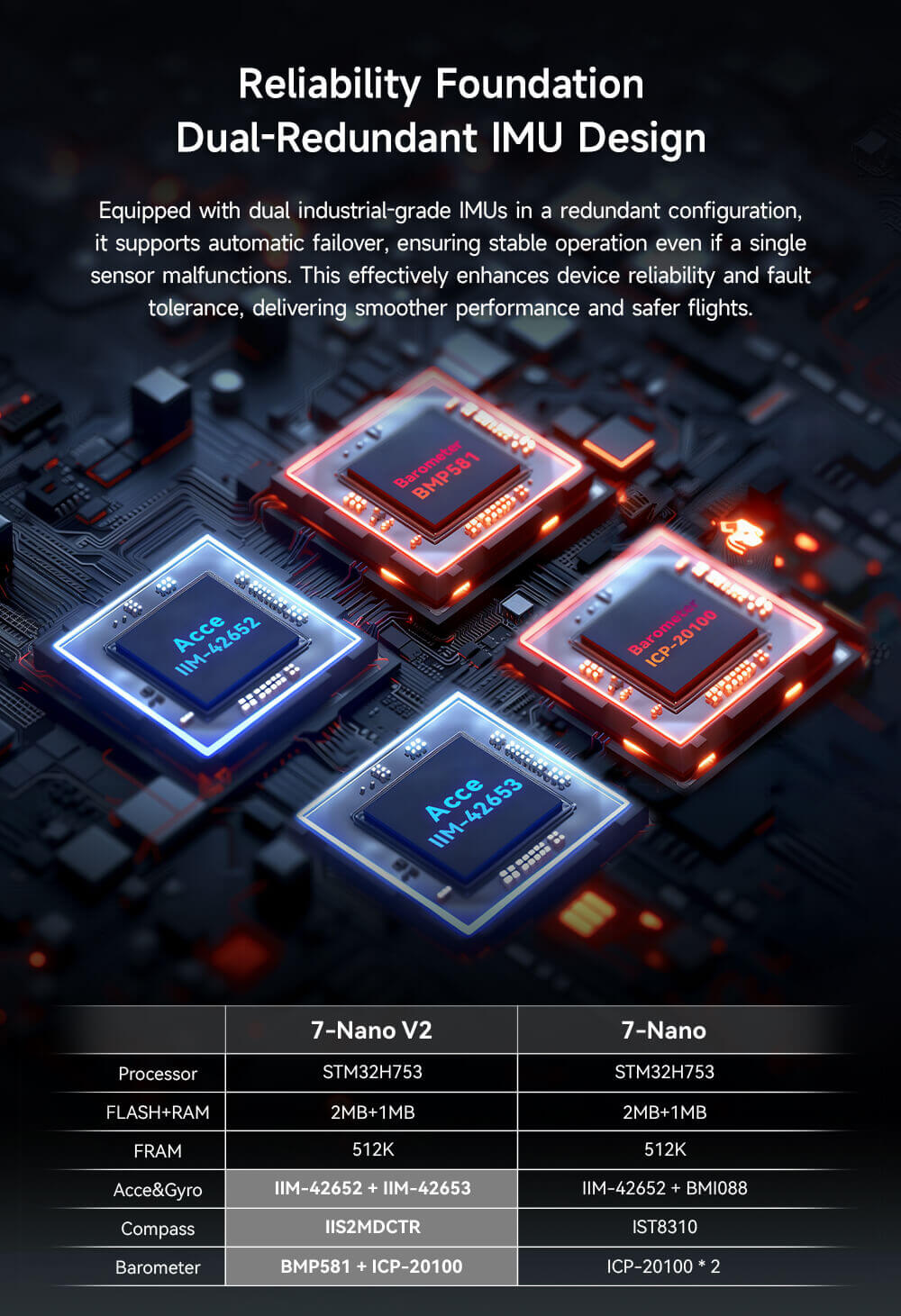

Equipped with dual industrial‑grade IMUs in a redundant configuration, it supports automatic failover, ensuring stable operation even if a single sensor malfunctions. This effectively enhances device reliability and fault tolerance, delivering smoother performance and safer flights.

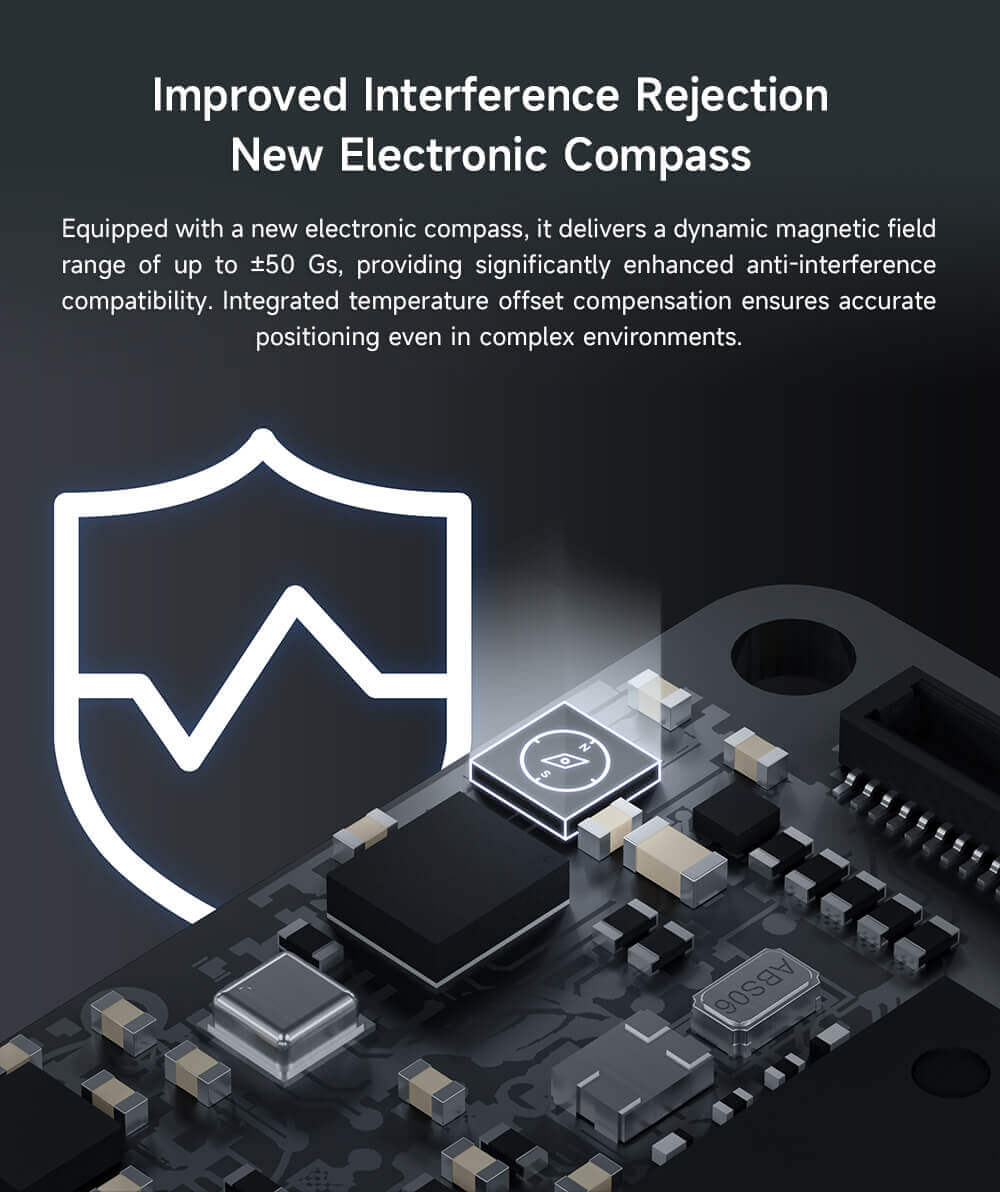

Improved Interference Rejection | New Electronic Compass

Equipped with a new electronic compass, it delivers a dynamic magnetic field range of up to +50 Gs, providing significantly enhanced anti‑interference compatibility. Integrated temperature offset compensation ensures accurate positioning even in complex environments.

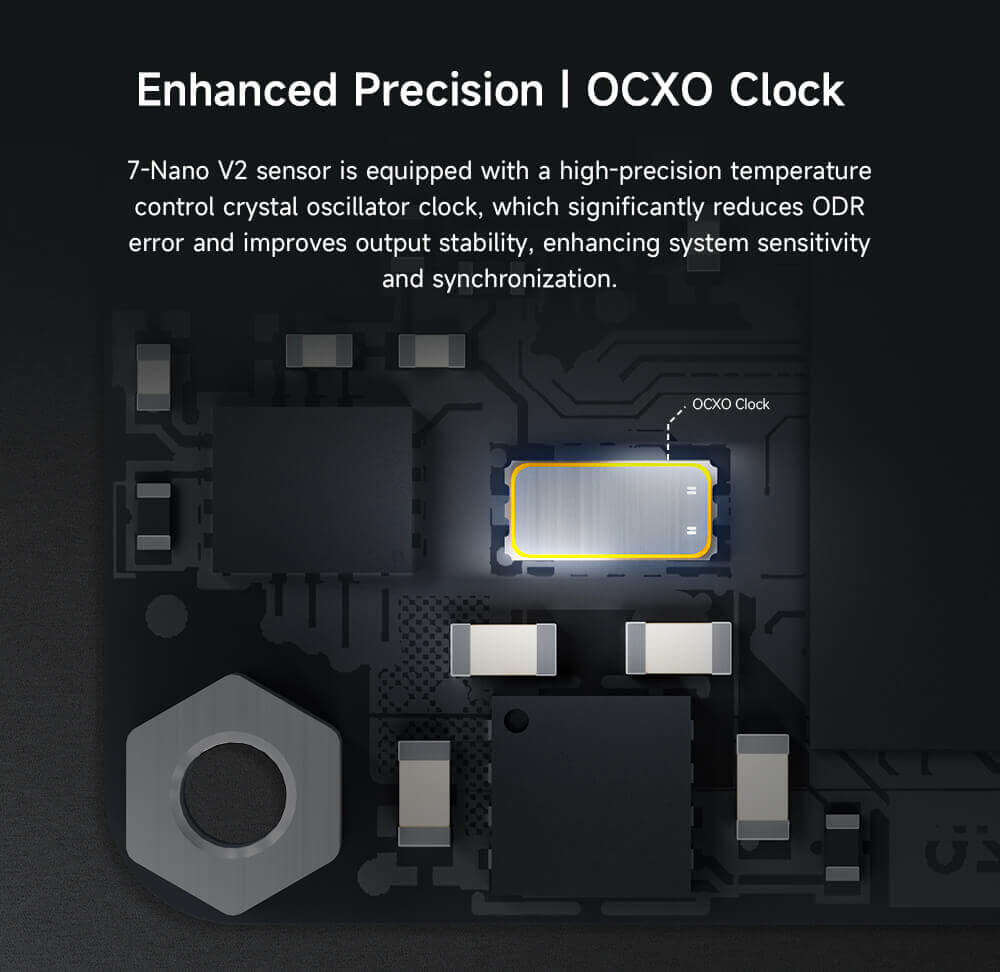

Enhanced Precision | OCXO Clock

The 7‑Nano V2 sensor is equipped with a high‑precision temperature‑controlled crystal oscillator clock, which significantly reduces ODR error and improves output stability, enhancing system sensitivity and synchronization.

Multi-Mode Adaptability | Flexible PWM Output Switching

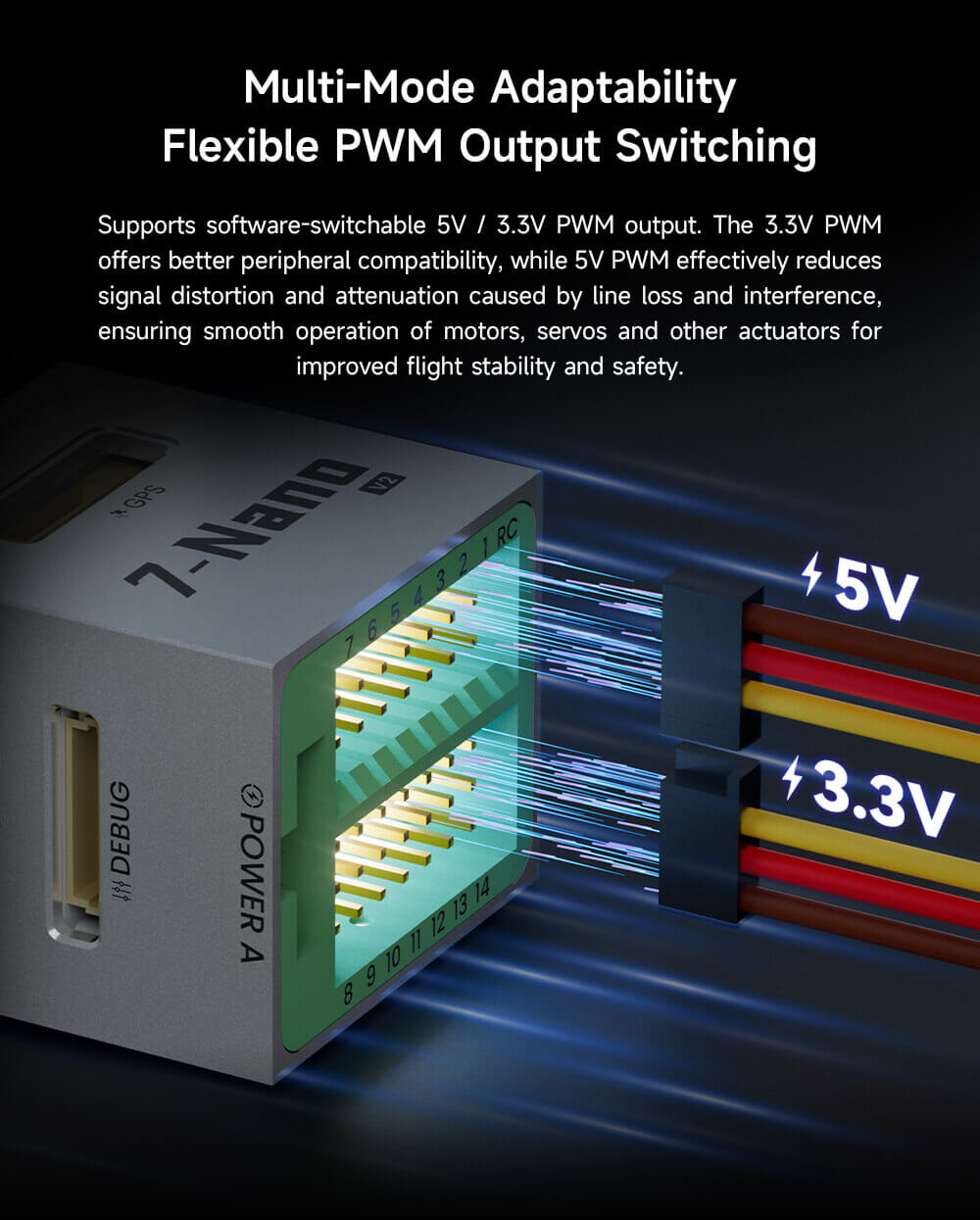

Supports software‑switchable 5V / 3.3V PWM output. The 3.3V PWM offers better peripheral compatibility, while 5V PWM effectively reduces signal distortion and attenuation caused by line loss and interference, ensuring smooth operation of motors, servos, and other actuators for improved flight stability and safety.

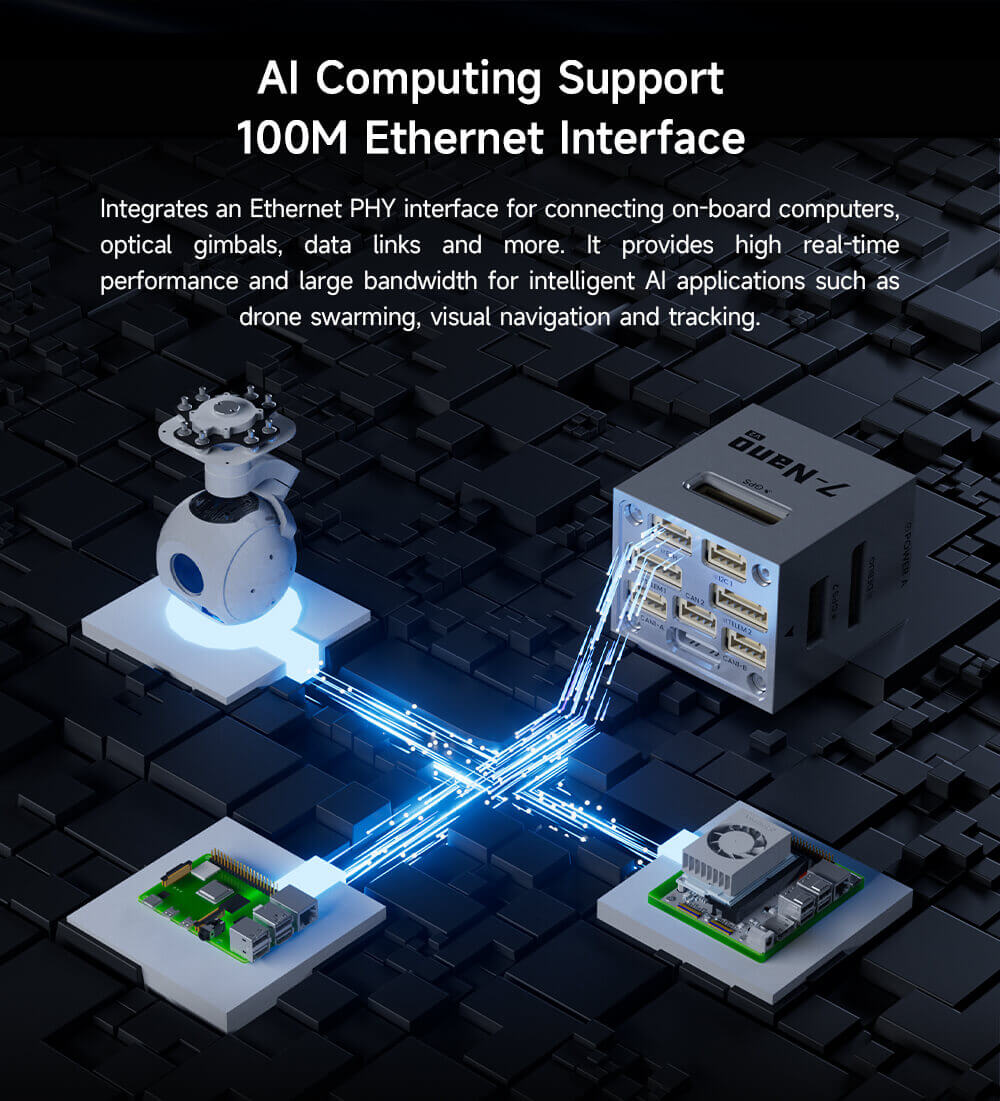

AI Computing Support | 100M Ethernet Interface

Integrates an Ethernet PHY interface for connecting on‑board computers, optical gimbals, data links and more. It provides high real‑time performance and large bandwidth for intelligent AI applications such as drone swarming, visual navigation and tracking.

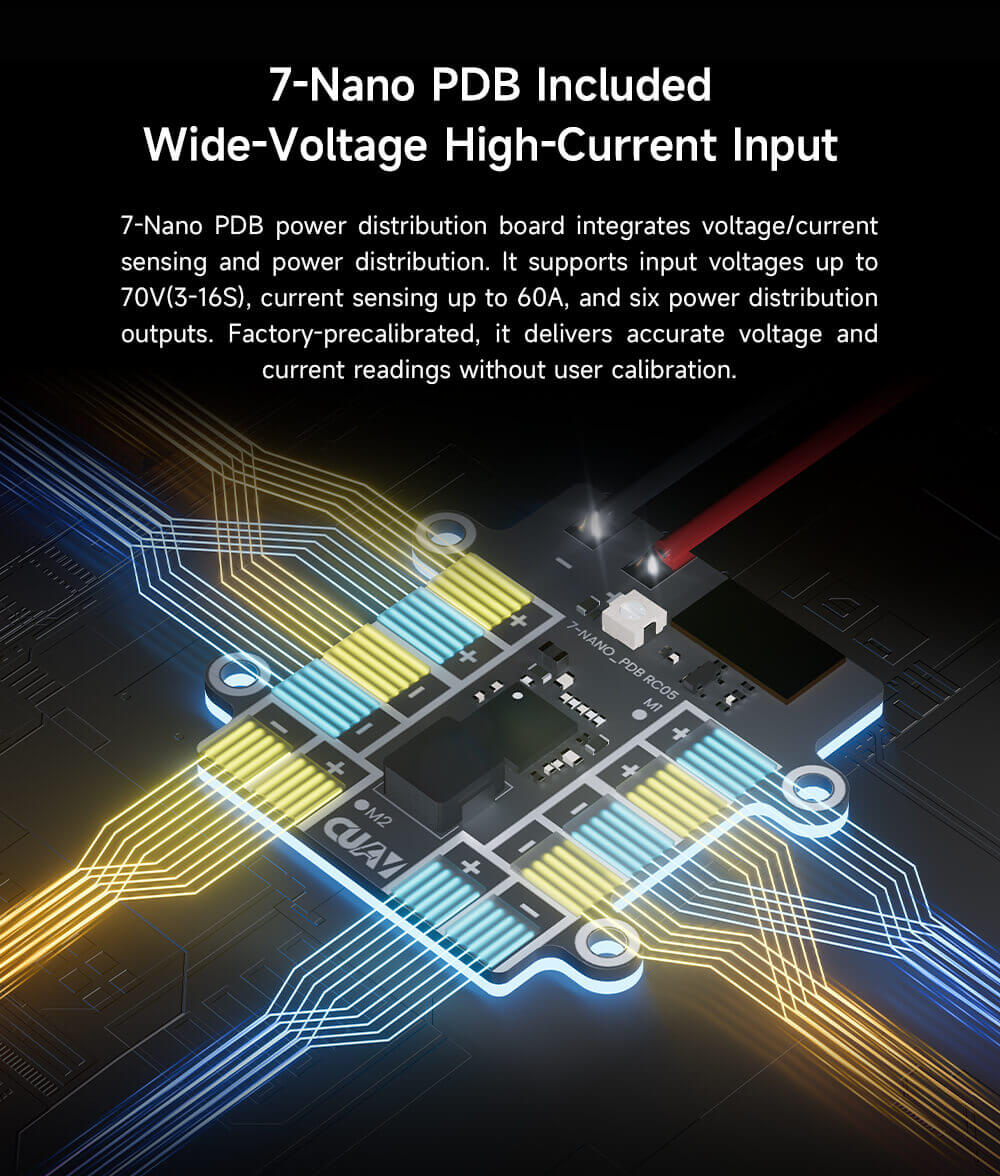

7-Nano PDB Included | Wide-Voltage High-Current Input

7‑Nano PDB power distribution board integrates voltage/current sensing and power distribution. It supports input voltages up to 70V (3‑16S), current sensing up to 79.2A, and six power distribution outputs. Factory‑precalibrated, it delivers accurate voltage and current readings without user calibration.

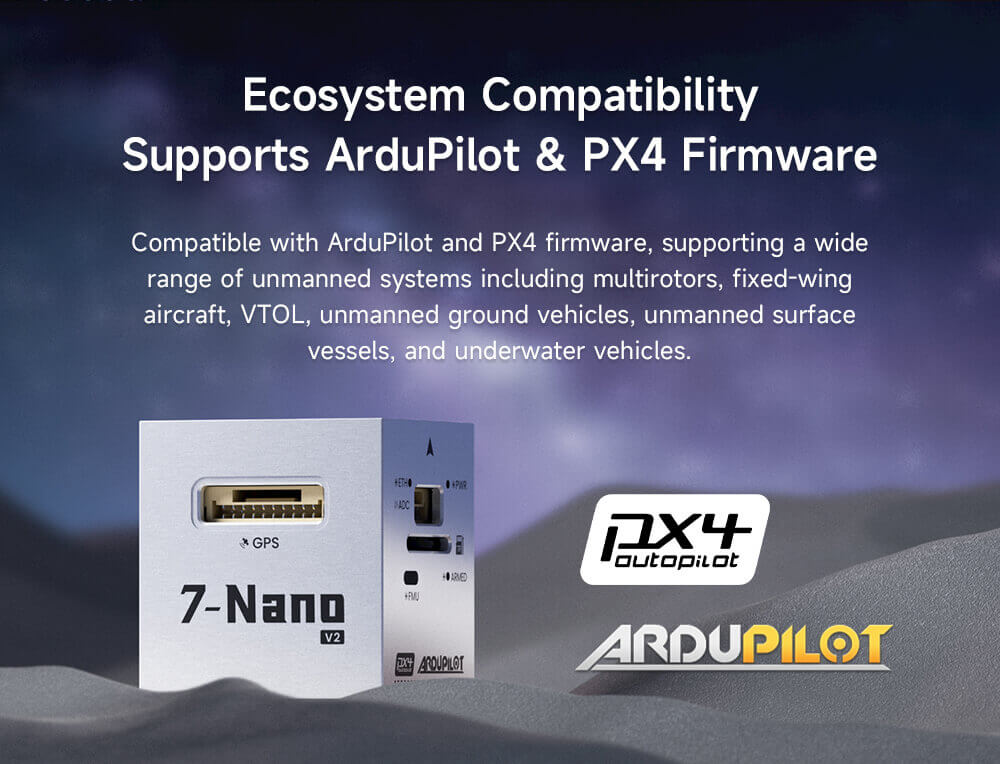

Ecosystem Compatibility | Supports ArduPilot & PX4 Firmware

Compatible with ArduPilot and PX4 firmware, supporting a wide range of unmanned systems, including multirotors, fixed‑wing aircraft, VTOL, unmanned ground vehicles, unmanned surface vessels, and underwater vehicles.
