CUAV P9 telemetry features:
1–902-928MHz frequency band
2–276kbps Link Rate
3–40km Range.

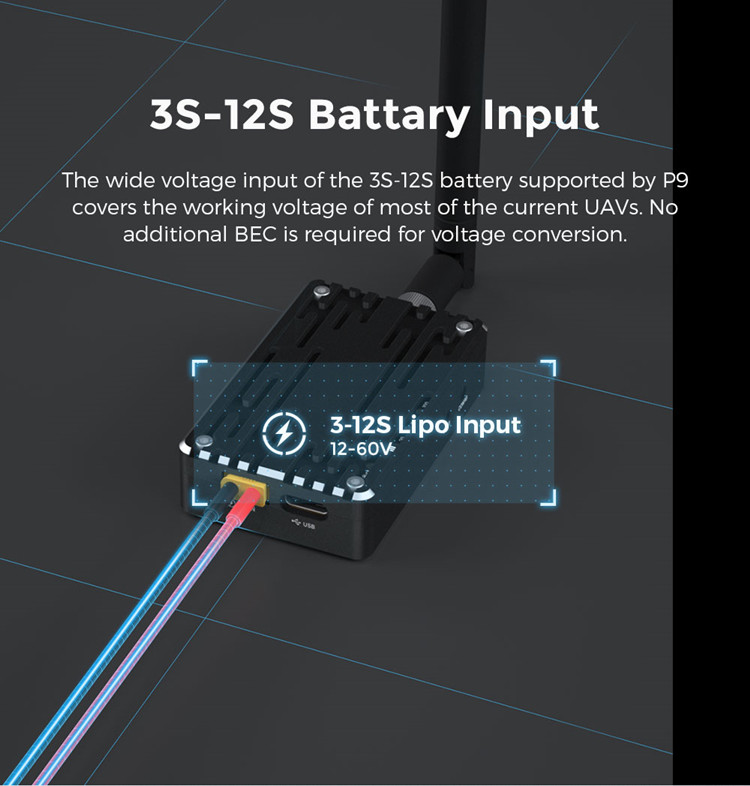

4–Support 3S-12S Battery Input.

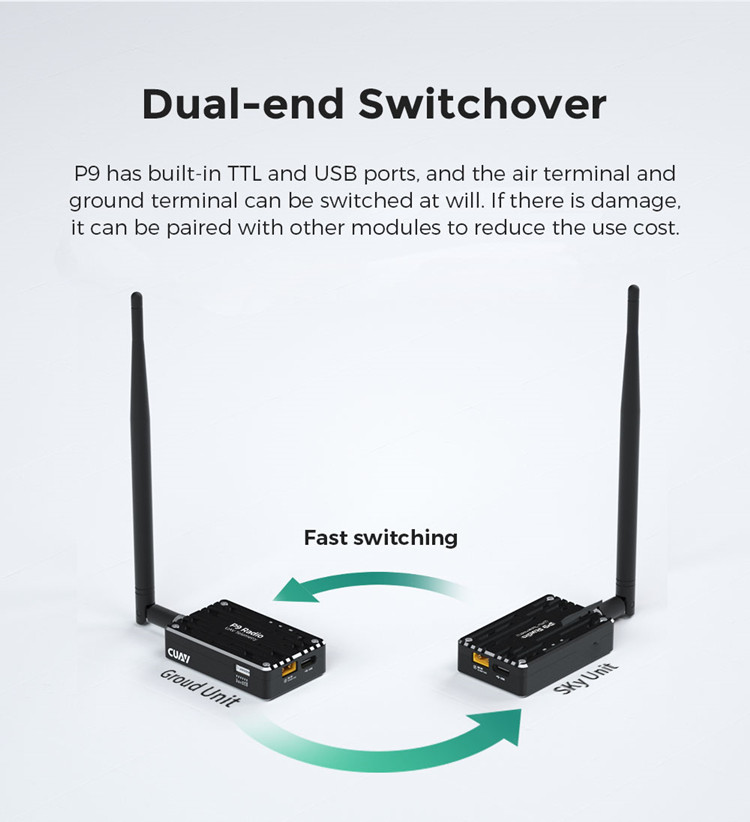

5–Dual-end Switchover design reduced costs

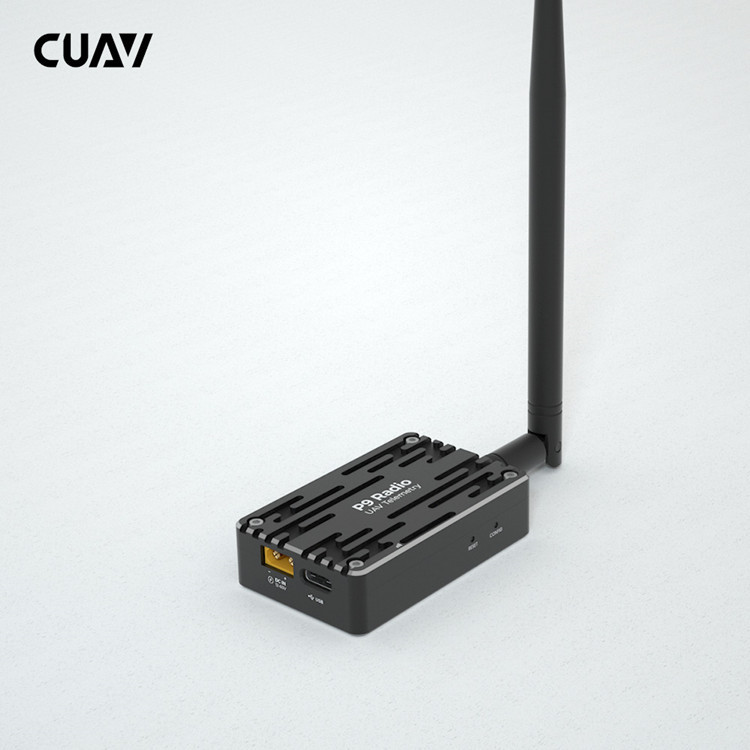

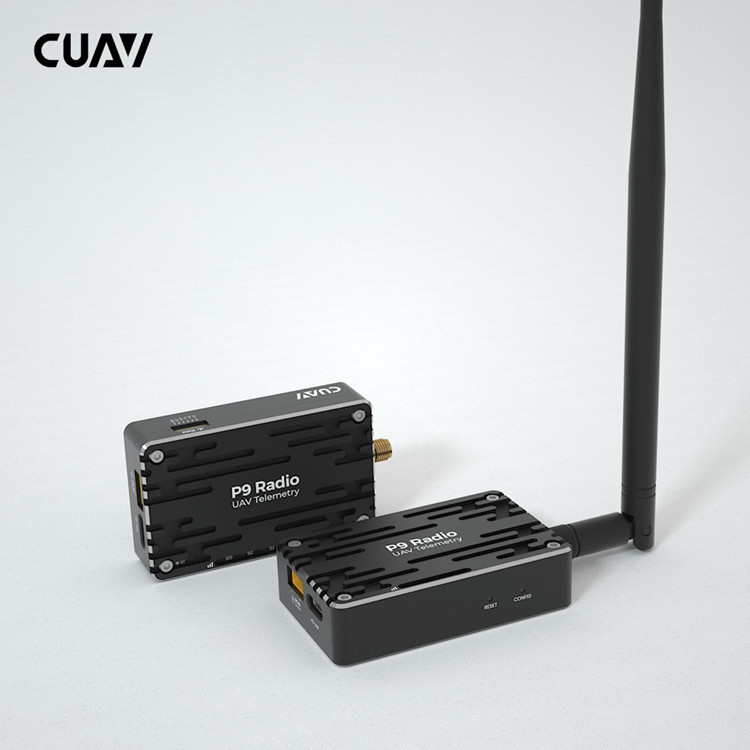

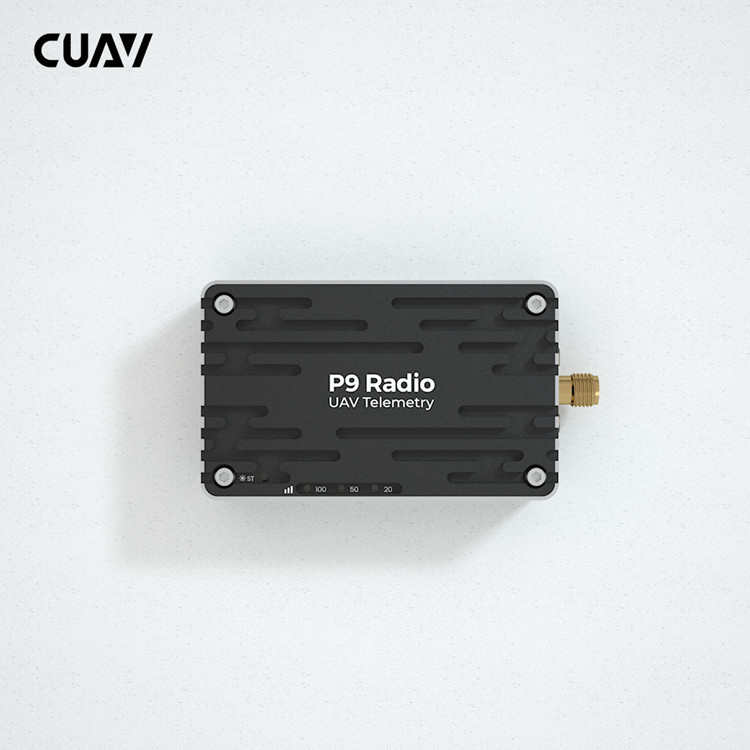

P9 Radio is CUAV’s new long-range data link communication module. It has the characteristics of high power, high speed, and high receiving sensitivity.
Based on your need
| Working frequency | 902-928 MHz |
|---|---|
| Transmission technology | Frequency Hopping |
| Transfer Protocol | Transparent transmission |
| Forwarding error detection | Hamming /BCH/Golay/Reed-Solomon |
| Error detecting | Error Detection 32 bits of CRC, ARQ |
| Encrypt | Optional (see –AES option) |
| Range | - Reference distance: 40km (The transmission distance is different under different environments/configurations, please refer to actual use) |
| Sensitivity | -110 dBm @ 115.2 kbps -108 dBm @ 172.8 kbps -107 dBm @ 230.4 kbps |
| Output power | 100mW - 1W (20-30dBm) （Default：1W) |
| Serial interface | 3.3V CMOS TTL |
| Antenna gain | 5DBi |
| Baud rate | UP to 230.4kbps; 57600（Default） |
| Link Rate | 115 - 276 kbps |
| Operating Modes | Auto Routing, Store and Forward, Self Healing, Packet Routing Modes |
| Operating Voltage | 12V-60V |
| Power consumption | Sleep < 1mA Idle < 3.5mA RX : 35mA ~ 80mA TX :800mA ~ 1200mA |

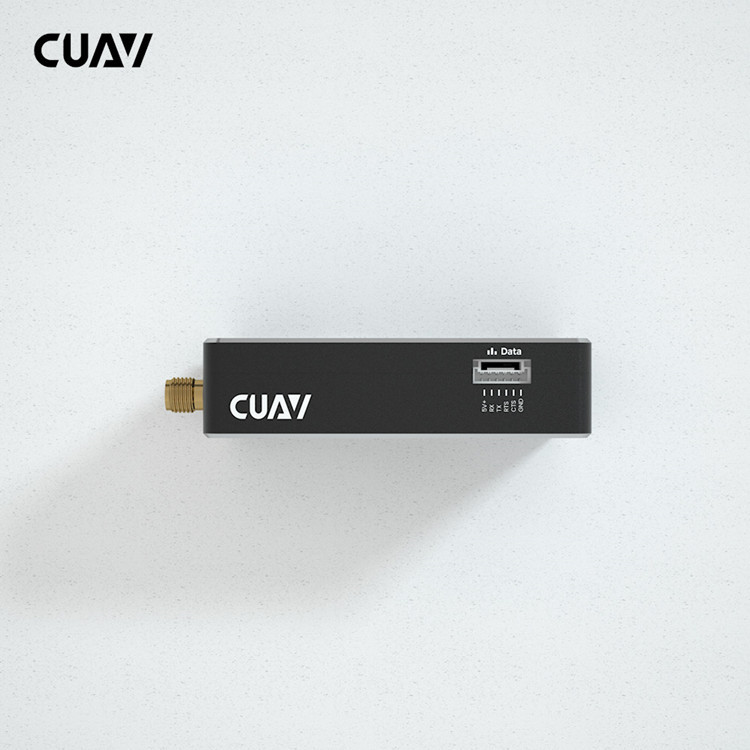

| Interface | Serial: GHR-06V-S Antenna: SMA inner needle USB: TYPE-C Power: TX30PW-M |
| Operating temperature | -40℃ ~ +85℃ |
| Humidity | 5% ~ 95%(Non-condensing) |
| Size | 5g(No antenna); Antenna:31g |
| Weight | 65mmx40mmx16.5mm |
