Mugin-3 3220mm UAV V-Tail Platform Frame Kit

• Quick Start
• Tips

Introduction

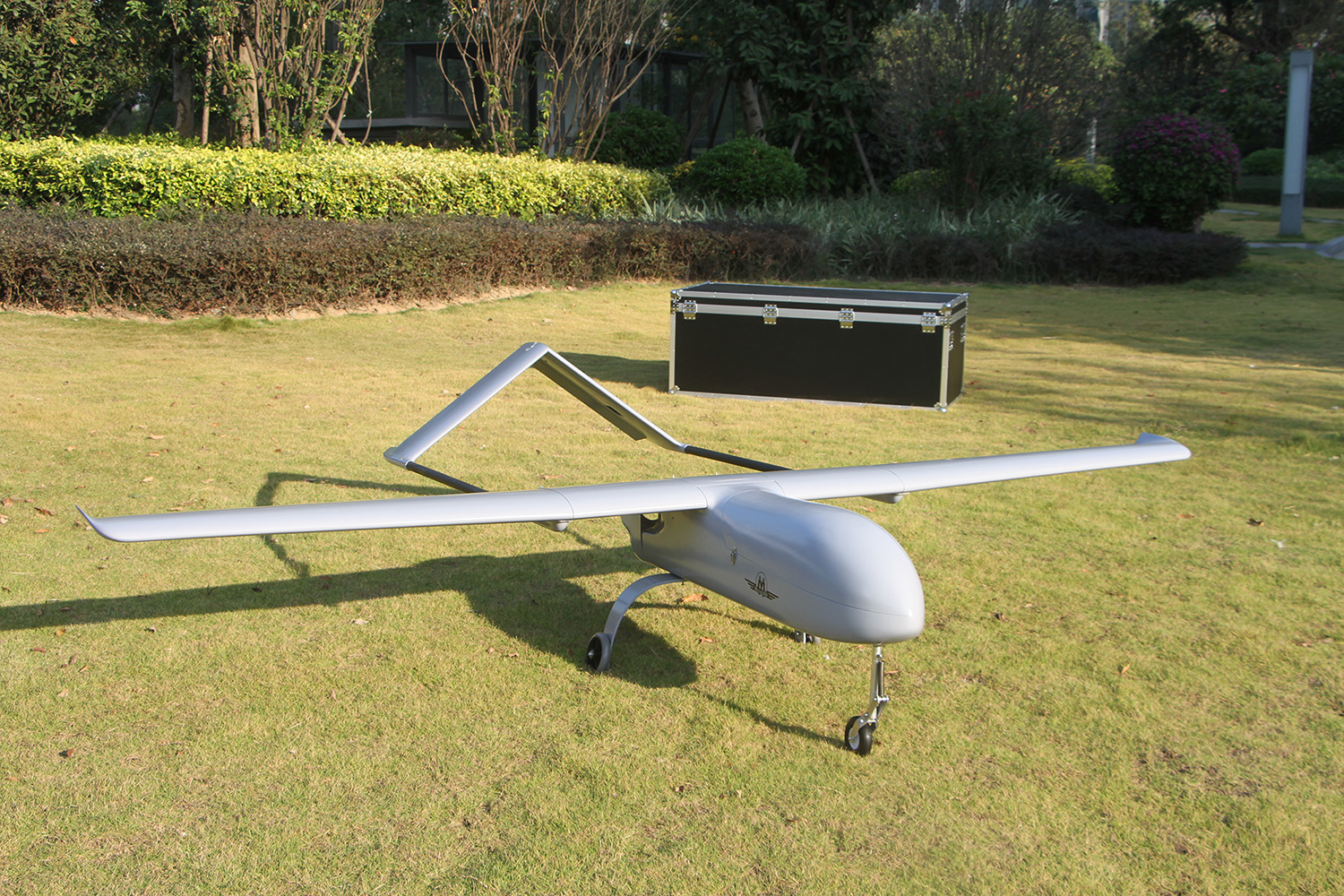

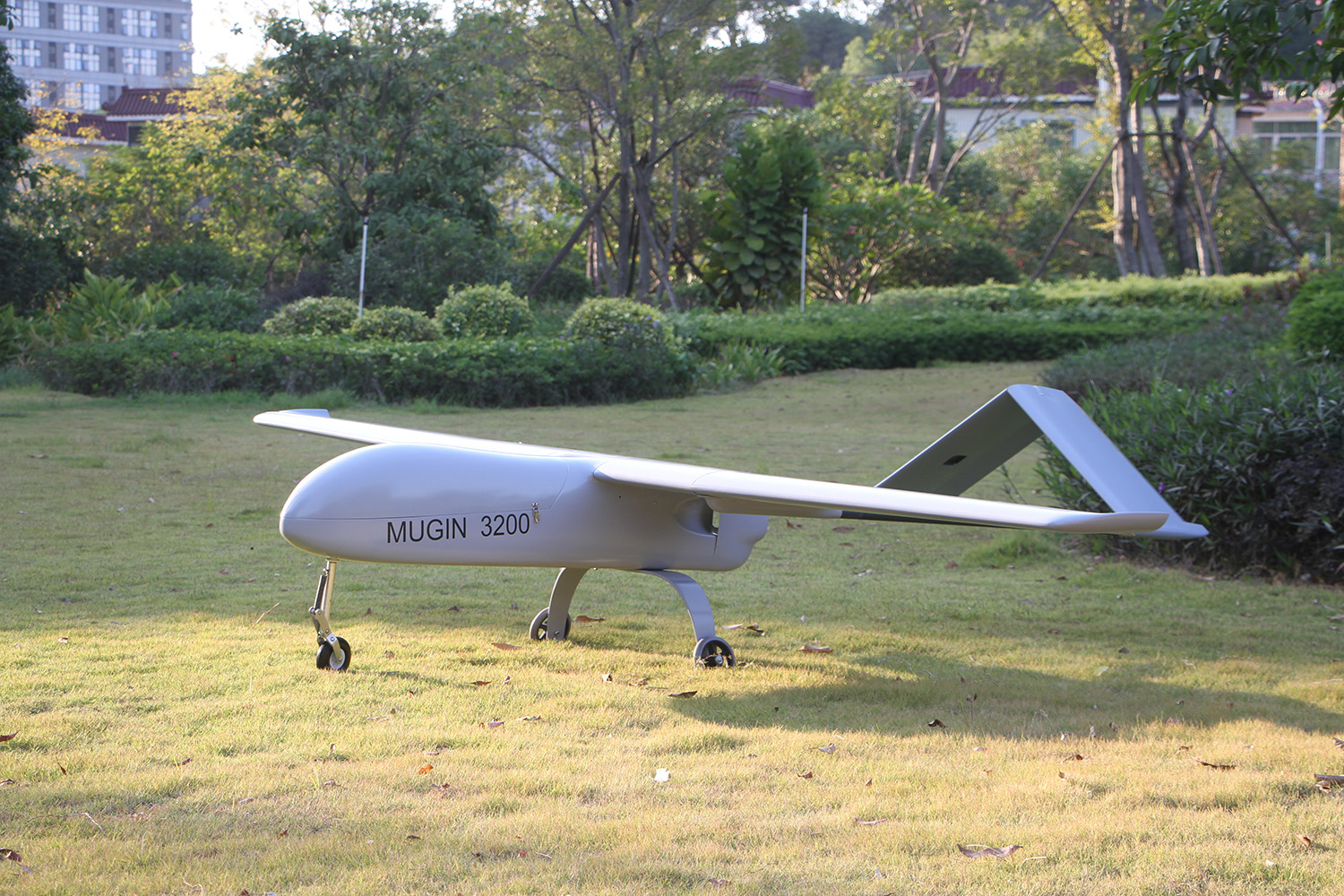

Mugin 3220 UAV V-Tail Platform Frame Kit is a versatile and customizable airframe designed for professional aerial applications. With a wingspan of 3220mm and a length of 2348mm, this UAV frame kit offers excellent aerodynamic performance. Made from a composite of wood and fiberglass, it has an empty weight of 12.45 kg and is engineered to accommodate a payload of up to 8kg.

Unlike many UAVs, this product comes as an empty frame kit, allowing users the flexibility to customize it with a 50-80cc engine and either a gasoline or electrical power package, both of which must be purchased separately. The frame kit is optimized for both short and long-endurance missions, capable of flying up to 3 hours on 6 liters of fuel.

Overall, the New Mugin 3M UAV V-Tail Platform Frame Kit offers a robust and customizable solution for a variety of professional aerial tasks.

Features

Material Upgrade: Advanced Carbon Fiber material is used to enhance structural integrity and reduce empty weight.

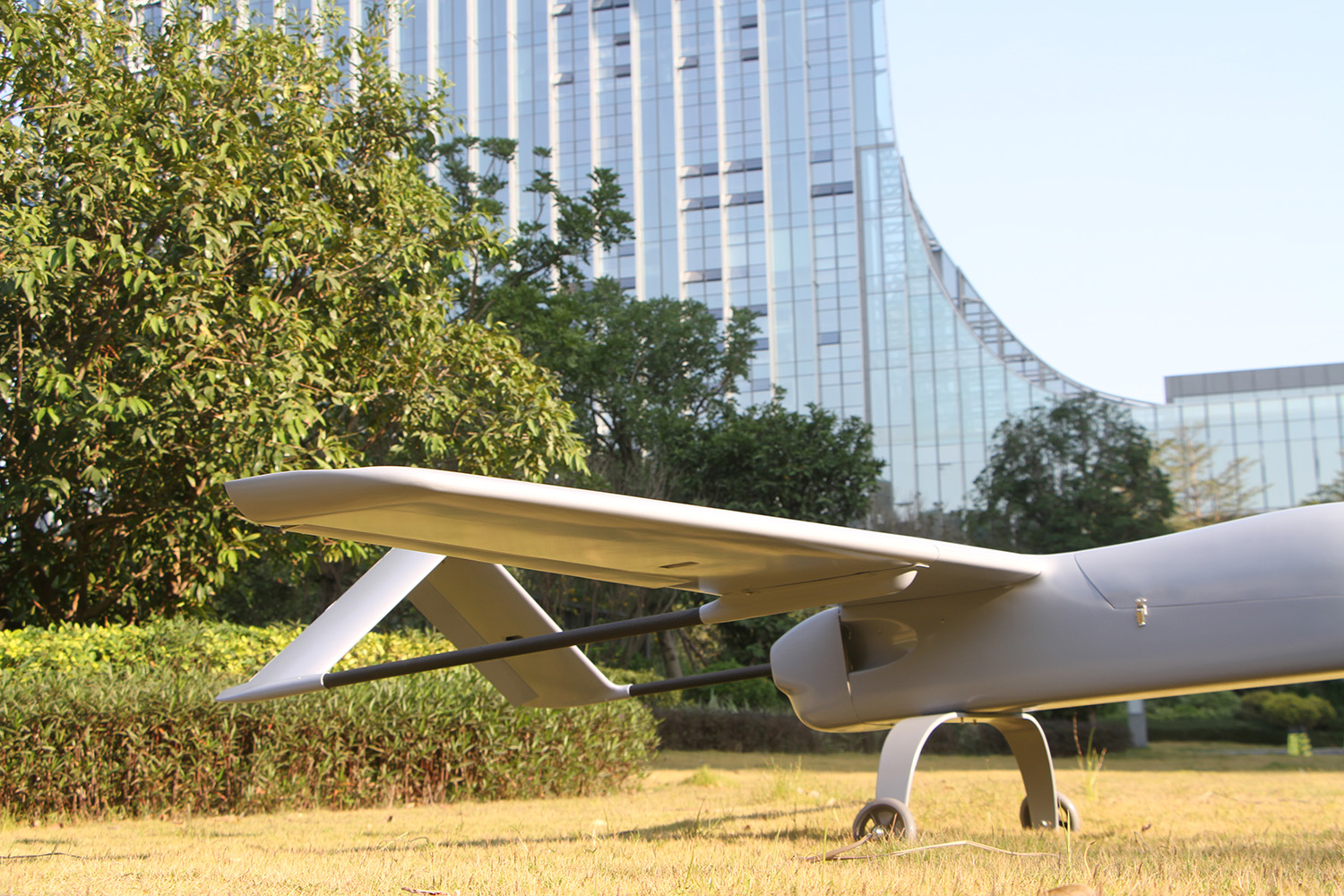

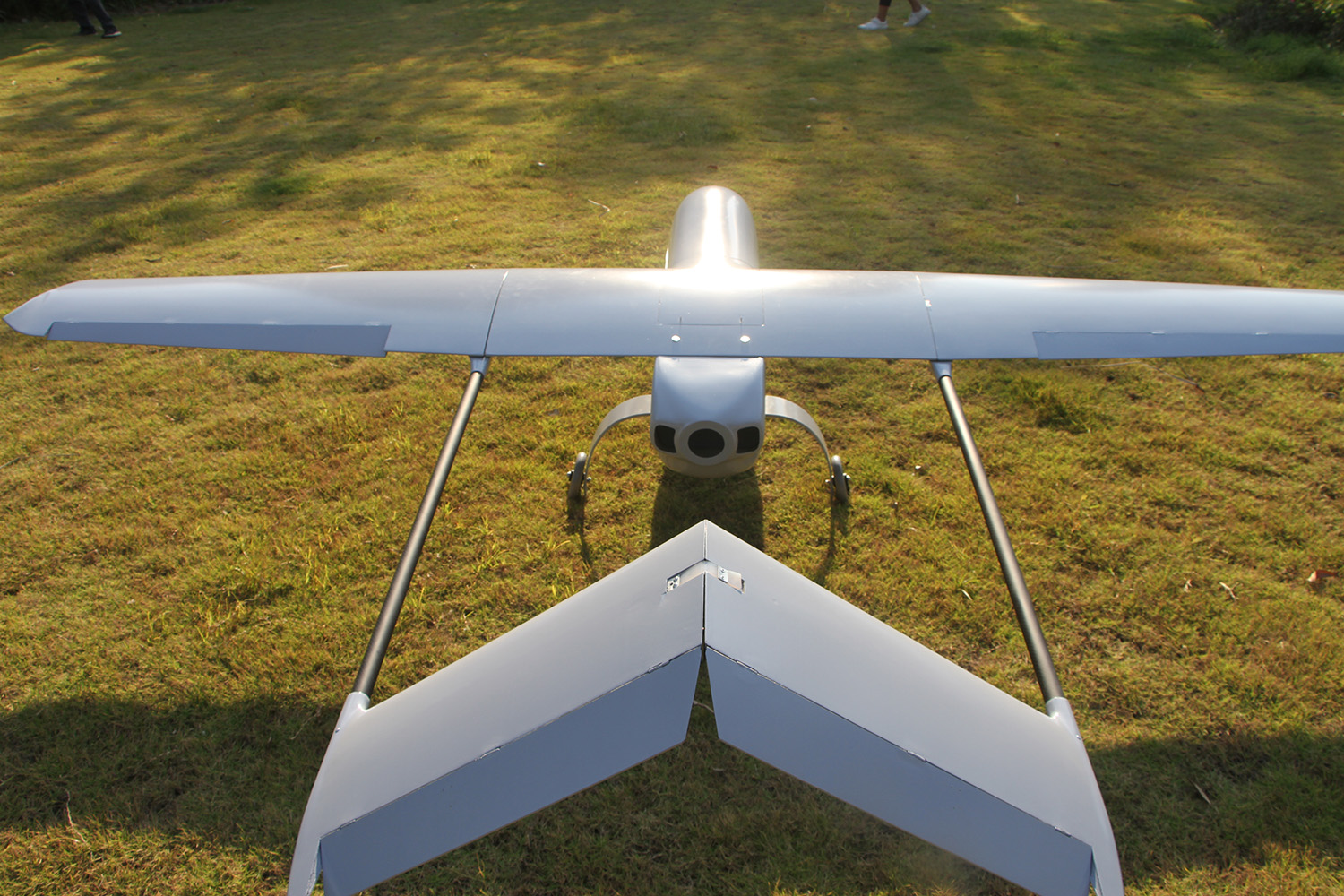

Aerodynamic design: V-shaped tail configuration for enhanced stability and control.
High performance: Maximum payload of 8 kg and maximum take-off weight of 28 kg, suitable for carrying surveillance equipment or scientific instruments.
Fuel Efficiency: Only 3 liters of fuel are required for up to 6 hours of flight, making it suitable for long endurance missions.
Customizable: Customizable power packages are available, allowing users to choose between gasoline or electric systems according to their specific needs.

Detailed Descriptions

Technical Data
Wingspan: 3220mm
Length: 2348mm
Wing Area: 112dm²
Empty Weight: 12.45kg
Flying Weight: 25kg
Max. Flying Time: 3 hours
Load weight: 8kg

Recommended Gasoline Power Package (not included)

DLE60 Engine x 1
Savox 1256 x 7
23×9 High Power Propeller x 1
AT23D Long UAV Pitot Tube x 1
Nav. LED lights x 1 set
Build Kit x 1

Recommended Electrical Power Package (not included)

Dualsky GA6000.8 180RPM/V Brushless Motor x 1
Dualsky XC13036HV 130A High Voltage ESC x 1
Savox 1256 Servo x 5
24×12 High Power Propeller w/ Prop Cover x 1
AT23D Long UAV Pitot Tube x 1
Nav. LED lights x 1 set
Build Kit x 1

Package Size: 300.0 * 200.0 * 100.0 ( cm )
Gross Weight/Package: 24.0 (kg)
