Vendor: sipeed
SKU: SPDPMAI00011
Availability: In stock
$526.00 $612.00 (-14%)
Shipping calculated at checkout.
MaixCAM Pro Bunlde: GC4653 CAM without BAT
Product subtotal: $526.00

You may also like

Overview

Designed for rapid deployment of edge AI vision models, the Sipeed MaixCAM-Pro combines multi-core compute and integrated hardware peripherals in an ultra-compact form factor. Powered by the Sophgo SG2002 SoC, this developer kit features a 1GHz 64-bit RISC-V C906 core (switchable with an optional ARM Cortex-A53 core) running Linux, a secondary 700MHz RISC-V core running RTOS, and an efficient 8051 low-power core. Upgraded from the base MaixCAM, the Sipeed MaixCAM-Pro adds a 2.4-inch 640x480 IPS capacitive touch display, an onboard 6-axis IMU, an AXP2101 power management IC, and an onboard BM8653 RTC with battery backup, making it an ideal standalone platform for vision AI prototyping and field robotics.

Key Features

  • Multi-Core Hybrid Processing Architecture — Features a 1GHz RISC-V C906/ARM A53 Linux core, a 700MHz RTOS core, and a 25–300MHz 8051 auxiliary core.
  • Integrated 1 TOPS NPU — Delivers 1 TOPS @ INT8 neural processing with BF16 precision support for YOLOv5, YOLOv8, and MobileNetv2 edge inference.
  • High-Definition Touchscreen Interface — Equipped with a 2.4-inch IPS capacitive touch display boasting 640x480 resolution over a 2-lane MIPI DSI interface.
  • Complete Vision & Audio Subsystem — Supports up to 5MP cameras via 4-lane MIPI CSI alongside a built-in microphone and 1W speaker with dedicated PA amplifier.
  • Next-Gen Wireless Connectivity — Integrates onboard Wi-Fi 6 and Bluetooth 5.4 (BLE) with Type-C USB 2.0 host/device support.
  • Field-Ready Hardware Upgrades — Includes an onboard 6-axis IMU, hardware RTC, PMOD expansion header, and standard 1/4-inch tripod mounting thread.

Applications

  • Real-time edge vision processing, object detection, and visual tracking
  • Robotics navigation, pose estimation, and autonomous mobility
  • Industrial defect detection, optical character recognition, and barcode scanning
  • Smart home vision systems, intelligent doorbell nodes, and biometric access
  • Interactive educational kits and portable AI experiment modules

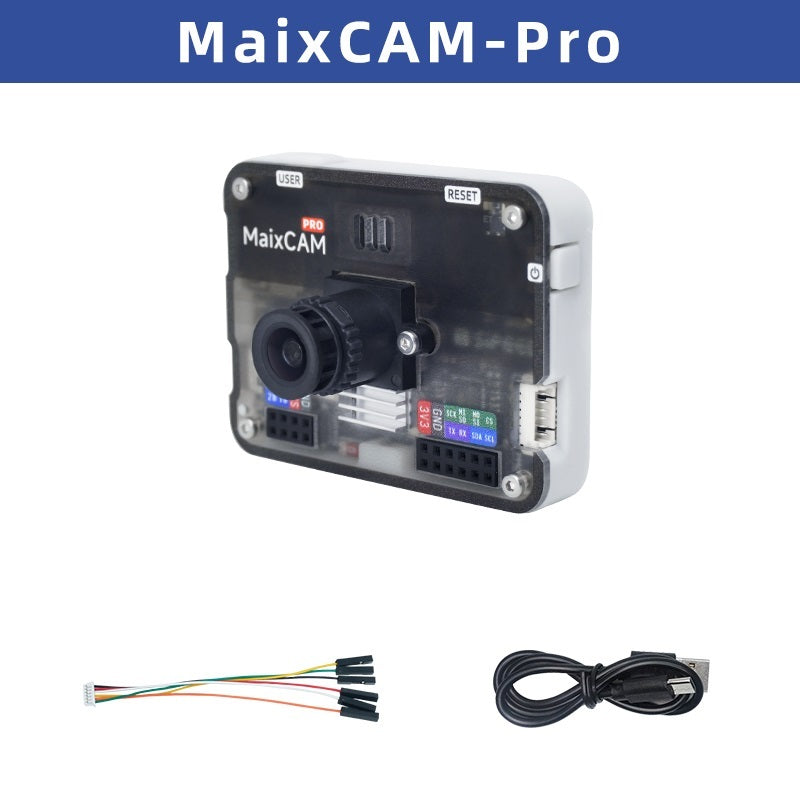

What's in the Box

  • 1 x Sipeed MaixCAM-Pro development unit with 2.4-inch touchscreen and protective acrylic case
  • 1 x Camera module (sensor model variant dependent)
  • 1 x Mounting hardware kit (screw accessories)
  • Note: Li-ion battery is included only with battery-enabled bundle variants (TBD by SKU).

Compatibility & Support

The Sipeed MaixCAM-Pro runs an optimized Linux environment and is fully compatible with Sipeed MaixPy v4 (Python 3.x) and the MaixCDK C/C++ software framework. Full hardware documentation, pinout diagrams, model conversion guides, and SDK source repositories are available on the official Sipeed wiki. All purchases made through youyeetoo include technical customer support and a standard 12-month hardware warranty against manufacturing defects.

Frequently Asked Questions

How does the Sipeed MaixCAM-Pro differ from the standard MaixCAM?

The Pro version upgrades the display to a higher-resolution 2.4-inch 640x480 capacitive touch screen, adds an onboard 6-axis IMU (accelerometer and gyroscope), integrates a BM8653 RTC with backup battery, includes an AXP2101 PMIC for lithium battery management, and adds a standard 1/4-inch tripod mounting hole.

What power input options are supported on this board?

The board is powered via a 5V Type-C USB port and features an onboard AXP2101 power management chip that supports single-cell lithium battery charging and discharging on battery-capable variants.

What neural network models can the 1 TOPS NPU run?

The onboard NPU supports INT8 and BF16 model formats, providing hardware-accelerated operators for popular edge vision architectures such as YOLOv5, YOLOv8, and MobileNetv2.

What development environments and programming languages are available?

Developers can program the device using Python via MaixPy v4 for rapid scripting and prototyping, or use C/C++ with MaixCDK for high-performance edge vision pipelines.

Does the MaixCAM-Pro support external hardware expansion?

Yes, the board includes a 2.54mm PMOD interface with 12 GPIOs, power rails (Vsys, 3.3V, GND), and a 1.25mm 5-pin expansion header supporting I2C, SPI, UART, ADC, and PWM protocols.

Specification

Compared with MaixCAM, MaixCAM-Pro has a redesigned PCB and casing and upgraded some peripherals. Differences with MaixCAM are in bold.

Component Description
CPU Main Core 1GHz RISC-V C906 processor (plus an optional 1GHz ARM A53 core), running Linux
CPU Small Core 700MHz RISC-V C906, running RTOS
CPU Low Power Core 25~300MHz 8051 processor for low-power applications
NPU 1TOPS@INT8, supports BF16 models, supports operators for common models such as Mobilenetv2, YOLOv5, YOLOv8
Memory 256MB DDR3
Storage TF card boot / SD NAND boot
Camera Supports up to 5MP camera, officially supports 4MP GC4653 and OS04A10 cameras (4-lane MIPI CSI input, 22-pin interface, dual CSI split supported)

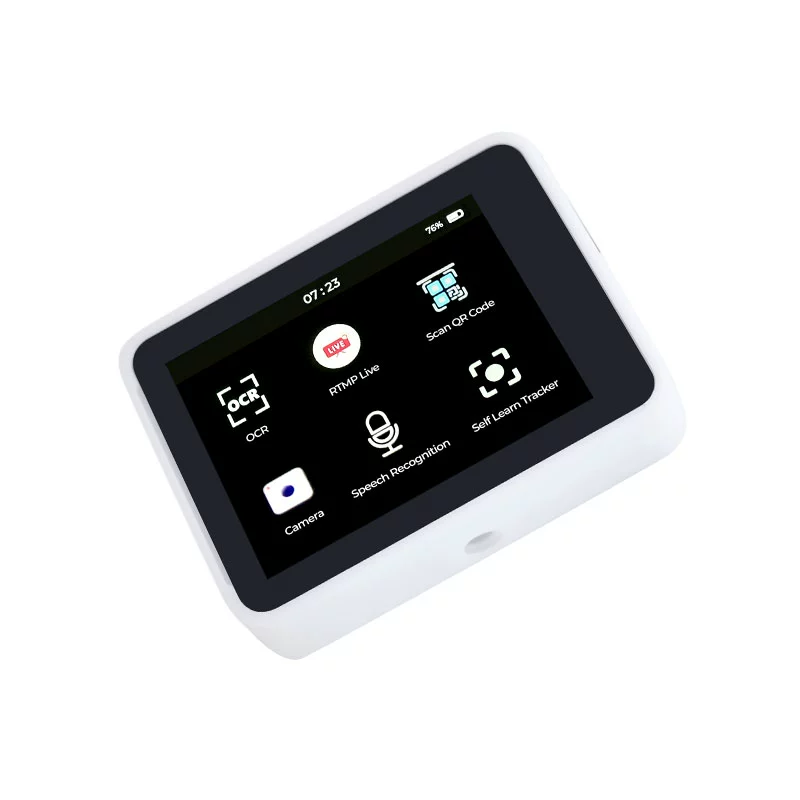

Display 2.4-inch high-definition IPS capacitive touch screen, resolution 640x480 (2-lane MIPI DSI output, standard 31-pin interface, 6-pin capacitive touch)
Audio Output Built-in PA amplifier + 1W speaker
Audio Input Built-in analog silicon microphone for direct voice recording
Network Onboard WiFi6 + BLE5.4 module, customizable Ethernet version
USB Type-C USB2.0 supports device and host mode, supports USB camera

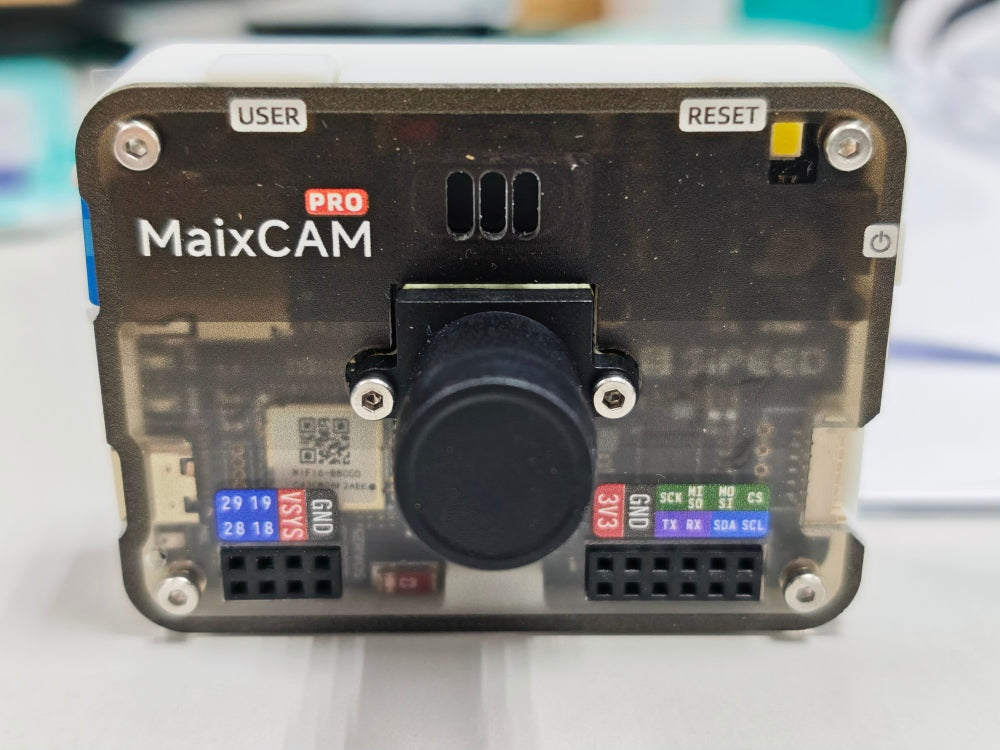

IO Interface 2.54mm PMOD interface, 12 IO + Vsys/3.3v/GND interface + 1.25mm 5-pin extension interface
Buttons 1 x RST button + 1 x USER (function) button + 1 x power button
LED Power indicator + User LED + illumination LED
Codec H.264 / H.265 / MJPEG hardware decoding, supports 2k@30fps encoding and decoding
Peripherals I2C/SPI/UART/ADC/PWM/WDT, etc.
Power Independent power management chip AXP2101 supports lithium battery charging and discharging; available with lithium battery version
Case 3D-printed acrylic case, standard 1/4 inch threaded hole
IMU Onboard six-axis IMU sensor (3-axis accelerometer + 3-axis gyroscope)
RTC Onboard BM8653 RTC chip + button cell, keeps time even when powered off
Dimensions No-battery version: 67x51x12mm, battery version thickness: 16mm


Detailed Descriptions

Sipeed MaixCAM-Pro, RISC-V ARM Multi-core SG2002, MaixCAM MaixPy MaixCDK -  Easy for AI Application -  MaixCAM upgarde


Introduction

MaixCAM Pro is a hardware product designed for the rapid implementation of AI vision, auditory, and AIoT applications. It serves as a platform for quickly verifying product prototypes and rapid mass production. MaixCAM-Pro provides a powerful yet cost-effective processor, along with accessories such as a camera, display, WiFi, and a comprehensive, easy-to-use software ecosystem.


Features

  • AI Algorithm Implementation: AI algorithm engineers can quickly deploy their AI models onto hardware (MaixCAM) with easy-to-use model conversion tools and SDK.
  • STEM Education: Offers an easy-to-use MaixPy SDK and development tools, as well as an online model training platform, allowing teachers to focus on teaching without the need for software or hardware development, enabling students to get started quickly.
  • University Research and Education: Provides rich documentation and tutorials suitable for students at all levels, with RISC-V and AI frontier technologies being helpful for research purposes.
  • A Powerful Tool for Maker and Engineer Prototyping: Thoughtfully designed hardware, rich peripherals, and extremely easy-to-use software help quickly bring your creative ideas and products to life without getting bogged down in basic software and hardware development.
  • Enterprise Product Upgrades and Deployment: Quickly deploy products without expensive R&D costs, or use them as an auxiliary tool, for example, in production line QA, or for adding AI vision capabilities to legacy equipment.
  • Competition Assistant: MaixCAM + MaixPy + MaixCDK can quickly implement various innovations and functions, making it suitable as a designated platform for competitions. Maix products and MaixPy have already been used in various competitions and have won awards.


Shipping List

Please pay special attention to the product before purchase: with battery, without battery, the shell is not the same. The shell without BAT will be smaller, so subsequent installation of the lithium battery cannot be done.
