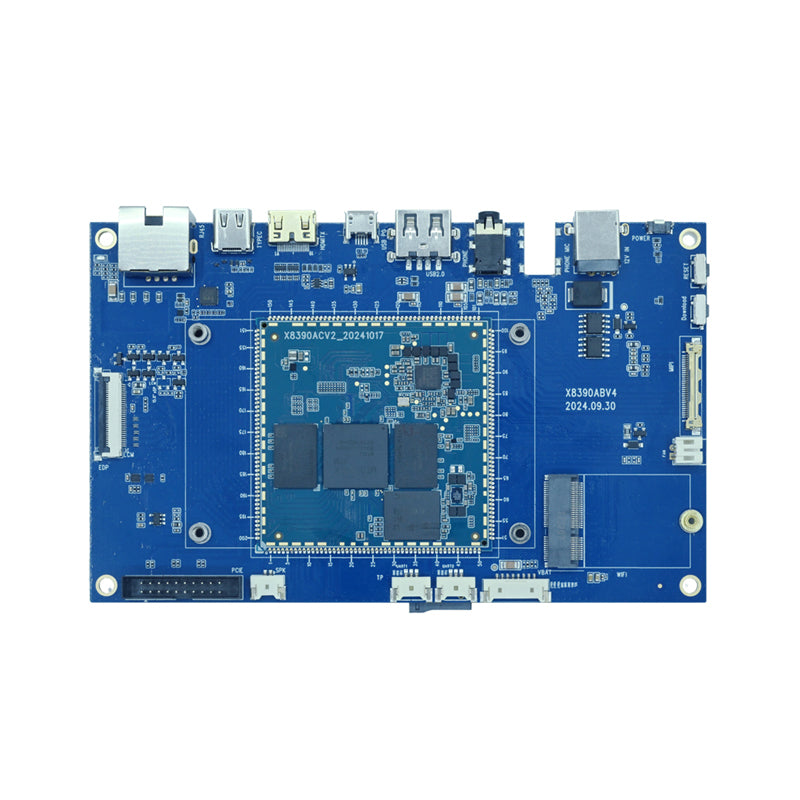

X8390ABV4 MediaTek Development Board Motherboard - MediaTek Genio 510/700 (MT8370/MT8390) Edge-AI IoT Platform
$909.00
Shipping calculated at checkout.
Hurry up! Only 10 left
Couldn't load pickup availability
You may also like
MediaTek Genio 510/700 (MT8370/MT8390) Edge-AI IoT Platform
- Quick Start
- Tips
Introduction
The MediaTek MT8390/8370 development board is a high-performance, highly integrated edge AIoT platform, featuring strong processing capabilities, rich interfaces, and a wide range of applications. MT8390 outperforms in CPU performance, GPU clock speed, APU computing power, and display support, making it suitable for applications with higher performance requirements.
Features
-
High-performance Processor: Both MT8390 and MT8370 feature high-performance CPUs and GPUs, providing strong processing and graphics capabilities.
-
AI Accelerator: MT8390 is equipped with an AI accelerator, offering up to 4 TOPS of computing power, suitable for deep learning, neural network acceleration, and computer vision applications.
-
Rich Interfaces: Both provide a wide range of interfaces, supporting connections to various devices and expansions.
-
Advanced Process Technology: MT8390 uses 6nm process technology, providing excellent energy efficiency and being suitable for fanless computers and battery-powered devices.
-
Wide Range of Applications: Suitable for smart homes, interactive retail, industrial and commercial applications, and more.
Shipping List
1x Dev Board
1x Power Supply
1x USB to TTL
Specification
| Item | Specifications | Comparison |
|---|---|---|
| Chip Model | MT8390/8370 | Both MT8390 and MT8370 are high-performance chips from MediaTek, suitable for edge AIoT platforms |
| CPU | MT8390: Octa-core processor (2x ARM Cortex-A78 2.2GHz + 6x ARM Cortex-A55 2.0GHz) MT8370: Hexa-core CPU (2x 2.2 GHz Arm Cortex-A78 & 4x 2.0 GHz Arm Cortex-A55) |
MT8390 has more CPU cores and higher clock speeds, offering stronger performance |
| GPU | MT8390: ARM Mali-G57 MC2 @950MHz MT8370: ARM Mali-G57 MC2 |
Both have the same GPU model, but MT8390 has a higher clock speed, providing stronger graphics processing capabilities |
| APU | MT8390: 1x MDLA3.0 + 1x VP6, with a computing power of 4.0 TOPS MT8370: Integrated APU (AI processor), with unspecified computing power |
MT8390 has higher APU computing power, offering stronger AI processing capabilities |
| Memory | MT8390: Supports up to 8GB LPDDR4X memory MT8370: Supports up to 8GB LPDDR4X memory |
Both support the same memory |
| Storage | MT8390: Supports up to 512GB eMMC storage MT8370: Supports up to 512GB eMMC storage |
Both support the same storage |
| Operating System | MT8390: Android 13.0 or above MT8370: Android 13.0 or above |
Both support the same operating system |
| Video Decoding | MT8390: 4K @ 75FPS, AV1/VP9/HEVC/H.264 MT8370: 4K @ 60FPS, AV1/VP9/HEVC/H.264 |
MT8390 has stronger video decoding capabilities, supporting higher frame rates |
| Video Encoding | MT8390: 4K @ 30FPS, HEVC/H.264 MT8370: 4K @ 30FPS, HEVC/H.264 |
Both have the same video encoding capabilities |
| Camera Support | MT8390: Supports up to 32MP @ 30fps single camera, 16MP + 16MP @ 30fps dual cameras MT8370: Supports up to 32MP @ 30fps single camera, 16MP + 16MP @ 30fps dual cameras |
Both have the same camera support |
| Display Support | MT8390: Supports 4K30 + 4K60 resolution output MT8370: Supports FHD60 + 4K60 resolution output |
MT8390 supports higher display resolutions and refresh rates |
| Network Connectivity | MT8390: Supports 2.4G/5G dual-band Wi-Fi (optional Wi-Fi 6 support), Bluetooth 5.0, Gigabit Ethernet MT8370: Supports 2.4G/5G dual-band Wi-Fi (optional Wi-Fi 6 support), Bluetooth 5.0, Gigabit Ethernet |
Both have the same network connectivity capabilities |

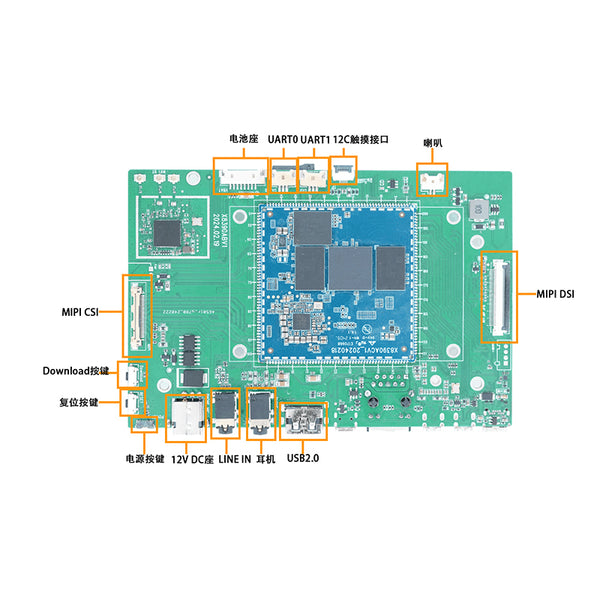

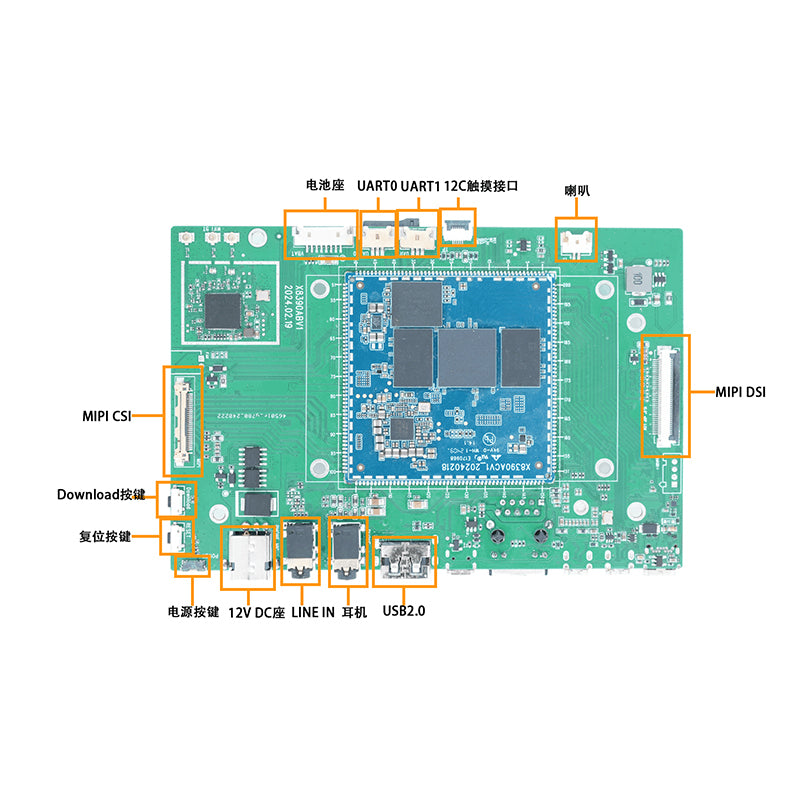

| Interfaces | MT8390: Rich interfaces, including MIPI DSI, EDP, DP, HDMI, touch interface, dual camera interfaces, 3 USB interfaces (2 USB 2.0 and 1 USB 3.1), 4 UART, 6 I2C, 5 SPI, 3 I2S, 3 ADC, various GPIO, etc. MT8370: Flexible high-speed I/O interfaces, supports WiFi-6 and 5G Sub-6 modules, 1x PCIe Gen2, 1x USB3.1, 2x USB2.0 OTG/host, and 1x Gigabit Ethernet MAC, etc. |
Both have rich interfaces, but MT8390 has more types of interfaces, offering stronger expandability |
Detailed Descriptions
To be done
