Rockchip RK3576 Industrial Mini Motherboard (6TOPS NPU / 8K Video Codec)

• Quick Start Guide & Tech Docs: Download CAM-3576 Series PDF Specification
• Tips: Supports Ubuntu, Linux, and Android OS. Ideal for local on-device LLM inference and edge vision processing.

Introduction

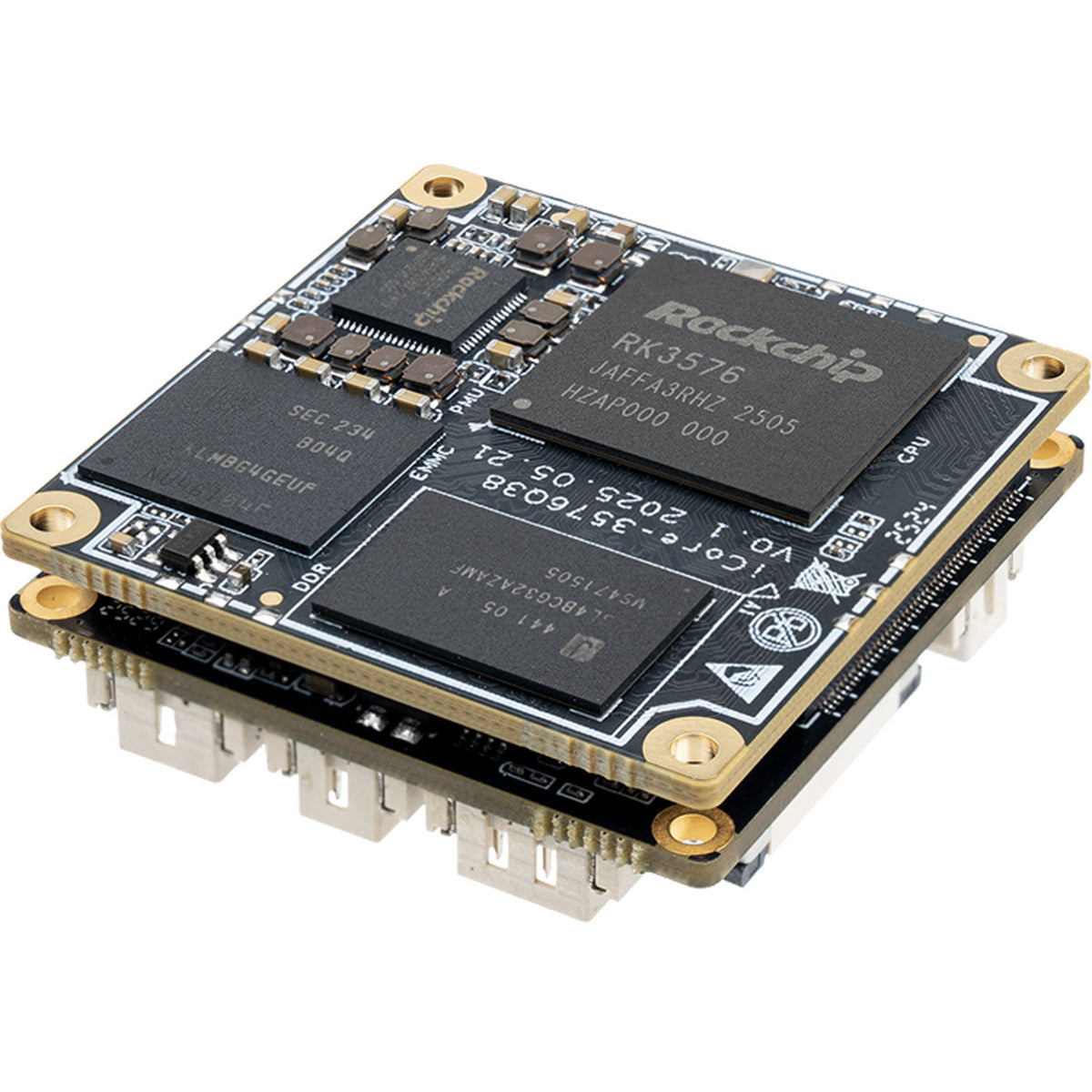

The CAM-3576Q38 is a compact, industrial-grade AI development motherboard powered by the Rockchip RK3576 (ARM architecture) processor with an integrated 6.0 TOPS NPU and hardware 8K@120fps video codec. It features high-performance RS485 communication, USB expansion, and broad OS support (Ubuntu / Debian / Android), delivering low-power, high-throughput edge AI capabilities for industrial and embedded scenarios.

Features

• Powerful SoC & AI Engine: Rockchip RK3576 processor with 6 TOPS INT8 NPU for on-device large model and vision acceleration.
• Ultra HD Codec: Advanced hardware video processing supporting up to 8K @ 120fps decoding and encoding.
• Multiple Reliability Grades: Available in Commercial Grade (0~70°C) and rugged Industrial Grade (-40~85°C) configurations.

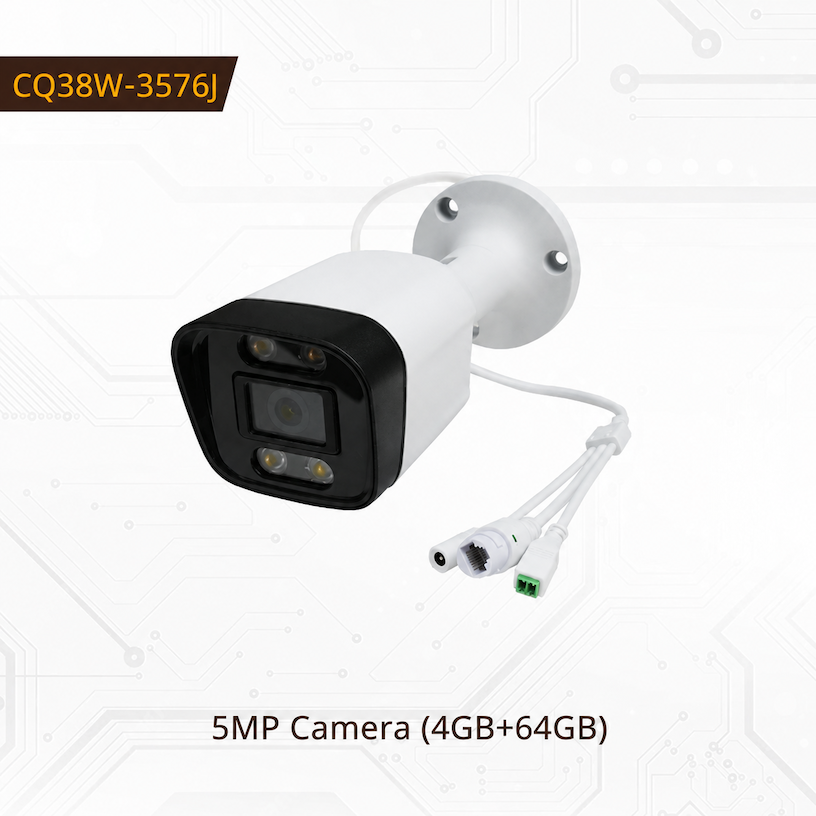

• Camera & Vision Options: Compatible with dedicated 500W camera modules and vision sensor kits for intelligent inspection.
• Versatile OS & SDK: Comprehensive software ecosystem supporting Ubuntu, standard Linux, and Android with complete SDK documentation.

Shipping List

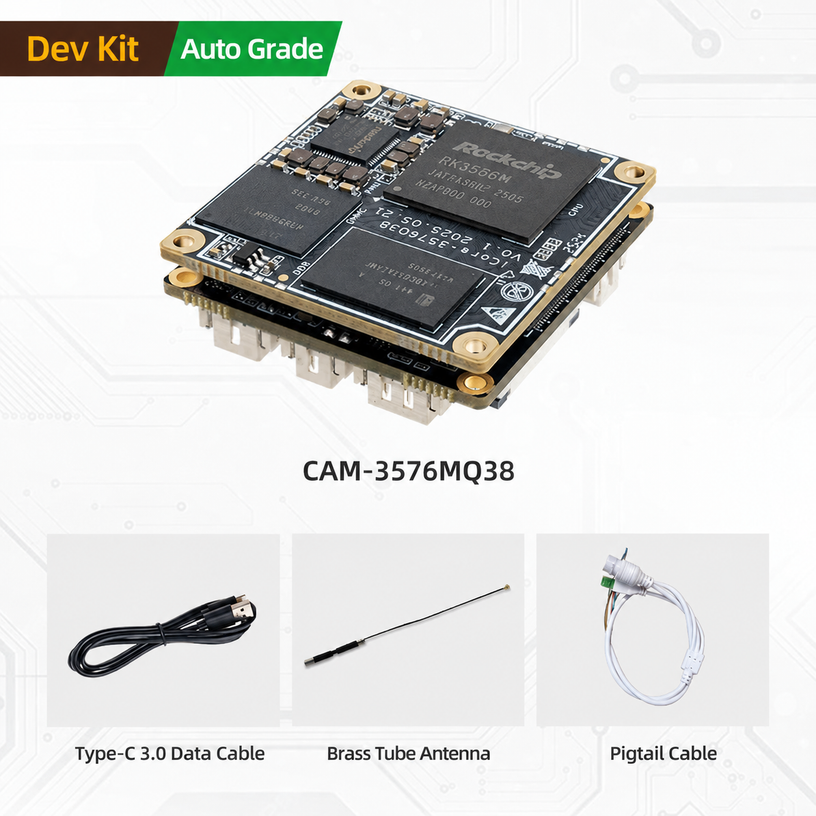

• 1x CAM-3576Q38 / CAM-3576JQ38 Mini Motherboard (per selected variant)
• 1x USB Data Cable

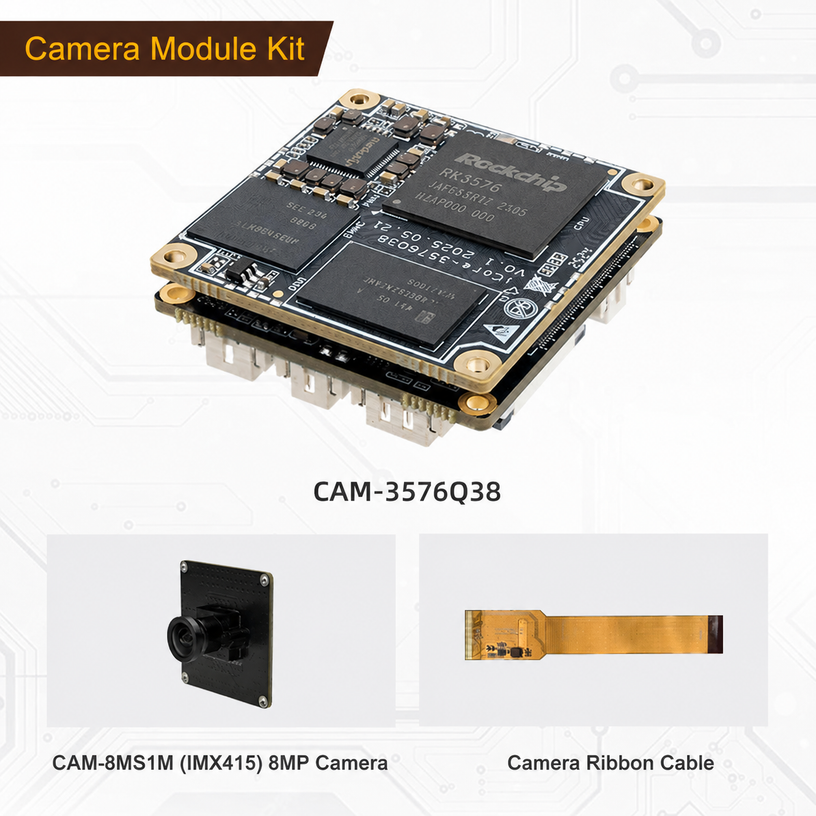

• 1x Camera Module Kit (Included only with Camera Kit variants)
• Note: 12V DC power adapter and optional industrial antennas sold separately.

Applications

• Edge AI Computing & On-device Large Language Models (LLM / VLM)
• Industrial Automation & Smart Factory Machine Vision
• High-definition Video Surveillance & Real-time Video Stream Analytics
• Intelligent Robotics, AGV & Embedded ARM Development

Specification

• Main SoC: Rockchip RK3576 (ARM Architecture, 4xA72 + 4xA53, up to 2.2GHz)
• NPU Performance: 6.0 TOPS (INT8 / INT16 / FP16 / BF16 / TF32 mixed-precision)
• Memory Options: 4GB / 8GB / 16GB LPDDR4 / LPDDR4x / LPDDR5
• Storage: 32GB / 64GB / 128GB / 256GB eMMC Flash + 1x TF Card Slot
• Video Capabilities: 8K@120fps H.265/H.264/AV1 Hardware Decoding & Encoding; 4K@120fps Display

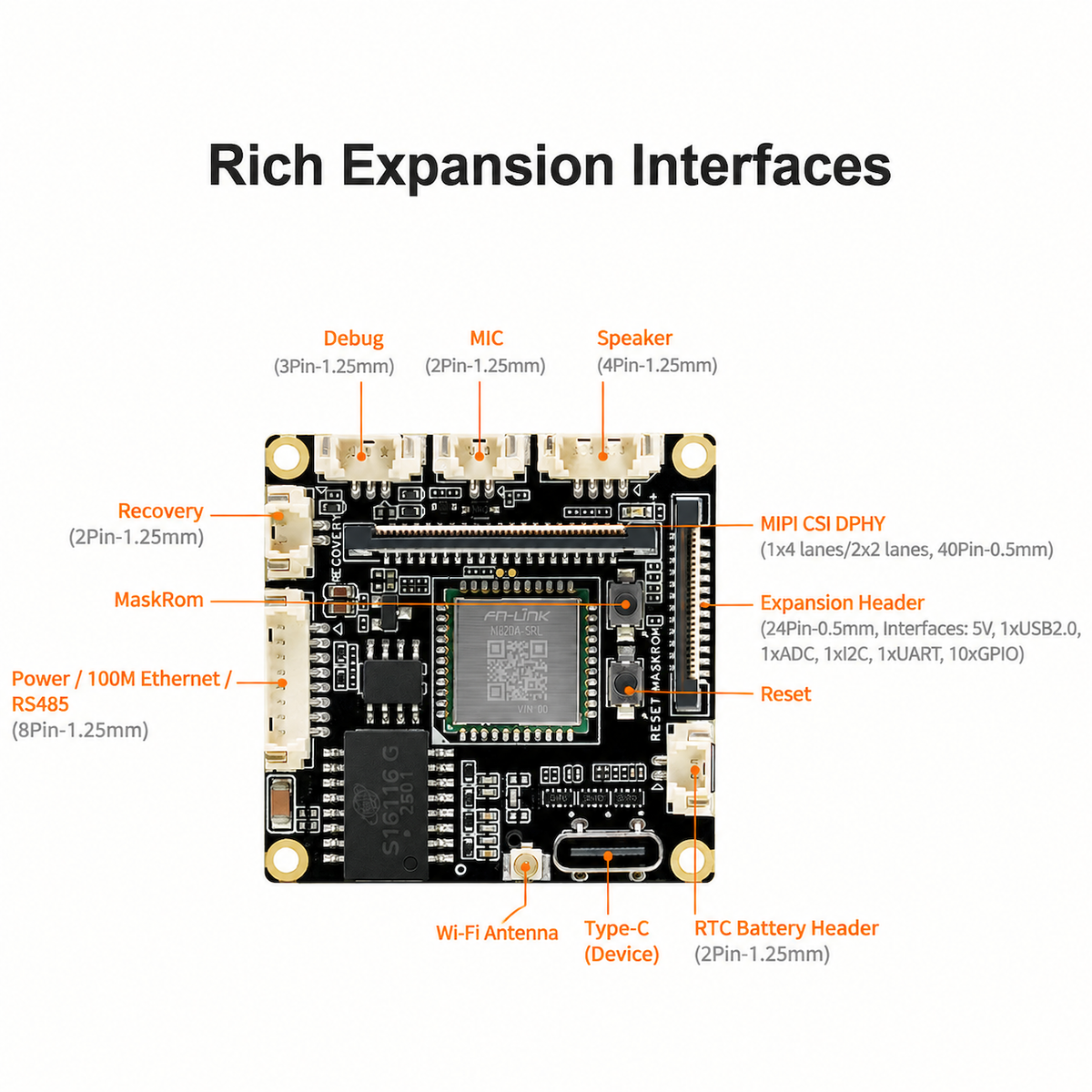

• Industrial Interfaces: RS485, USB 3.0/2.0, MIPI-CSI Camera Interfaces, Gigabit/100M Ethernet, GPIO/UART
• Dimensions & Temperature: 38.09 mm × 38.11 mm × 11.54 mm; Commercial (0~70°C) / Industrial (-40~85°C)
• Supported OS: Ubuntu, Linux (Debian/Buildroot), Android, RTLinux

Detailed Descriptions & Resources

• Full Hardware Specification: CAM-3576 Series Technical PDF
• SDK & BSP Support: Official Board Support Package (BSP) available for kernel and AI model compilation.
