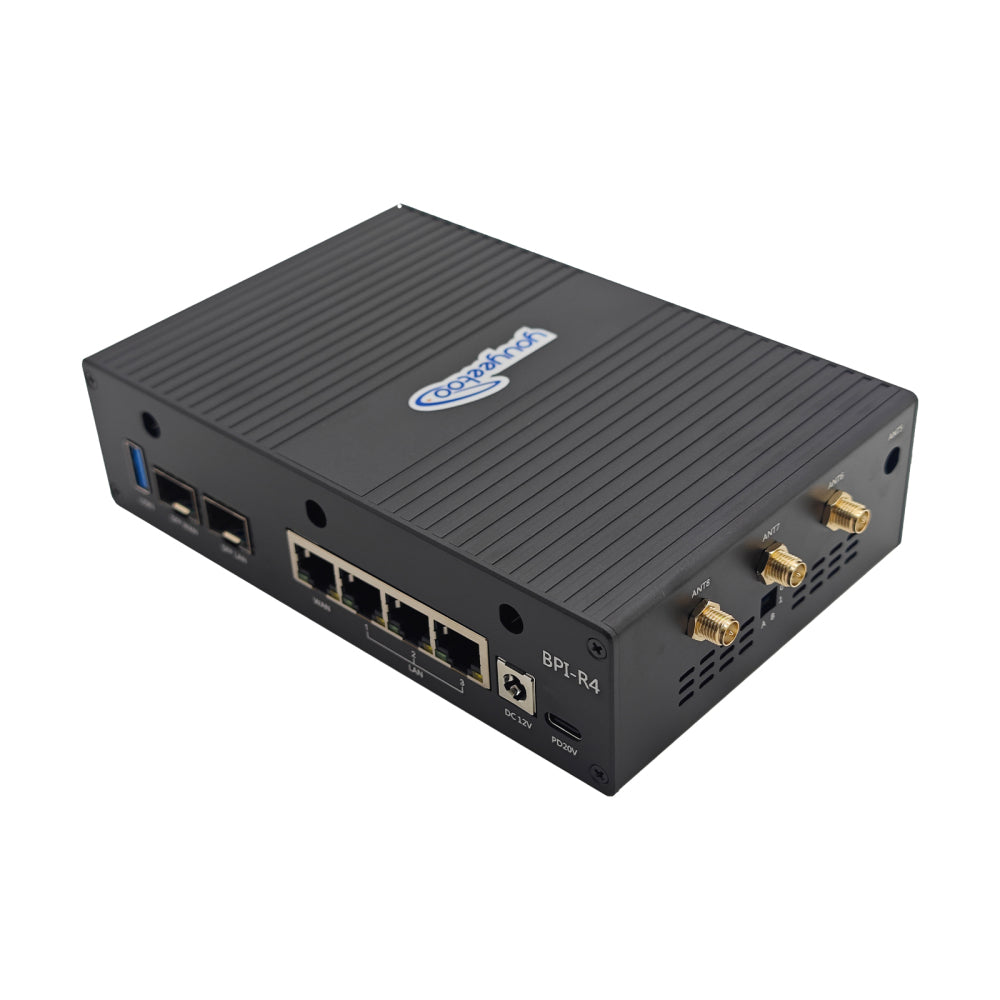

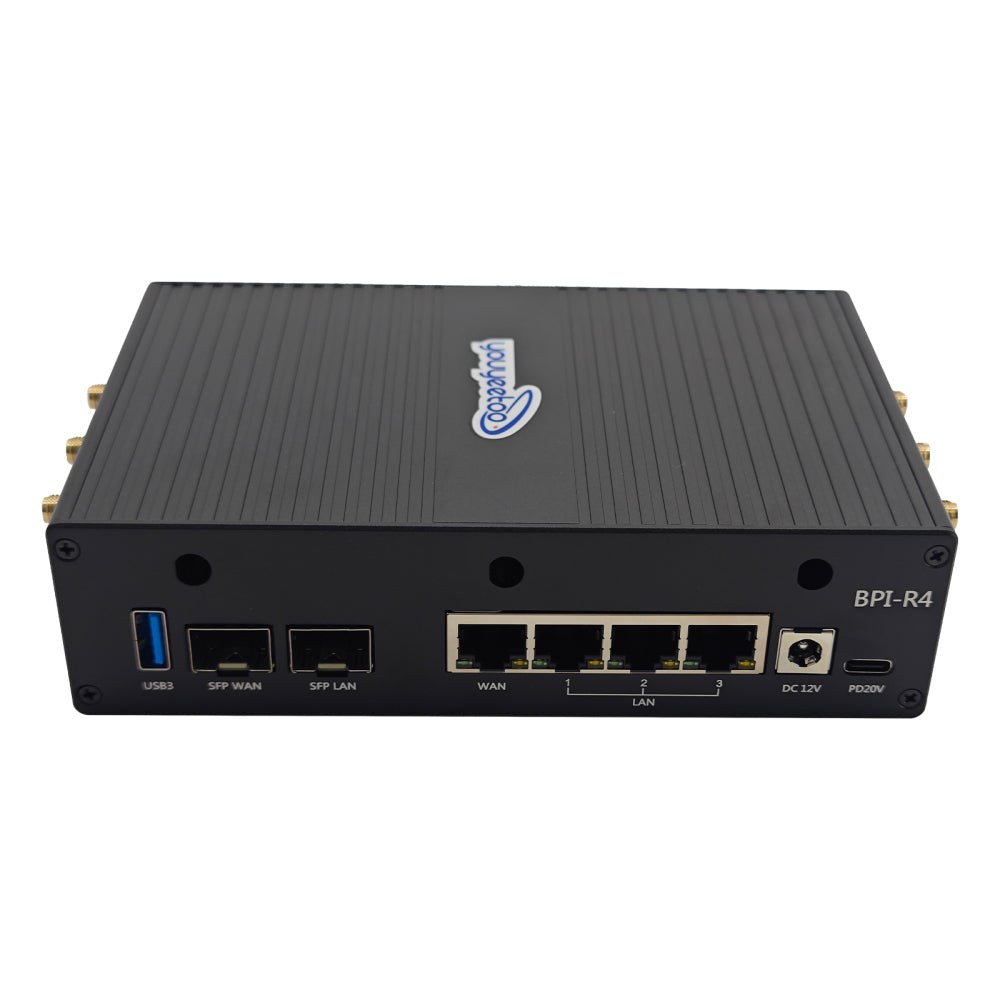

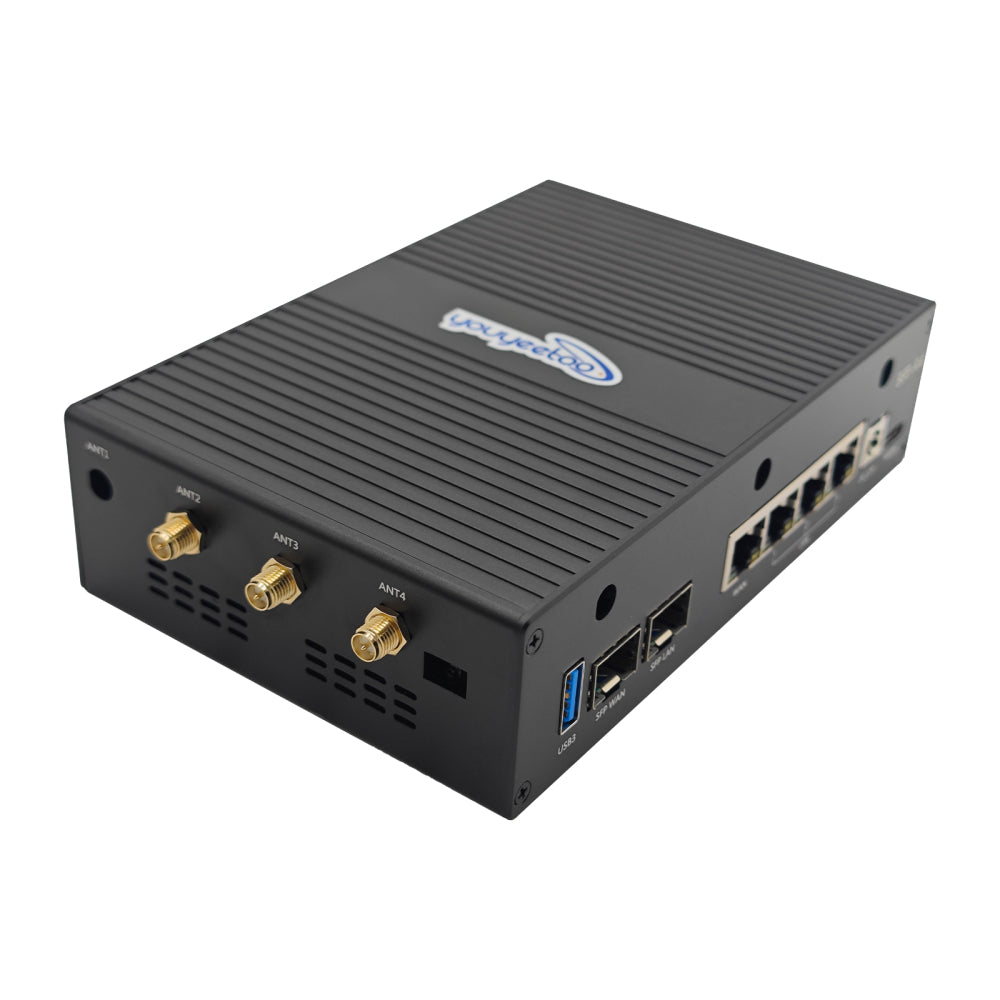

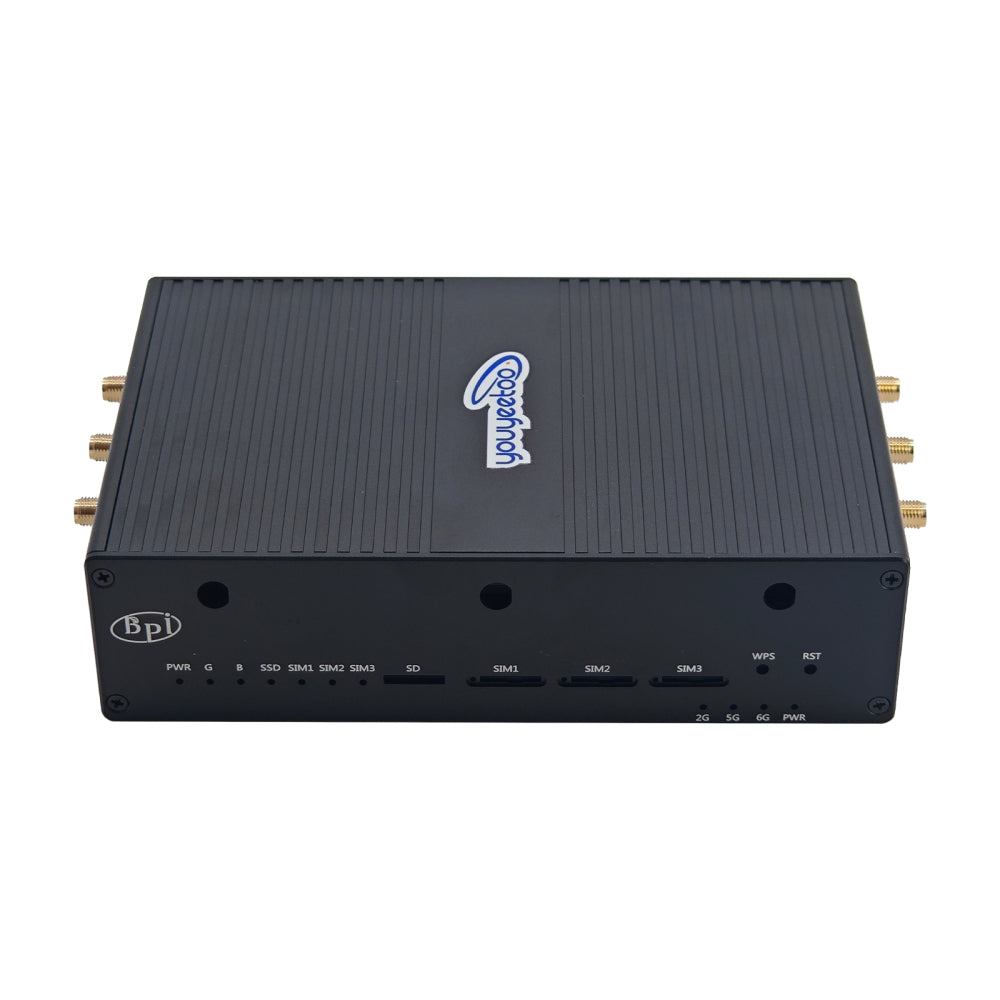

youyeetoo BPI-R4 WIFI 7 Router Kit - Dual 10Gbe SFP Ports, and Triple-Band Wi-Fi 7 Support

• Quick Start: BananaPi BPI-R4 wiki
• Tips





  Please do not insert the card tray into the slot when the SIM card is not installed, otherwise, it will easily damage the slot.




  Only EMMC's firmware boot supports the WIFI7 function. Please pay attention to the startup logic.

  Default IP address for LAN port: 192.168.1.1


  User name/password: pi/bananapi, root/bananapi.Or the user is root without a password.


  WIFI: AP_MTK_MT7990_2G/AP_MTK_MT7990_5G/AP_MTK_MT7990_6G



  BPI-R4 bootstrap



  SW3
  A
  B


  NAND
  0
  1


  EMMC
  1
  0


  SD
  1
  1







Note: Toggle down for “1”



Introduction

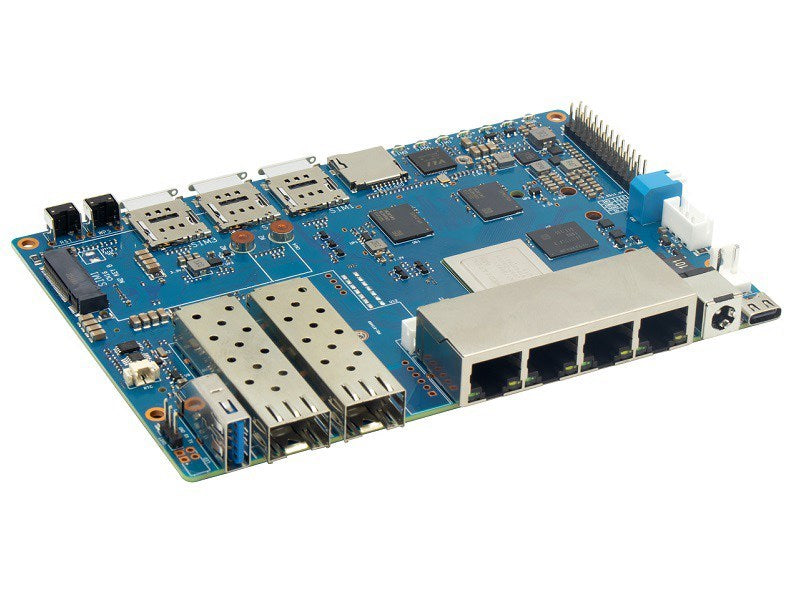

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port, with USB3.2 port, M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high-performance open-source router development board.

MediaTek MT7988(Filogic 880)

Mediatek Filogic 880. The 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience

The MediaTek MT7988A is a world-leading network processing platform for high-performance and reliable networking experiences in both wired and wireless applications. The MT7988A comprises a rich connection interface set including 4 Gigabit Ethernet ports. 2 US下GMII interfaces. 4 PCIe Interfaces, and 2 USB 3.2 en1 Ports

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz, connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAMLO, MCU, and FC.

To answer the need of first-evolving tunneling applications, the MT7988A comes with MediaTek Tunnel offload processor System(TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with the exquisitely tuned ISA of MediaTek TOPS and is dedicated to lifting networking offloading performance to premium level.

Features

• MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
• 4GB/8GB DDR4
• 8GB eMMC flash
• 128MB SPI-NAND Flash
• Micro SD card slot
• 2x 10Gbe SFP slot (option 1x 10GbE SFP and 1x SOC embedded 2.5GbE PHY. NOTE: Need to modify hardware)
• 4x Gbe network port
• 1x USB3.2 slot
• 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G
• 1x M.2 KEY-M slot with PCIe3.0 1-lane interface for NVME SSD
• 2x mini PCIe slots with PCIe3.0 2-lane interface for Wi-Fi 7 NIC (Network Interface Card)
• 26 PIN GPIO Header for expanding application

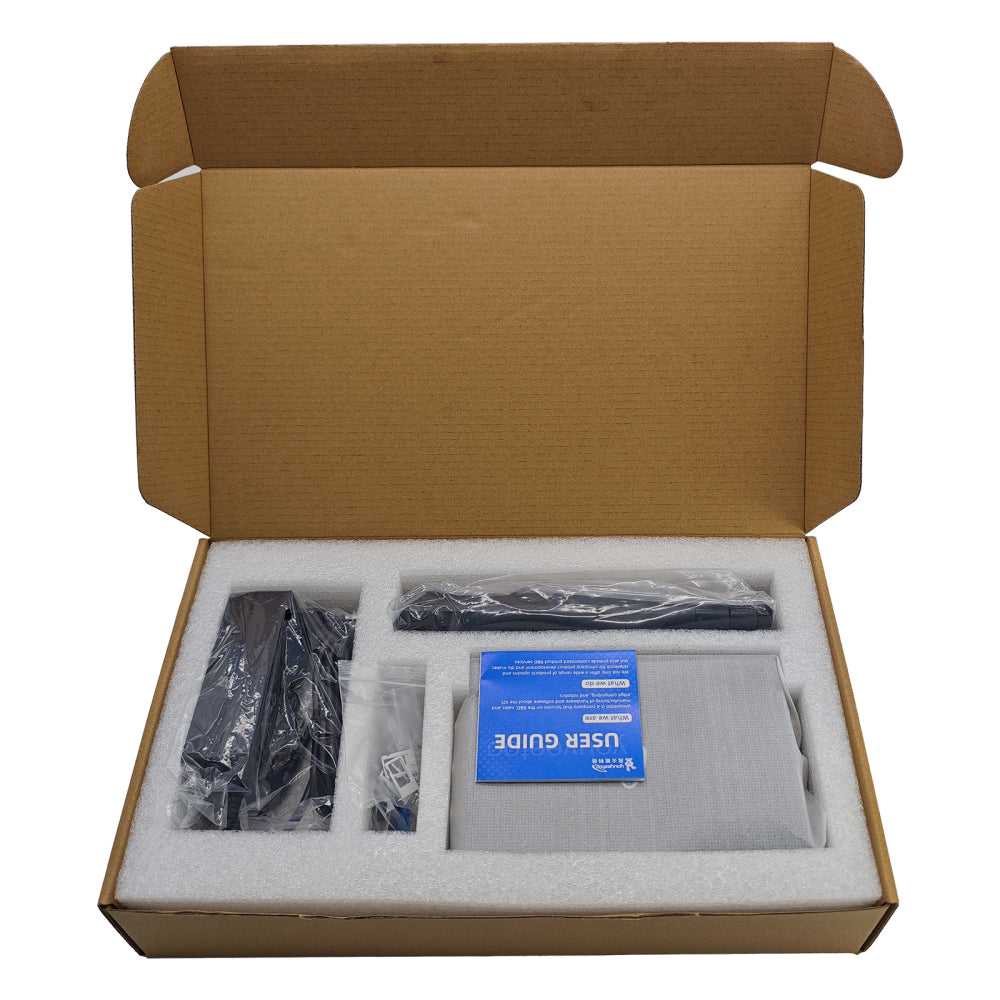

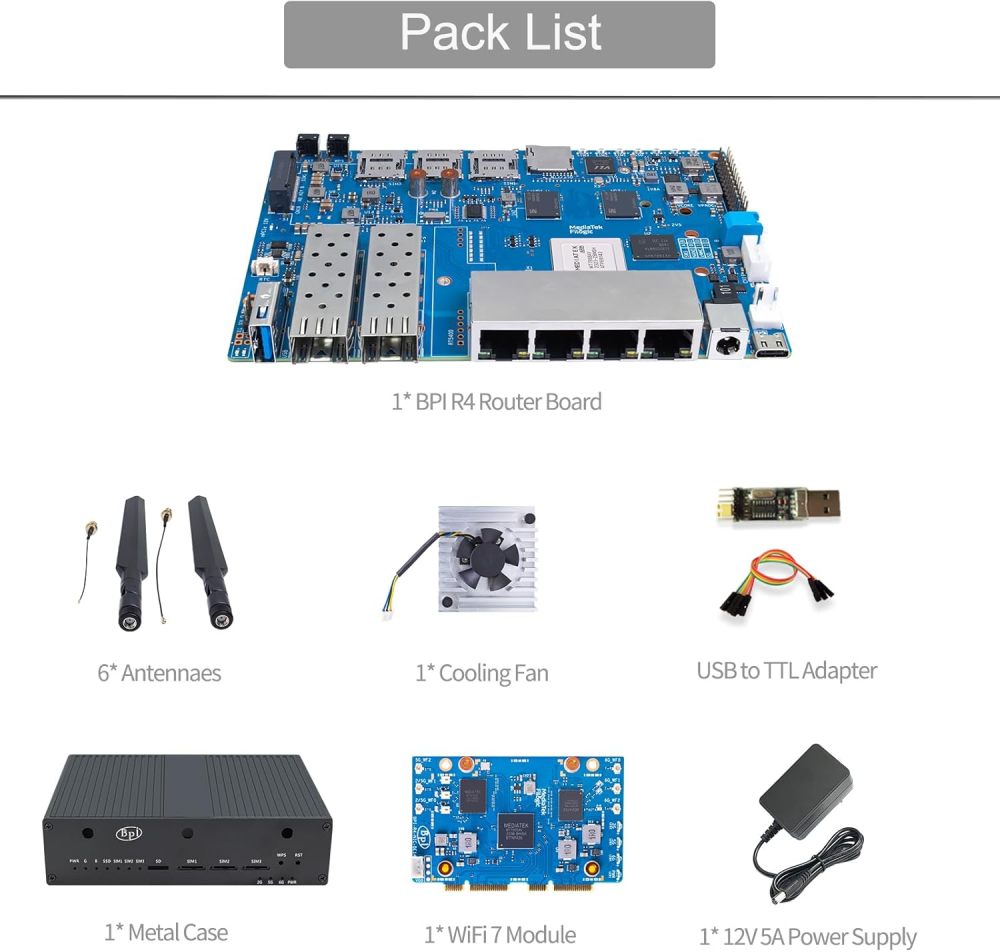

Shipping List

1x BPI-R4 Mainboad
1x BE14 WIFI7 Module
1x Fan
6x ANT
1x 12V 5A Power Supply
1x Screws
1x UART Debug Adapter (For assembled R4 kit is optional, please leave a message if needed.)

Applications

• Internet Service Router
• Wifi 7 Wireless Router
• 4G/5G Wireless Router
• Wireless Repeater
• Home security Gateway
• Home Automation
• Nas device
• Network and communication applications

Detailed Descriptions

Hardware spec

Hardware Specification of Banana Pi BPI-R4CPUMediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processorSDRAM4GB/8GB DDR4Onboard StorageMicroSD (TF) card,8GB eMMC onboardGPIO26 Pin GPIO, some of which can be used for specific functions, including UART, I2C, SPI, PWM, and I2S.On board Network4 Port 10/100/1000Mbps EthernetSFP2x10G SFP or 1x10G SFP and 1x 2.5GbEWifiWifi 6 / Wifi 7mini PCIE2x mini PCIe slots with PCIe3.0 2-lane interface for Wi-Fi 7 NIC (Network Interface Card)M.2 interface1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSDUSB1x USB 3.2 slotButtonsReset button, WPS button, boot switchLeadsPower status LED and RJ45 LEDDC Power12V/5.2A or 19V 3.2A (5521)Sizes100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2Weight250g
