Introduction
The Purple Pi OH is a development board designed for compatibility with Raspberry Pi, featuring the high-performance, low-power RK3566 quad-core processor. Ideal for personal mobile internet devices and AIoT applications, the RK3566 supports Android/Linux and is suitable for tablets, educational devices, smart speakers, cloud terminals, video conferencing systems, and lightweight AI scenarios. It offers powerful multimedia capabilities, including 4K video decoding, 3D GPU support, and an embedded NPU for AI tasks, making it a versatile choice for developers and hobbyists.
Features
- Supports up to 8GB high-speed LPDDR4 with a speed of up to 1056MHz
- 1T computing power NPU, supporting INT8/INT16, TensorFlow/MXNet/PyTorch/Cafe framework
- 1-way HDMI2.0 support 4K@60Hz or 1080P@120Hz

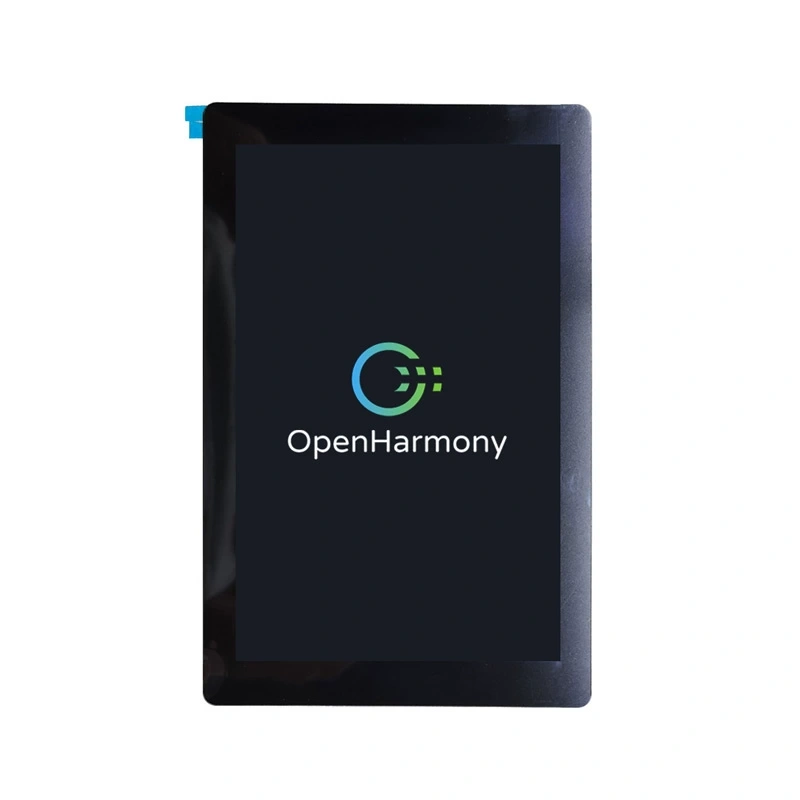

- 1-way 4-Lane MIPI-DSI, supporting access to 1080P@60Hz
- 1-way 4-Lane MIPI-CSI camera
- Support for multi-screen simultaneous display
- 1 adaptive Gigabit Ethernet port
- WIFI Bluetooth wireless communication
-
Onboard one USB3.0 and three USB2.0

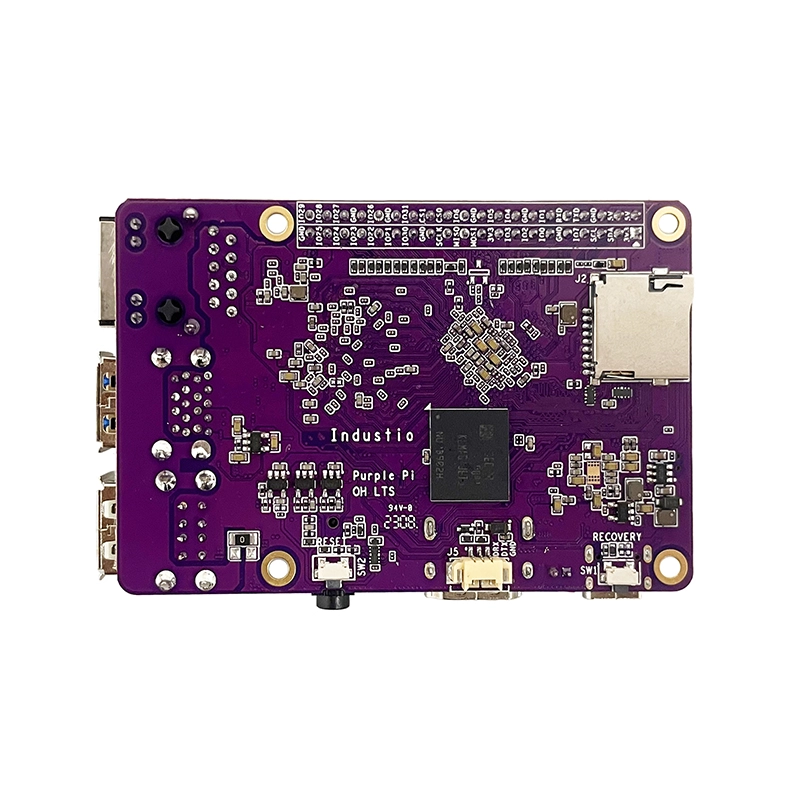

- EXtremely small PCBA size, 85mm * 56mm

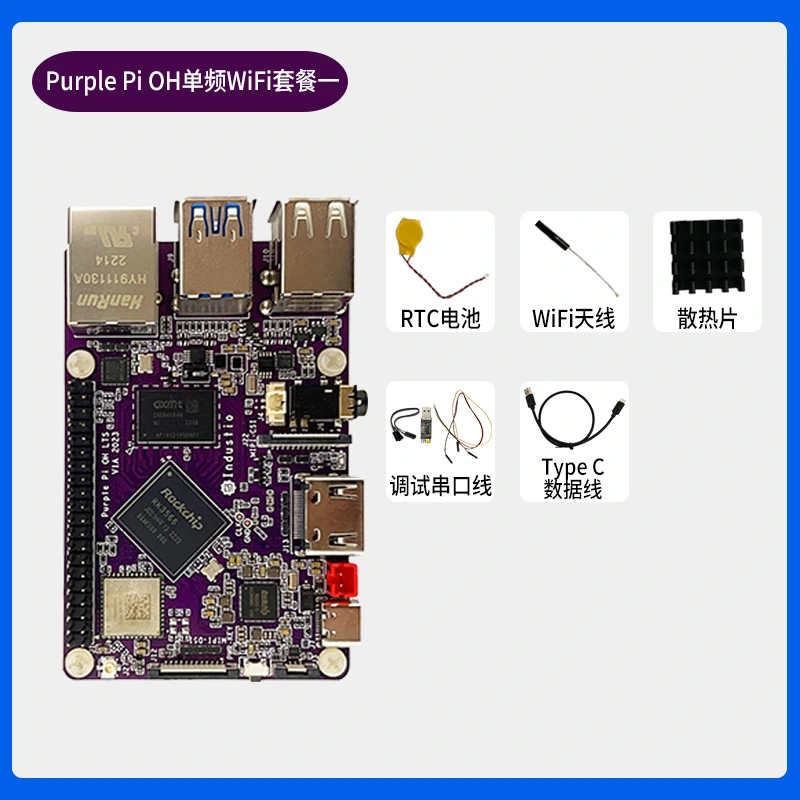

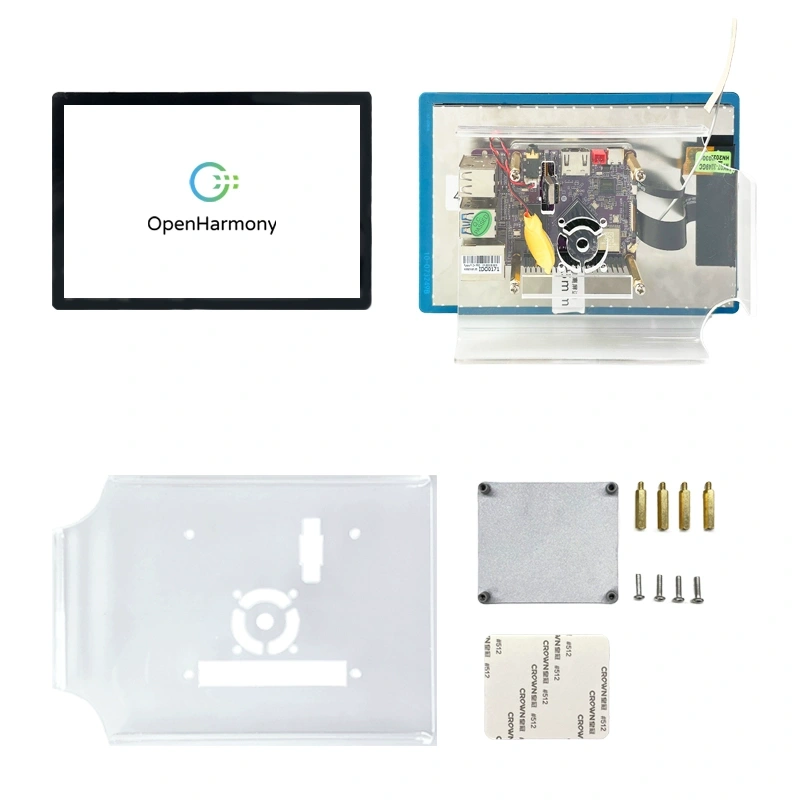

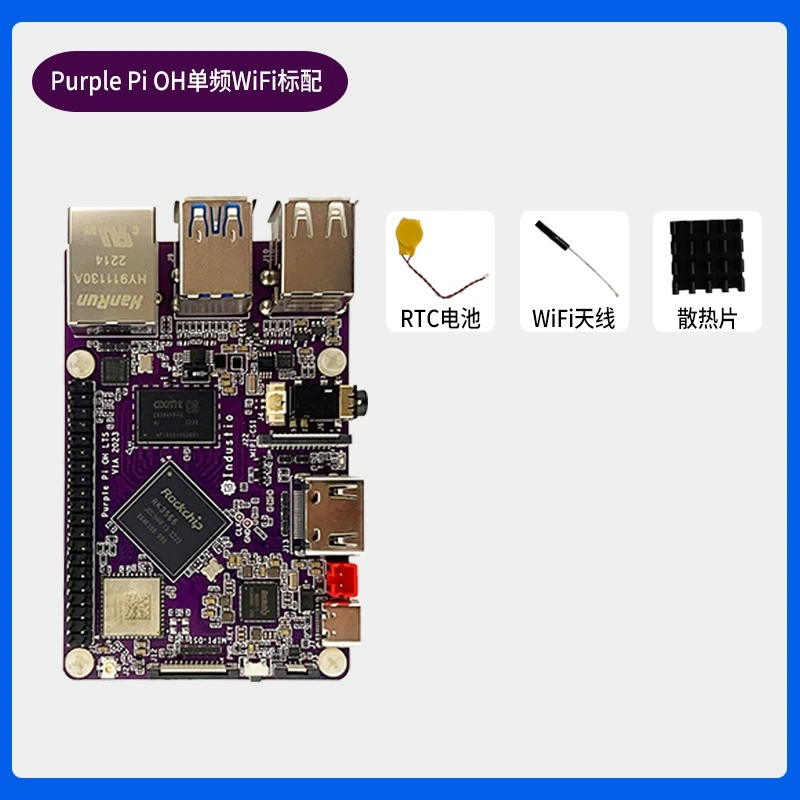

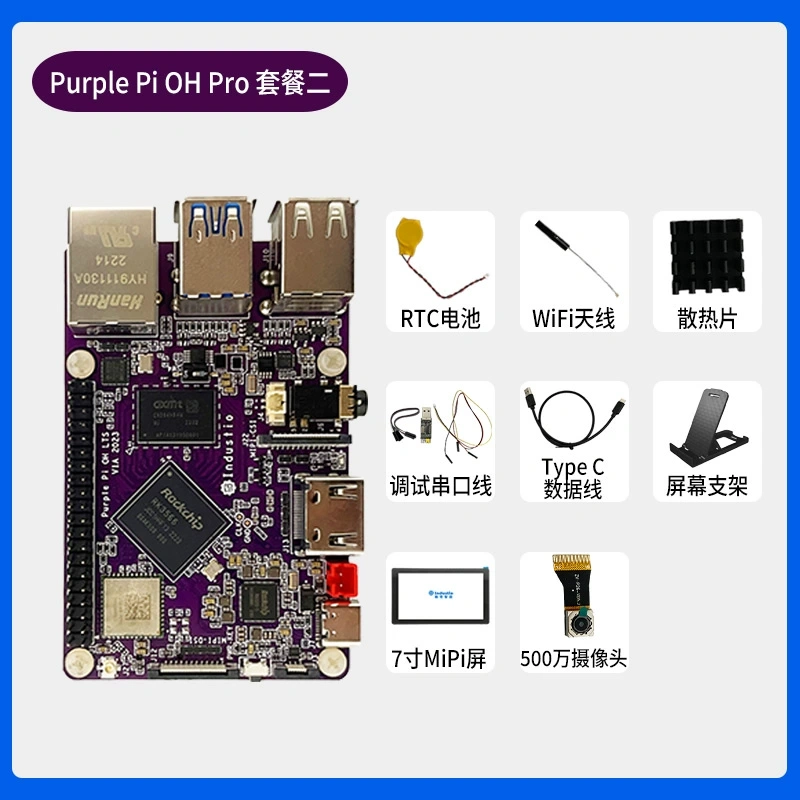

Shipping List
Please check the picture.
Applications
Specification
|
Basic parameters |
|
|
SOC |
RockChip RK3566 |
|
CPU |
Quad core 64 bit Cortex-A55 processor with up to 1.8GHz main frequency |
|
GPU |
Mali-G52 1-Core-2EE support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 Embedded high performance 2D acceleration hardware |
|
NPU |
Neural network acceleration engine with processing performance up to 1 TOPS Support for INT8/INT16/FP16/BFP16 MAC mixed operation Support deep learning frameworks TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet and other models |
|
VPU |
Supports 4K 60fps H.264/H.265/VP9 video decoding Supports 1080P 100fps H.264/H.265 video encoding Support for 8M ISP |
|
Memory |
LPDDR4/LPDDR4X Default 2GB (Max. 8GB) |
|
storage |
eMMC Default 8GB (optional 16GB/32GB/64GB) |
|
Hardware parameters |
|
|
Ethernet |
1 × Gigabit Ethernet (1000 Mbps) |
|
wireless network |
Dual-band 2.4G/5.8G Wifi is supported BT4.2 or later is supported |
|
display interface |
Supports dual screen simultaneous display 1 × HDMI2.0, supported 4K@60fps Output 1 × MIPI_ DSI_ TX, supports 1920* 1080@60fps Output |
|
Camera |

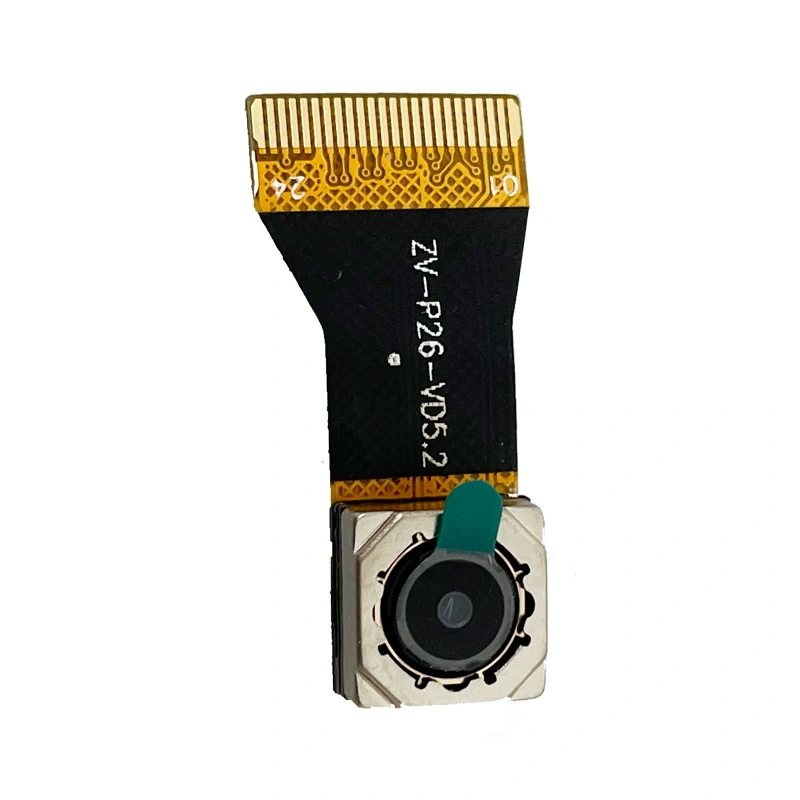

1 × MIPI_ CSI camera interface, supporting single 4-Lane 13M Sensor |
|
Audio interface |
1 x HDMI audio output 1 x headset MIC audio input 1 x earphone audio output |
|
Extension interface |
1 × USB 3.0 HOST (standard TYPE-A female seat) 3 × USB 2.0 HOST (standard TYPE-A female seat) 1 × USB 2.0 device (standard TYPE-C motherboard) 1 × Debug_UART（UART2） 1 × SPI 1 × I2C 3 × UART 1 × TP （I2C） |
work environment
|
work environment |
|
|
Operating temperature |
0℃～70℃ |
|
Working humidity |
0~90% RH non-condensing |
|
storage temperature |
-40℃～85℃ |
system support
|
serial number
|
system support |
support |
illustrate |
| 1 |
Android 11 |  |
|
| 2 | Debian 10 | |
|
| 3 | OpenHarmony | |
|
| 4 | Ubuntu | |
|
| 5 | Kylin OS | |
|
Hardware data |
|
|
Purple Pi OH-V1 EvaluationBoard user manual |
Online Documents |
|
Software data |
|
|
Purple Pi OH RK3566 Android system instructions |
|
|
Purple-Pi-OH RK3566 - Android SDK Compilation specification |
Online Documents |
|
Purple-Pi-OH RK3566 - Linux SDK Compilation Specification |
Online Documents |
|
Purple-Pi-OH RK3566 - Quick Start Guide |
Online Documents |
|
Purple-Pi-OH RK3566 Instructions for Debian systems |
Online Documents |
|
Purple-Pi-OH RK3566 Ubuntu System Instructions |
Online Documents |
|
Purple-Pi-OH RK3566-Firmware and burning instructions |
Online Documents |
