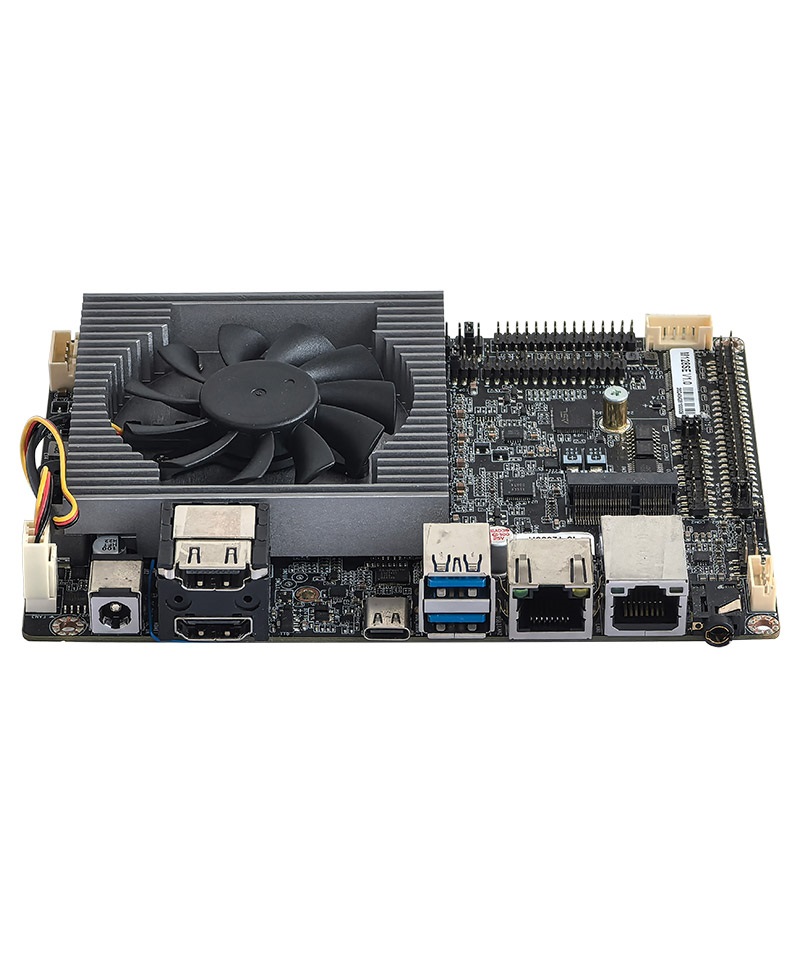

3.5 inch Industrial PC Motherboards - Provide Intel Alder Lake 12th 13th U/P/H series CPU, ELSKY M128SE

Vendor: ELSKY
SKU: YSDPM128SE01
Availability: In stock
$1,646.00
Model: I3-1215U (12th)
Port: 2xLAN
Hurry up! Only 10 left

You may also like

3.5 inch Industrial PC Motherboards - Provide Intel Alder Lake 12th 13th U/P/H series CPU, ELSKY M128SE
Regular price HK$1,646.00 HKD
Regular price HK$0.00 HKD Sale price HK$1,646.00 HKD (-0%)
Model: I3-1215U (12th)
Port: 2xLAN
3.5 inch Industrial PC Motherboards - Provide Intel Alder Lake 12th 13th U/P/H series CPU,  ELSKY M128SE
3.5 inch Industrial PC Motherboards - Provide Intel Alder Lake 12th 13th U/P/H series CPU, ELSKY M128SE
$1,646.00

3.5 inch Industrial PC Motherboards - Provide Intel Alder Lake 12th 13th U/P/H series CPU,  ELSKY M128SE


  • Quick Start: contact for help: shop@youyeetoo.com
  • Tips


Introduction


This high-performance motherboard, designed for modern computing demands, supports Intel Alder Lake 12th and Raptor Lake 13th Gen U/P/H series CPUs with a compact form factor of 146mm x 102mm. It features a single NB-DDR4 SODIMM slot with up to 32GB memory support, catering to various memory speeds and capacity needs. Power management is robust with 12V-24V wide voltage input, accommodating CPUs with power consumption ranging from 55W to 115W. The display capabilities are enhanced with dual HDMI 2.0 interfaces supporting 4K resolution and a Type-C interface for display and data transfer. Network connectivity is fortified with dual Gigabit Ethernet ports and optional support for additional network cards. Wireless connectivity is enabled through an M.2 WiFi interface supporting PCIe 3.0 and Bluetooth modules. Storage options include an NGFF interface for M.2 2280 SSDs with NVMe and SATA support, alongside a SATA 3.0 port. The audio system is powered by a Realtek ALC897 HD audio decoder for high-fidelity sound. USB connectivity is provided by two USB 3.2 Gen1 and two USB 2.0 ports. Expansion and control are facilitated through multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog with scheduled start-up and remote management features. It is compatible with a range of operating systems including Windows 11, Windows 10, and Linux, making it suitable for diverse applications from home entertainment to professional workstations.

Features


  • Size and Compatibility: Compact design at 146mm x 102mm, compatible with Intel Alder Lake 12th and Raptor Lake 13th Gen U/P/H series CPUs.
  • Memory Support: Single NB-DDR4 SODIMM slot supporting up to 32GB of memory at speeds of 2133/2400/2666/2933/3200 MHz.
  • Power Management: Wide voltage input of 12V-24V to accommodate CPUs with power consumption up to 115W.
  • Display Features: Two HDMI 2.0 ports for 4K resolution and one Type-C port for display and data transfer.
  • Networking: Dual network interfaces with Intel 1215V and Realtek 8111H Gigabit Ethernet, with options for Intel I219V and YT 680.
  • Wireless Connectivity: M.2 WiFi interface for PCIe 3.0 and Key-E interface M.2 2230 WiFi Bluetooth modules.
  • Storage: NGFF interface for M.2 2280 SSDs with NVMe and SATA support, plus a SATA 3.0 port.
  • Audio: Realtek ALC897 HD audio decoder for high-fidelity sound and MIC input.
  • USB Ports: Two USB 3.2 Gen1 ports at 5 Gbps and two USB 2.0 ports at 480 Mbps.
  • Expansion and Control: Multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog with timed start-up and remote control.
  • OS Support: Compatible with Windows 11, Windows 10, and Linux.


Shipping List


1x Motherboard

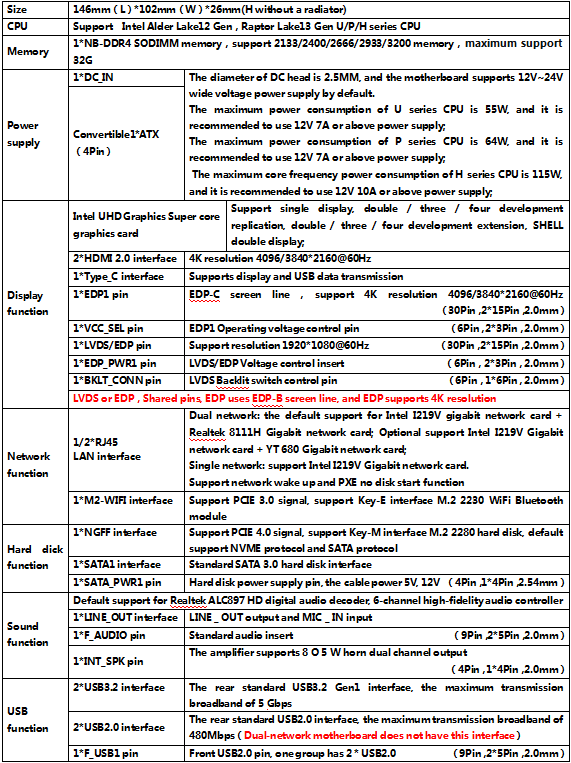

Specification



Feature Description
Size 146mm (L)*102mm (W)*26mm (H without a radiator)
CPU Support Intel Alder Lake 12 Gen, Raptor Lake 13 Gen U/P/H series CPU
Memory 1*NB-DDR4 SODIMM memory, support 2133/2400/2666/2933/3200 memory, maximum support 32G
Power Supply 1*DC IN supports 12V-24V wide voltage power supply by default
U series CPU: max 55W, recommended 12V 7A or above power supply
P series CPU: max 64W, recommended 12V 7A or above power supply
H series CPU: max core frequency power consumption 115W, recommended 12V 10A or above power supply
Graphics Intel UHD Graphics Super core, support single display, double/three/four development replication, double/three/four development extension, SHELL double display

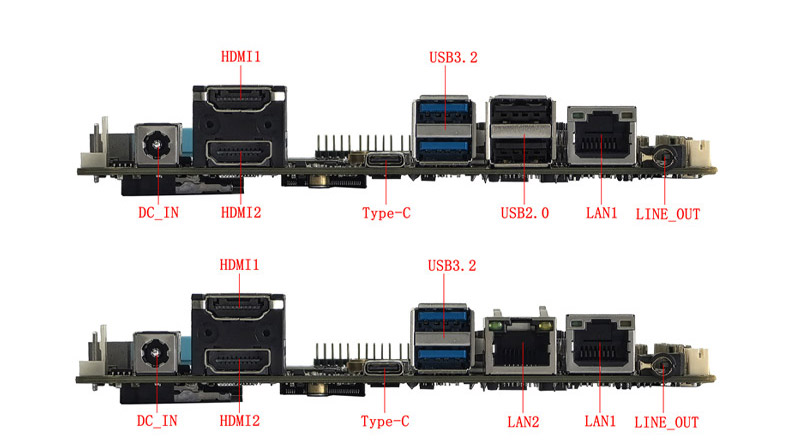

Display Function 2x HDMI 2.0 interface, 4K resolution 4096/38402160@60Hz
1x Type C interface supports display and USB data transmission

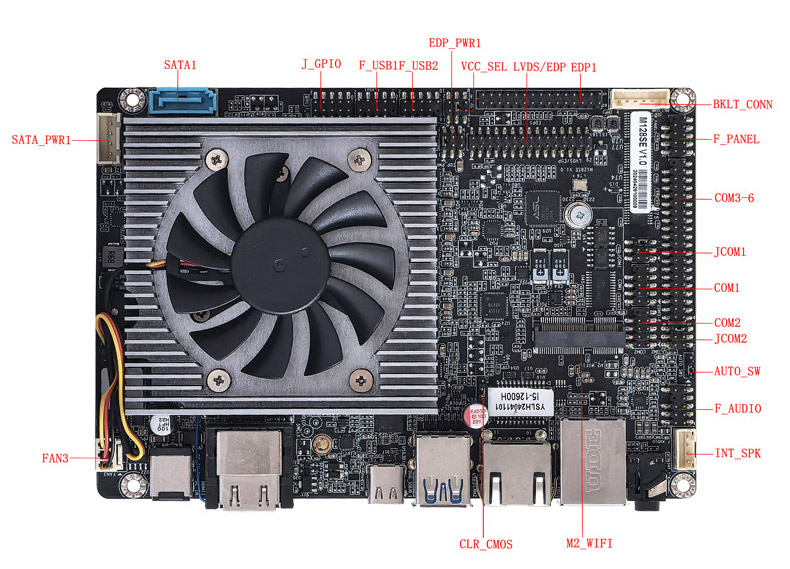

1x EDP1 pin, EDP-C screen line, support 4K resolution 4096/38402160@60Hz (30Pin, 2*15Pin, 2.0mm)
1x VCC_SEL pin, EDP1 Operating voltage control pin (6Pin, 23Pin, 2.0mm)
1x LVDS/EDP pin, support resolution 19201080@60Hz (30Pin, 2*15Pin, 2.0mm)
1x EDP_PWR1 pin, LVDS/EDP Voltage control insert (6Pin, 23Pin, 2.0mm)
1 xBKLT_CONN pin, LVDS Backlit switch control pin (6Pin, 16Pin, 2.0mm)
LVDS or EDP, Shared pins EDP uses EDP-B screen line, EDP supports 4K resolution
Network Function Dual network: default support for Intel 1215V Gigabit + Realtek 8111H Gigabit network card; Optional support Intel I219V Gigabit network card + YT 680 Gigabit network card
Single network: support Intel I219V Gigabit network card
Support network wake up and PXE no disk start function
Wireless Function 1x M2-WIFI interface, Support PCIE 3.0 signal, support Key-E interface M.2 2230 WiFi Bluetooth module

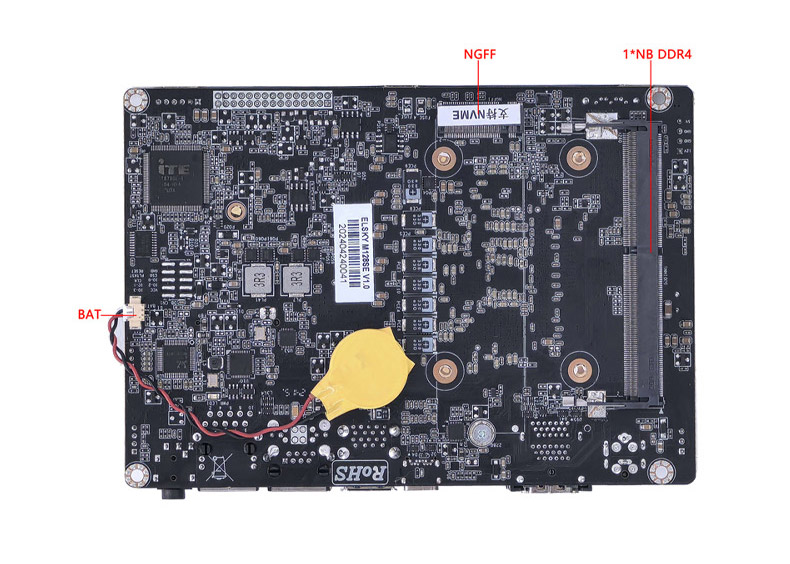

Hard Disk Function 1x NGFF interface, supports PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, default support NVME protocol and SATA protocol
1x SATA1 interface, Standard SATA 3.0 hard disk interface
1x SATA PWR1 pin, Hard disk power supply pin, the cable power 5V, 12V (4Pin, 14Pin 2.54mm)
Sound Function Default support for Realtek ALC897 HD digital audio decoder, G-channel high-fidelity audio controller
1x LINE OUT interface, LINE_OUT output and MIC_IN input
1x F_AUDIO pin, Standard audio insert (9Pin, 25Pin, 2.0mm)
1x INT_SPK pin, The amplifier supports 8Ω 5W horn dual channel output (4Pin, 14Pin, 2.0mm)
USB Function 2x USB3.2 interface, Rear standard USB3.2 Gen1 interface, max transmission broadband of 5 Gbps
2x USB2.0 interface, Rear standard USB2.0 interface, max transmission broadband of 480Mbps (Dual-network motherboard does not have this interface)
1x F_USB1 pin, Front USB2.0 pin, (9Pin, 25Pin, 2.0mm)

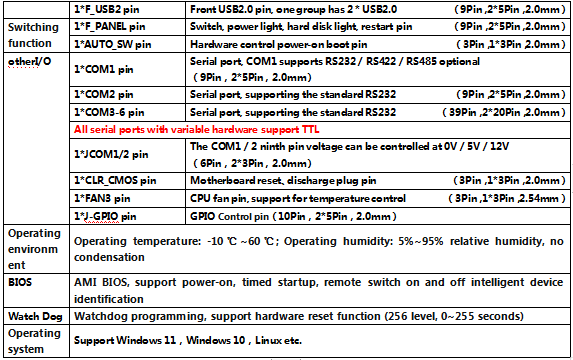

Switching Function
1*F_USB2 pin Front USB2.0 pin, one group has 2* USB2.0 (9Pin, 2*5Pin, 2.0mm)
1*F_PANEL pin Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm)
1*AUTO_SW pin Hardware control power-on boot pin (3Pin, 1*3Pin, 2.0mm)
Other I/O
1*COM1 pin Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm)
1*COM2 pin Serial port, supporting the standard RS232 (9Pin, 2*5Pin, 2.0mm)
1*COM3-6 pin Serial port, supporting the standard RS232 (39Pin, 2*20Pin, 2.0mm)
All serial ports With variable hardware support TTL
1*JCOM1/2 pin The COM1/2 ninth pin voltage can be controlled at 0V/5V/12V (6Pin, 2*3Pin, 2.0mm)
1*CLR_CMOS pin Motherboard reset, discharge plug pin (3Pin, 1*3Pin, 2.0mm)
1*FAN3 pin CPU fan pin, support for temperature control (3Pin, 1*3Pin, 2.54mm)
1*J-GPIO pin GPIO Control pin (10Pin, 2*5Pin, 2.0mm)
Operating Environment Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation
BIOS AMI BIOS, support power-on, timed startup, remote switch on and off intelligent device identification
Watch Dog Watchdog programming, support hardware reset function (256 level, 0~255 seconds)
Operating System Support Windows 11, Windows 10, Linux etc.
