USB Wifi Module for cubieboard cubieboard2 cubieboard6

This Wifi module adopts standard USB interface, so it can be plug and play with CubieBoard. If you want to install finished products with this Wifi module, the USB male connector can be replaced by a 4 pins header which is easy to connect wires. And the W
Price:
$29.00
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Product Information
Name: USB Wifi Module
Property:   Software open source, Hardware open
Owner: CubieTech Limited
Target: Developer, Geek, Maker, Scholar...and finished products Manufacturer

Features
1. Solution: RTL8188EUS from Realtek
2. USB: USB Female Type A
3. Contents: USB Wifi module board, Antenna, USB cable, packaging

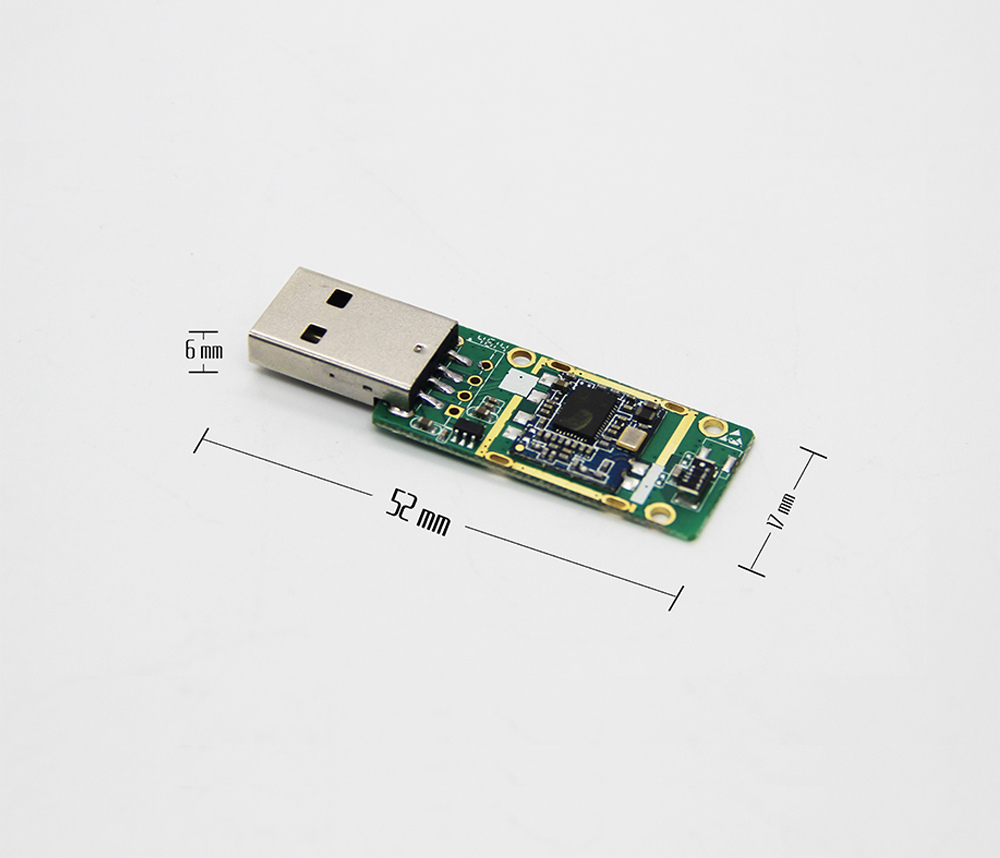

4. Size: 52mm*17mm*6mm

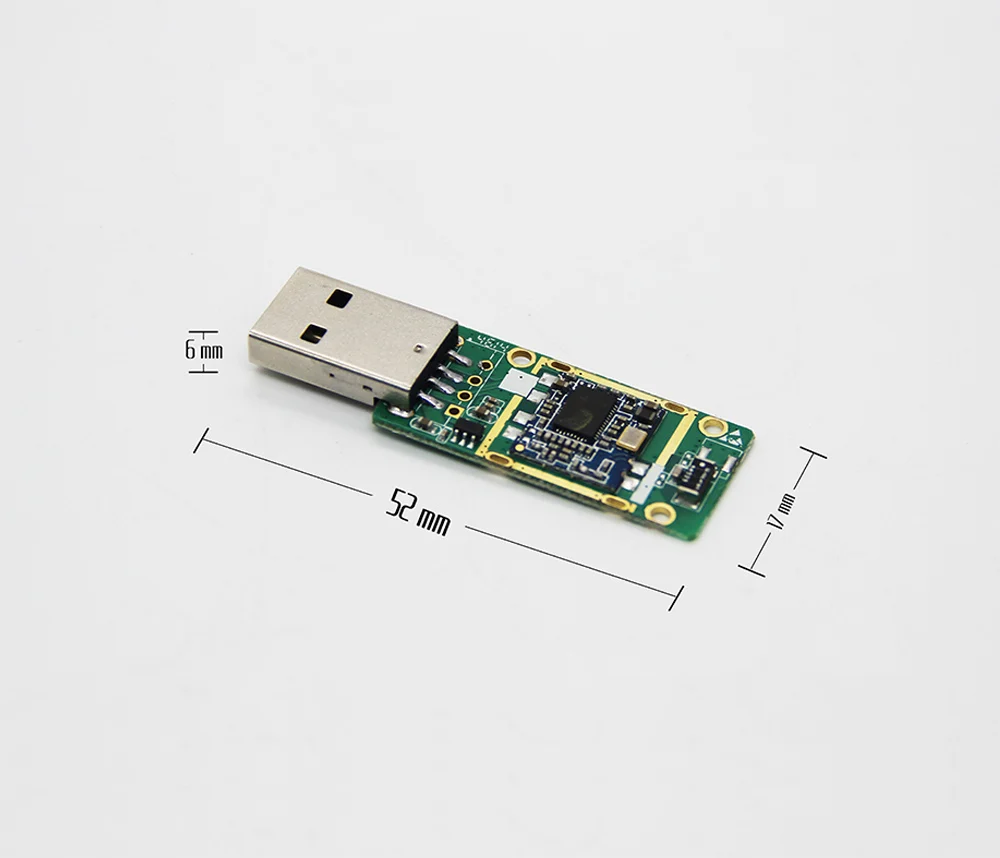

cubieboard_usbwifi-5

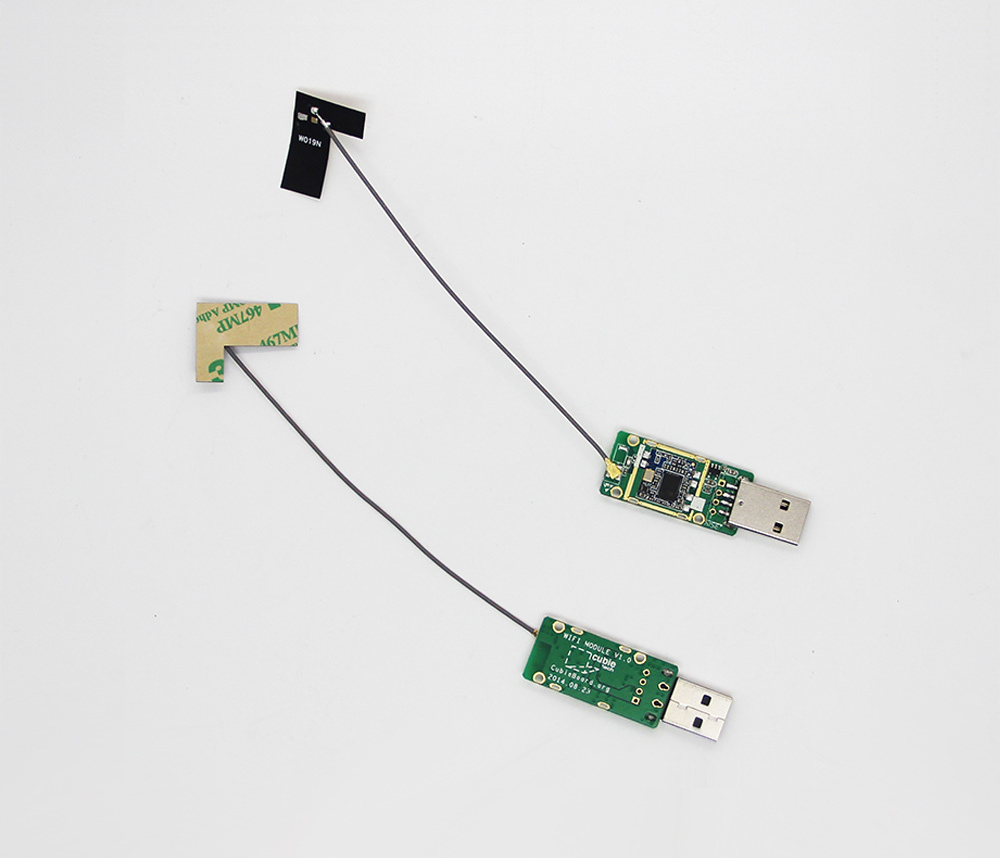

    This Wifi module adopts standard USB interface, so it can be plug and play with CubieBoard. If you want to install finished products with this Wifi module, the USB male connector can be replaced by a 4 pins header which is easy to connect wires. And the Wifi antenna is also can be customized. If this module is used within the plastic enclosure, the ceramic antenna and PFC antenna is OK. But if it's used within the metallic case, we usually need to use the external antenna. And more, this module also support 3.3 Volts power, but the default power configuration is 5 Volts power supply, a little hardware option modification is need if need to power by 3.3 Volts.

zhixian

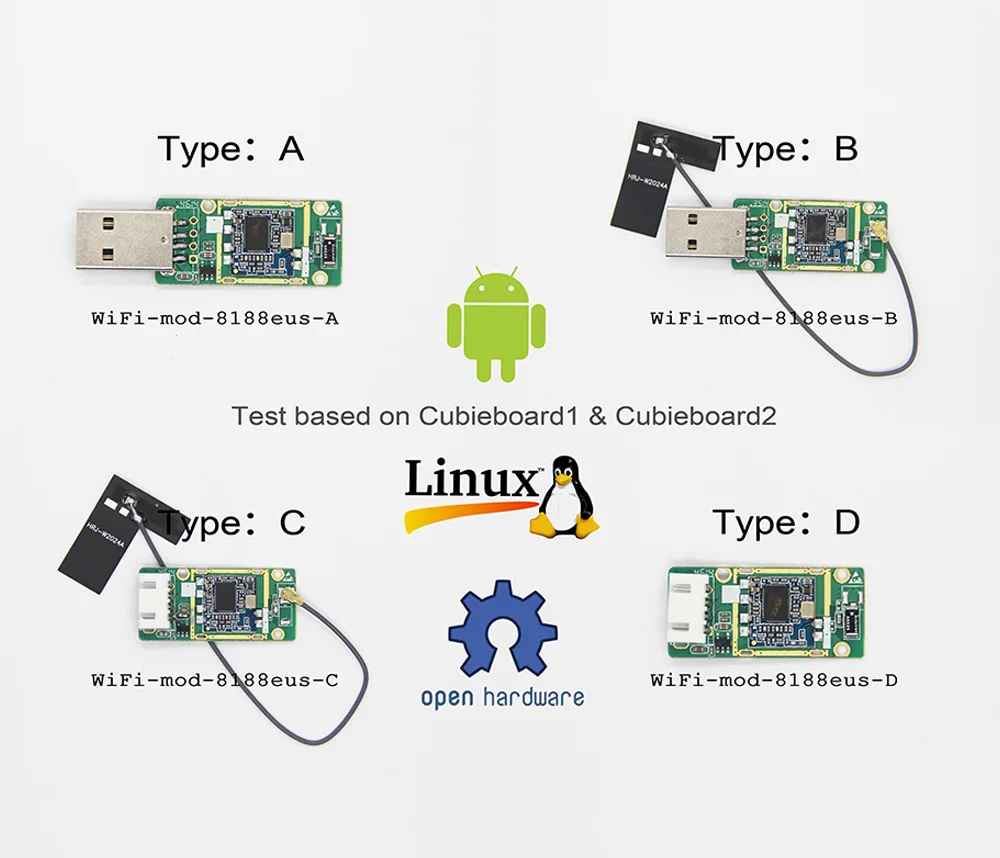

This wifi module have four type unit(Type A~D).

(Default ship the TypeA)

cubieboard_usbwifi-10

detail

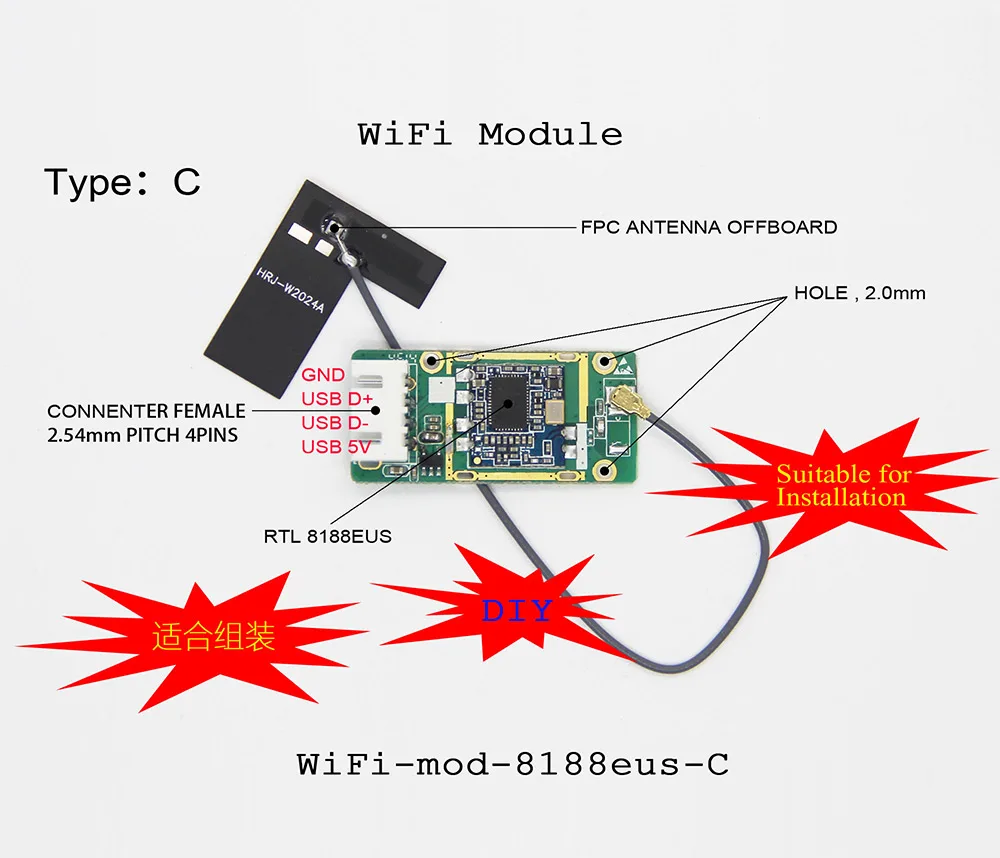

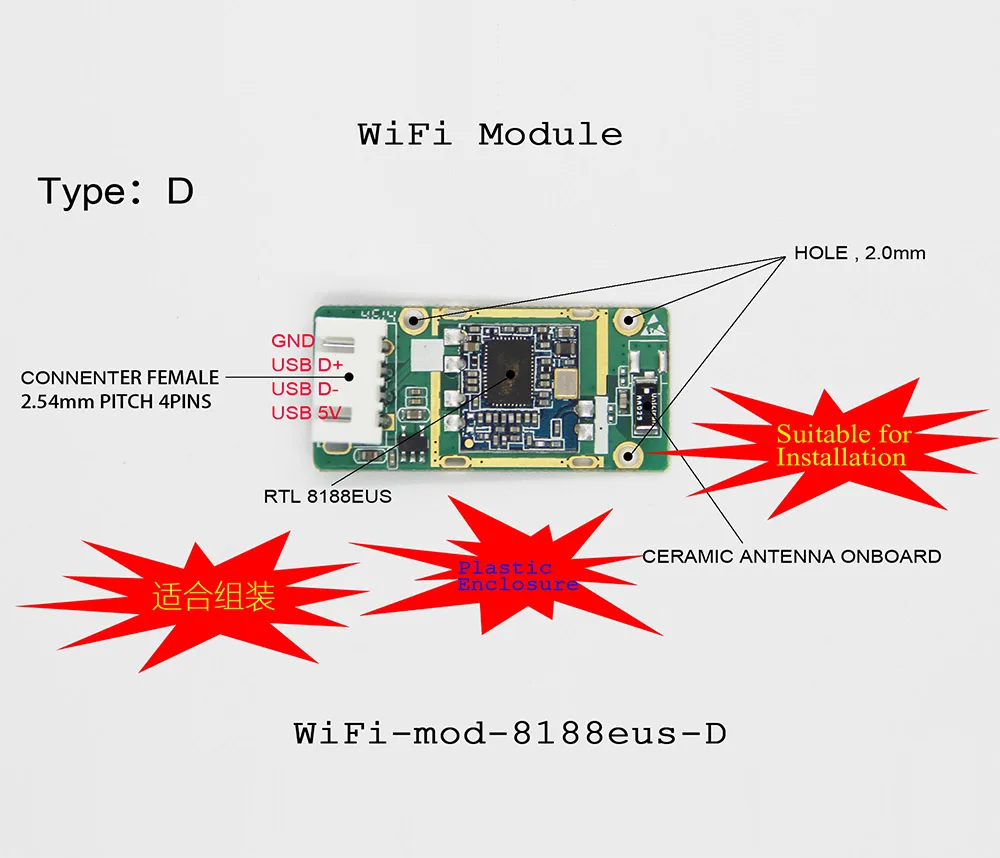

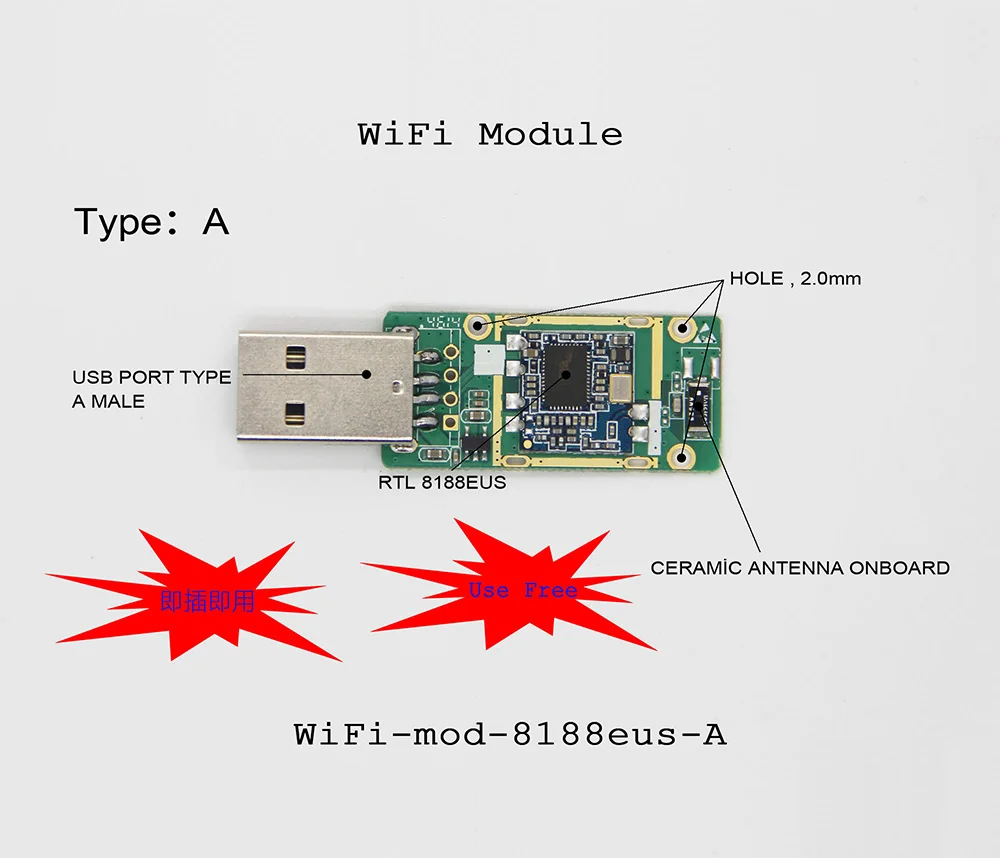

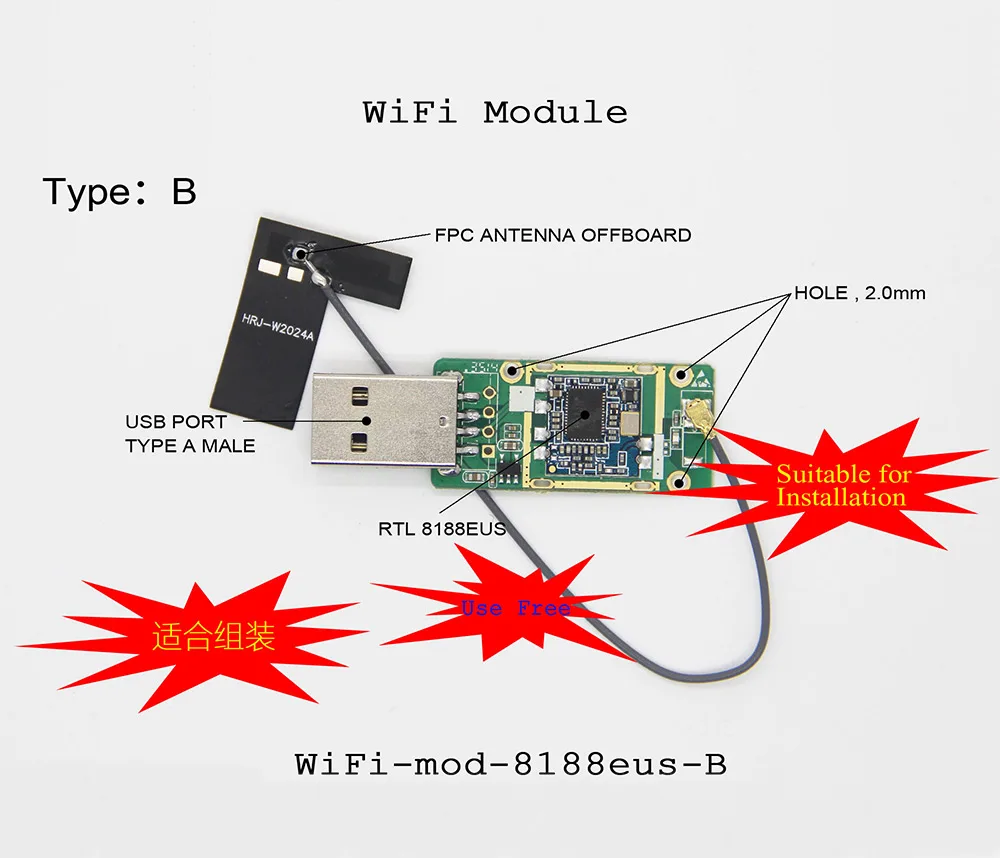

cubieboard_usbwifi-11cubieboard_usbwifi-12cubieboard_usbwifi-13cubieboard_usbwifi-14

Product Introduction

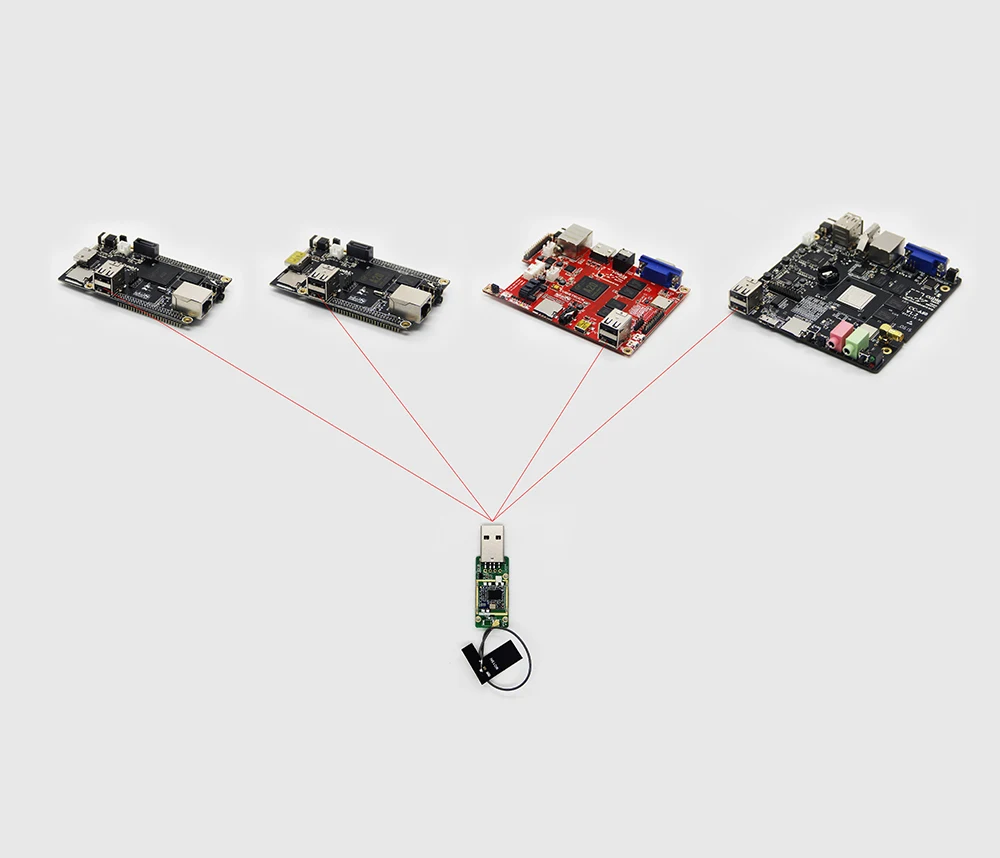

    CubieTech's USB Wifi Module is a open source accessory for CubieBoard1 and CubieBoard2, but it can also used with other open source hardware. It's a customizable product, can be used in the development stage, but also applied directly to the final product.

    We can easily do some customizations in signal connector, antenna and the power circuit. In the signal connector aspect, you may choose USB type A port for the plug and play occasions, you may choose 2.54 mm pitch female connector for the assembly application. In the antenna aspect, you may choose the ceramic antenna if you want to diy; and you may choose the FPC antenna if you have a plastic enclosure; you may choose the extended telescopic antenna if you have a metal enclosure. In the power circuit aspect, the 3.3V and 5V power are both OK to power it. This option depend on the main board's detailed power supply situations.

    So CubieTech's USB Wifi Module is very suitable for the DIY market, the several combinations will meet your requirements very well.

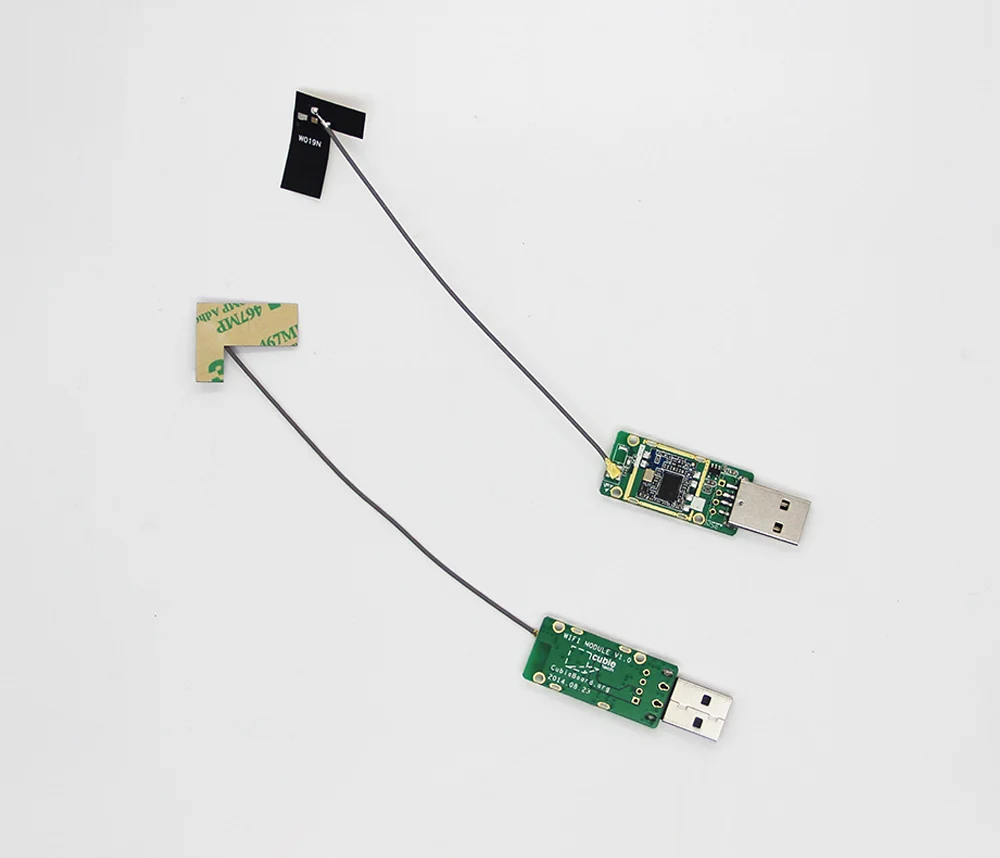

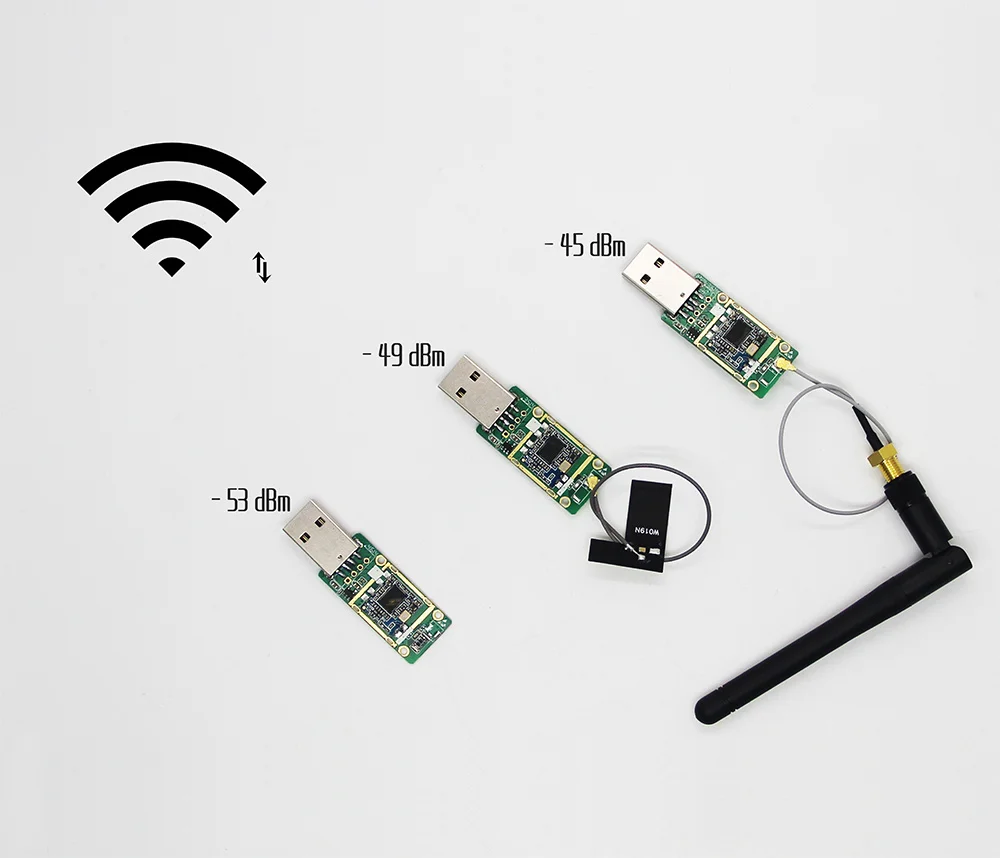

cubieboard_usbwifi-9cubieboard_usbwifi-8cubieboard_usbwifi-7cubieboard_usbwifi-6cubieboard_usbwifi-4cubieboard_usbwifi-3cubieboard_usbwifi-2

HTB16IjCHFXXXXapXXXXq6xXFXXXX
Resources and Materials:

http://dl.cubieboard.org/modules/RTL8188EUS/
Distribution contacts:
fly#cubietech.com(# --> @)

Pack_List

BD14580_1x USB Wifi Module  (default typeA)

  if you need another type,Please give us a message.
