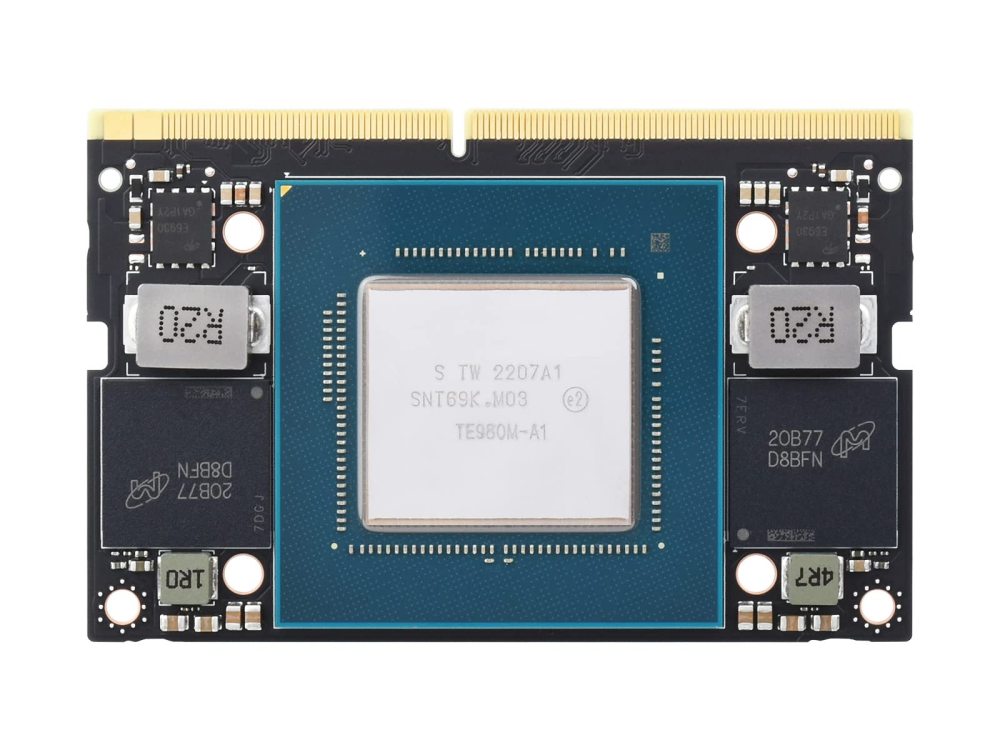

Jetson Orin NX SOM System On Module
- Quick Start
-
Tips
- If you need to purchase a China-made Jetson ORIN NX development kit, please click:
- Not expected to be available again until September 2025
- If you need to purchase a China-made Jetson ORIN NX development kit, please click:

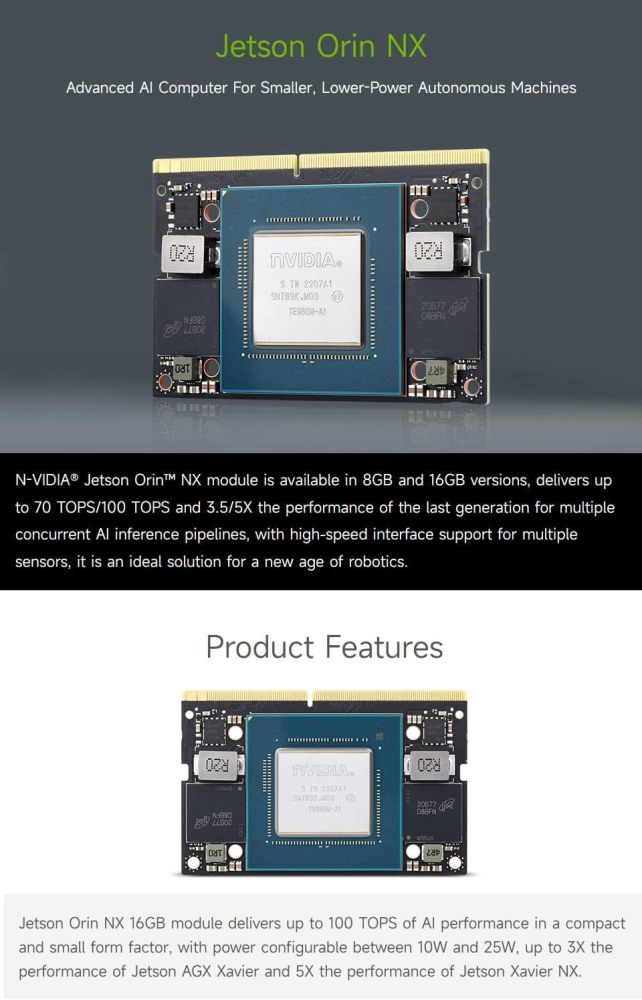

Introduction
Jetson Orin NX module is available in 8GB and 16GB versions, delivers up to 70 TOPS/100 TOPS and 3.5/5X the performance of the last generation for multiple concurrent AI inference pipelines, with high-speed interface support for multiple sensors, it is an ideal solution for a new age of robotics.
Features
Jetson Orin NX 16GB module delivers up to 100 TOPS of AI performance in a compact and small form factor, with power configurable between 10W and 25W, up to 3X the performance of Jetson AGX Xavier and 5X the performance of Jetson Xavier NX.

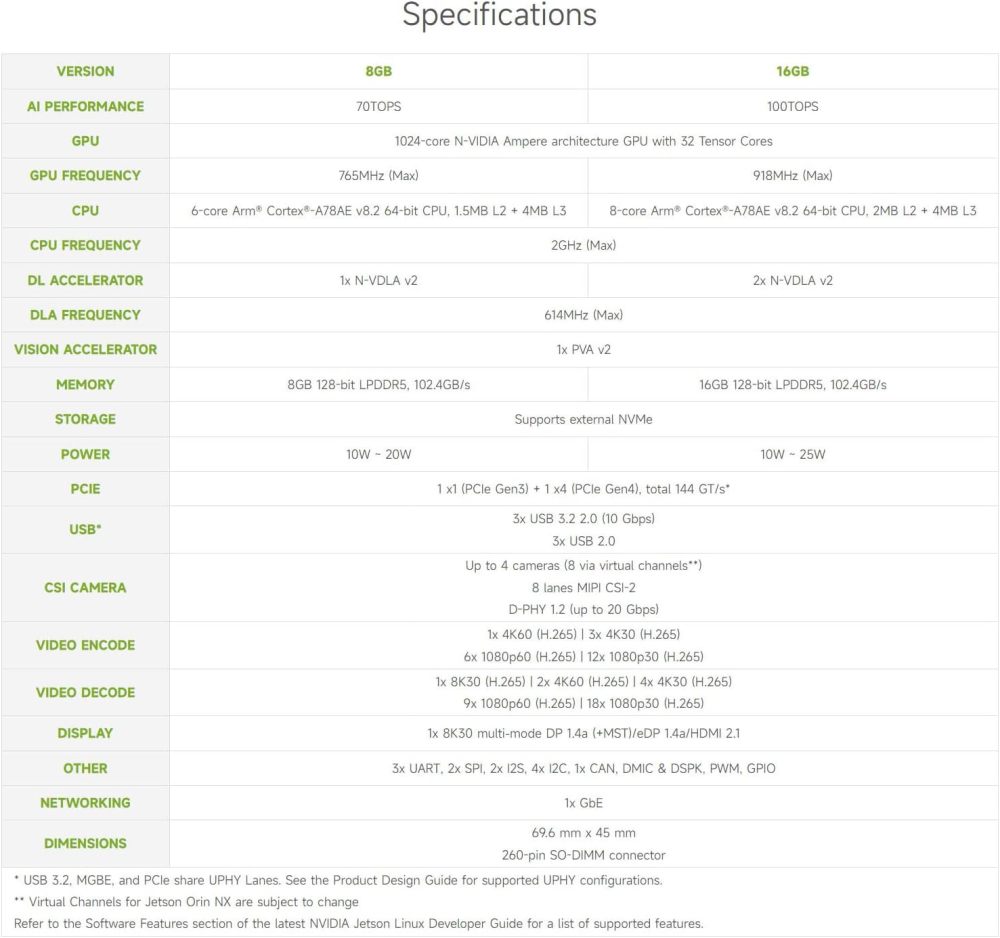

Specification
| VERSION | 8GB | 16GB |
|---|---|---|
| AI PERFORMANCE | 70TOPS | 100TOPS |
| GPU | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |
| GPU FREQUENCY | 765MHz (Max) | 918MHz (Max) |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
| CPU FREQUENCY | 2GHz (Max) | |
| DL ACCELERATOR | 1x N-VDLA v2 | 2x N-VDLA v2 |
| DLA FREQUENCY | 614MHz (Max) | |
| VISION ACCELERATOR | 1x PVA v2 | |
| MEMORY | 8GB 128-bit LPDDR5, 102.4GB/s | 16GB 128-bit LPDDR5, 102.4GB/s |
| STORAGE | Supports external NVMe | |
| POWER | 10W ~ 20W | 10W ~ 25W |
| PCIE* | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) | |
| USB* |
3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
|
| CSI CAMERA |
Up to 4 cameras (8 via virtual channels**) 8 lanes MIPI CSI-2 D-PHY 1.2 (up to 20 Gbps) |
|
| VIDEO ENCODE |
1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
|
| VIDEO DECODE |
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
|
| DISPLAY | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
| OTHER | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | |
| NETWORKING | 1x GbE | |
| DIMENSIONS |
69.6 mm x 45 mm 260-pin SO-DIMM connector |
|
|
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin NX are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. |
||
