ROCK PI X Model B Win10 Intel Atom x5-Z8350 single board computer SBC

Rock Pi X is an x86 single board computer, in other words it can run the same software as your main desktop computer/laptop. Windows 10 and various Linux distributions will work on this board. An Intel Atom x5-z8350 with Windows 10 would be bareable for s
Price:
  • Bundle:
    Bundle1
    Bundle2
    Bundle3
    Bundle4
    Bundle5
Quantity:
-
+
(291 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews(8)
Specifications
Brand Name: Rock Pi Demo Board Type: 2GB, 4GB, 1GB

Bundle1: Rock Pi X Model B 1GB+8GB eMMC

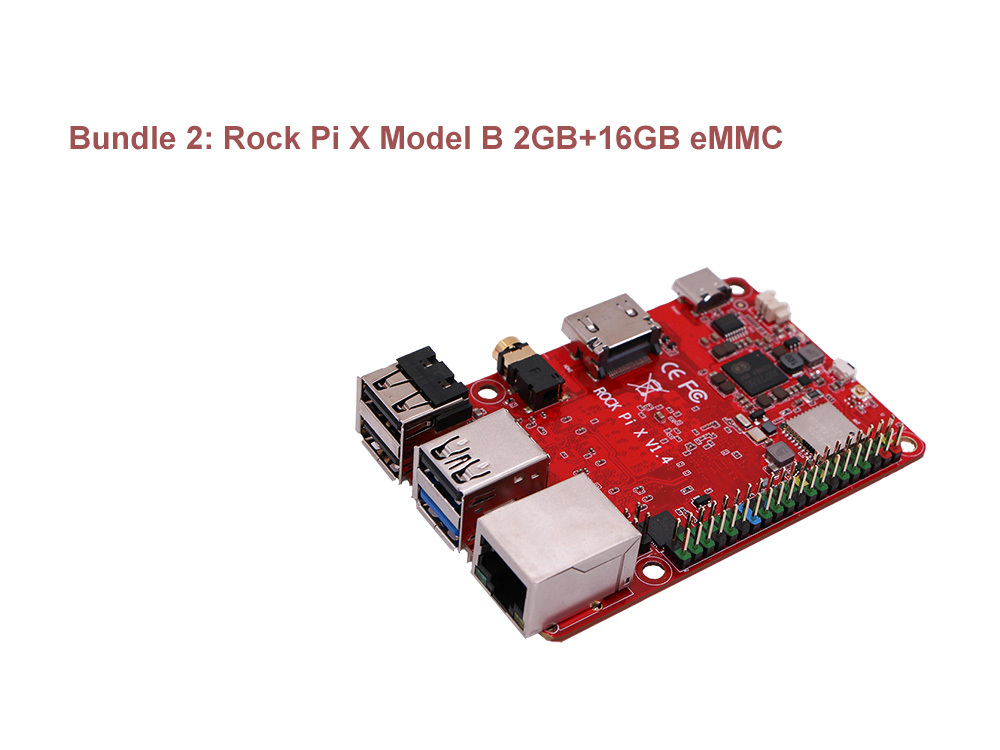

Bundle2: Rock Pi X Model B 2GB+16GB eMMC

Bundle3: Rock Pi X Model B 4GB+32GB eMMC

Bundle4: Rock Pi X Model B 4GB+64GB eMMC

​Bundle5: Rock Pi X Model B 4GB+128GB eMMC



For downloading the Tools, Driver and Firmware use the following link:

https://youyeetoo.com/blog/-86





opis



Introduction


Rock Pi X is an x86 single board computer, in other words it can run the same software as your main desktop computer/laptop. Windows 10 and various Linux distributions will work on this board. An Intel Atom x5-z8350 with Windows 10 woud be bearable for simple projects but don't expect this to run Crysis, both versions!

With eMMC flash storage options from 8 GB to 128 GB we have a decent level of storage for most users but choose wisely as the eMMC is soldered to the board. Further expansion options are provided via micro SD. A single USB 3.0 port can also be used with external storage. The remaining three USB ports are USB 2.0 , best for keyboard and mouse duties. The USB C port provides power and OTG support which adds the possibility of faster USB C storage. A single HDMI 1.4 port offers 4K at 30 Hz provides the only display output, unless one is hidden in the USB C port. Unlike the Raspberry Pi the Rock Pi X has no CSI (Camera) or DSI (Display) ports but it does have 40 pin GPIO which is claimed to be compatible with the Raspberry Pi.

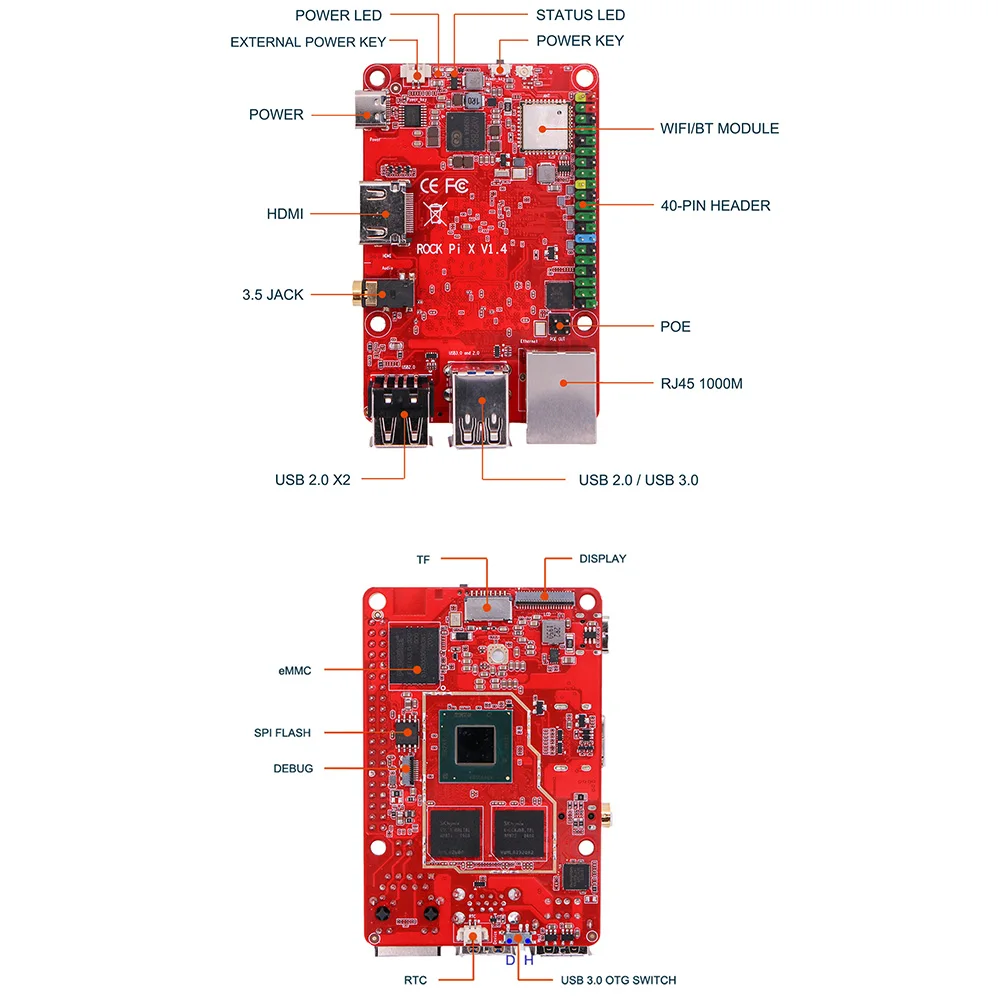

gh

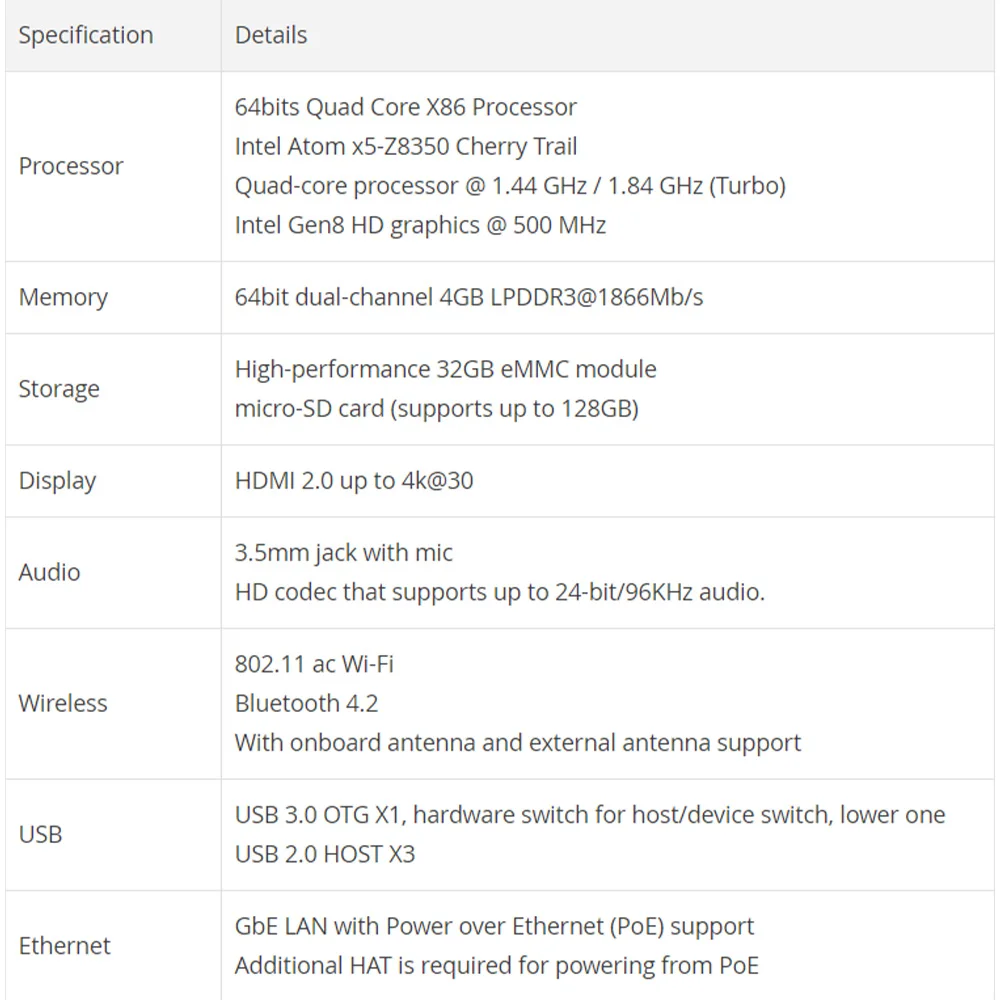

Specifications


spec1

spec2
