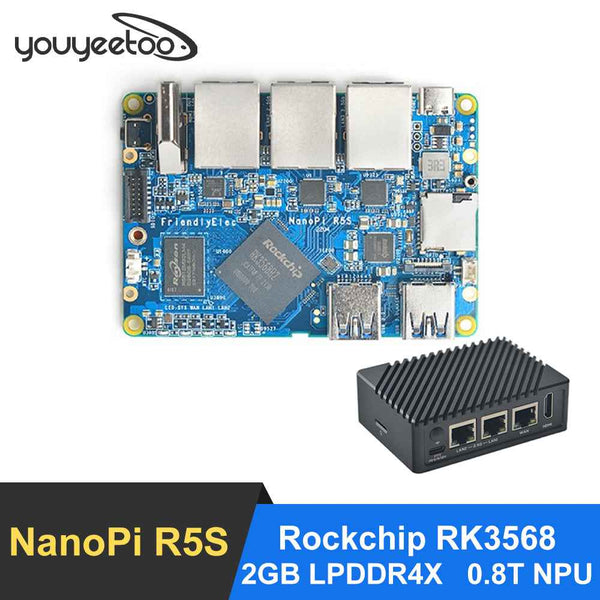

Introduction

The NanoPi R5S (as “R5S”) is an open-sourced mini IoT gateway device with two 2.5G and one Gbps Ethernet ports, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3568B2 CPU, 2GB/4GB LPDDR4x RAM and 8GB/16GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

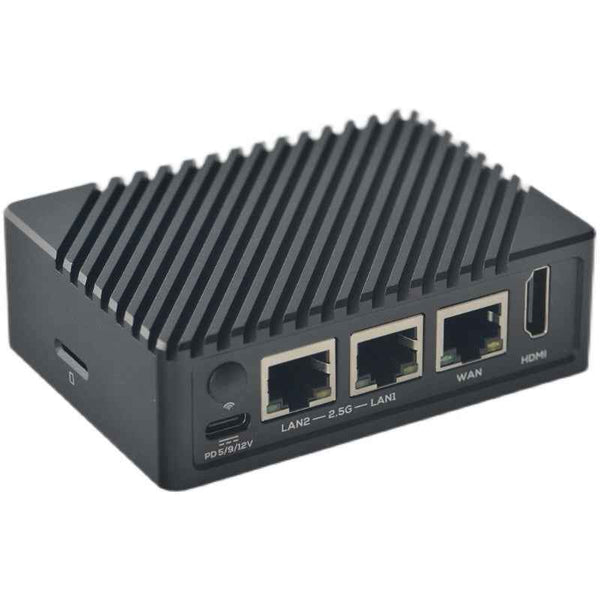

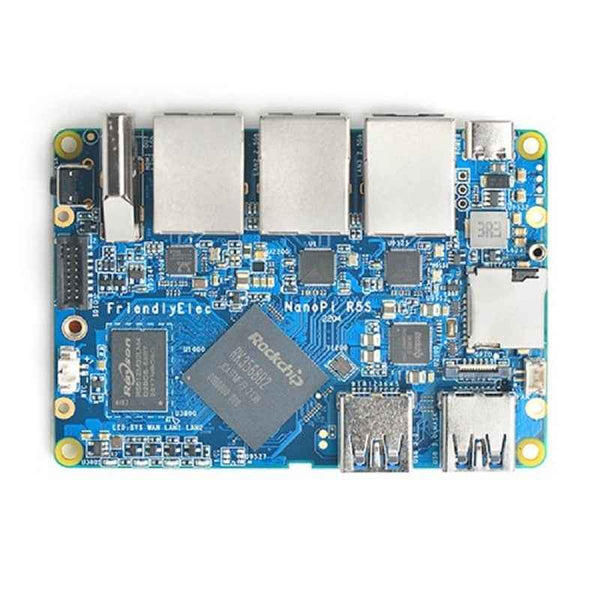

The NanoPi R5S has rich hardware resources with a compact size of 90 x 62 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

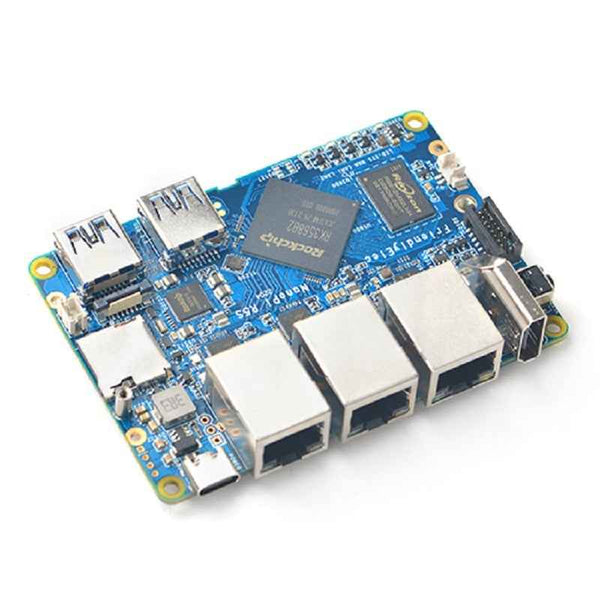

The NanoPi R5S has one M.2 NVME port, two USB 3.2 Gen 1 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

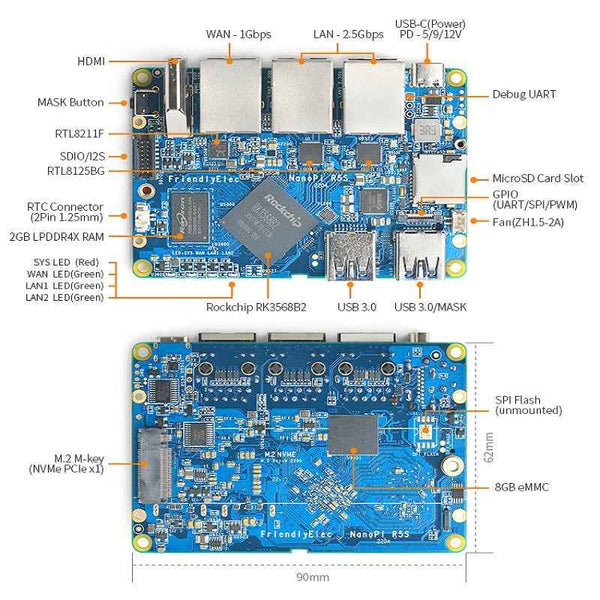

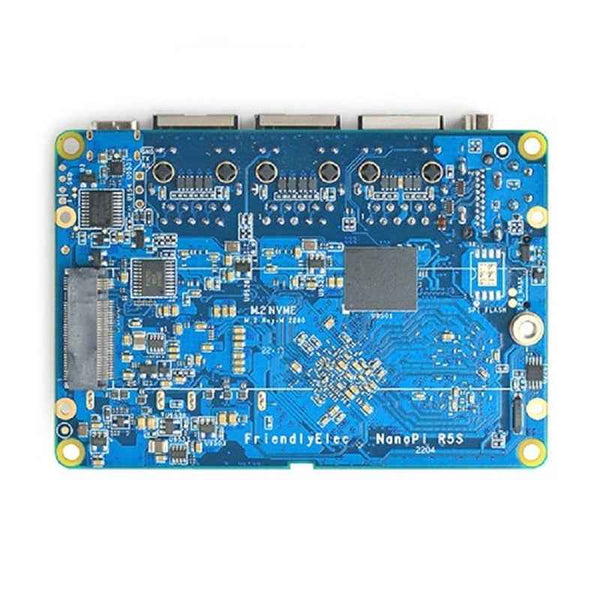

Hardware Spec

• SoC: Rockchip RK3568B2

  CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
  GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
  VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
  NPU: Support 0.8T


• RAM: 2GB/4GB LPDDR4X
• Flash: 8GB/16GB eMMC
• Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet
• USB: two USB 3.2 Gen 1 Type-A ports
• HDMI:

  support HDMI1.4 and HDMI2.0 operation
  support up to 10 bits Deep Color modes
  support up to 1080p@120Hz and 4096x2304@60Hz
  support 3-D video formats


• PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc
• microSD: support UHS-I
• GPIO:

  12-pin 0.5mm FPC connector
  up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs


• SD/MMC/SDIO/I2S:

  2x8-pin 1.27mm connector
  Compatible with SDIO3.0 protocol
  Compatible with SD3.0, MMC ver4.51
  4bits data bus widths
  1x I2S with 2x SDO and 3x SDI


• Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
• LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
• others:

  2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
  MASK button for eMMC update
  one 5V Fan connector


• Power supply: USB-C, support PD, 5V/9V/12V input
• PCB: 8 Layer, 62x90x1.6mm
• Ambient Operating Temperature: 0℃ to 70℃

Debug UART Pin Spec

•




  Pin#


  Assignment


  Description




  1


  GND


  0V




  2


  UART2DBG_TX


  output




  3


  UART2DBG_RX


  intput





•
  USB Port


Each USB 3.0 port has 1.4A overcurrent protection.

•
  RTC


RTC backup current is 0.25μA TYP (VDD =3.0V, TA =25℃).Connector P/N: Molex 53398-0271
