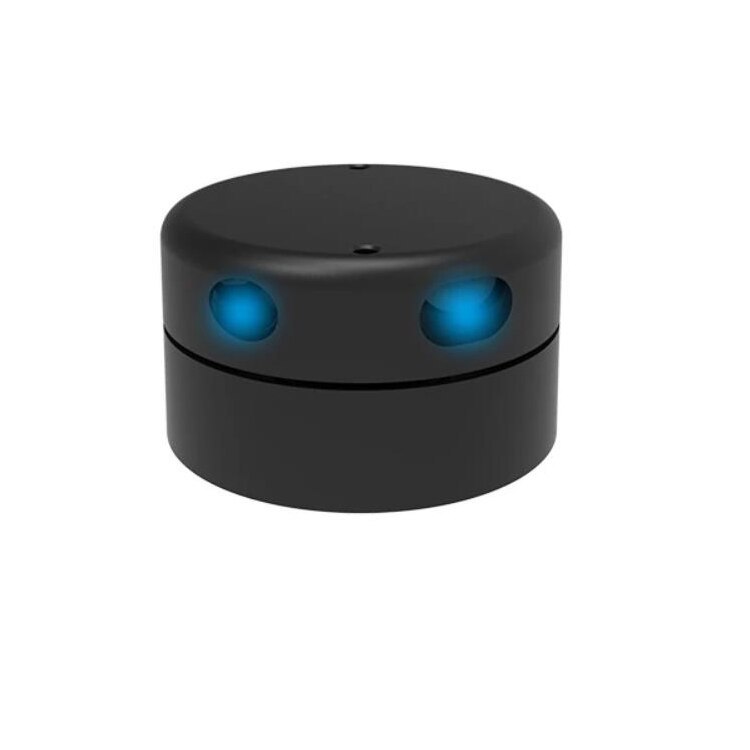

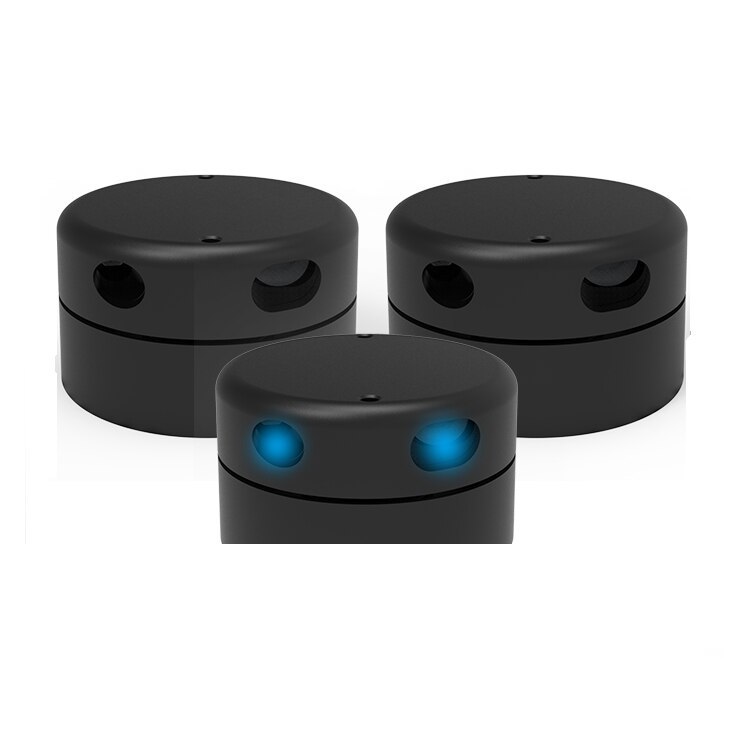

YDLIDAR G2 - 12M, 360°, Lidar Sensor Scanner

• Quick Start
• Tips

Introduction

The YDLIDAR G2 is a 2D LIDAR sensor designed for robotics and automation applications. It's part of the YDLIDAR series, which are known for their ability to provide accurate distance and angle measurements for obstacle detection and navigation.

Features

• YDLIDAR G2 360° Laser Scanner
• Features a 360° Omnidirectional scanning range
• Offers small distance error, stable performance and high accuracy
• Has a 5-12 Hz adaptive scanning frequency

Shipping List

1x YDLidar G2

Specification

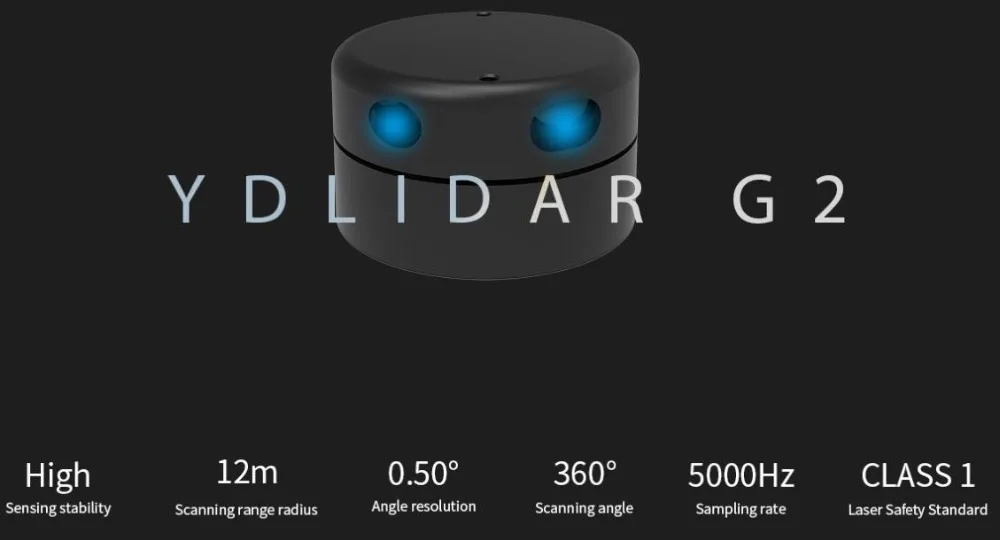

• Sensing stability: High
• Scanning range radius: 12 m
• Angle resolution: 0.50°
• Scanning angle: 360°

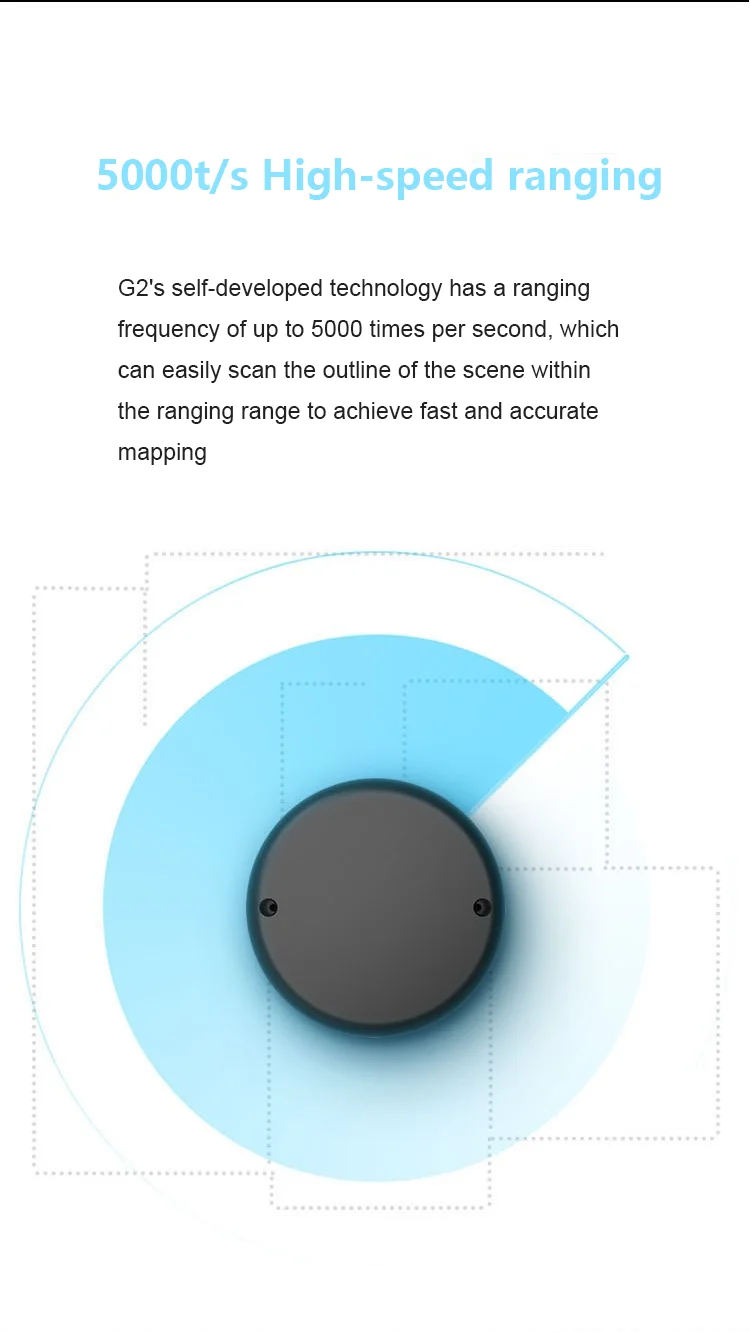

• Sampling rate: 5,000 Hz

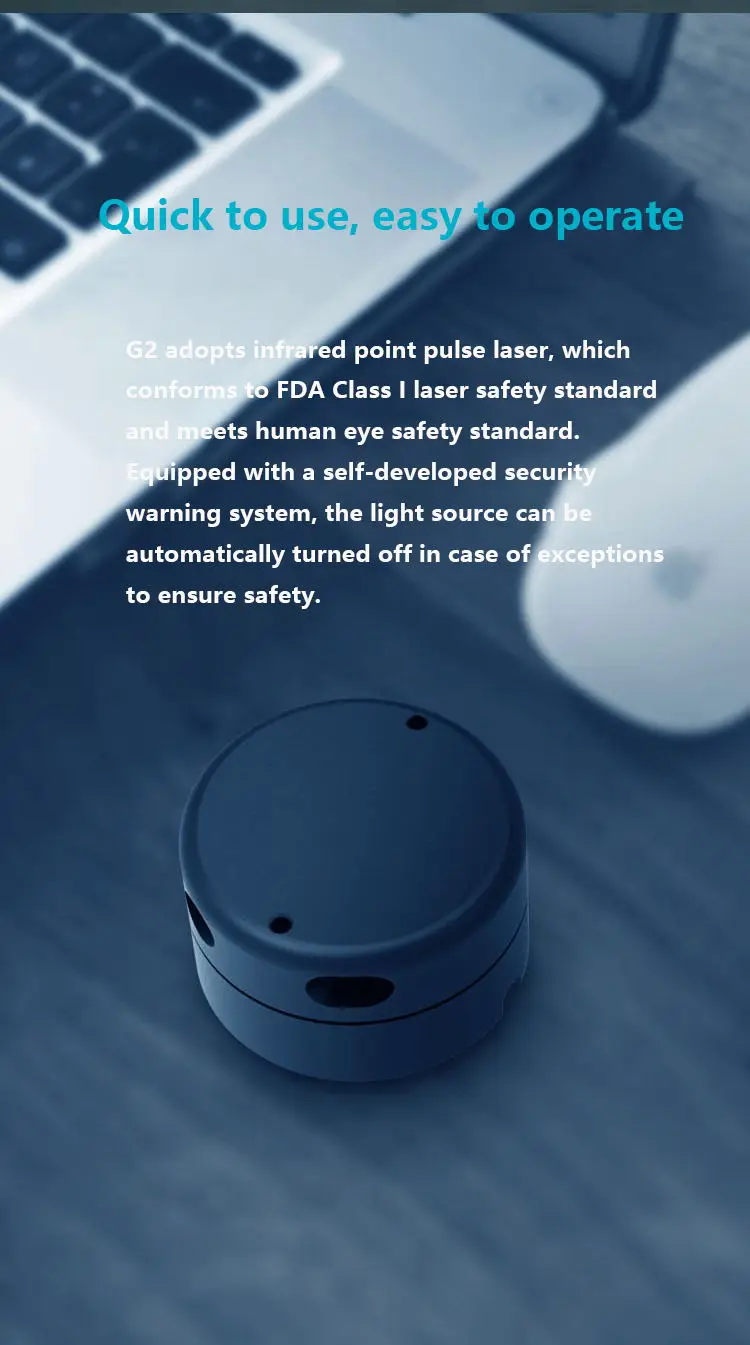

• Laser Safety Standard: CLASS 1
• Power Supply Range: 4.8 ~5.2 V
• Baud rate: 230,400 bps
• High Signal Level: 1.8-3.4 V
• Low signal Level: 0-0.5 V
• Laser tilt: 0.25-1.75°
• Voltage ripple: 0 - 100 mV
• Operating temperature: 0-50°
