Thinkcore TC Rockchip RV1126/ RV1109 Stamp Hole Development kits- 2.0 Tops NPU Supports Linux,Androi

To download the Tools, driver, and firmware, use the following link:

https://youyeetoo.com/blog/rv1126-stamp-hole-development-board-tkdp1126kit1-144

Note: Please note the type what you want:

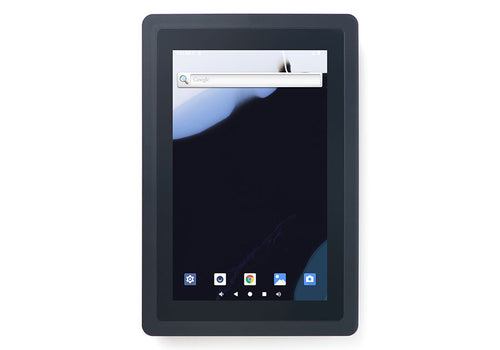

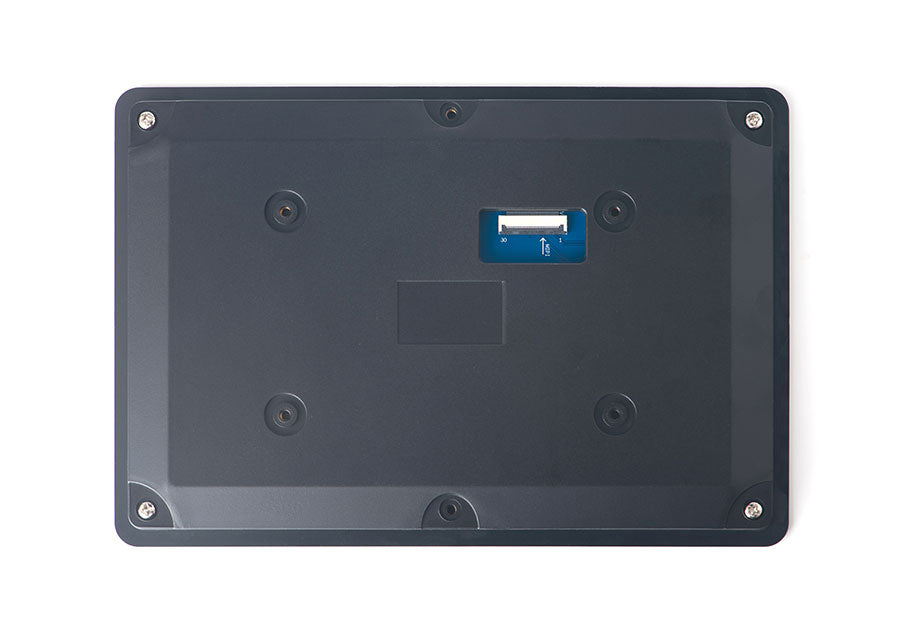

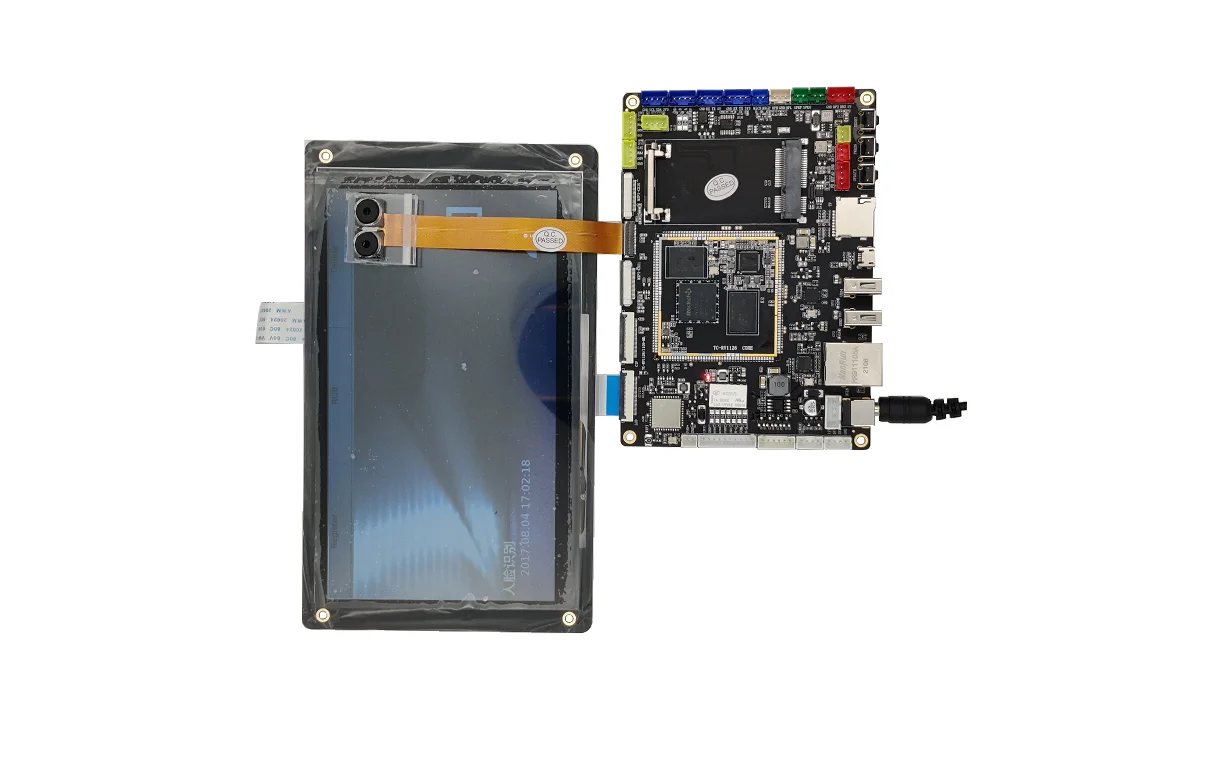

Bundle 1: RV1126 Stamp Hole Development kits + 7-inch screen with binocular camera

Bundle 2: RV1126 Stamp Hole Development kits

Bundle 3: RV1109 Stamp Hole Development kits + 7-inch screen with binocular camera

Bundle 4: RV1109 Stamp Hole Development kits

RV1126/RV1109 Stamp Hole Development Board

Size:135mm*95mm

Low-consumption AI vision processor Rockchip RV1126, with 2.0 TOPS NPU

Supports 4K H.254/H.265@30FPS and multi-channel video encoding and decoding

Rich interfaces

Supports Buildroot+QT OS —occupies small space, starts fast

Brief Introduction

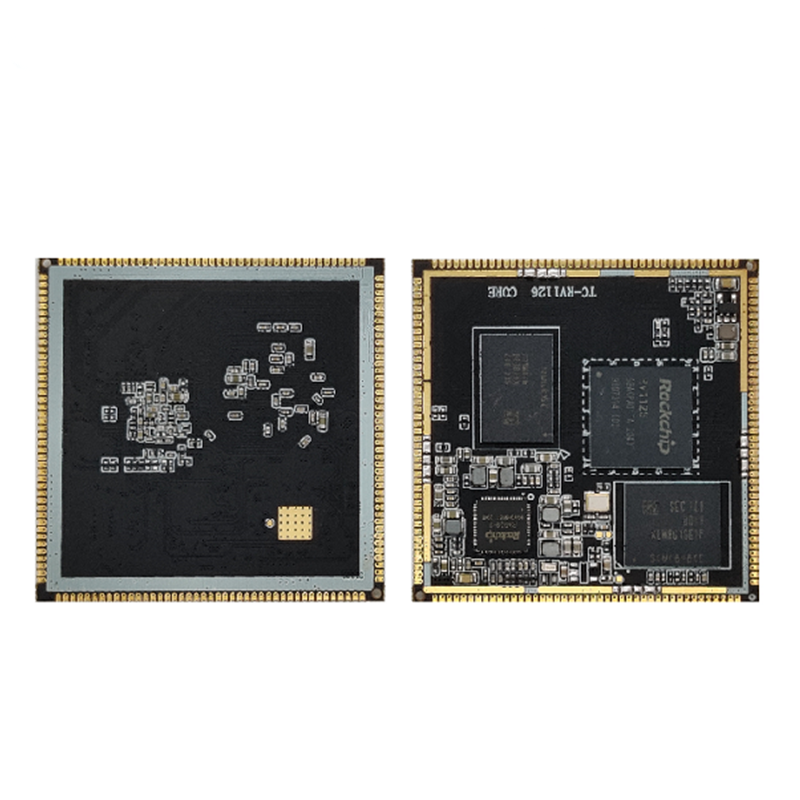

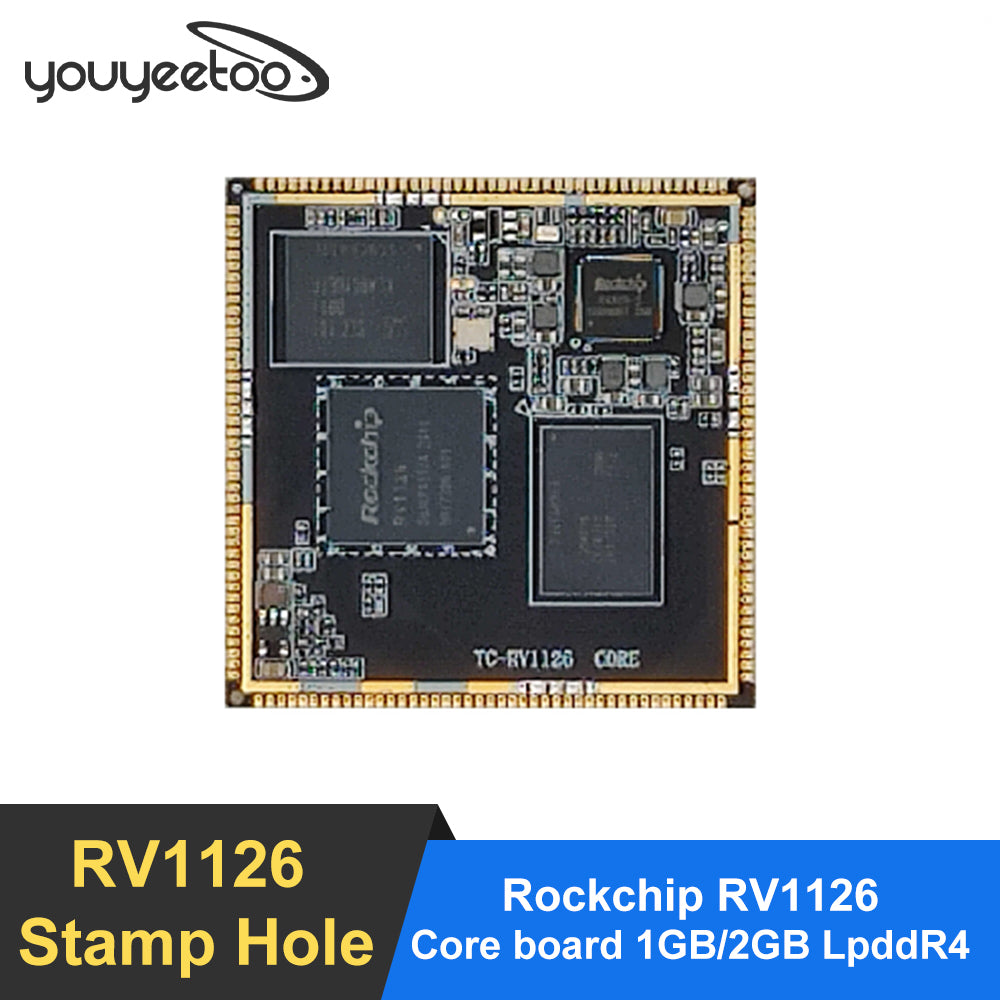

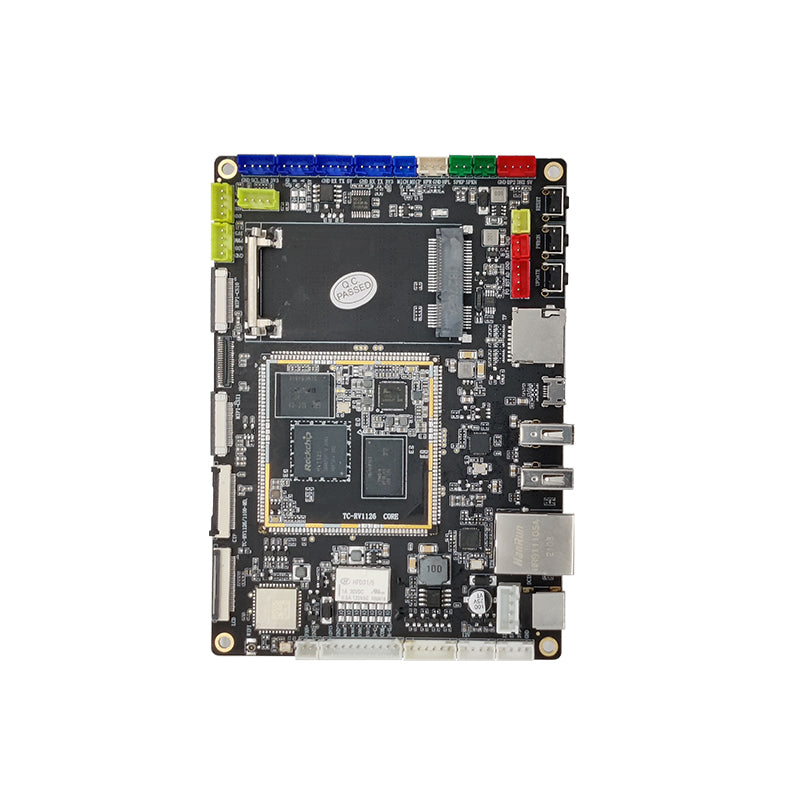

TC-RV1126 development board consists of the RV1126 Gold Finger SoM and carrier board.

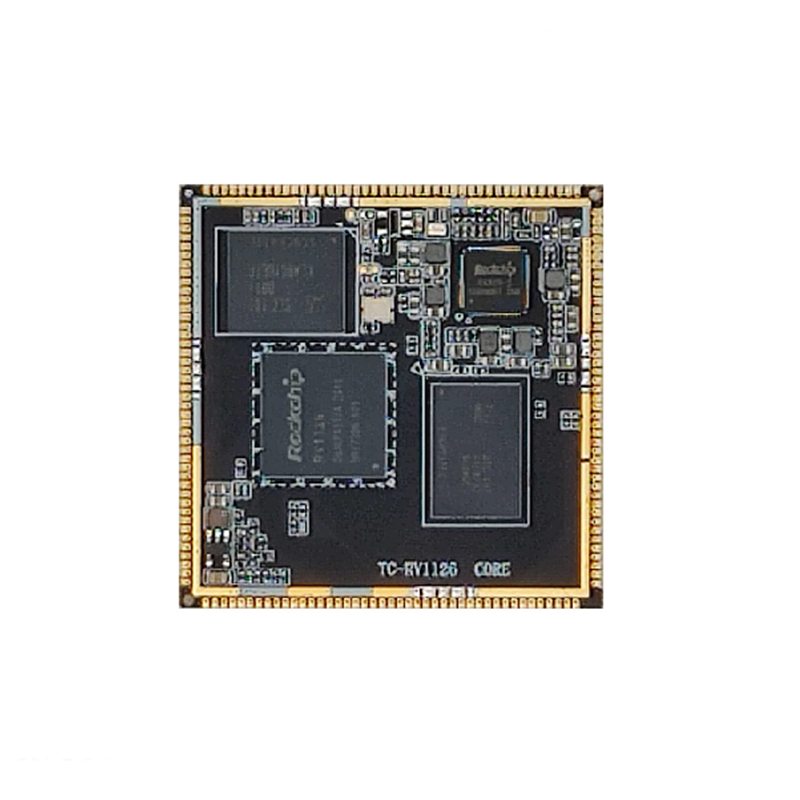

The TC-RV1126 system-on-module takes the low-consumption AI vision processor Rockchip RV1126, with a 14nm lithography process and quad-core 32-bit ARM Cortex-A7 architecture, integrates NEON and FPU— the frequency is up to 1.5GHz.

Built-in neural network processor NPU with computing power up to 2.0 Tops realizes that the power consumption of AI computing is less than 10% of the power required by the GPU. With tools and supporting AI algorithms provided, it supports direct conversion and deployment of Tensorflow, PyTorch，Caffe， MxNet, DarkNet, ONNX, etc.

The soM is only 67.6*58.7 mm，ups to 204PIN. Includes I2C, SPI, UART， ADC， PWM, GPIO，USB2.0， SDIO，I2S，MIPI-DSI,MIPI-CSI，CIF,PHYand other interfaces are equipped,meeting needs of moreusage scenarios.

It supports Buildroot+QT 0s — occupies small space,starts fast,and provides stable and reliable operation.

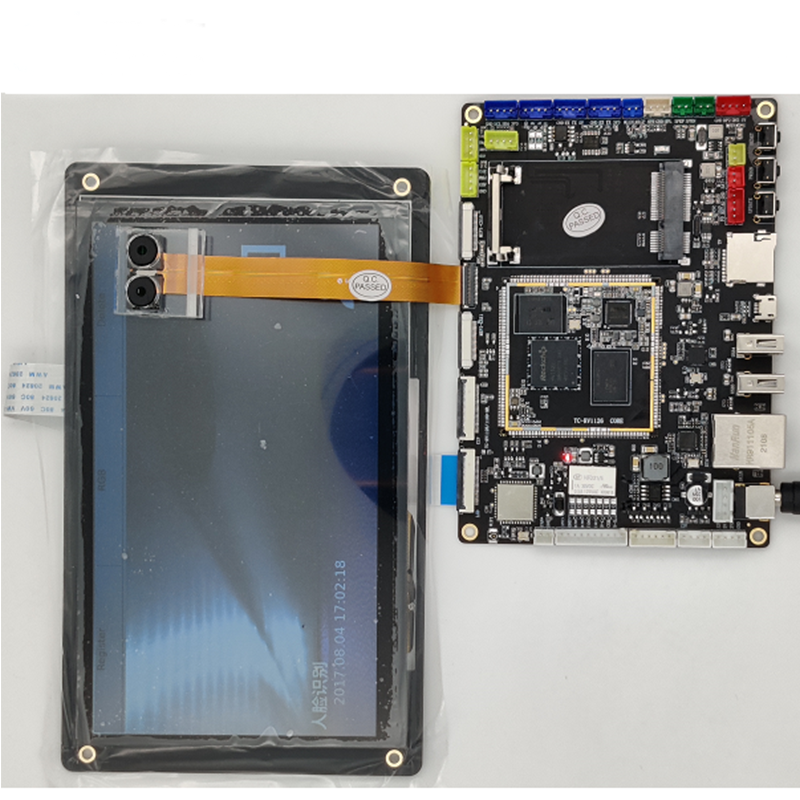

TC-RV1126 carrier board,its size is only108*124 mm,includesmany interfaces an functions,such as Ethernet , OTG and USB2.0port，Audio input and output，MIPI display port，TF card slot,MIPI camera port,，DVP camera port，TTL，Power output，and so on.

Application

TC-RV1126 develop board is a Linux Intelligent motherboard.It iswidely used in face recognition，gesture recognition，gate accesscontrol，smart security，smart IP camera,smart doorbell/peephole,self-service terminals，smart finance，smart construction，smarttravel and other industries.
