Neardi LPS3576 Automotive Intelligent Vehicle Controller (RK3576 / 6 TOPS NPU / 12-ch Video / IP65)

• Quick Start Guide & Tech Docs: Official Neardi LPS3576 Product Page & Documentation
• Tips: Designed for commercial vehicles, autonomous driving, AGVs, and intelligent logistics. Features automotive-grade electrical protection and IP65 rugged sealing.

Introduction

The Neardi LPS3576 is an industrial, automotive-grade intelligent vehicle controller powered by the Rockchip RK3576 octa-core 64-bit processor (4×Cortex-A72 + 4×Cortex-A53 up to 2.2GHz) with an integrated 6.0 TOPS NPU. Designed for demanding intelligent in-vehicle vision and telemetry applications, it supports 6-channel AHD + 6-channel GMSL synchronized video input (up to 12 video streams), dual CAN FD communication, dual Gigabit Ethernet, dual-band Wi-Fi 6, 4G/5G cellular expansion, and IP65 dust/water resistance.

Features

• High-Performance SoC: Rockchip RK3576 octa-core processor (4×A72 + 4×A53 @ 2.2GHz) with ARM Mali-G52 MC3 GPU and 2D hardware graphics accelerator.
• 6 TOPS On-Device AI NPU: Integrated 6.0 TOPS AI NPU supporting INT8/INT16/FP16 mixed-precision acceleration for DMS, ADAS, and obstacle detection.

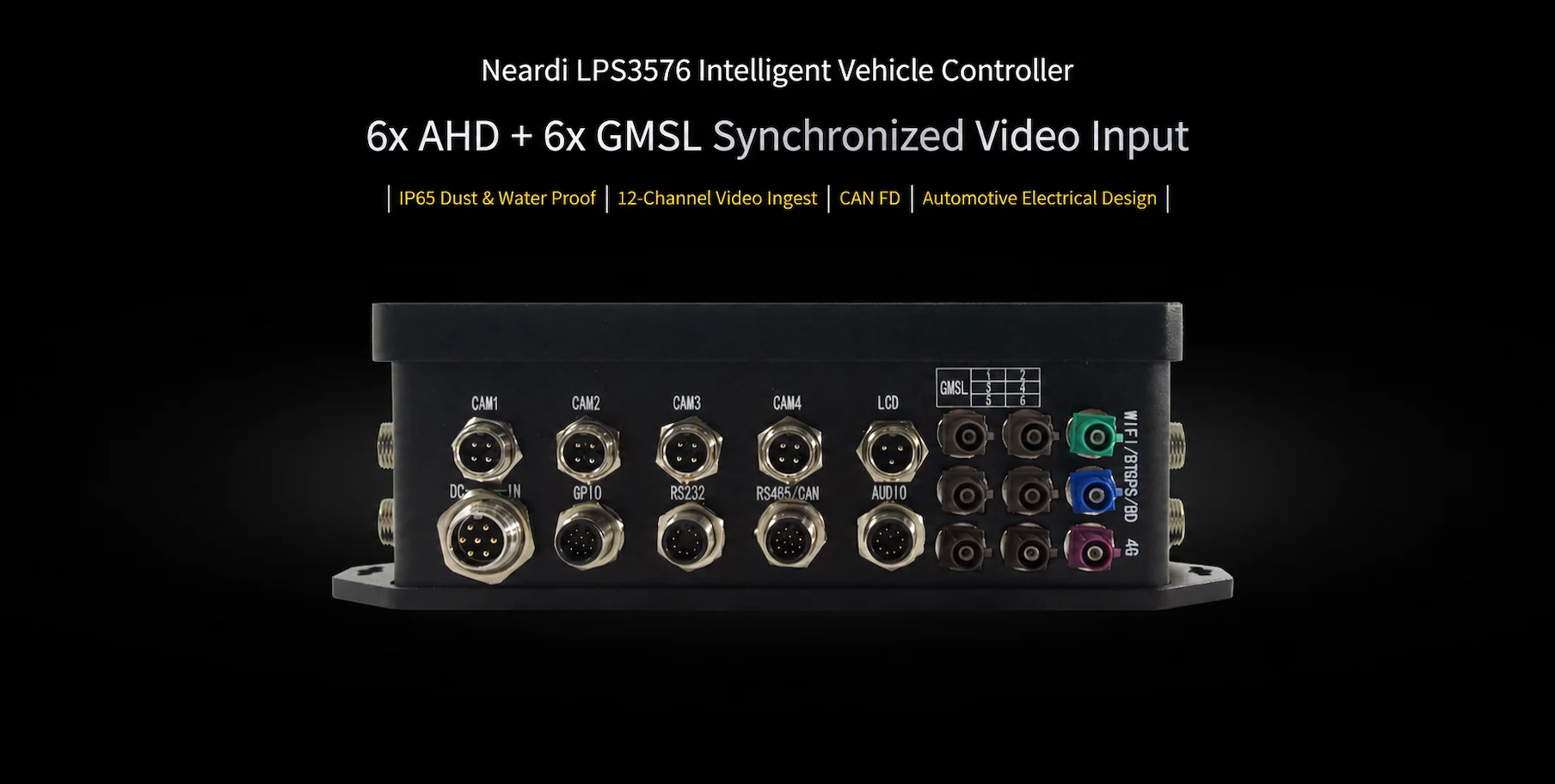

• 12-Channel Video Ingest (6x AHD + 6x GMSL): Simultaneous multi-camera capture supporting 6x AHD high-definition analog and 6x GMSL automotive serialized camera inputs.

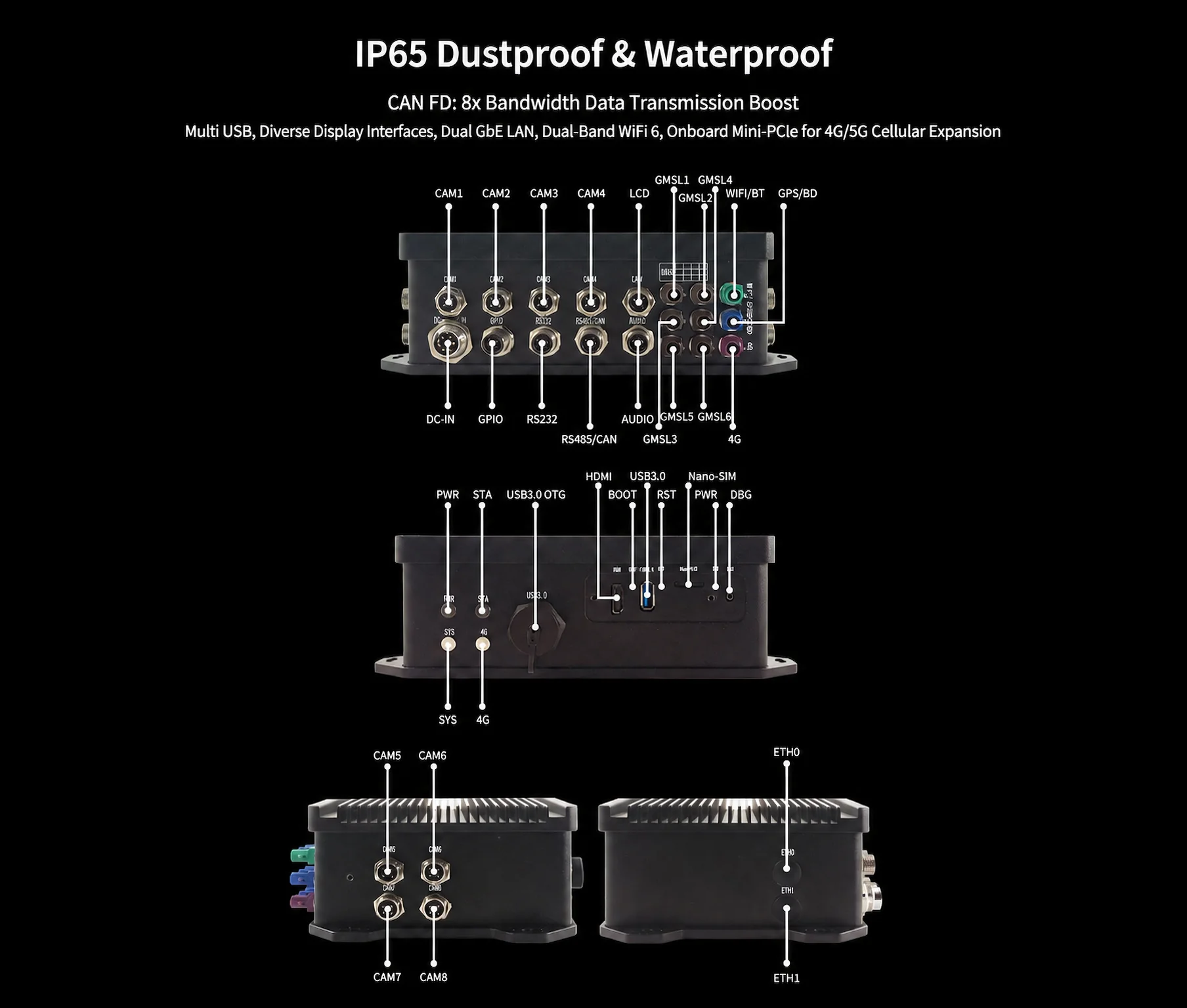

• IP65 Waterproof & Automotive Electrical Design: Rugged IP65-sealed aluminum enclosure with automotive-grade transient voltage protection, reverse polarity protection, and wide voltage input.

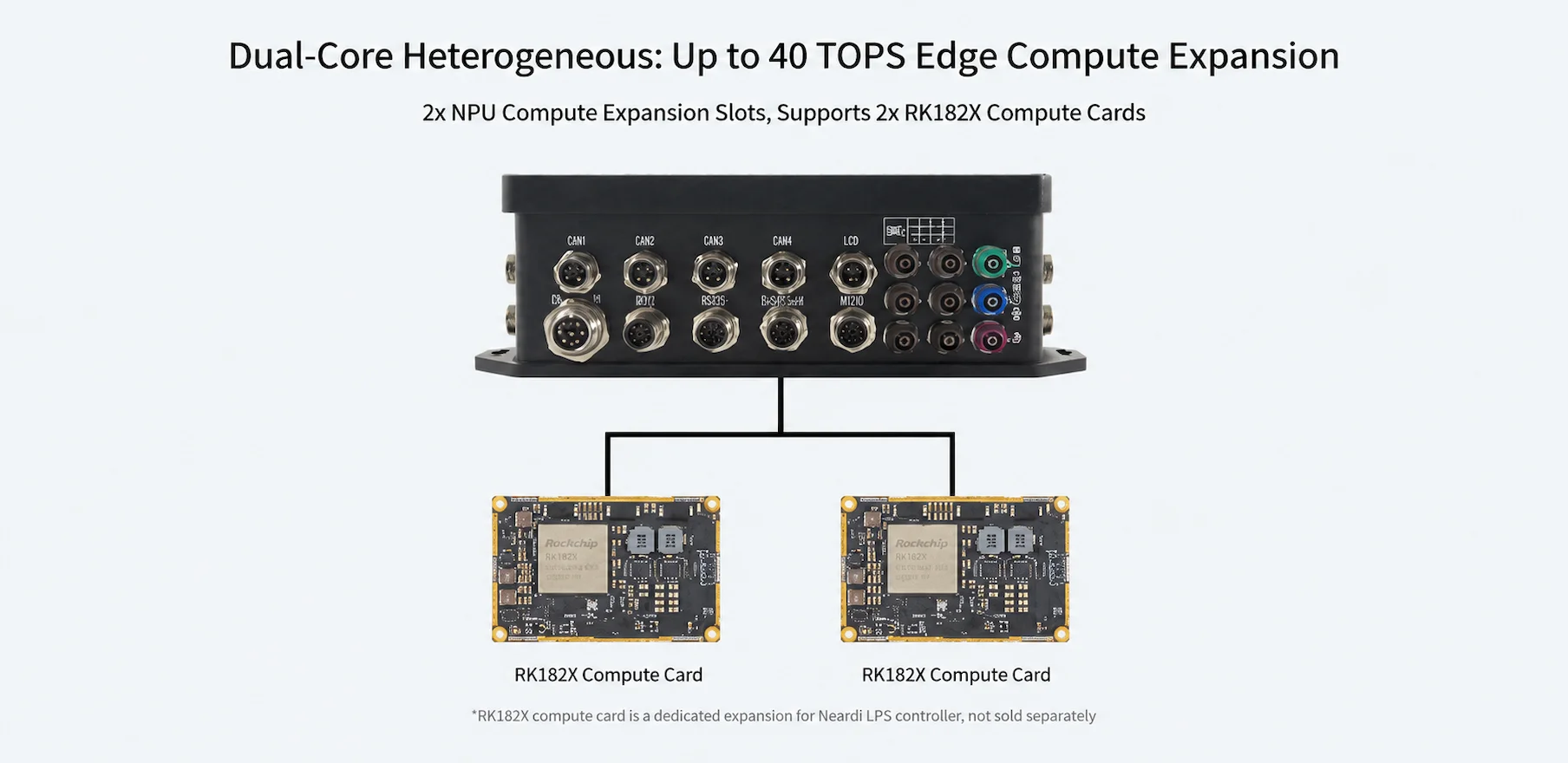

• Scalable Dual-Core AI Architecture (Up to 40 TOPS): Supports expansion via 2x NPU compute slots for optional RK182X AI accelerator cards, scaling total edge compute up to 40 TOPS.

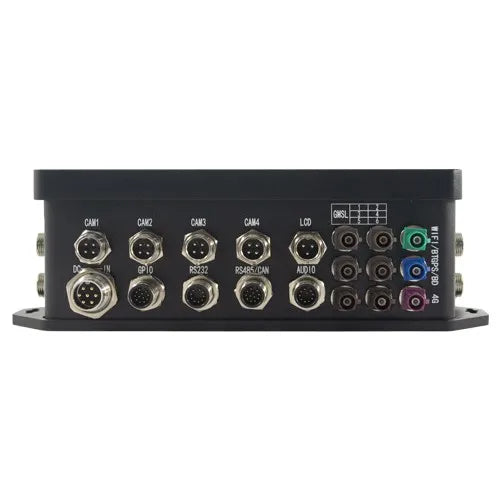

• Comprehensive Automotive Interfaces: CAN FD (8x bandwidth boost), RS485, RS232, GPIO, Dual Gigabit Ethernet (ETH0/ETH1), Dual Wi-Fi 6, BT, GPS/BDS, and Mini-PCIe for 4G/5G.

Shipping List

• 1x Neardi LPS3576 Vehicle Intelligent Controller Main Unit
• 1x Aviation/Waterproof Multi-pin Cable Wiring Harness
• 1x GPS/BDS High-Gain Antenna Kit
• Note: Optional GMSL/AHD camera modules and RK182X compute accelerator cards are sold separately.

Applications

• Commercial Vehicle ADAS, Driver Monitoring System (DMS) & Blind Spot Detection (BSD)
• Autonomous Logistics Vehicles, Smart Mining Trucks & Forklift Safety Systems
• RoboTaxi, AGV, and Unmanned Ground Vehicle (UGV) Telematics & Multi-sensor Fusion
• Rugged In-Vehicle Edge AI Computing & 12-channel Video Surveillance

Specification

• Main SoC: Rockchip RK3576 (Octa-core 64-bit, 4×Cortex-A72 + 4×Cortex-A53 @ 2.2GHz)
• NPU AI Performance: 6.0 TOPS INT8 (Expandable up to 40 TOPS via dual RK182X cards)
• GPU: ARM Mali-G52 MC3 with dedicated 2D graphics acceleration module
• Video Input: 6x AHD + 6x GMSL synchronized video input (up to 12 channels simultaneously)
• Vehicle Bus Interfaces: CAN FD (8x high-bandwidth transmission), RS485 / RS232, GPIO
• Network & Connectivity: 2x Gigabit Ethernet (ETH0/ETH1), Dual-band Wi-Fi 6, Bluetooth, GPS/BDS, 1x Mini-PCIe for 4G/5G
• Display & Audio: HDMI Out, LCD Video Interface, Audio In/Out
• Enclosure & Protection: Rugged CNC Aluminum Alloy, IP65 Dustproof & Waterproof rating
• Power & Temperature: Wide Automotive DC Voltage Input with surge protection; Industrial operating temperature

Detailed Descriptions & Resources

• Official Product Page: Neardi LPS3576 Specifications
• Software & BSP Support: Linux / Ubuntu BSP support with full multi-camera GMSL and NPU SDK documentation.
