NanoPi R76S RK3576 Router Development Board - Dual 2.5Gbps Ethernet, HDMI 2.0, USB 3.2, M.2 Slot - Ideal for Soft Routers & IoT
Introduction

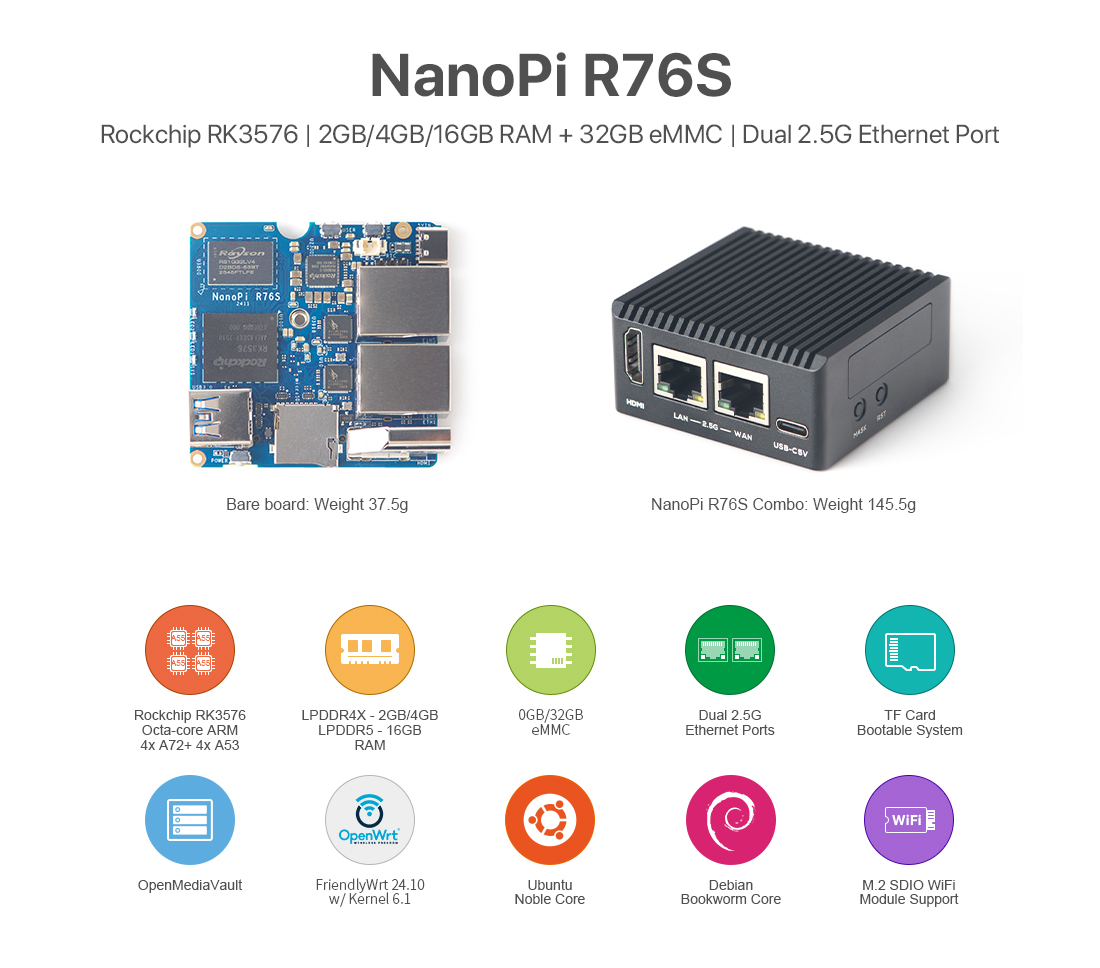

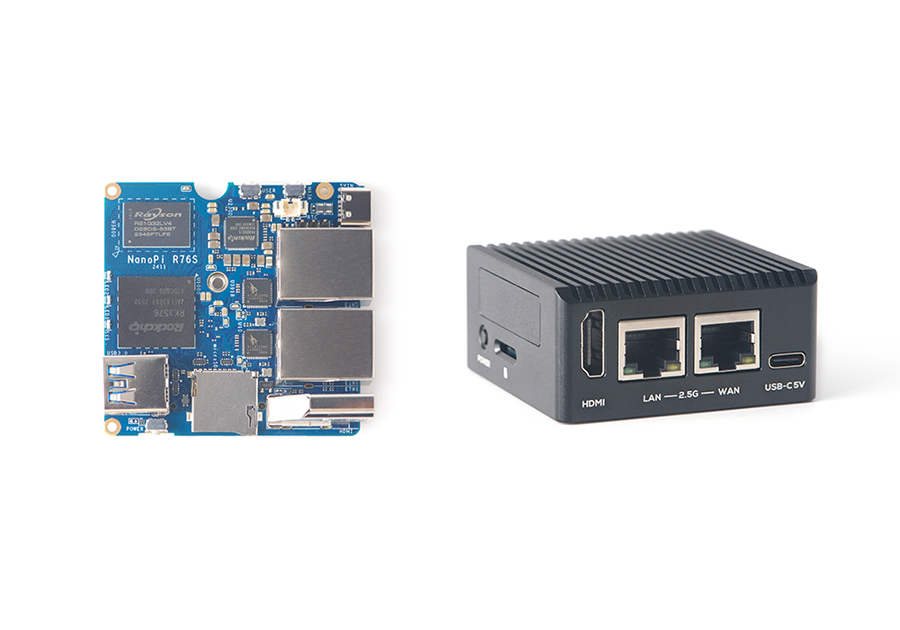

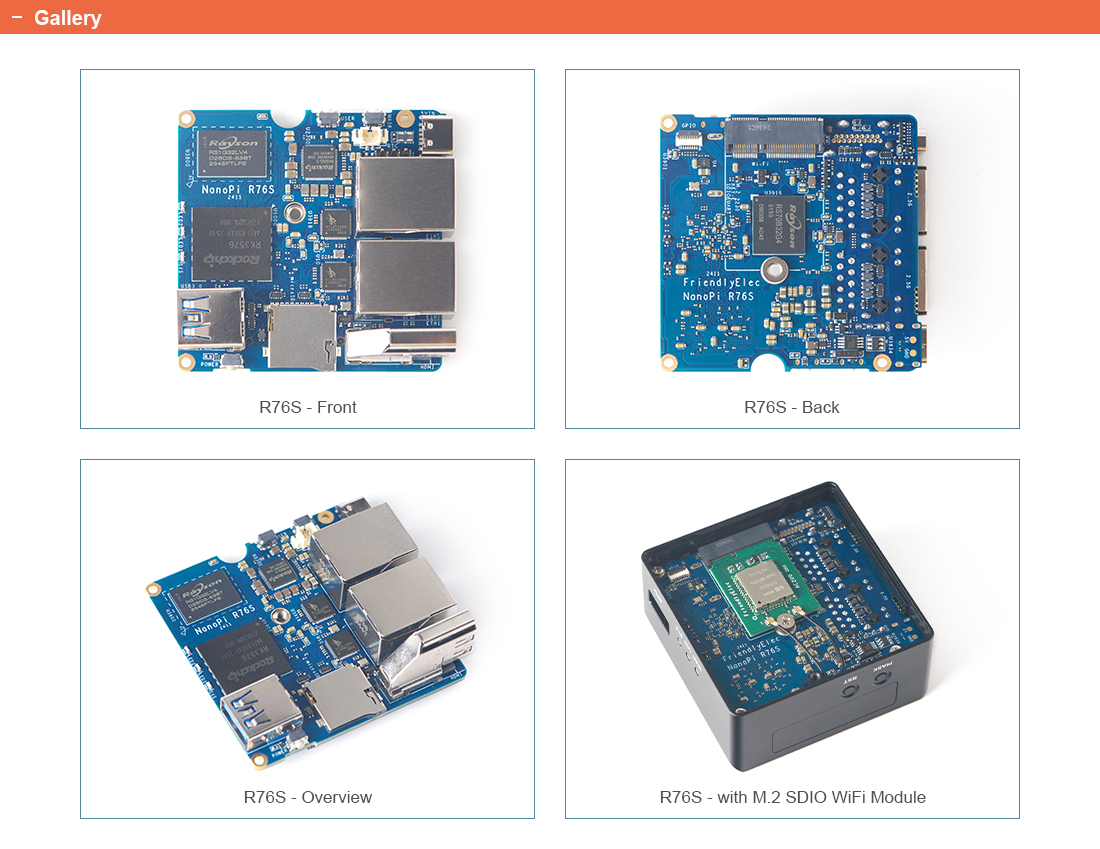

The NanoPi R76S is a powerful RK3576-based development board designed for soft routing and IoT applications. It features a dual 2.5Gbps Ethernet interface with theoretical upload speeds of 2.1Gbps and download speeds of 2.3Gbps. Equipped with ARM Mali-G52 MC3 GPU and a 6 TOPS NPU, it offers high performance for AI and multimedia tasks. The board supports 2GB/4GB LPDDR4X and 16GB LPDDR5 memory options and comes with 32GB eMMC storage. It also includes an HDMI 2.0 interface, a USB 3.2 Gen1 port, and an M.2 E-Key slot for Wi-Fi modules. The compact 58x58mm design is available with a metal enclosure, making it suitable for both industrial and home use.
Features
[High-Speed Connectivity] Equipped with dual 2.5Gbps Ethernet ports, offering ultra-fast upload and download speeds for reliable networking.
[Powerful Performance] Features RK3576 SoC with Cortex-A72 & A53 cores, 4GB LPDDR4X RAM, and a 6 TOPS NPU for AI and multimedia tasks.
[Rich Interfaces] Includes HDMI 2.0, USB 3.2 Gen1, and an M.2 E-Key slot for Wi-Fi modules, supporting versatile applications.
[Storage & Memory] 32GB eMMC onboard storage, with options for 2GB/4GB LPDDR4X and 16GB LPDDR5 memory.

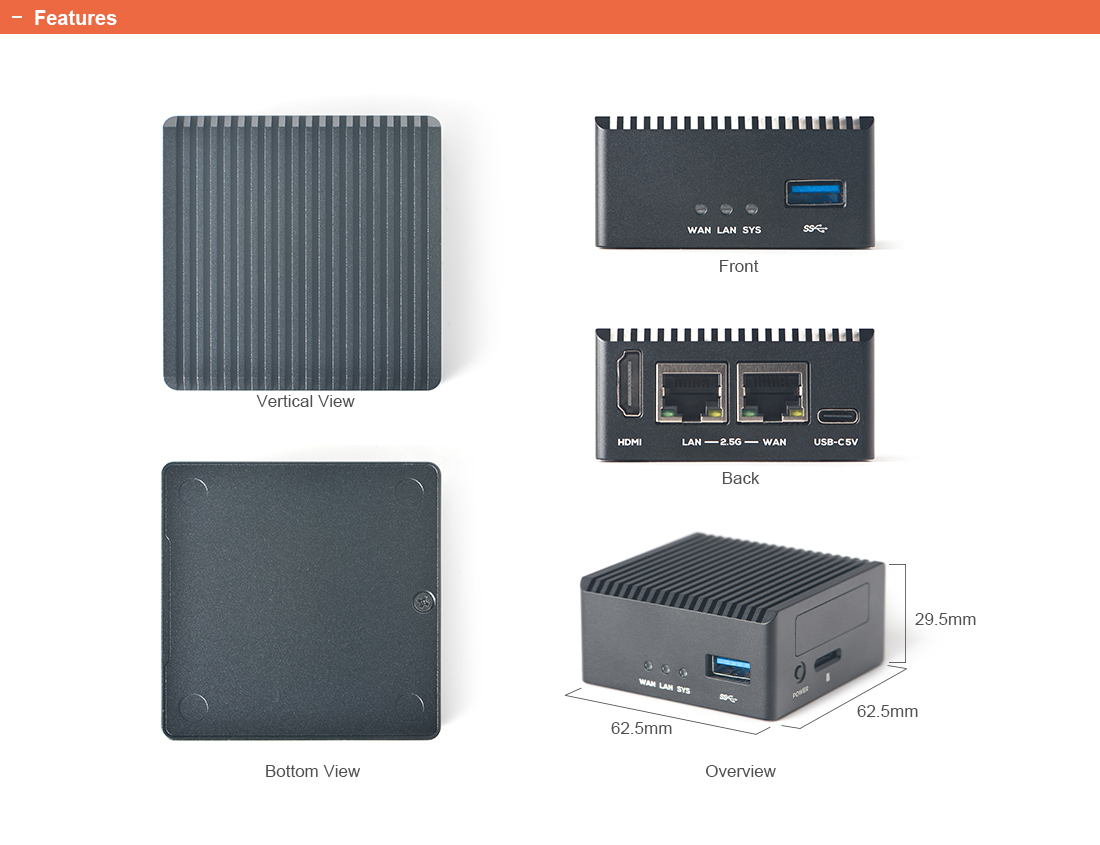

[Compact Design] 58x58mm form factor with an optional metal enclosure, suitable for both industrial and home use.
[Versatile Applications] Ideal for soft routers, IoT projects, NAS, and media streaming, providing a robust solution for various needs.

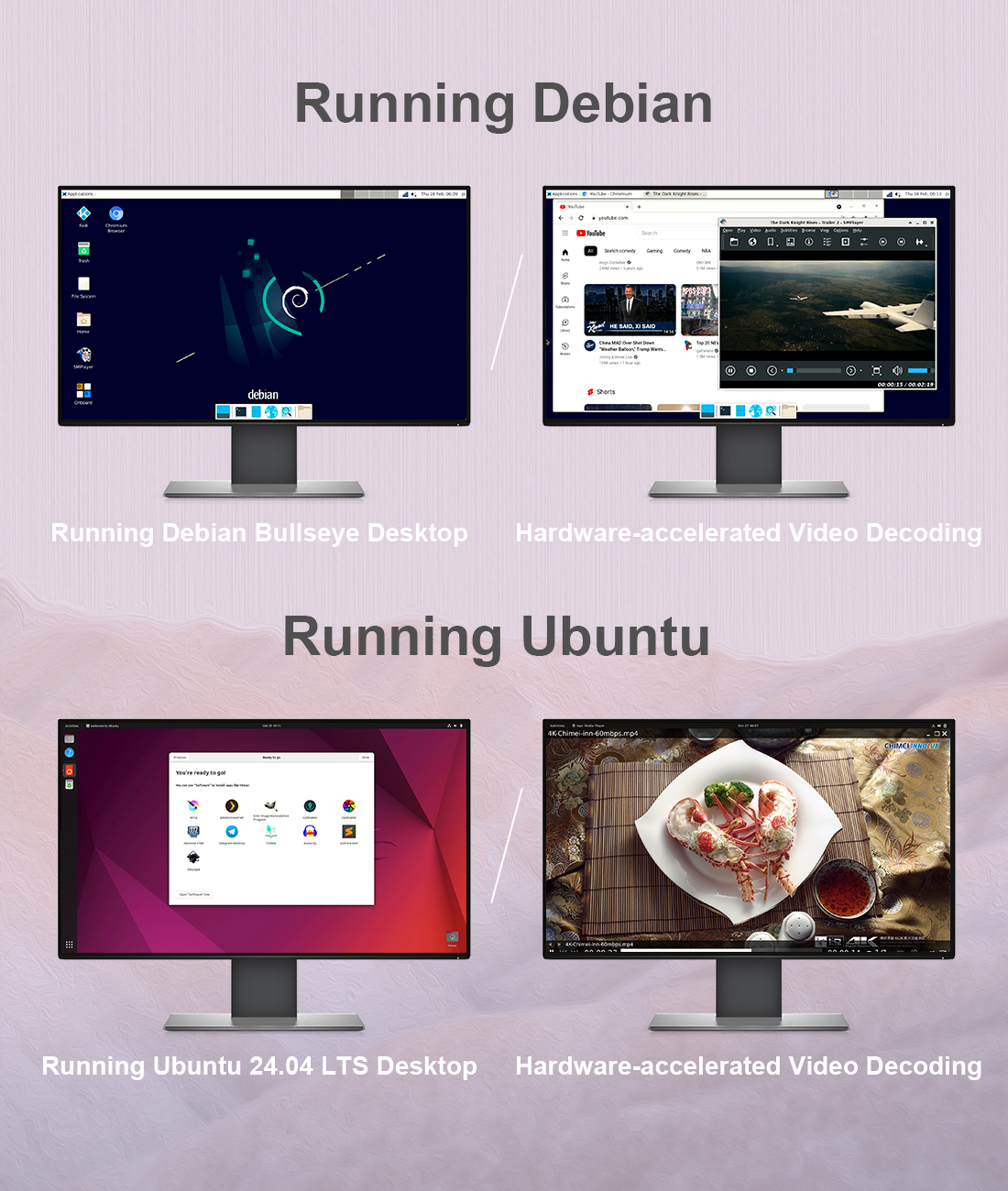

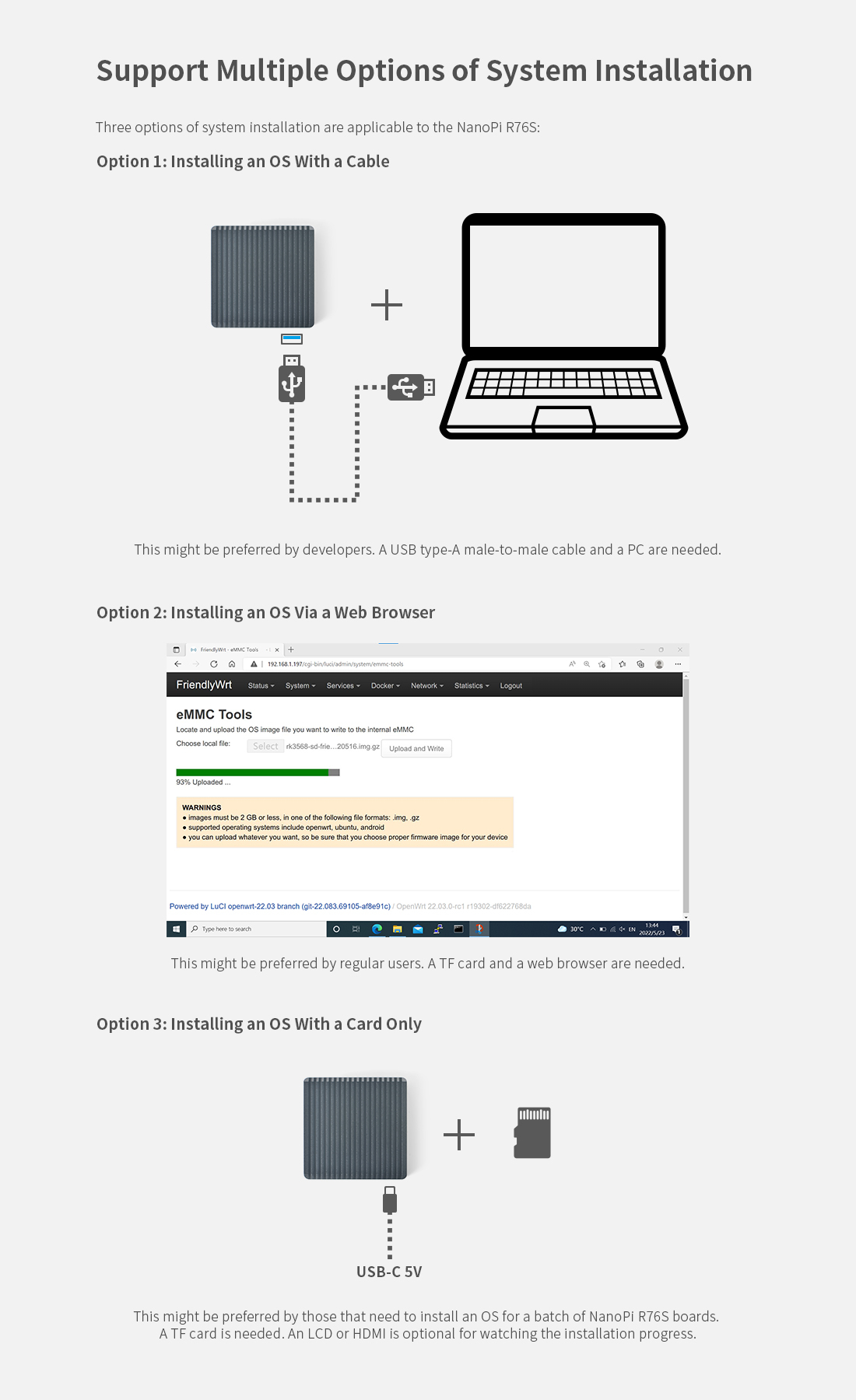

[User-Friendly] Supports multiple OS images, including Debian, Ubuntu, and OpenMediaVault, ensuring easy setup and customization.
Shipping List

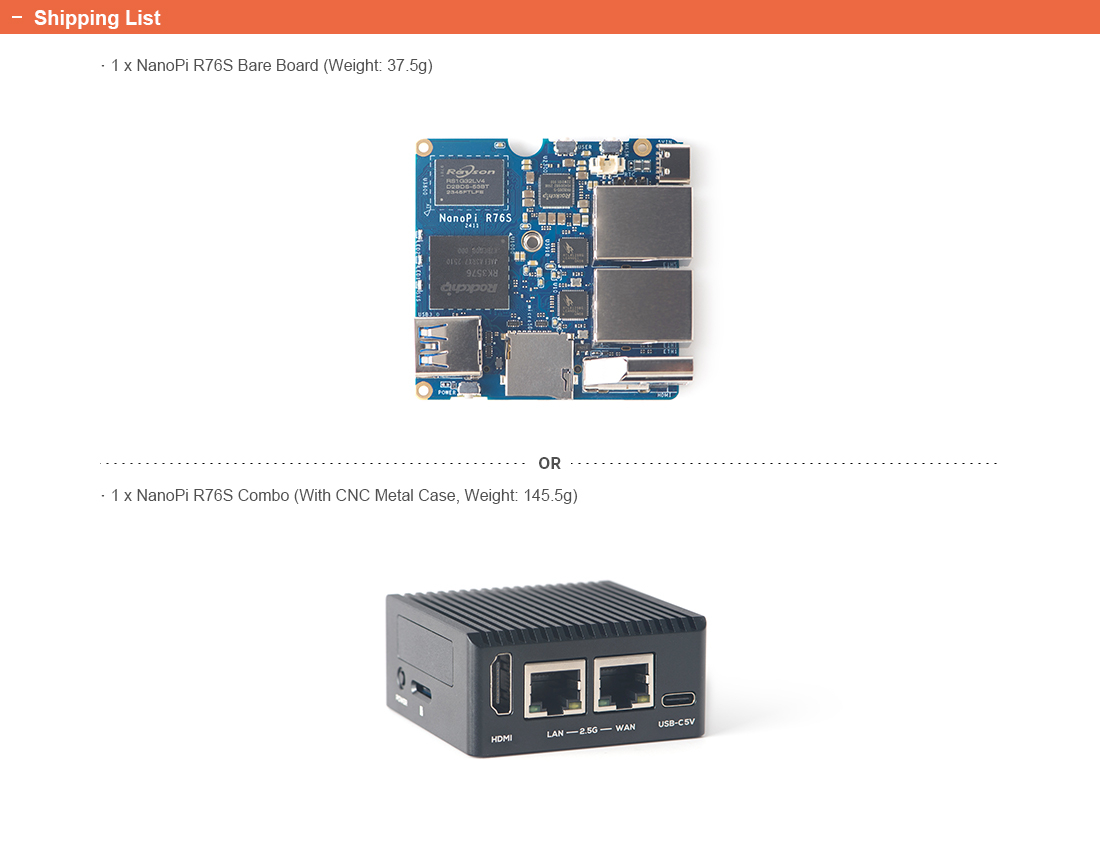

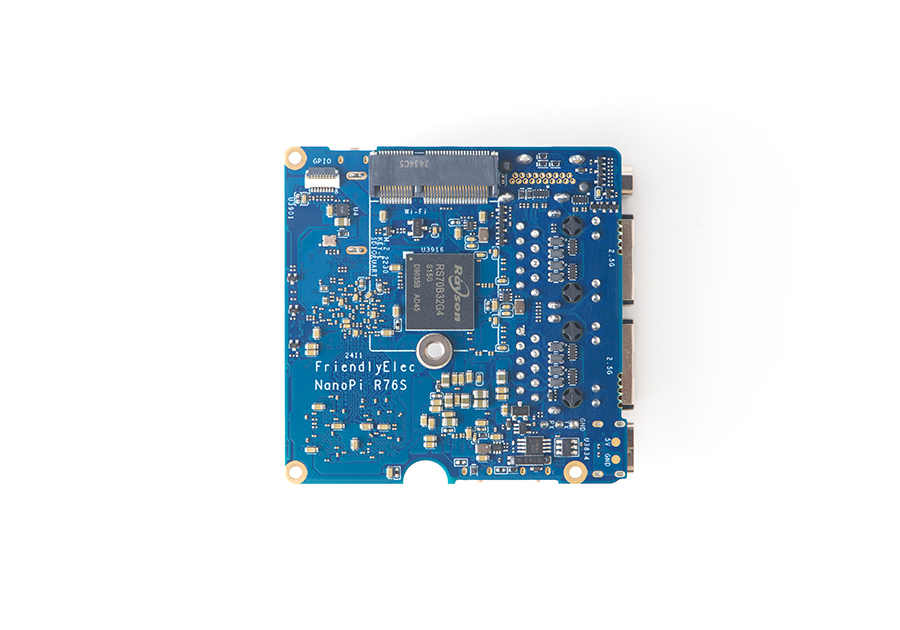

Only Bare board: NanoPi R76S Bare board x1

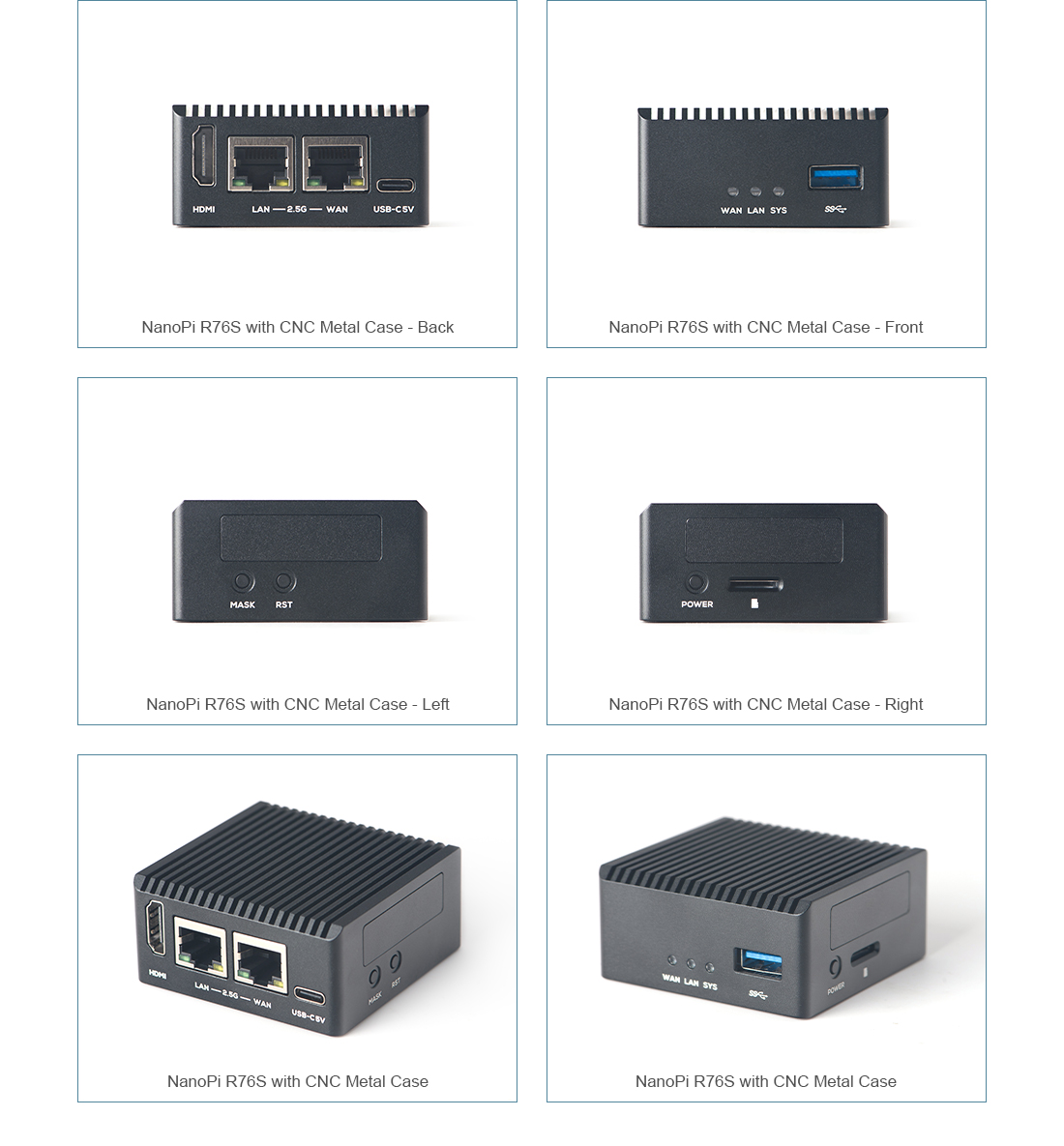

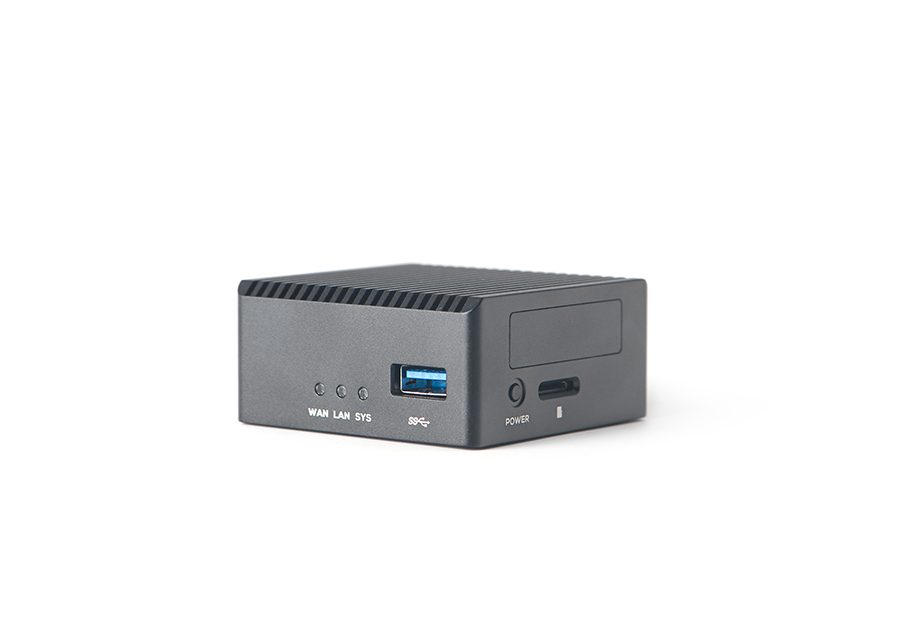

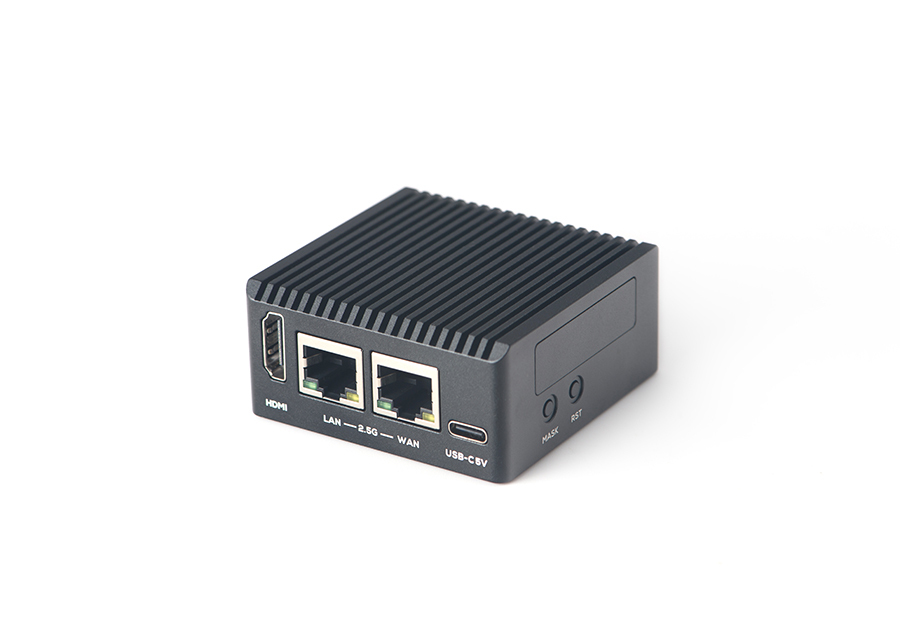

Only NanoPi R76S Router: NanoPi R76S with Metal Case x1
Applications
Whether you're building a soft router, setting up a NAS, or creating an IoT project, the NanoPi R76S provides a reliable and powerful solution. It supports multiple operating systems, including Debian, Ubuntu, and OpenMediaVault, ensuring easy setup and customization to meet your specific needs.

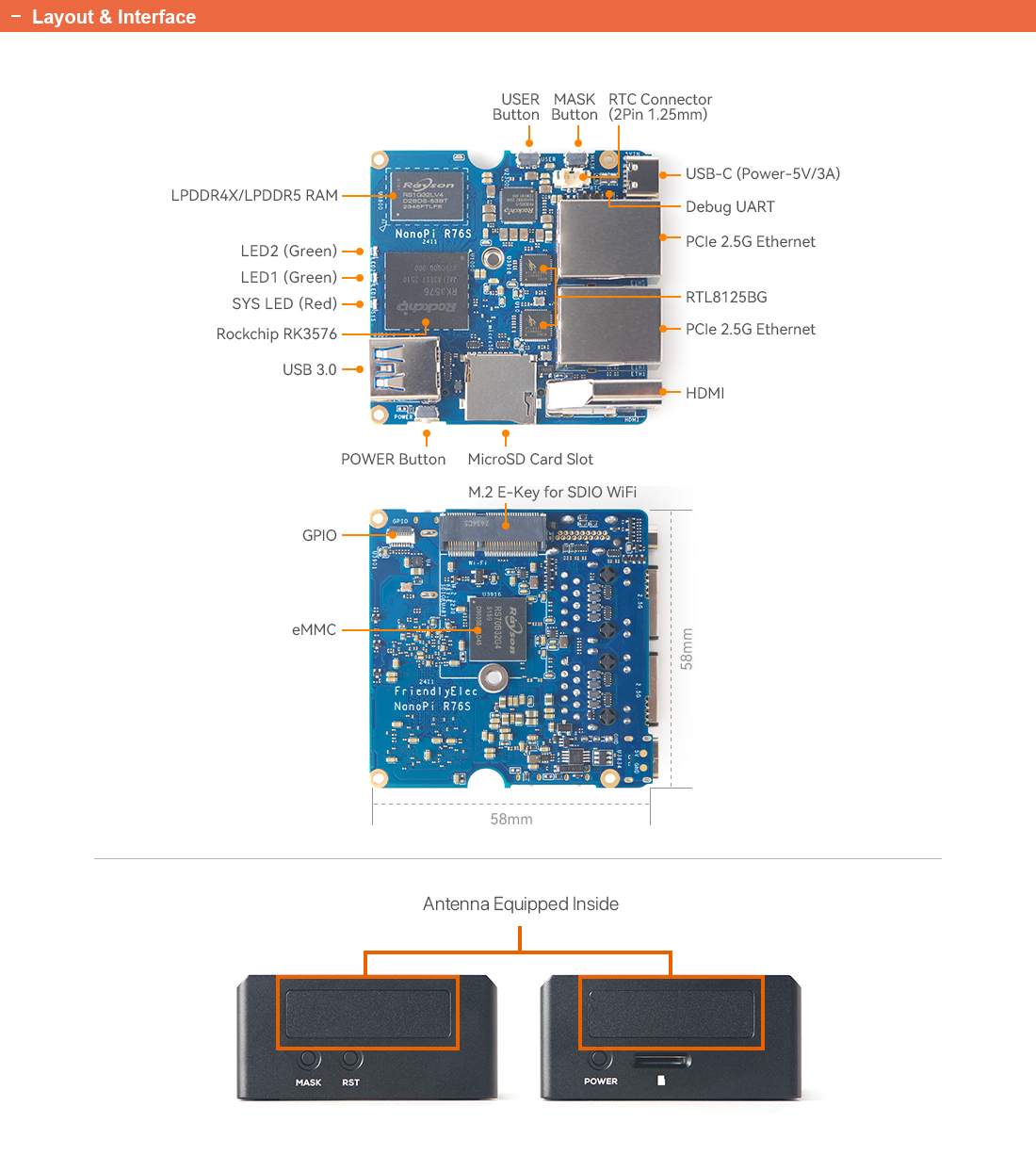

Specification
- SoC: Rockchip RK3576

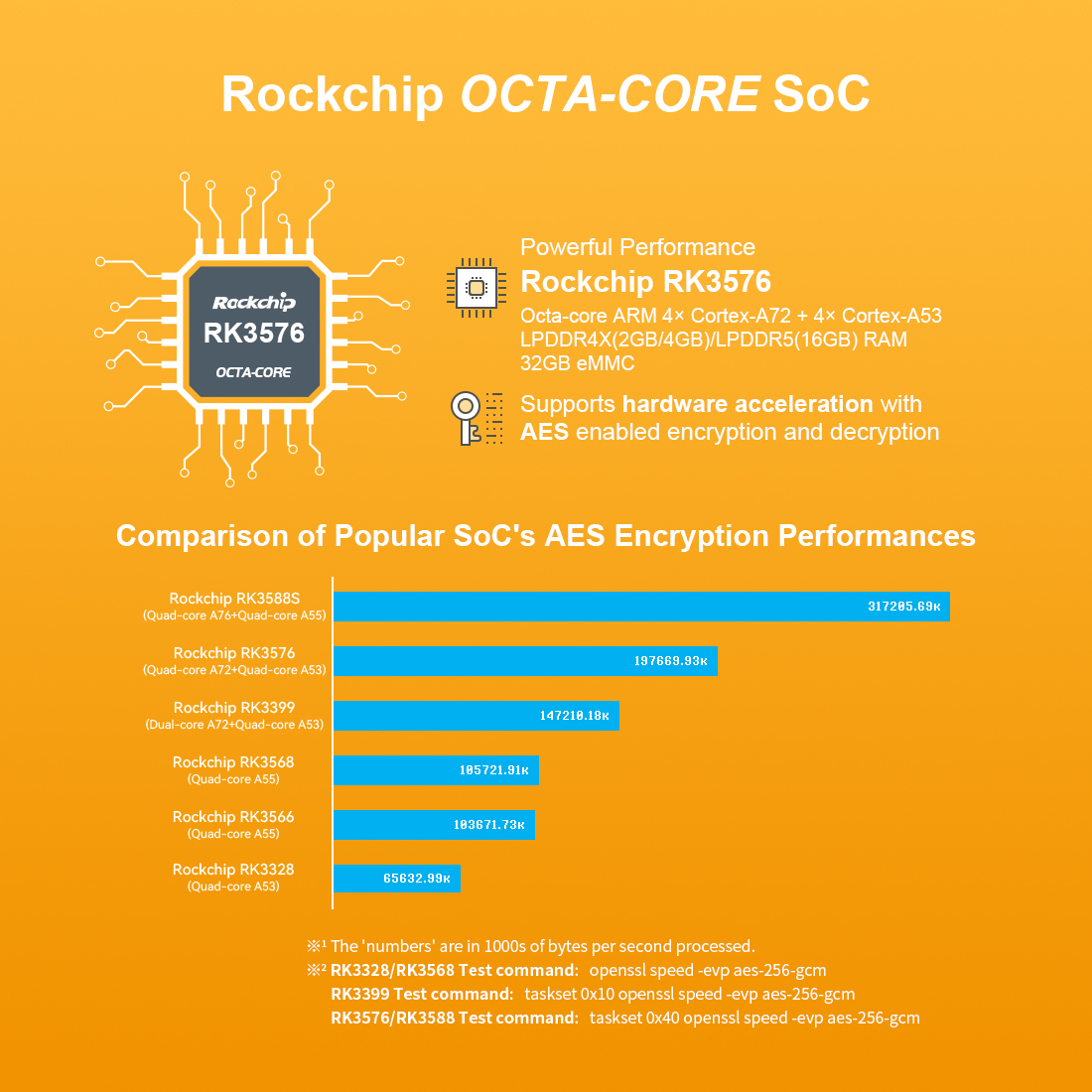

CPU: Octa-core ARM processor with 4× Cortex-A72 cores and 4× Cortex-A53 cores
GPU: ARM Mali-G52 MC3, supports OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2, and OpenCL 2.0
VPU: 8K@30fps H.265/VP9 video decoder, 4K@60fps video encoder

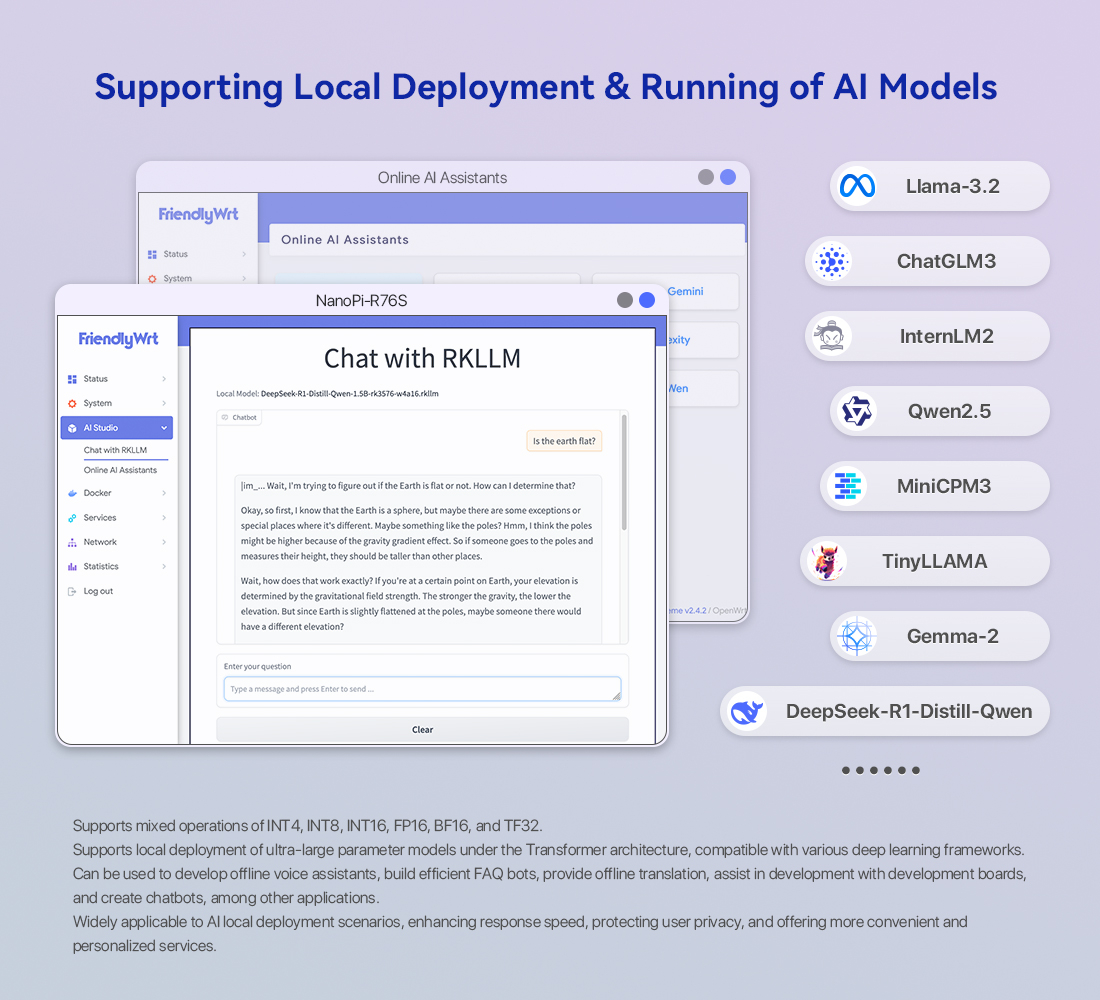

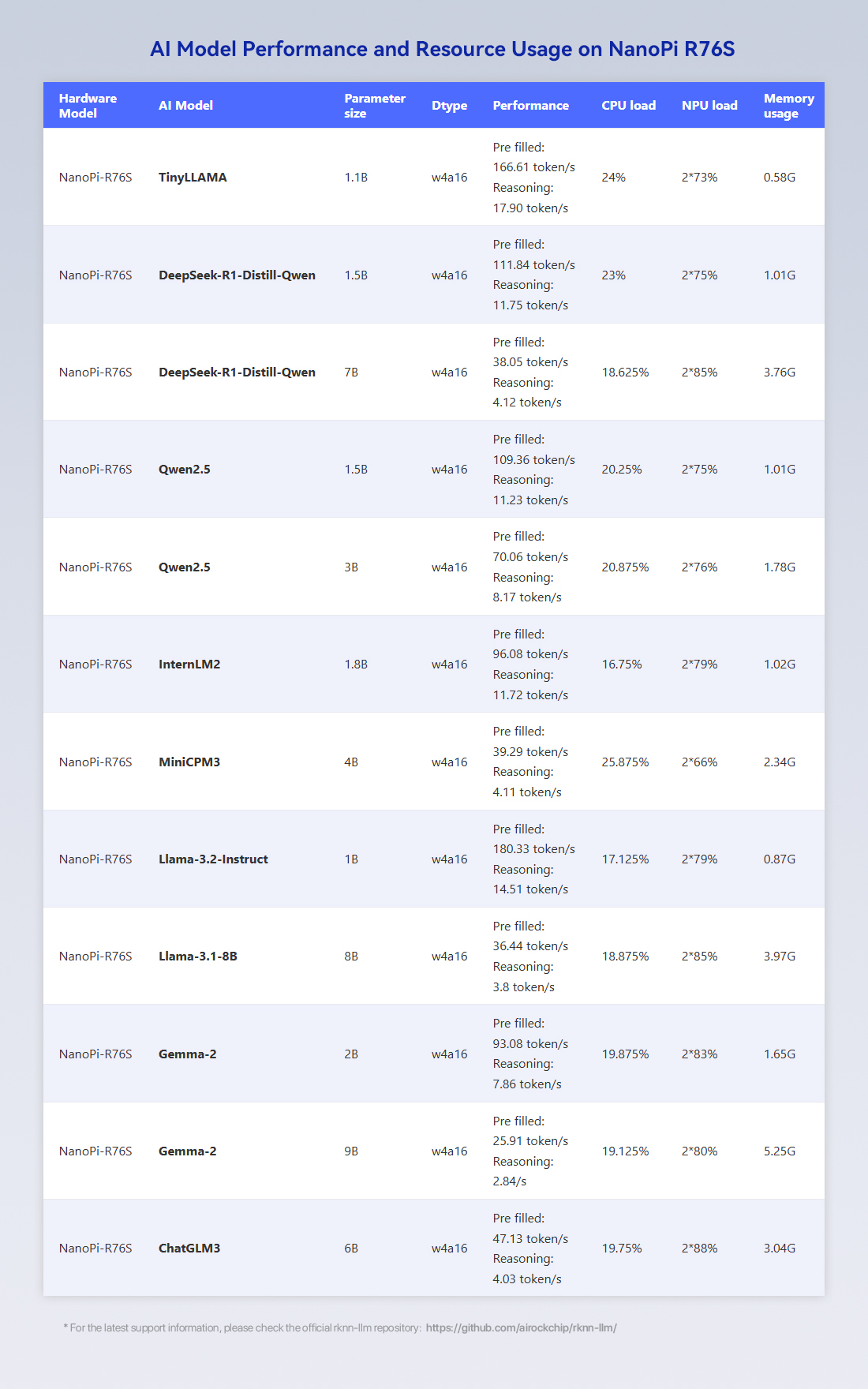

NPU: 6 TOPS*@INT8 supports INT4, INT8, INT16, FP16, BF16, TF32 mixed operation
- RAM: 2GB/4GB LPDDR4X
- Flash: 32GB eMMC
- Network:

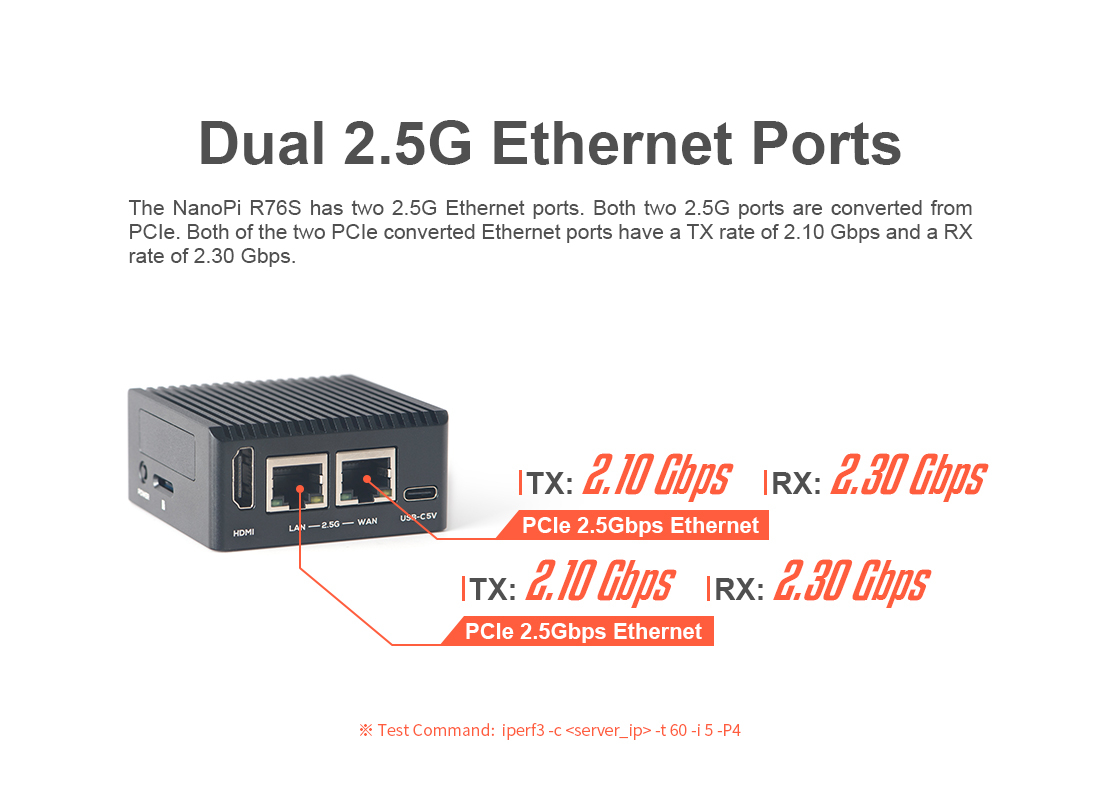

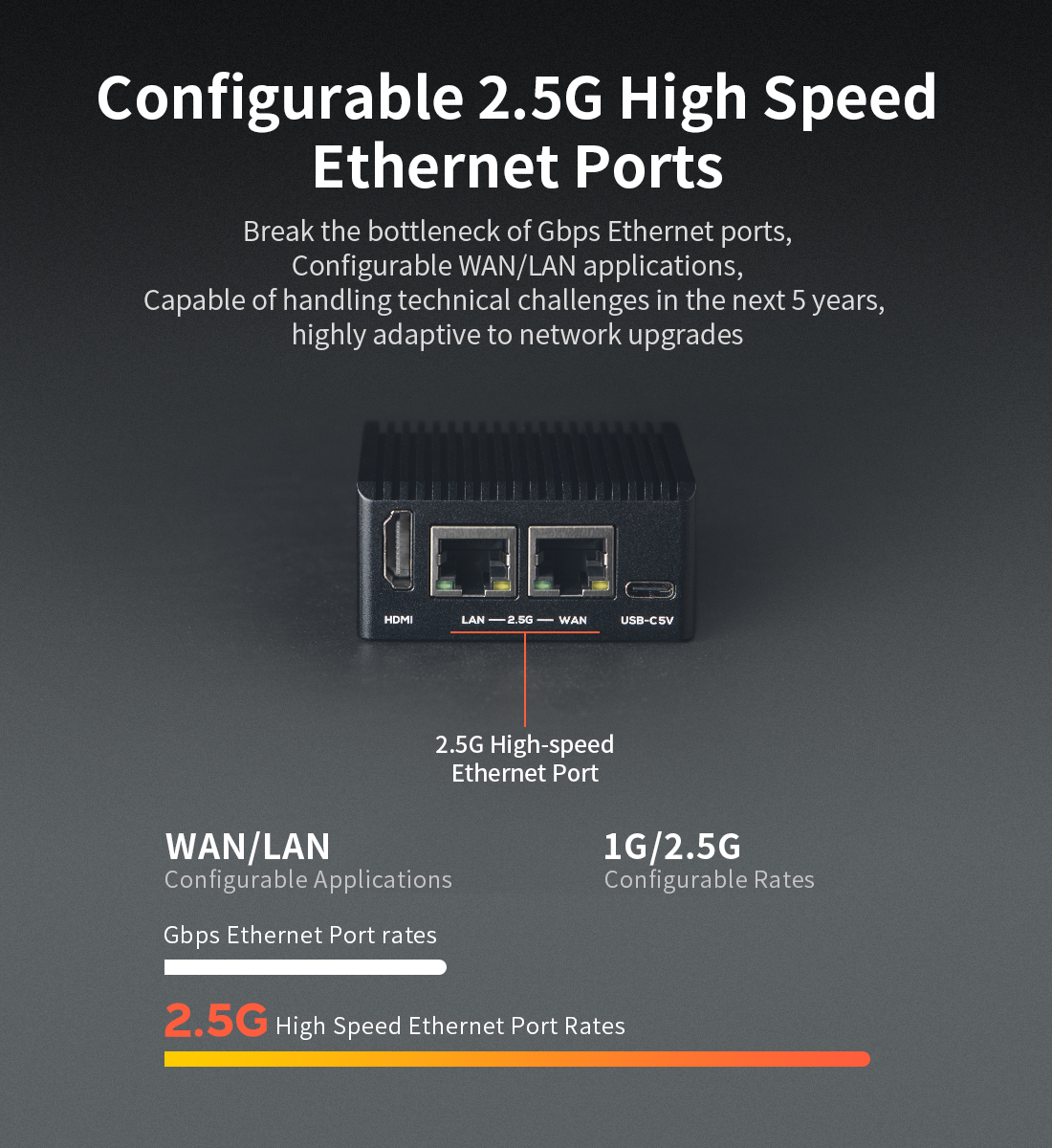

Ethernet: two PCIe 2.5Gbps Ethernet

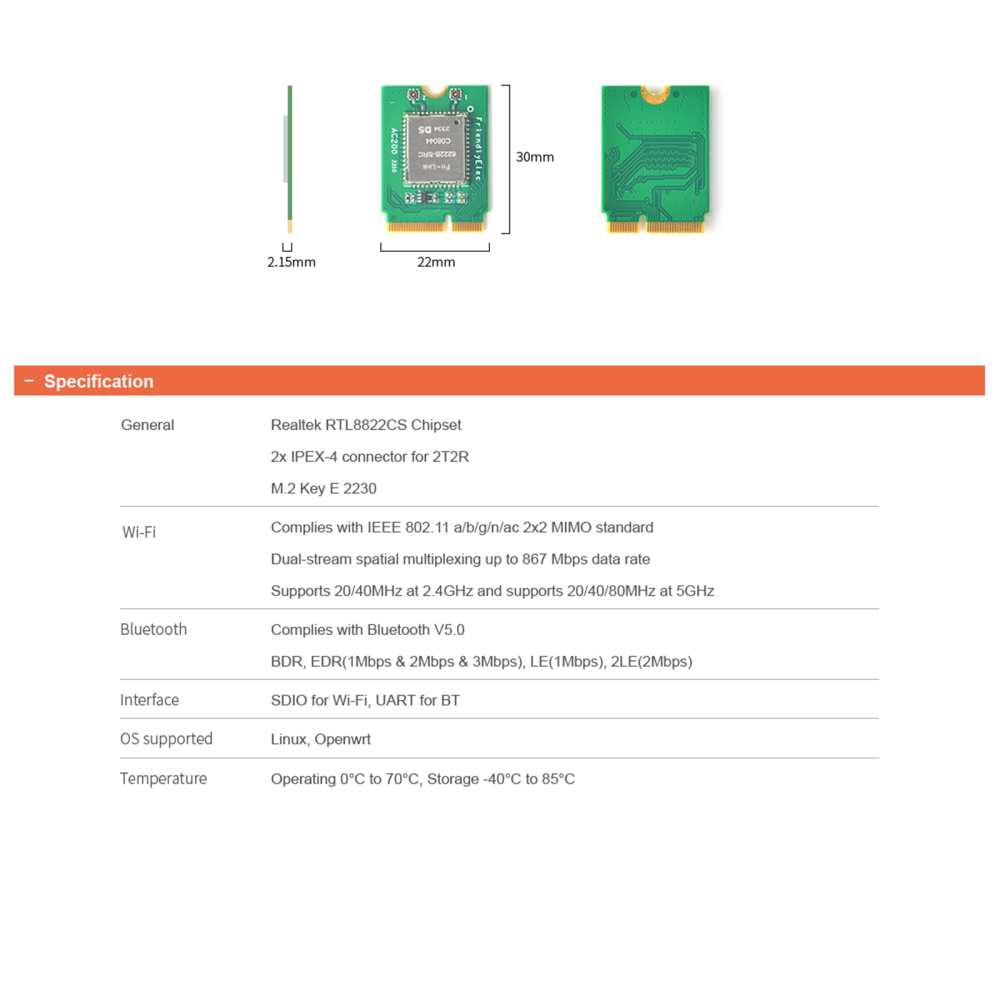

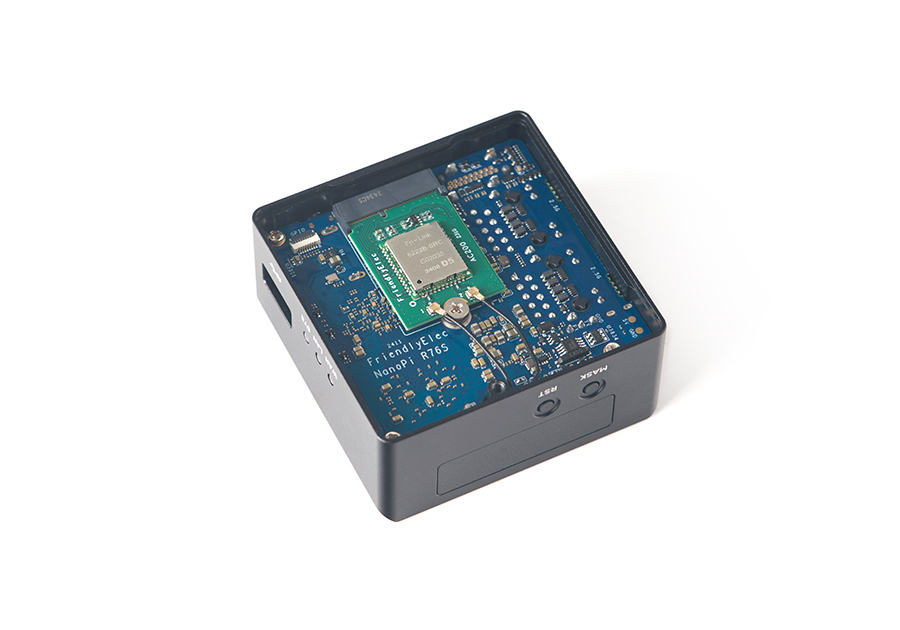

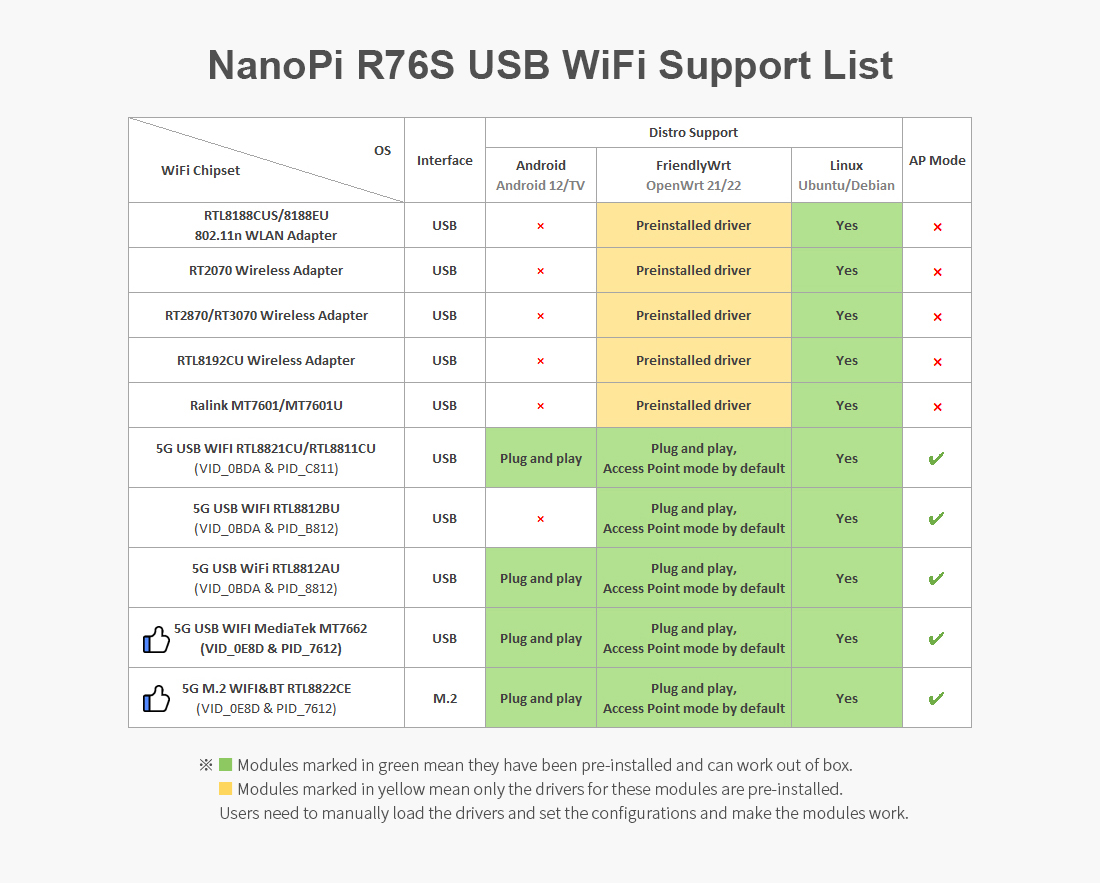

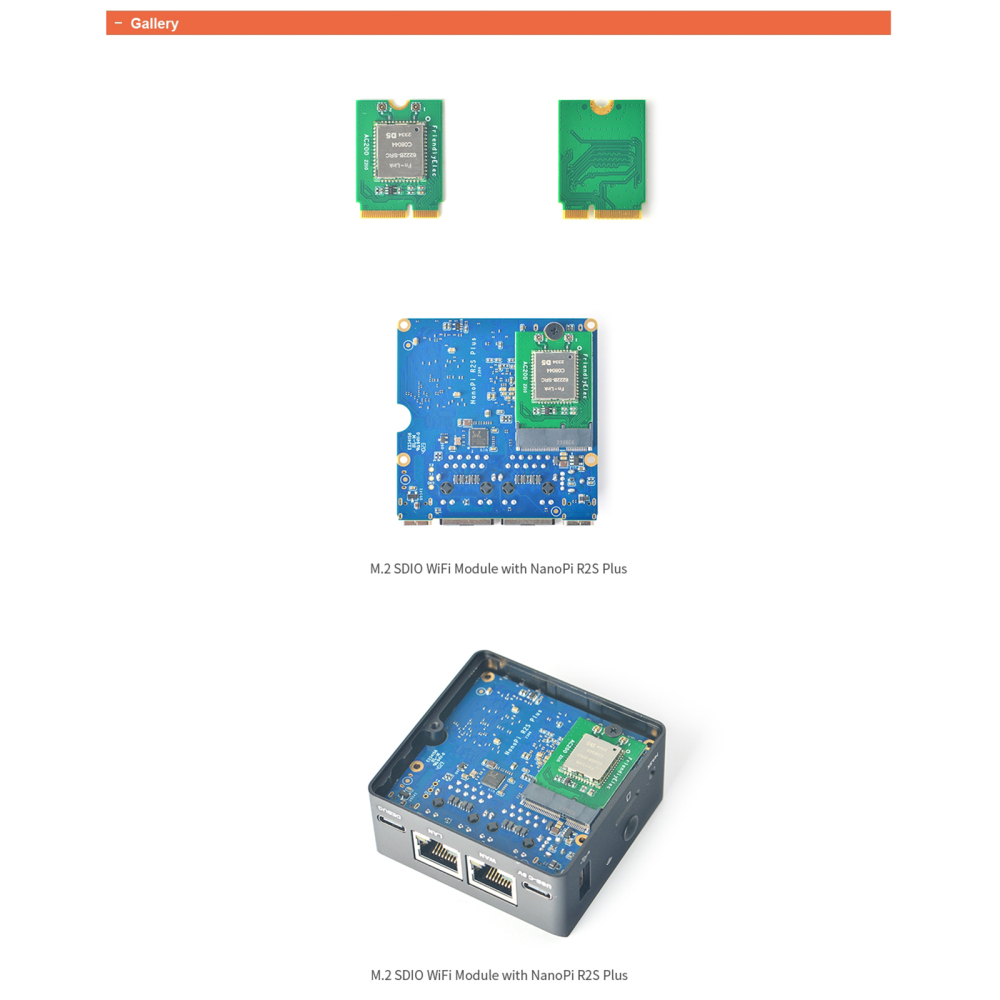

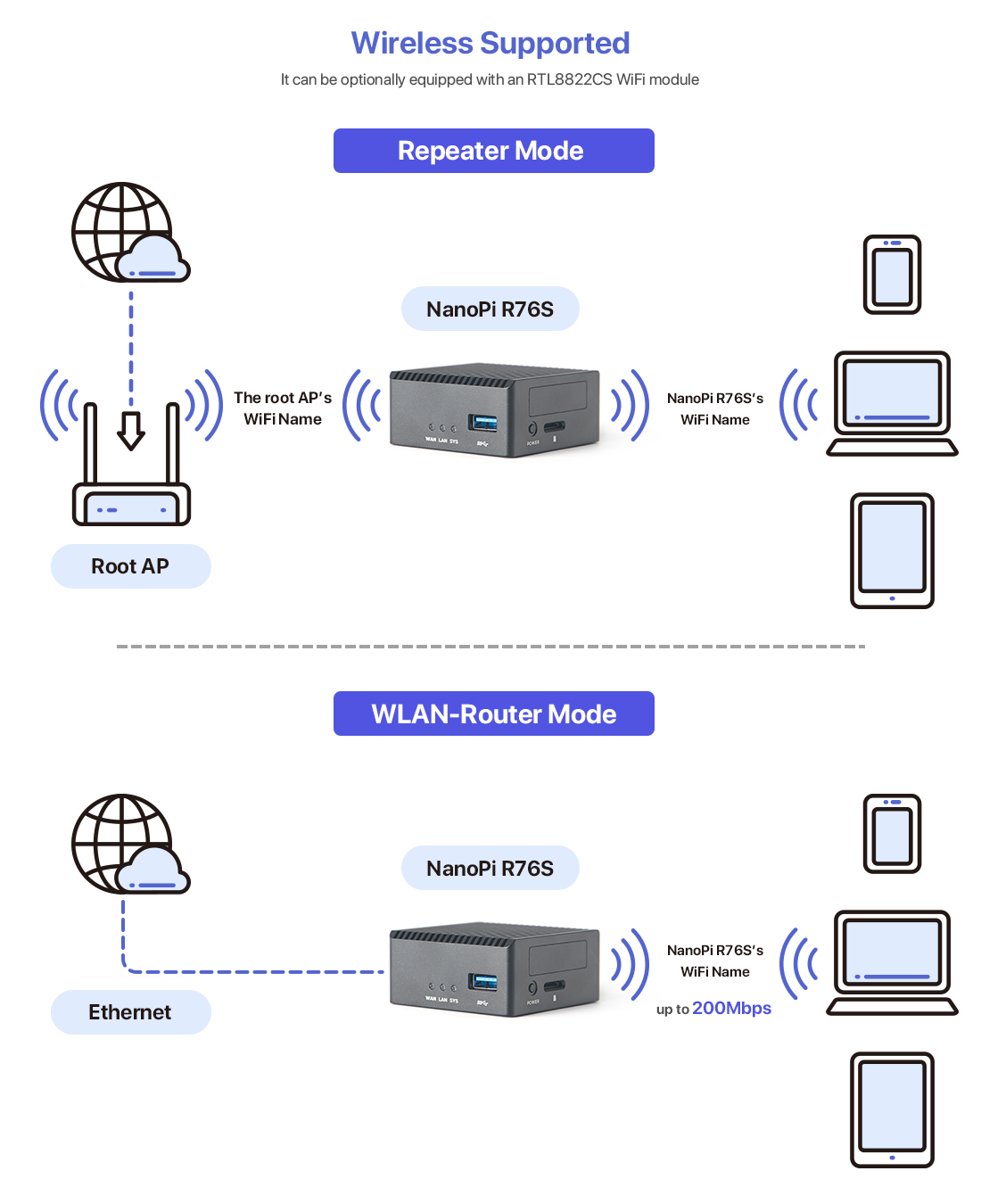

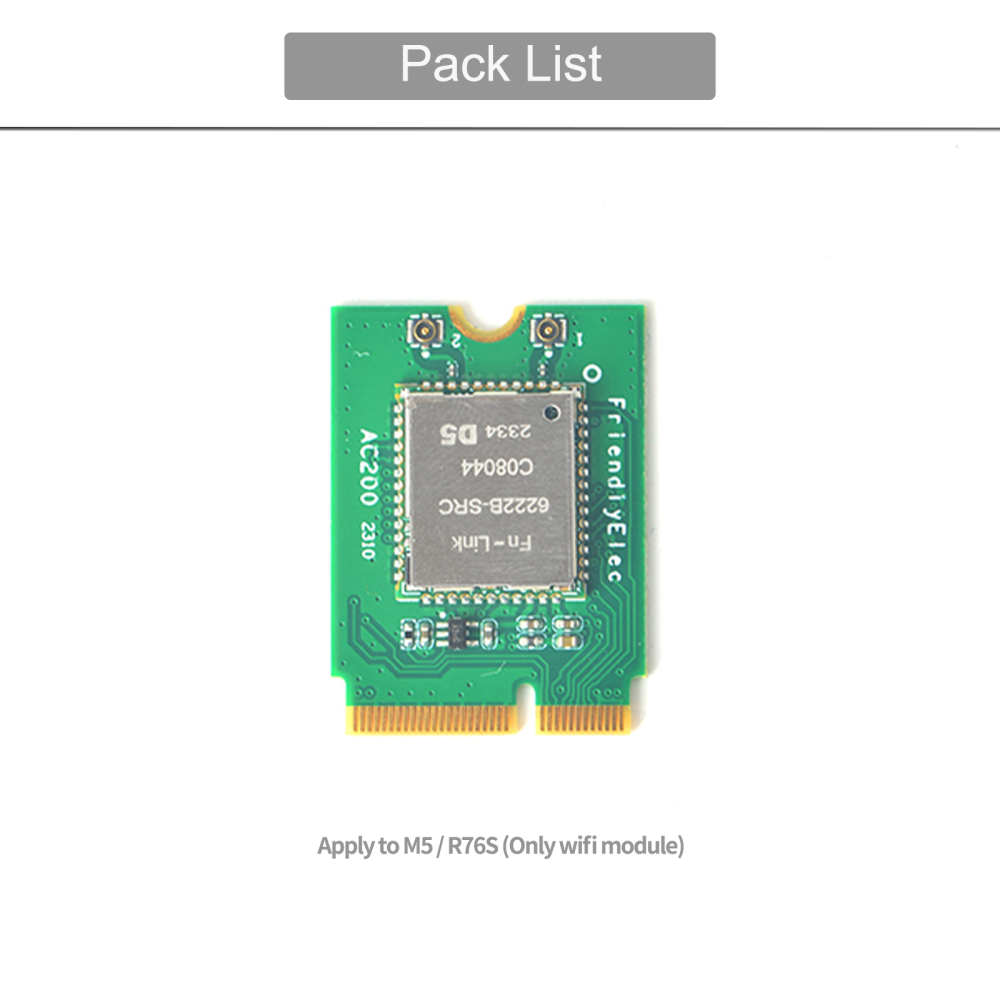

Optional M.2 SDIO Wi-Fi
- USB: One USB 3.2 Gen 1 Type-A port
- HDMI:
support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats
- microSD: support UHS-I
- Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
- LEDs: 3 x GPIO Controlled LED (SYS, LED1, LED2)
- others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
One User button
One Power button
One 8-Pin GPIO connector
- Power supply: USB-C 5V input
- PCB: 8 Layer, 58x58x1.6mm

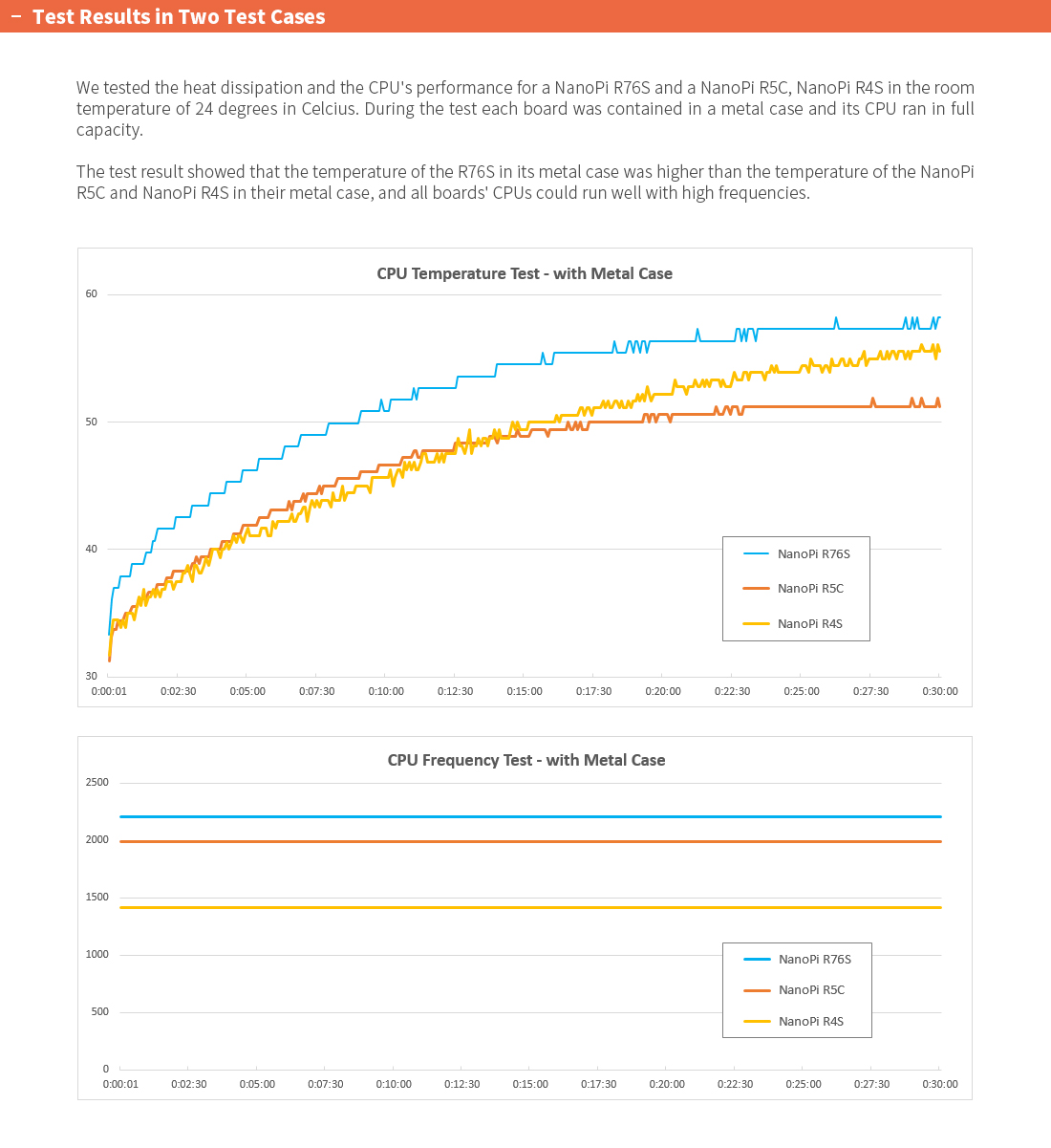

- Ambient Operating Temperature: 0℃ to 70℃
