NanoPi R1 - AllwinnerH3, Dual Ethernet Port, Wi-Fi& BT,onboard eMMC with USB &Serial Port for loT

Overview

The NanoPi R1 is a versatile, open-source hardware platform designed by FriendlyElec for makers, hobbyists, and network enthusiasts. At its heart lies the Allwinner H3 Quad-core Cortex-A7 processor, clocked up to 1.2GHz, delivering reliable performance for network-intensive tasks. With its unique dual-Ethernet configuration and integrated wireless connectivity, the NanoPi R1 serves as an excellent foundation for software-defined routers, home automation hubs, and edge computing projects.Key Features

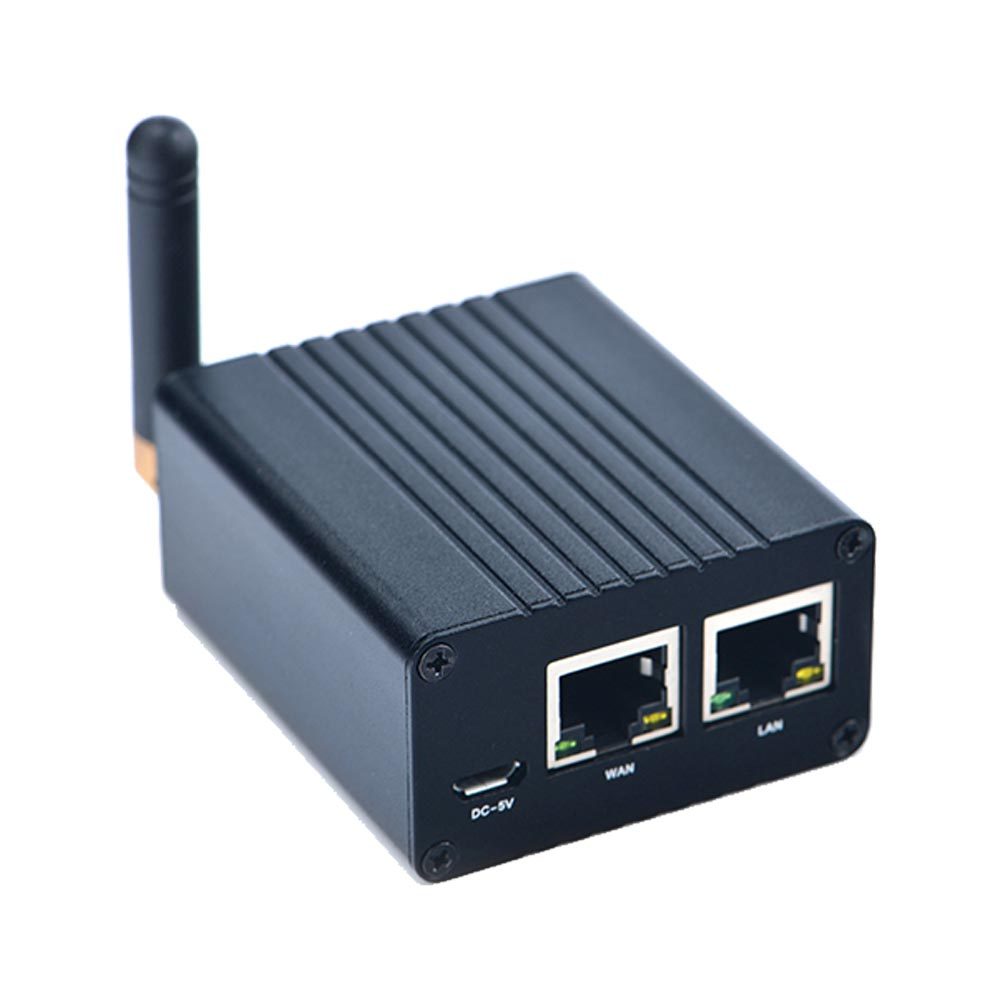

• Dual Ethernet Architecture: Equipped with one 10/100/1000M Gigabit Ethernet port (WAN) and one 10/100M Fast Ethernet port (LAN), enabling robust router configurations without external switches.
• Allwinner H3 Power: The quad-core Cortex-A7 CPU (up to 1.2GHz) ensures smooth handling of packet forwarding and lightweight containerized applications.
• Wireless Connectivity: Integrated 802.11b/g/n 2.4G WiFi with an SMA antenna interface for extended range, plus Bluetooth 4.0 dual-mode for IoT sensor integration.
• Open Source Flexibility: Fully supports OpenWrt for advanced routing features and FriendlyCore (Ubuntu-based) for general-purpose Linux development.
• Compact & Efficient: Measuring just 50.5 x 60mm, it fits into tight enclosures while consuming minimal power via a standard 5V/2A MicroUSB supply.

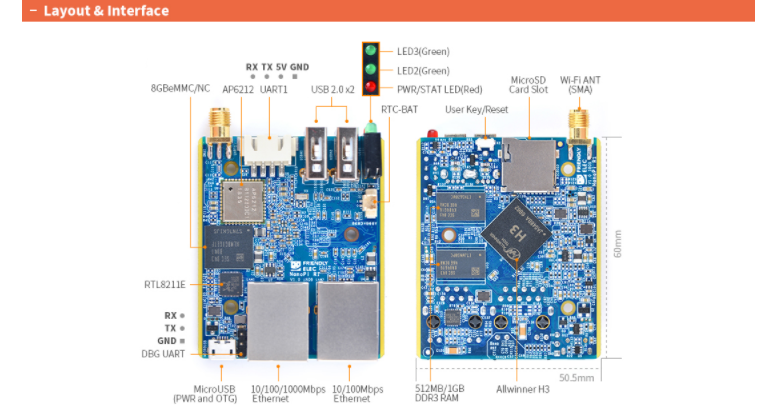

• Rich I/O Expansion: Includes 2x USB Host ports, MicroSD slot, optional eMMC storage, and accessible UART/GPIO headers for hardware prototyping.

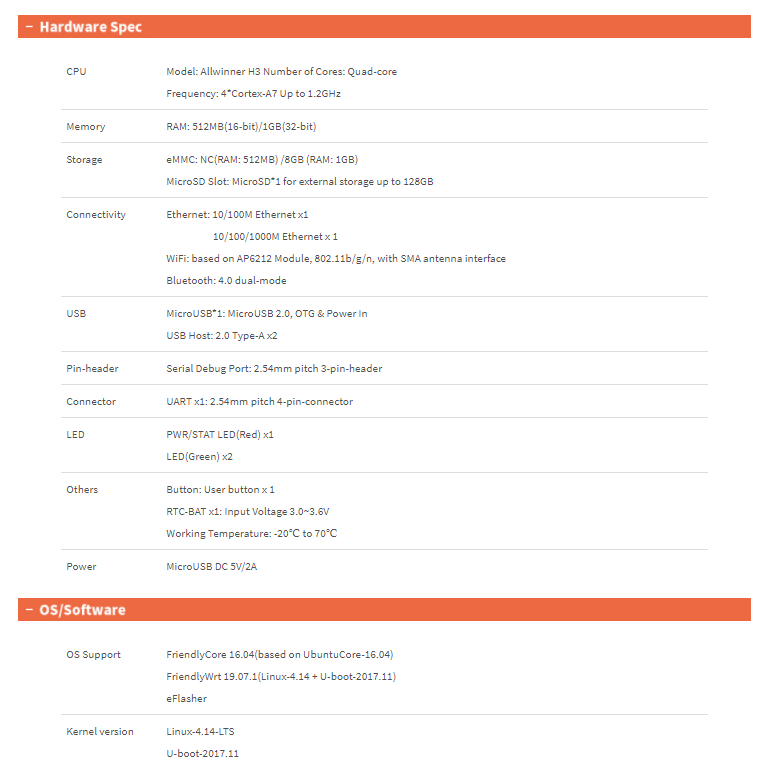

Technical Specifications

• CPU: Allwinner H3, Quad-core Cortex-A7 @ Up to 1.2GHz
• RAM: 512MB / 1GB DDR3 (Please select specific version)
• Storage: MicroSD Slot (Class 10 recommended) / Optional 8GB eMMC
• Network: 1x 10/100/1000M Ethernet, 1x 10/100M Ethernet
• WiFi: 802.11b/g/n (2.4GHz), SMA Antenna Interface
• Bluetooth: Bluetooth 4.0 Dual Mode
• USB: 2x USB 2.0 Host (Type-A), 1x MicroUSB (OTG/Power)
• Debug/UART: 3Pin Debug Serial, 4Pin UART (2.54mm pitch)
• Dimensions: 50.5 x 60 mm
• Power Input: DC 5V/2A (MicroUSB)
• OS Support: OpenWrt, FriendlyCore (Ubuntu), DietPi
• Working Temperature: -20℃ to 70℃
• Weight: Specification not disclosed (Contact support for details)

> Note: RAM and eMMC capacities may vary by batch. Please check specific SKU options selected at checkout.Ideal Applications

• Soft Router / Firewall: Deploy OpenWrt for a customizable home or office gateway.
• IoT Gateway: Aggregate sensor data via Bluetooth/WiFi and forward via Ethernet.
• Educational Platform: Learn Linux kernel compilation, Docker deployment, and network programming.
• Lightweight Server: Run ad-blocking services, MQTT brokers, or small web servers.
• Network Testing: Simulate network environments with dual isolated interfaces.

Package Contents

• 1x NanoPi R1 Board
• Note: Based on standard technical documentation, power adapters, SD cards, cases, and antennas are typically sold separately. Please verify your specific bundle selection.
