MUSE Pi Pro SBC, Spacemit RISC-V 8-Core,2.0 TOPS NPU

Vendor: youyeetoo
Availability: In stock
$1,176.00
Model: 4G+64GB
Case: No
Hurry up! Only 10 left
Product subtotal: $1,176.00

You may also like

MUSE Pi Pro SBC, Spacemit RISC-V 8-Core,2.0 TOPS NPU
Regular price HK$1,176.00 HKD
Regular price Sale price HK$1,176.00 HKD (-0%)
Model: 4G+64GB
Case: No
MUSE Pi Pro SBC, Spacemit RISC-V 8-Core,2.0 TOPS NPU
MUSE Pi Pro SBC, Spacemit RISC-V 8-Core,2.0 TOPS NPU
$1,176.00

MUSE Pi Pro SBC, Spacemit RISC-V 8-Core,2.0 TOPS NPU



Quick Learning Wiki for Spacemit K1 Muse Pi Pro



Product Specifications

Module Description
Processor SpacemiT M1, 8-core 64-bit RISC-V processor with 2.0 TOPS AI power
Display HDMI 1.4 (up to 1080P@60Hz)
2-lane MIPI DSI FPC (up to 1080P@60Hz)
Memory LPDDR4X @ 2400MT/s, 8GB / 16GB options
Local Storage eMMC 5.1, 64GB / 128GB options
Storage Expansion M.2 M-Key connector, 2230 size NVMe SSD
MicroSD slot, supports UHS-II
Wireless Onboard Wi-Fi 6 and Bluetooth 5.2, supports dual wireless via M.2/mPCIe
Network Port 1 x Ethernet port, RJ45 connector, 1000M/100M auto-sensing
Audio 3.5mm audio jack
USB 4x USB 3.0 Type-A (host)
1x USB 2.0 Type-C (device/OTG)
Debug UART TTL debug port + 3 buttons: reset / power / flash
I/O Expansion Standard M.2 M-Key slot (2230, supports SSD, PCIe-to-SATA, PCIe comm boards, etc.)
Full-size miniPCIe slot (supports 4G/5G, PCIe wireless/network modules)
40-pin standard GPIO interface
MIPI Interfaces 1 x 2-lane MIPI DSI FPC 15-pin interface
1 x 4-lane MIPI CSI FPC 22-pin interface
1 x 2-lane MIPI CSI FPC 15-pin interface
Form Factor Single-board computer, FEMTO-ITX dimensions, 85mm x 56mm (credit card size)
OS Bianbu Desktop, Ubuntu, OpenKylin, Deepin, Fedora and other OSs
Power USB-PD: 5V/9V/12V @ 3A
Reliability ESD: +/-4kV contact / +/-8kV air, CE/FCC compliant
Available in consumer-grade (-20C to 70C) or industrial-grade (-40C to 85C) versions
Structure Optional passive or active cooling heat sinks
Optional metal chassis or acrylic case
Optional touch screen or industrial terminal configurations



MUSEPiPro_01 MUSEPiPro_02

MUSEPiPro_03 MUSEPiPro_04 MUSEPiPro_05

MUSE Pi Pro SBC, Spacemit RISC-V 8-Core,2.0 TOPS NPU

Quick Learning Wiki for Spacemit K1 Muse Pi Pro

Product Overview

The MUSE Pi Pro is a compact single-board computer (SBC) based on the SpacemiT M1 RISC-V octa-core processor with 2.0 TOPS AI computing power. Measuring only 85mm x 56mm (credit card size, FEMTO-ITX form factor), it integrates processor, storage, universal interfaces, and expansion connectors on a single board. It supports UEFI boot, GRUB multi-OS boot, and runs multiple operating systems including Banbian Desktop, Ubuntu, OpenKylin, Deepin, and Fedora. The board features LPDDR4X memory (8GB/16GB), eMMC 5.1 storage (64GB/128GB), gigabit Ethernet, WiFi 6 + Bluetooth 5.2, four USB 3.0 ports, HDMI 1.4 and MIPI display interfaces, MIPI camera interfaces, and standard M.2 / miniPCIe expansion slots. It is designed for LLM applications, robotics, industrial automation, education, and IoT scenarios requiring low power and compact form factor. Fully open-source with board-level, mechanical, and software design materials provided.

Core Hardware

  • Processor: SpacemiT M1, RISC-V octa-core, 2.0 TOPS AI computing power
  • Memory: LPDDR4X, 2400MT/s, optional 8GB / 16GB
  • Onboard Storage: eMMC 5.1, optional 64GB / 128GB
  • Expansion Storage: M.2 M-Key connector for 2230 NVMe SSD, Micro SD card slot (UHS-II)

Network

  • Ethernet: RJ45, 1000M / 100M auto-adaptive
  • WiFi: Onboard WiFi 6, dual antenna
  • Bluetooth: Bluetooth 5.2
  • Wireless Expansion: M.2 / miniPCIe expansion supported

USB

  • USB 3.0 Host: 4x USB 3.0 Type-A
  • USB 2.0 Device: 1x USB 2.0 Type-C

Video Output

  • HDMI: HDMI 1.4 Type-A, up to 1080P @ 60Hz
  • MIPI DSI: 1x 2-lane MIPI DSI FPC 15-pin, up to 1080P @ 60Hz

Video Input (MIPI CSI)

  • MIPI CSI 4-lane: 1x 4-lane MIPI CSI FPC 22-pin
  • MIPI CSI 2-lane: 1x 2-lane MIPI CSI FPC 15-pin

Audio

  • Audio Interface: 3.5mm audio headset jack (mic + speaker)

IO Expansion

  • M.2 M-Key: Standard M.2 M-Key connector, supports 2230 length cards (SSD, PCIe-to-SATA, PCIe communication modules, etc.)
  • miniPCIe: Standard miniPCIe connector, supports full-width PCIe cards (4G/5G modules, PCIe wireless, PCIe network modules, etc.)

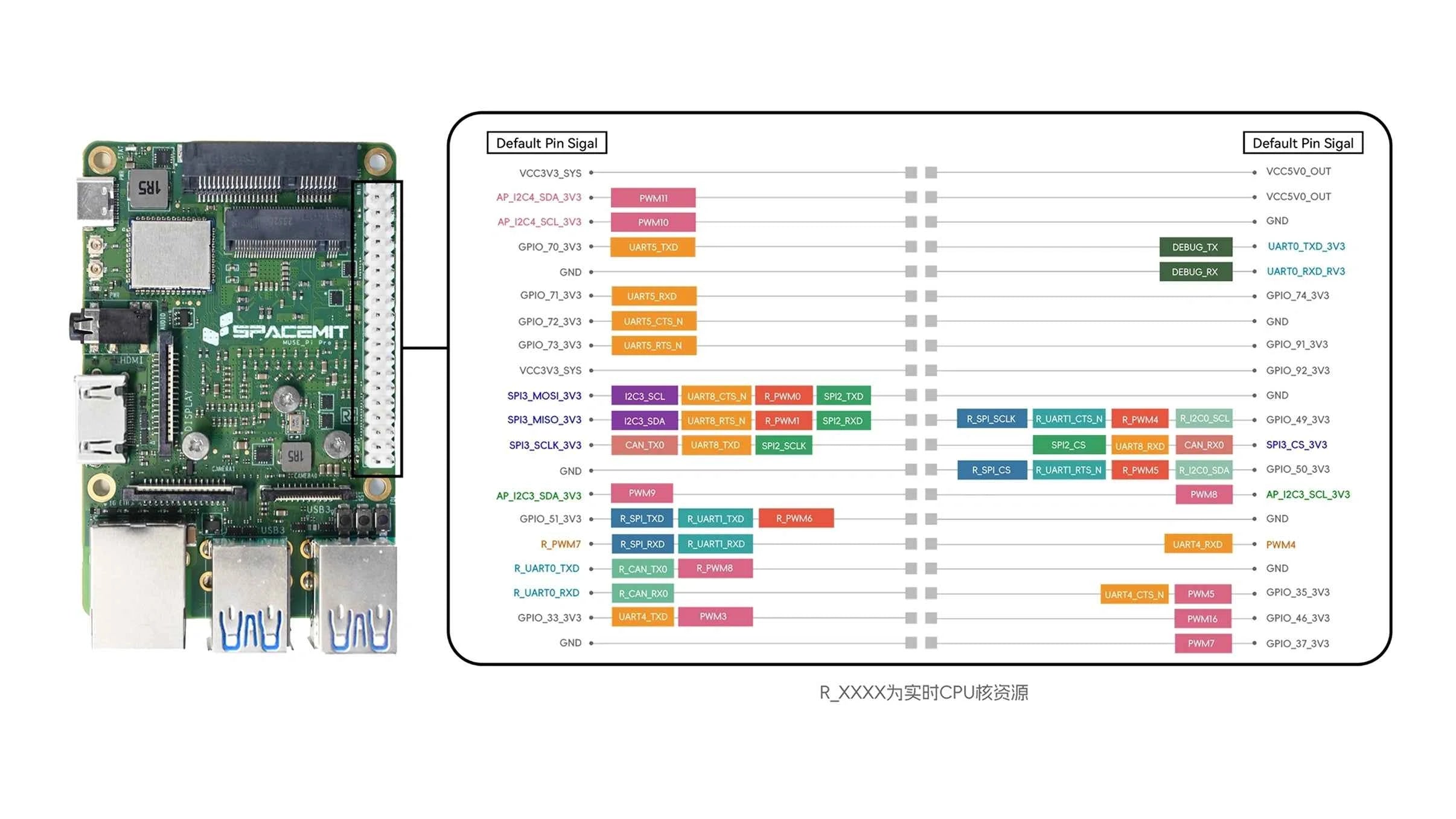

  • 40-Pin GPIO: Standard 40-pin GPIO header

Debug Interface

  • UART Debug: UART serial TTL debug interface
  • Side Buttons: 3 side buttons included

RTC & Clock

  • RTC: Onboard RTC clock with battery support for G3 power state

Power

  • Power Input: USB-PD protocol, supports 5V/3A, 9V/3A, and 12V/3A

Boot & OS

  • Boot Mode: UEFI boot, GRUB multi-OS boot supported
  • Supported OS: Banbian Desktop, Ubuntu, OpenKylin, Deepin, Fedora

Reliability & Certifications

  • ESD Protection: Contact ±4kV, Air ±8kV
  • EMC Certifications: CE, FCC
  • Operating Temperature (Consumer): -20°C to 70°C
  • Operating Temperature (Industrial): -40°C to 85°C (optional)

Physical Dimensions

  • Form Factor: FEMTO-ITX, single-board computer
  • Board Size: 85mm x 56mm (credit card size)

Cooling & Enclosure (Optional)

  • Cooling: Optional passive heatsink or active fan
  • Enclosure: Optional metal case or acrylic shell
  • Display: Optional touchscreen or industrial terminal

Key Features

  • Compact Design: 1.8-inch form factor, signal-card size SBC
  • UEFI Boot: Selectable boot media and personalized configuration
  • Domestic Innovation: Domestically developed RISC-V solution ensuring supply continuity
  • GRUB Support: Multi-OS installation with user-selectable boot
  • Fully Open Source: Board-level, mechanical, and software design materials provided
  • Standard IO Expansion: miniPCIe and M.2 standard interfaces, compatible with mainstream industry components
  • High Reliability: Structural stress protection, ESD protection, and EMC compliance

Application Scenarios

  • Robotics: Multi-sensor fusion and real-time motion planning for autonomous navigation, precision operation, and complex environment interaction
  • LLM Applications: Lightweight large model deployment at edge for low-latency, offline intelligent dialogue, content generation, and semantic understanding
  • Industrial Automation: High-reliability control core for precision assembly, intelligent inspection, and predictive maintenance
  • Smart Voice Hardware: High-performance audio processing for far-field pickup, noise reduction, and low-latency voice recognition
