LoRaWAN Data Transfer Unit(DTU) - 4G LTE / LAN, IP30,6 - 35V, Global

• Quick Start: Google Drive Chinese
• Tips

Introduction

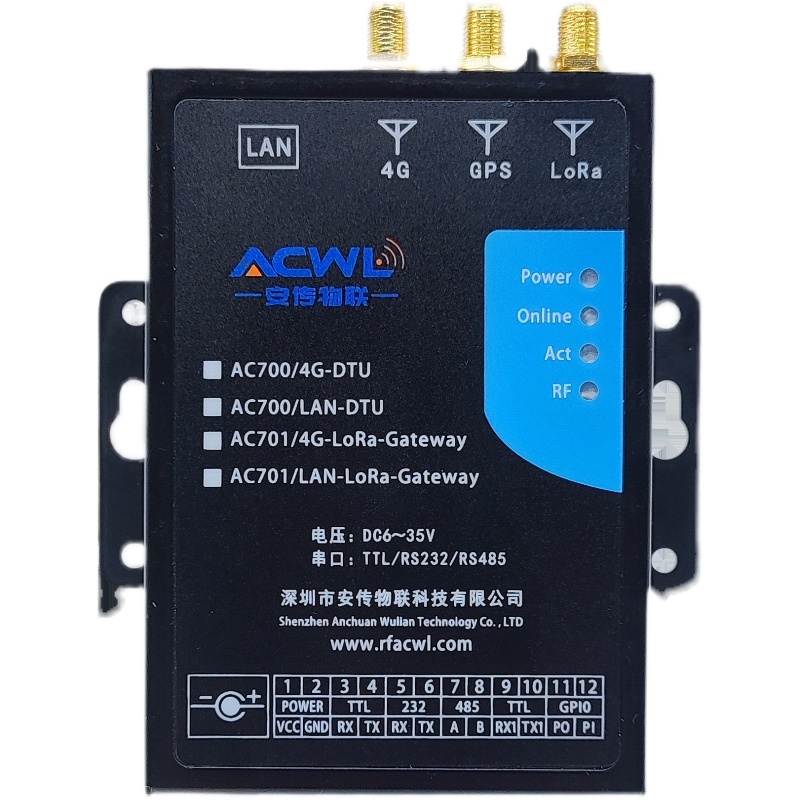

AC701 is a LoRa to 4G/RJ45 (Ethernet) wireless digital transmission gateway, which is a wireless relay device specially designed for converting LoRa data or serial data to TCP data, or converting TCP data to LoRa data or serial data, and transmitting them through wireless communication network. The hardware includes controller unit, communication modules (4G module, LoRa module, Ethernet module), power management module, interface conversion circuit and other main components.

Features

1. Industrial Grade Processor: Equipped with a high-performance 32-bit communication processor, ensuring robust operation under industrial conditions.
2. Embedded Real-time OS: Runs on an embedded operating system, providing a stable and responsive software foundation for seamless data handling.
3. TCP/IP Stack Integration: Incorporates a built-in standard TCP/IP protocol stack, enabling transparent serial data transfer over the network.
4. Reliability Mechanisms: Features a WDT (Watchdog Timer) design to maintain system stability and has a comprehensive anti-disconnection system guaranteeing uninterrupted gateway uptime.
5. ESD Protection: Offers 15KV ESD protection on the SIM/UIM card interface, safeguarding against electrical surges.
6. Compatibility: Compatible with the company's LoRa terminal modules and finished devices, promoting seamless integration within the LoRa ecosystem.
7. Versatile Interfaces: Supplies TTL, RS232, and RS485 communication interfaces, supporting common baud rates from 1200 to 115200bps and typical checksum formats such as 8N1, 8O1, and 8E1.
8. Transparent Data Transmission: Directly connects to serial devices and facilitates transparent data transfer, simplifying the integration of legacy or custom-built devices into a networked environment.

Shipping List

LoRaWAN Data Transfer Unit x1

Applications

Hotel electronic door locks, biometric access control systems, medical and electronic instrumentation automation control, intelligent teaching equipment, infant monitoring, ward call systems, intelligent control of home appliances and lighting, anti-theft alarm smart cards, remote detection of railway locomotives, automatic meter reading and charging systems or reactive power compensation and power grid monitoring, wireless conference voting

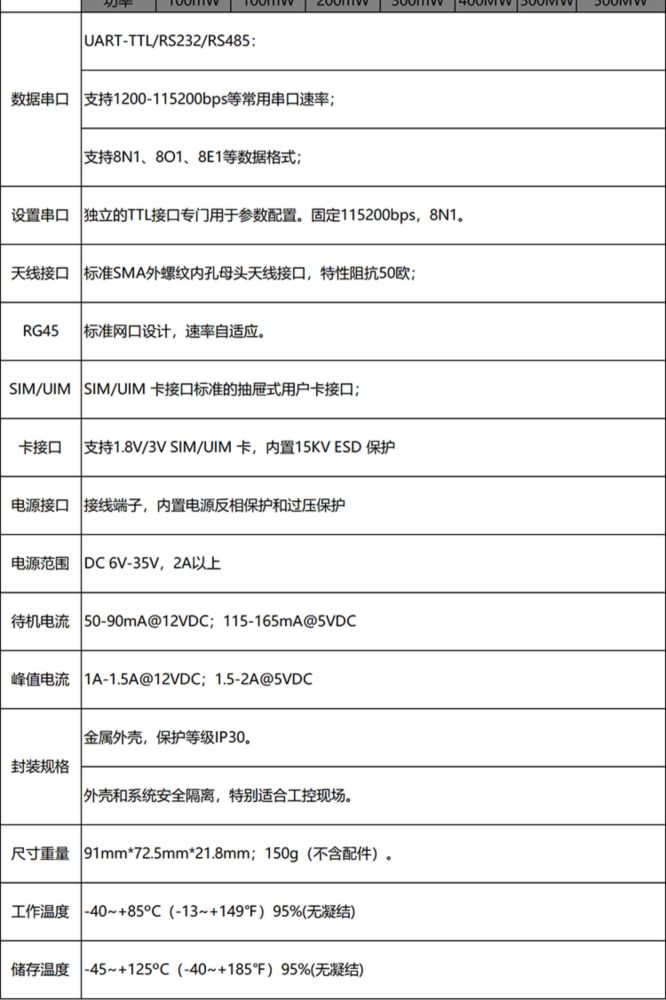

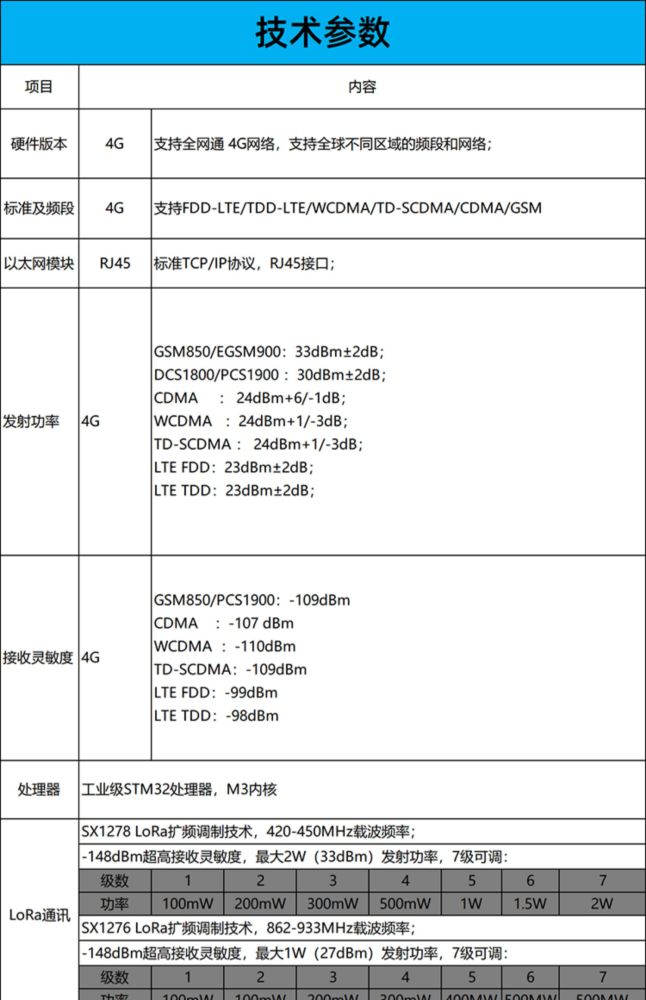

Specification

Refer to the User's Manual.

Detailed Descriptions
