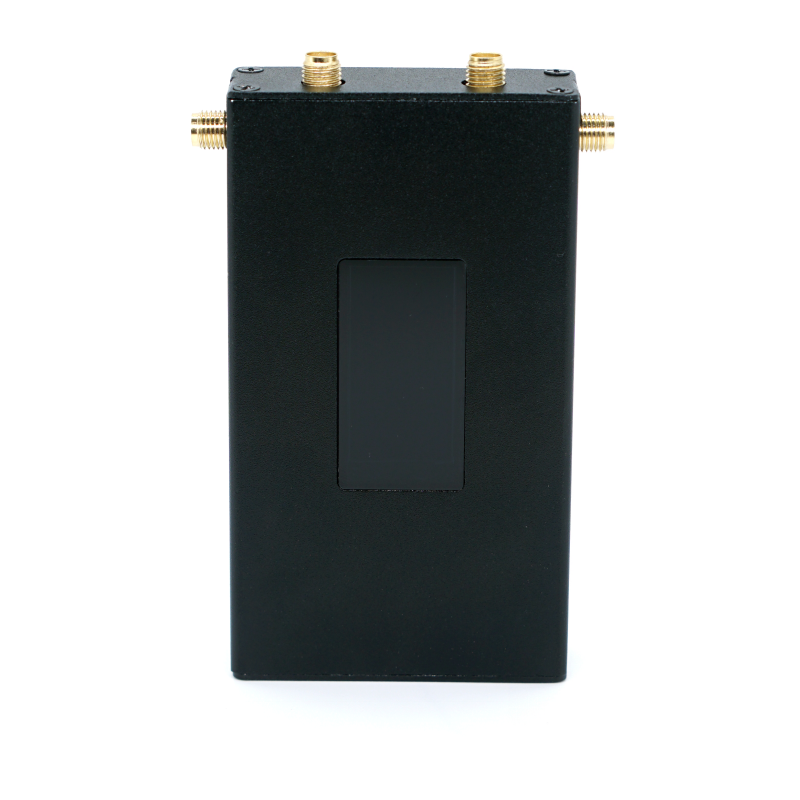

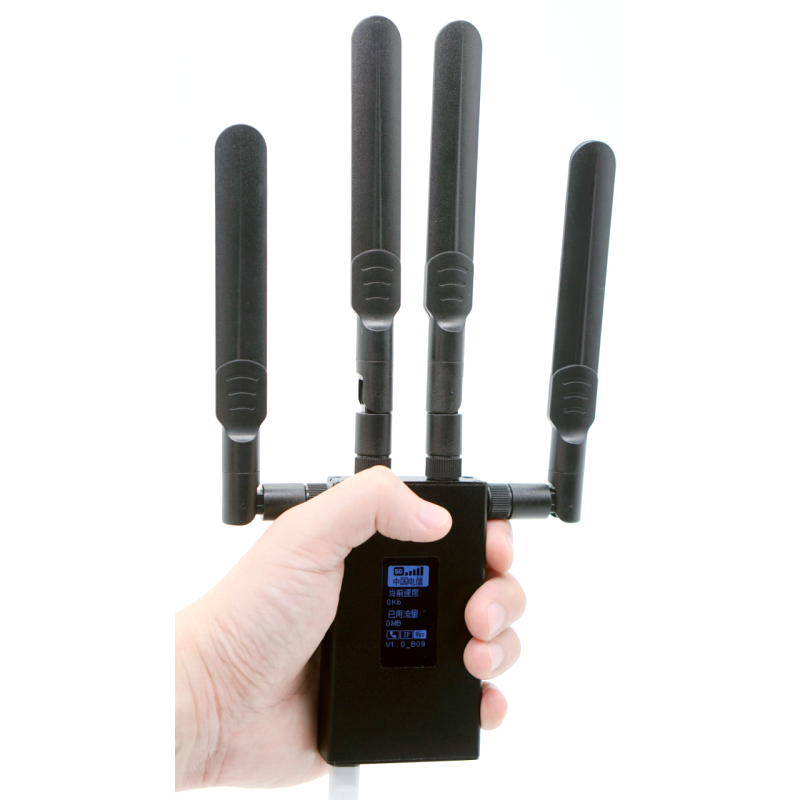

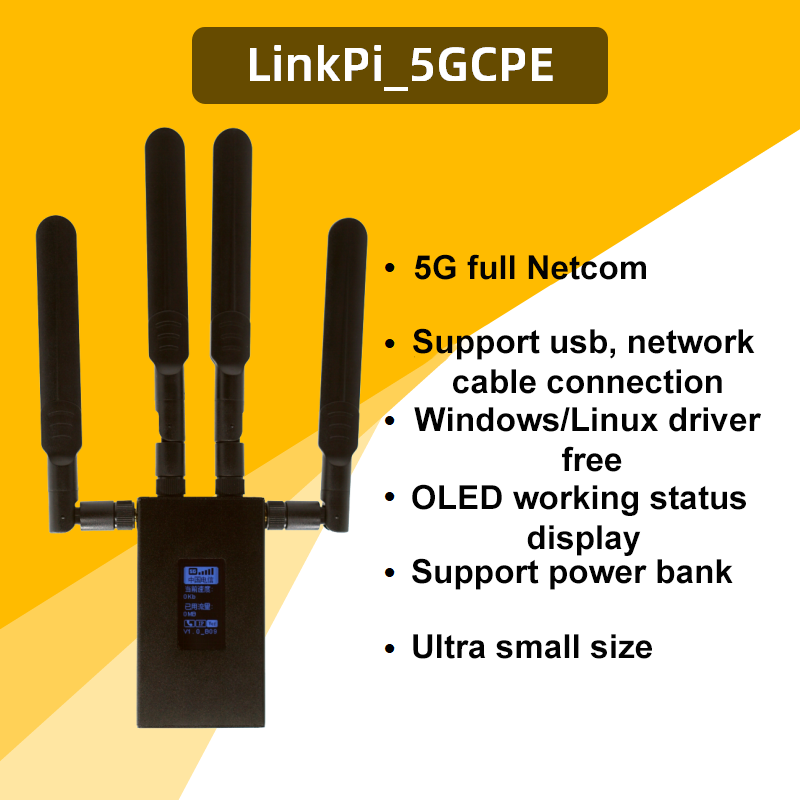

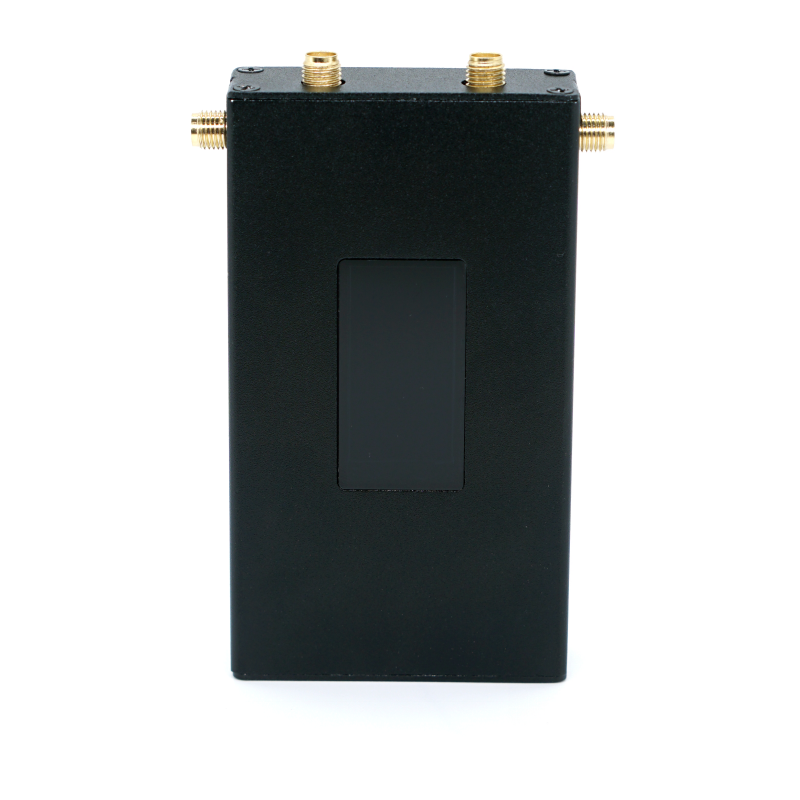

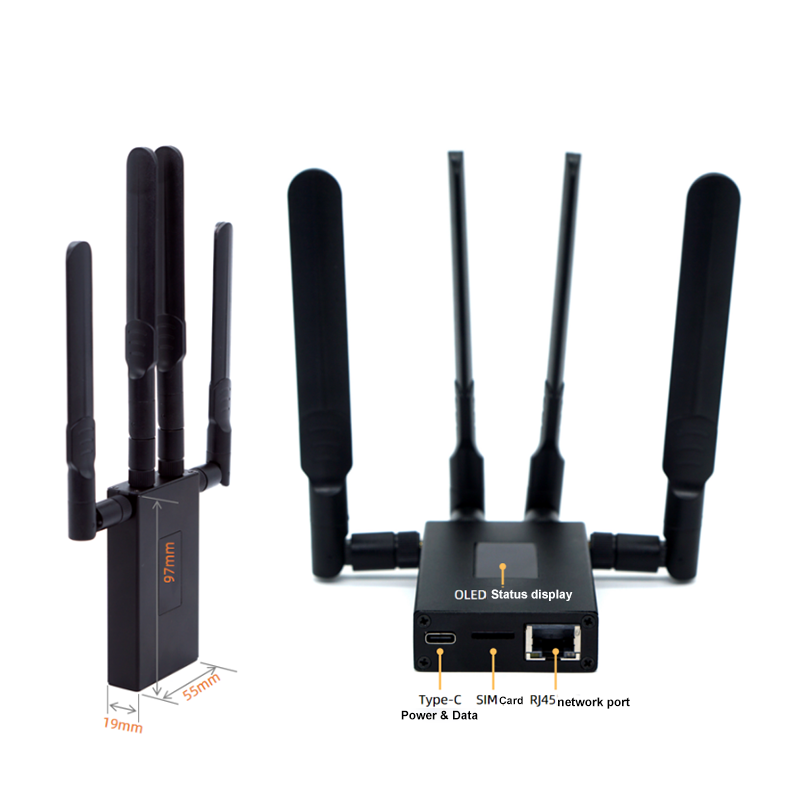

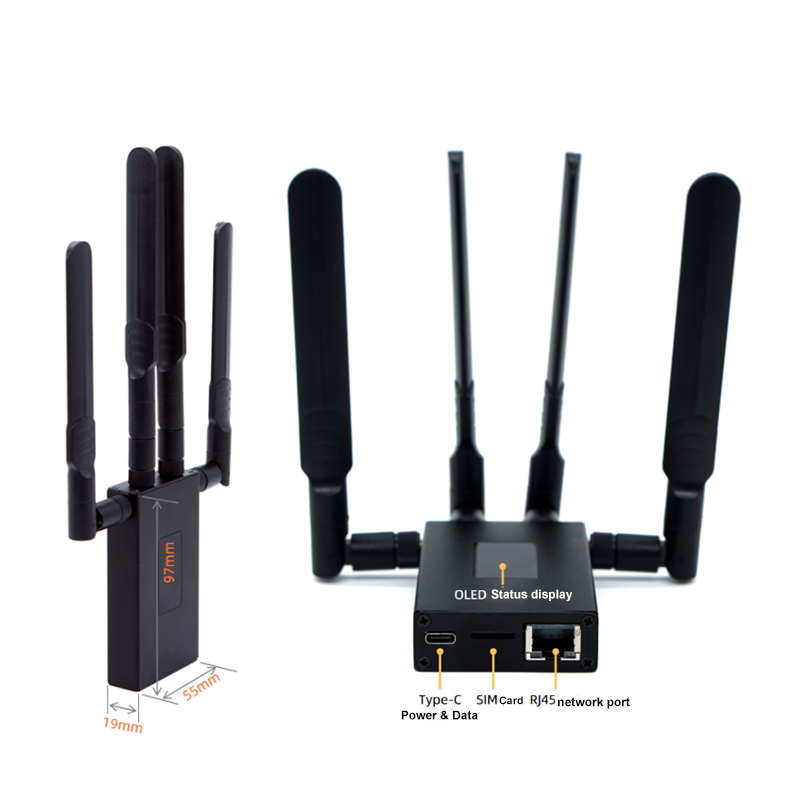

LinkPi 5GCPE - Portable 5G Router - Full Netcom Transfer Port / USB Industrial Gate way / 5G Mobile Router 3GPP Release 15 NSA/SA

Basic parameters

?

Dimensions:

55x97x19(mm without antenna)

Working temperature:

-30℃ ~ +60℃

Power supply:

5V2A

Weight:

160g

Band information

?

5G NR：

3GPP Release 15 NSA/SA operation，Sub-6 GHz

5G NR NSA：

n41/n78/n79

5G NR SA：

n1/n28/n41/n77/n78/n79

下行 4 × 4 MIMO：

n1/n41/n77/n78/n79

LTE Category：

下行 Cat 12，上行 Cat 13

LTE-FDD：

B1/B2/B3/B5/B7/B8/B20/B28

LTE-TDD：

B34/B38/B39/B40/B41

下行 2 × 2 MIMO：

B1/B2/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41

WCDMA：

B1/B2/B5/B8

aximum transfer rate

?

5G SA Sub-6：

Downstream 2 Gbps; Upstream 1 Gbps

5G NSA Sub-6：

Downlink 2.2 Gbps; Uplink 575 Mbps

LTE：

Downlink 600 Mbps; Uplink 150 Mbps

UMTS：

42.2 Mbps downstream; 11 Mbps upstream

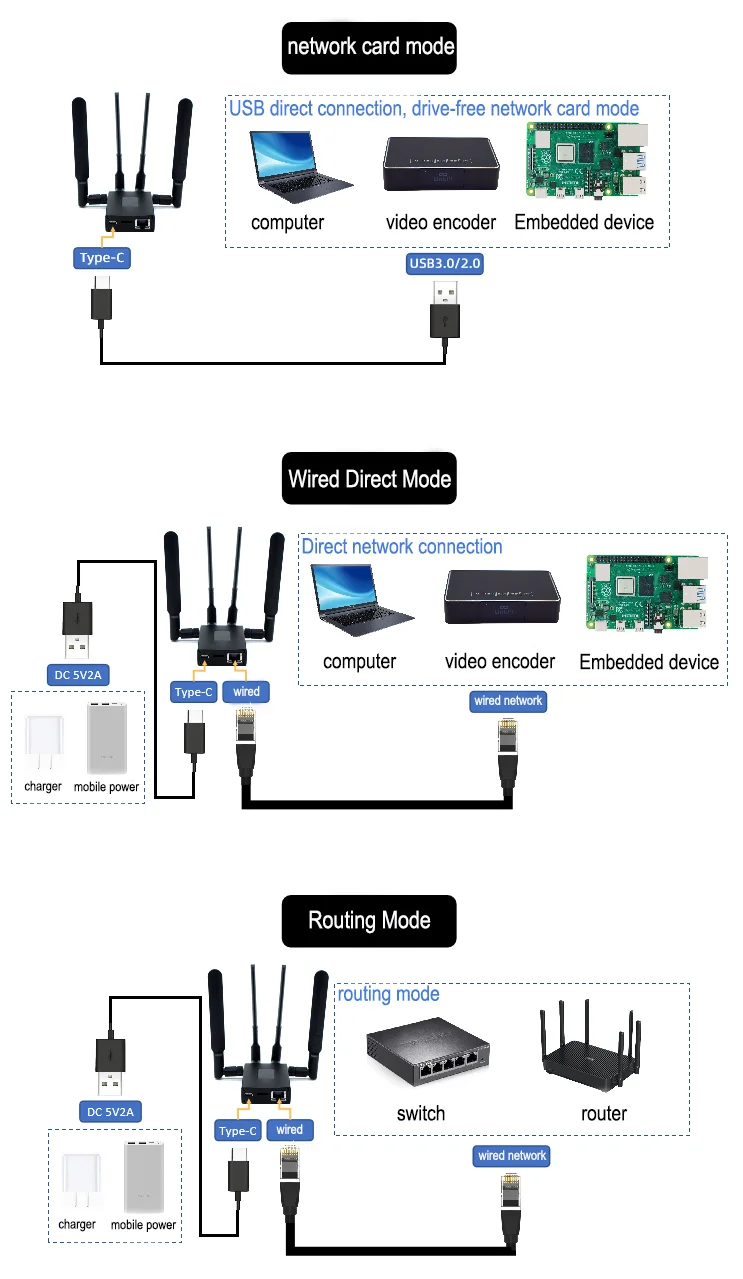

Hardware interface

?

Type-C：

DC5V power supply and data transmission, compatible with USB3.0/2.0

SIM：

Micro-Sim

Wired network:

10/100/1000M RJ45 network port

5G antenna:

SMA external rotation inner hole, standard 6DB 5G dedicated antenna
