  • T-Display-S3 is a ESP32-S3 development board.
  • It is equipped with a color 1.9" LCD screen and two programmable buttons.
  • Communication using I8080 interface. Retains the same layout design as T-Display.
  • You can directly use ESP32S3 for USB communication or programming.
  • For more information and manuals, please check Github : github.com/Xinyuan-LilyGO/T-Display-S3

  • 【Flash】 :16MB PSRAM :8MB
  • 【MCU】: ESP32-S3R8 Dual-core LX7 microprocessor
  • 【Github】:github.com/Xinyuan-LilyGO/T-Display-S3
  • 【PIN】: This version of shipment is not welded by default



Product Pin Diagram

1

The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on.

If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear.

Please enter the upload mode manually.

Quick Start :

  1. Connect the board to the computer USB.
  2. Press and hold the BOOT button when the power is off, the button is located behind the RST button.
  3. Press the RST(reset button), then release the RST button, and finally release the BOOT button.
  4. Then check the port of the PC Device Manager.

1

PlatformIO

  1. PlatformIO plug-in installation: click on the extension on the left column → search platformIO → install the first plug-in
  2. Click Platforms → Embedded → search Espressif 32 in the input box → select the corresponding firmware installation

ESP-IDF

The installation method varies depending on the system, refer to the Github .

Q/A

Why doesn't the TFT_eSPI library display properly?
Some settings, withing the TFT_eSPI library, need to be modified.

A modified library is provided in this repository in the lib folder.Copy it to your Arduino library folder.

Alternatively you must patch your clone of a TFT_eSPI library with Micky_commit.patch.

Product Package

11

1

1

S3 Not Soldering PIN

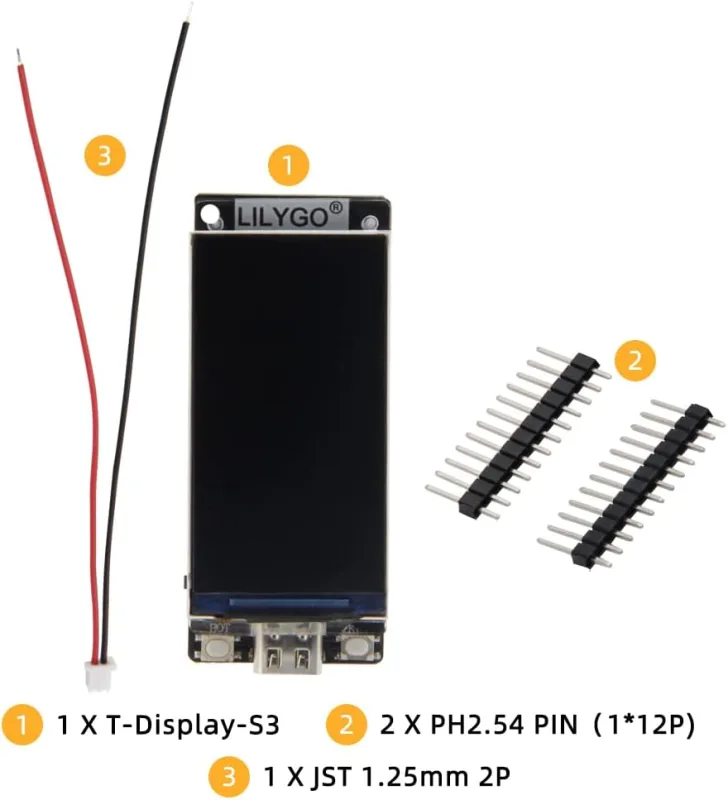

1 X T-Display-S3

2 X 2.54mm Male PIN (1*12P)

1 X JST 1.25mm 2P

Transport packing box

A foam pad protects the product from damage

Transport packing box

The outer packing case is strong and unbreakable

Please check this link https://youyeetoo.com/pages/shipping-delivery
