Intel RealSense D435 D435f D435i D435if - Depth Camera, Stereo Depth

Let perception become your advantage Stereoscopic image sensing technology uses two cameras to calculate depth, and gives the device the ability to watch, understand, interact and learn from the environment, thereby bringing int. and natural interaction and immersive experience.

Through the lens Intel RealSense Stereoscopic Depth Technology introduces 3D images into devices and machines that currently only see 2D images. Compare what you see with the naked eye with the picture presented by Intel? RealSense? depth technology.

Three-dimensional depth solution The Intel RealSense D400 series camera has a portable design that is easy to install, supports high depth resolution, and includes an active infrared stereo depth sensor with standard or wide field of view. For high-precision applications, please choose D415 with rolling shutter. If it is a fast-moving or outdoor application scene, please choose D435 or D435i camera with global shutter.

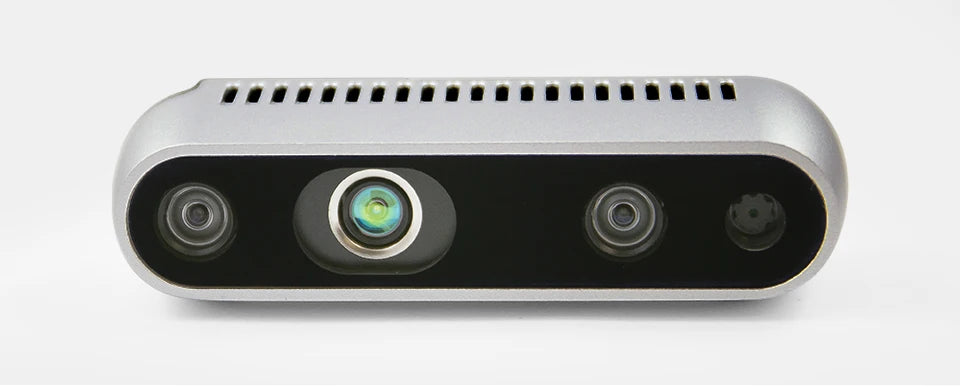

Depth Camera D435i
Intel RealSense depth camera D435i combines the robust depth sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU).
Adding an IMU allows your application to refine its depth awareness in any situation where the camera moves. This opens the door for rudimentary SLAM and tracking applications allowing better point-cloud alignment. It also allows improved environmental awareness for robotics and drones. The use of an IMU makes registration and calibration easier for handheld scanning system use cases and is also important in fields such as virtual/augmented reality and drones. When using the D435i, our Intel RealSense SDK 2.0 provides IMU data that is time stamped to align with our high quality depth data.

What is an IMU?
The inertial measurement unit (IMU) is used for the detection of movements and rotations in 6 degrees of freedom (6DoF). An IMU combines a variety of sensors with gyroscopes to detect both rotation and movement in 3 axes, as well as pitch, yaw and roll. It is used in applications such as gaming and pointing devices as well as image stabilization.

Depth in motion
Combined Solution for Development & Productization
The Intel  RealSense  D435i places an IMU into our cutting edge stereo depth camera. With an Intel module and vision processor in a small form factor, the D435i is a powerful complete package which can be paired with customizable software for a depth camera that is capable of understanding it's own movement.

Ideal for cameras in motion
The combination of a wide field of view and global shutter sensor on the D435i make it the preferred solution for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more area resulting in less “blind spots”. The global shutter sensors provide great low light sensitivity allowing robots to navigate spaces with the lights off.

Complete Suite for Simple Integration
The depth camera D435i is part of the Intel  RealSense  D400 series of cameras, a lineup that takes Intel’s latest depth sensing hardware and software and packages them into easy to integrate products. Perfect for developers, makers, and innovators looking to bring depth sensing to devices, Intel  RealSense  D400 series cameras offer simple out of the box integration and enable a whole new generation of intelligent vision equipped solutions.

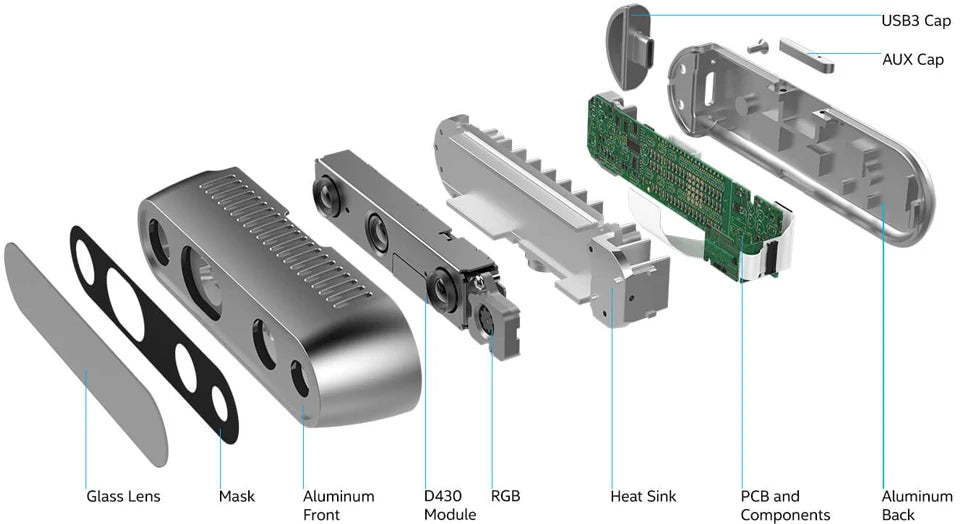

See What’s Inside
Get powerful image processing, depth perception, and more with the Intel  RealSense  D400 series depth cameras.

Tech Specs

Start developing with Intel RealSense SDK 2.0

Our open?source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms.

Shipping List
