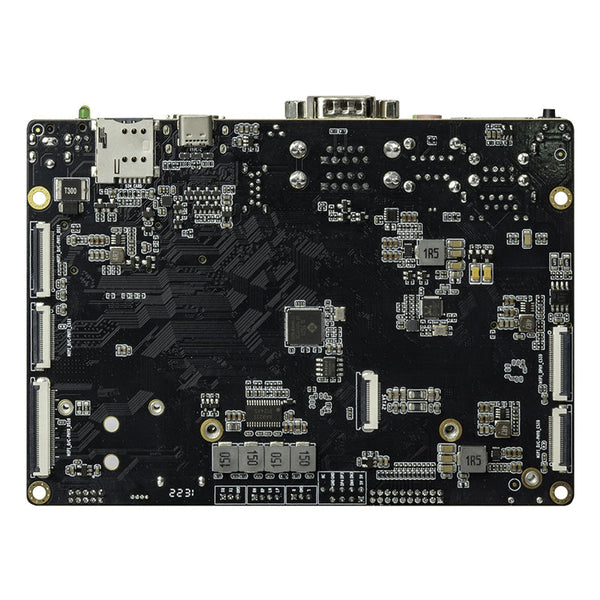

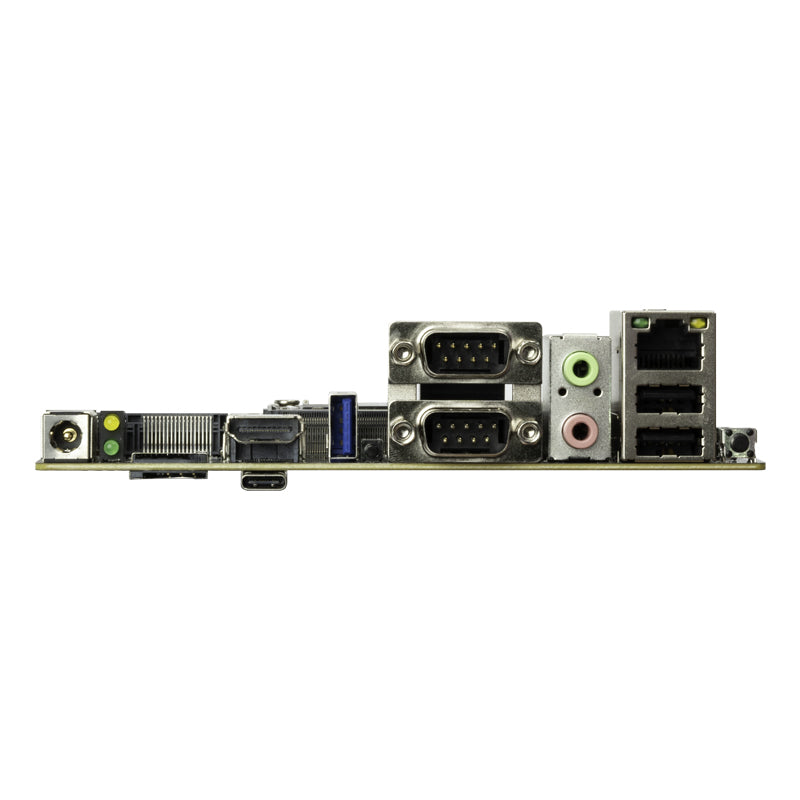

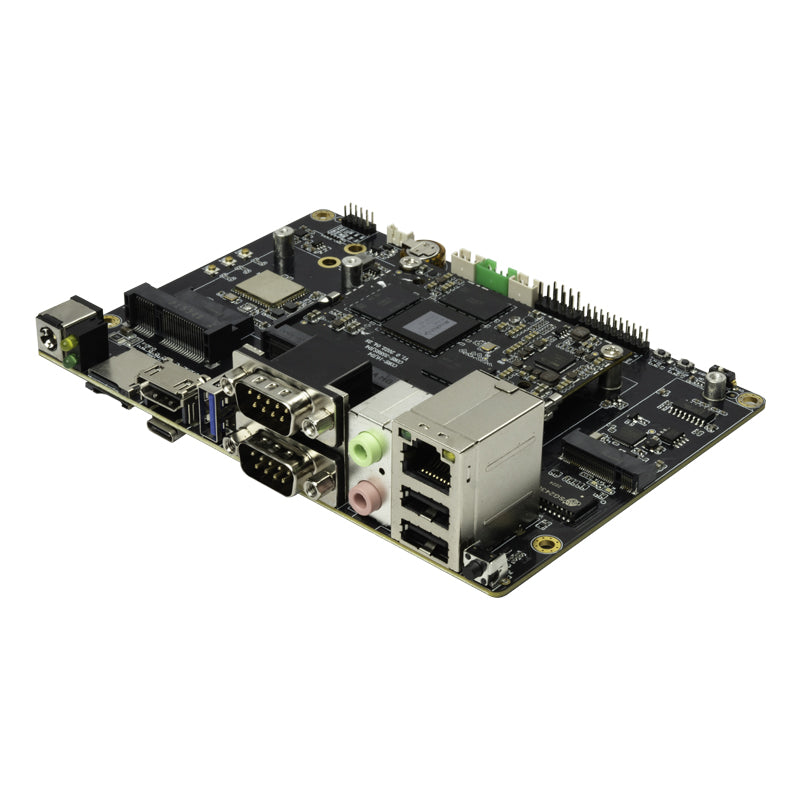

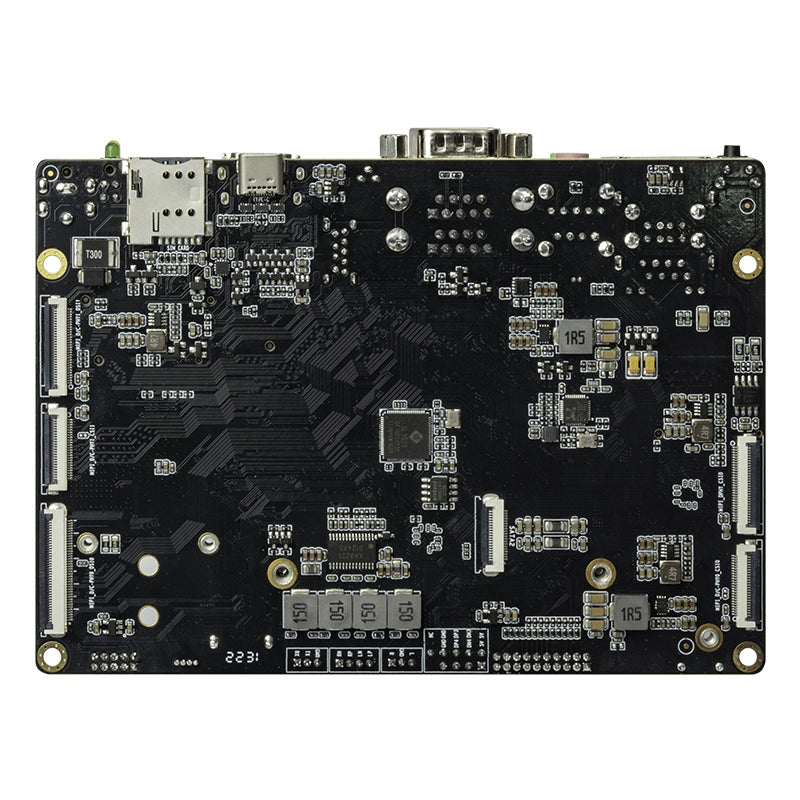

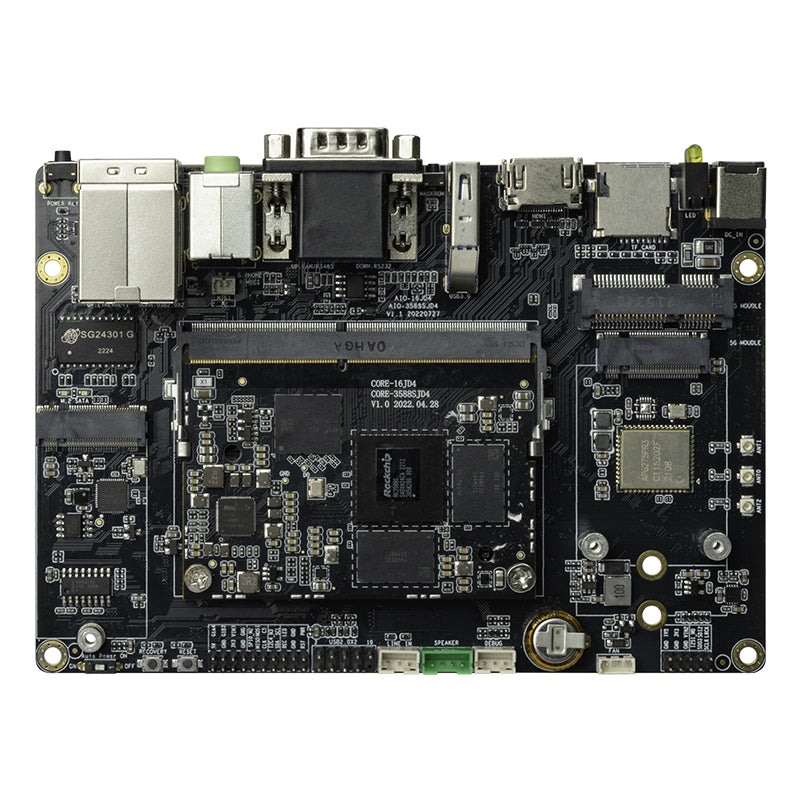

Firefly AIO-3588SJD4 - 8K AI Motherboard 6 TOPS NPU, Support UEFI Boot,Android 12.0,Linux

Basic Specifications

SOC

RockChip RK3588S

CPU

8-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm lithography process,

frequency up to 2.4GHz

GPU

ARM Mali-G610 MP4 quad-core GPU

Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS

NPU

NPU computing power up to 6 TOPS,

Support INT4/INT8/INT16 mixed operation,

Support framework switching of TensorFlow / MXNet / PyTorch / Caffe

ISP

Integrated 48MP ISP with HDR&3DNR Integrated 48MP ISP with HDR&3DNR

VPU

Video decoding:

8K@60fps H.265/VP9/AVS2

8K@30fps H.264 AVC/MVC

4K@60fps AV1

1080P@60fps MPEG-2/-1/VC-1/VP8

Video encoding:

8K@30fps encoding, support H.265 / H.264

*Achieve up to 32-channel 1080P@30fps decoding and

16-channel 1080P@30fps encoding

RAM

4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)

Storage

16GB/32GB/64GB/128GB eMMC

Hardware Specifications

Network

Integrated GMAC/SDIO3.0/USB3.0 interface, can be expanded with GbE,

WiFi6/Bluetooth and 5G/4G LTE

Video Output

1 × HDMI2.1 (8K@60fps or 4K@120fps)

2 × MIPI-DSI (4K@60fps)

1 × DP1.4 (8K@30fps)

2 × eDP1.3 (4K@60Hz)

1 × BT.1120 (1080@60fps)

* Up to four-screen output with different displays can be achieved.

Video Input

2 × MIPI DC (4 Lane DPHY v2.0 or 3 Lane CPHY V1.1)

1 × MIPI CSI (4 Lane) or 2×MIPI CSI (2 Lane)

1 × DVP camera interface (up to 150MHz data input )

Audio

2 × 8 Lane I2S

2 × 2 Lane I2S

2 × SPDIF

2 × 8 Lane PDM (supports multi-mic array)

1 × dual-channel digital audio codec (16-bit DAC)

1 × VAD

PCIE

2 × PCIe2.0

SATA

2 × SATA3.0

USB

3 × USB3.0、2 × USB2.0 Host 1 × USB2.0 OTG

Power

4V (voltage deviation±5%)

Other Interfaces

9 × I2C、10 × UART、5 × SPI、12 × ADC 、3 × CAN、16 × PWM 、

1 × SDMMC、Multiple GPIO

OS/Software

OS

Android: Android 12.0

Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux

Kylin Linux, UOS, etc.

*Support UEFI Boot

General

Size

69.6mm × 49.3mm

Weight

≈50g (no peripheral devices)

Interface Type

SODIMM (260 PIN, 0.5mm pitch)

Heat Dissipation

Cooling fan (Click to view)

Power Consumption

Typical: ≈1.6W(4.0V/400mA)

Max: ≈12W(4.0V/3A)

Environment

Operating Temperature: -20℃～60℃

Storage Temperature: -20℃～70℃

Storage Humidity: -40%～70 %
