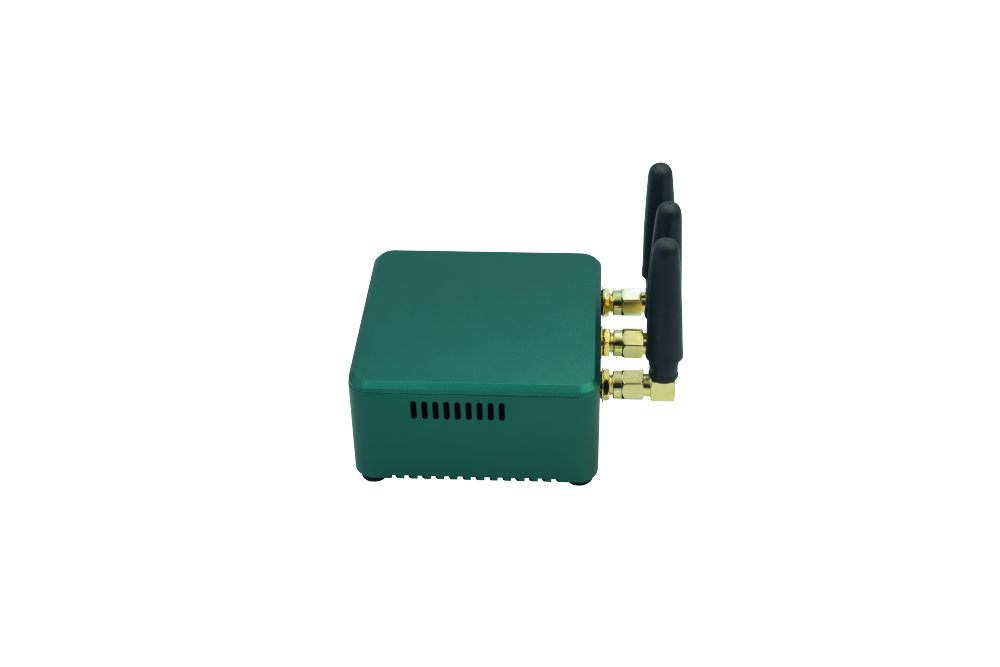

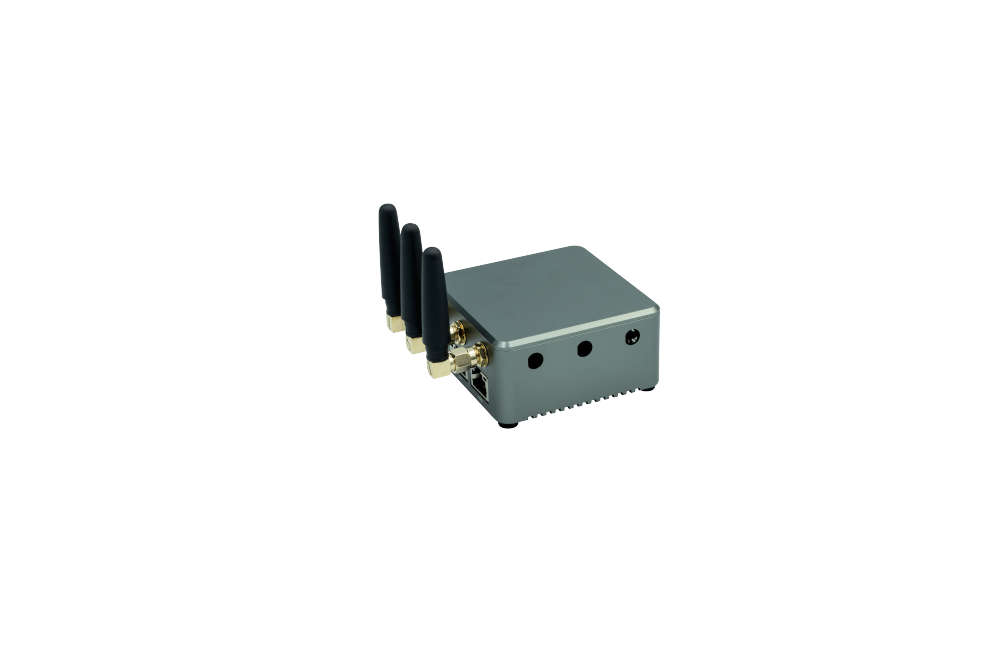

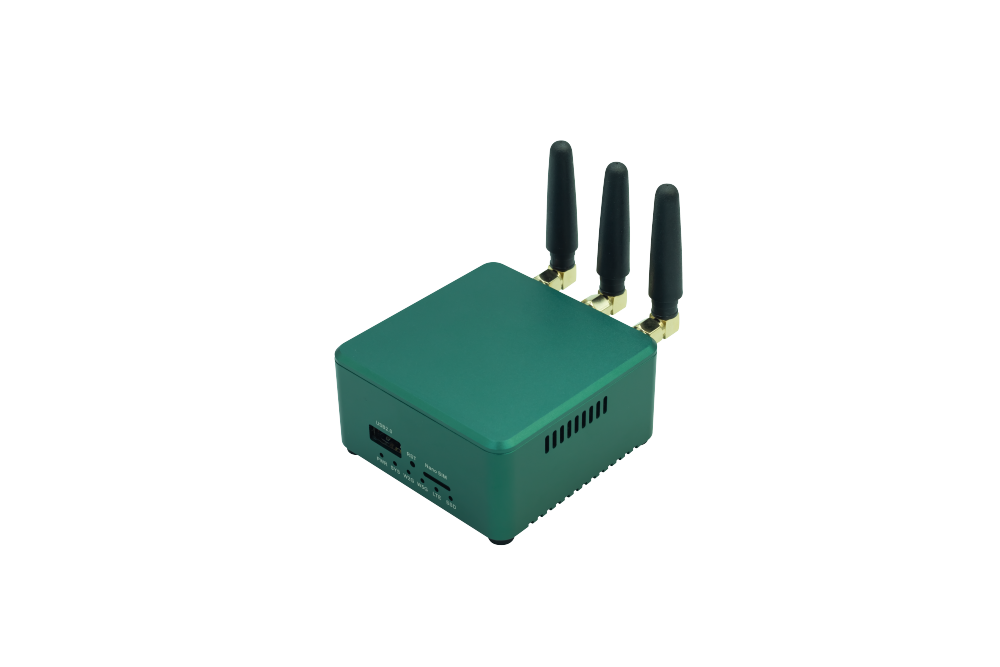

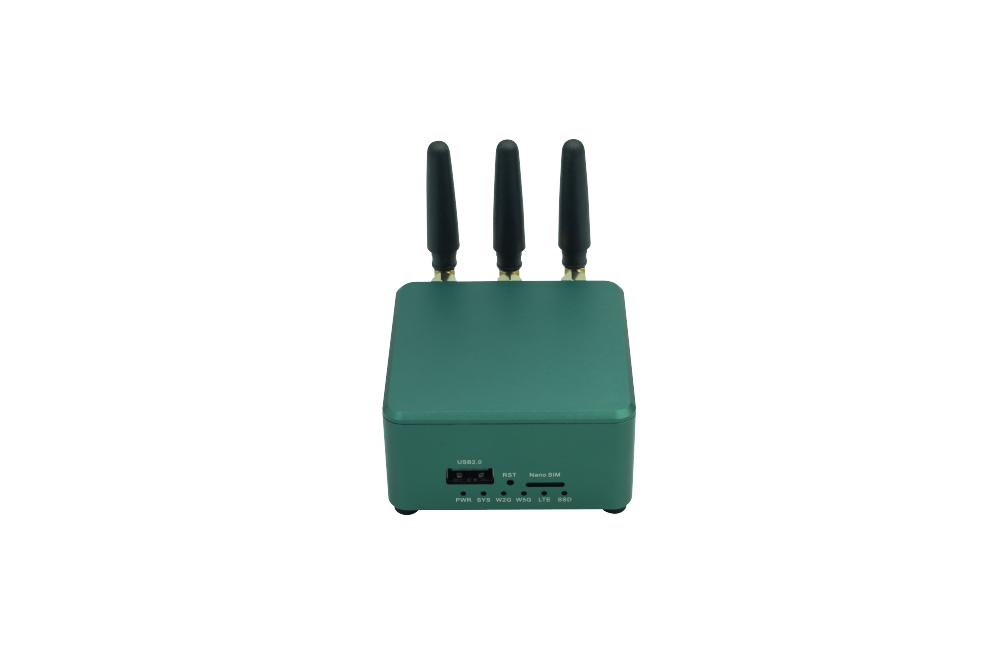

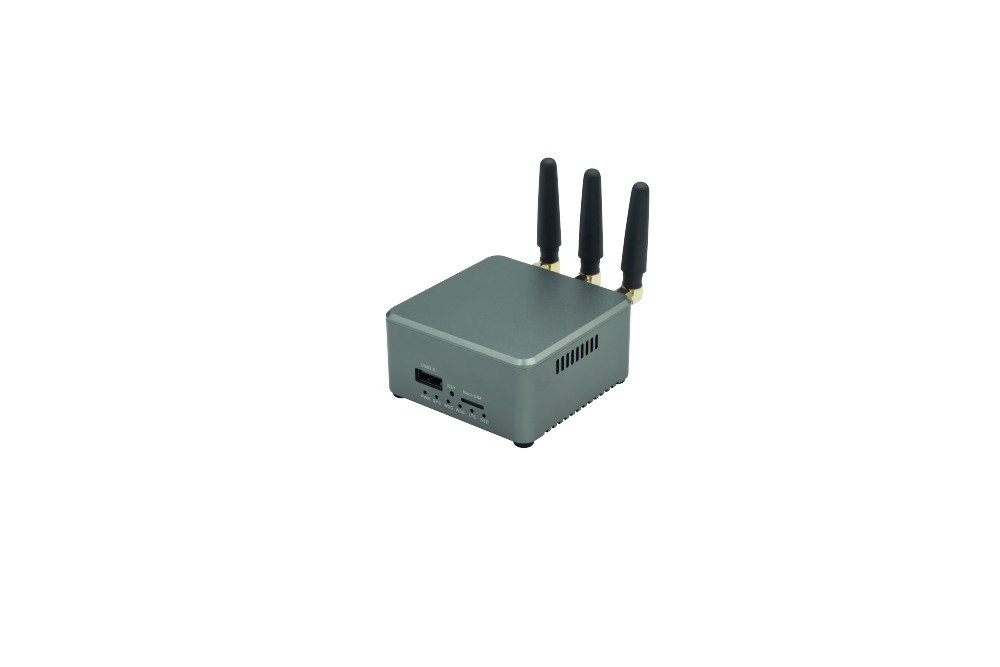

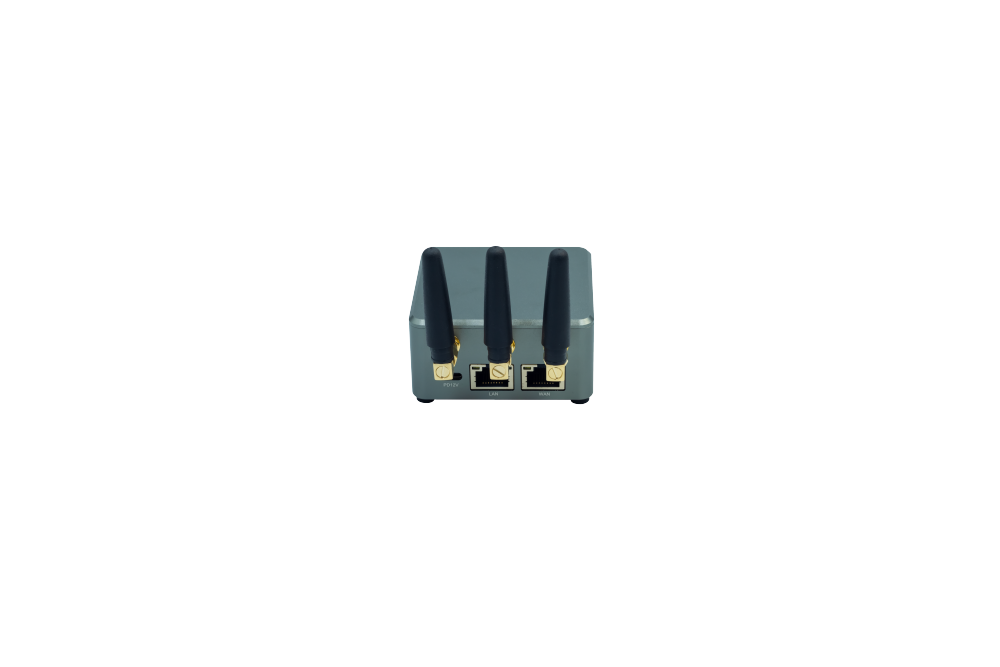

BPI-R3 Mini with case - Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network
Couldn't load pickup availability
You may also like
Bare Board Link : https://www.youyeetoo.com/products/bpi-r3-mini
20W PD Power : https://www.youyeetoo.com/products/20w-pd-power-supply,-output-5v3a-9v222a-12v166a

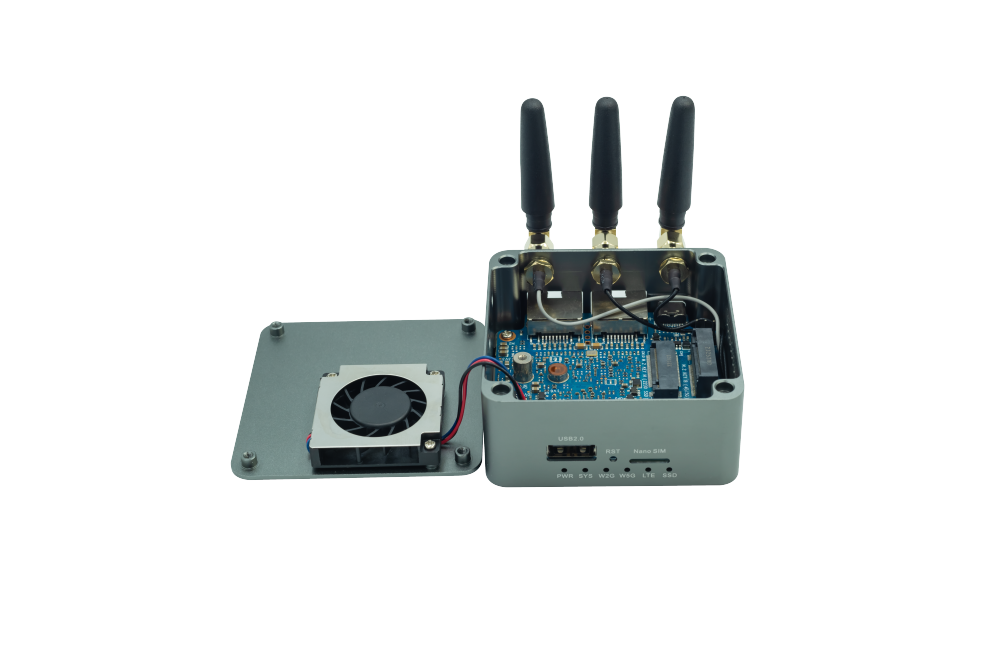

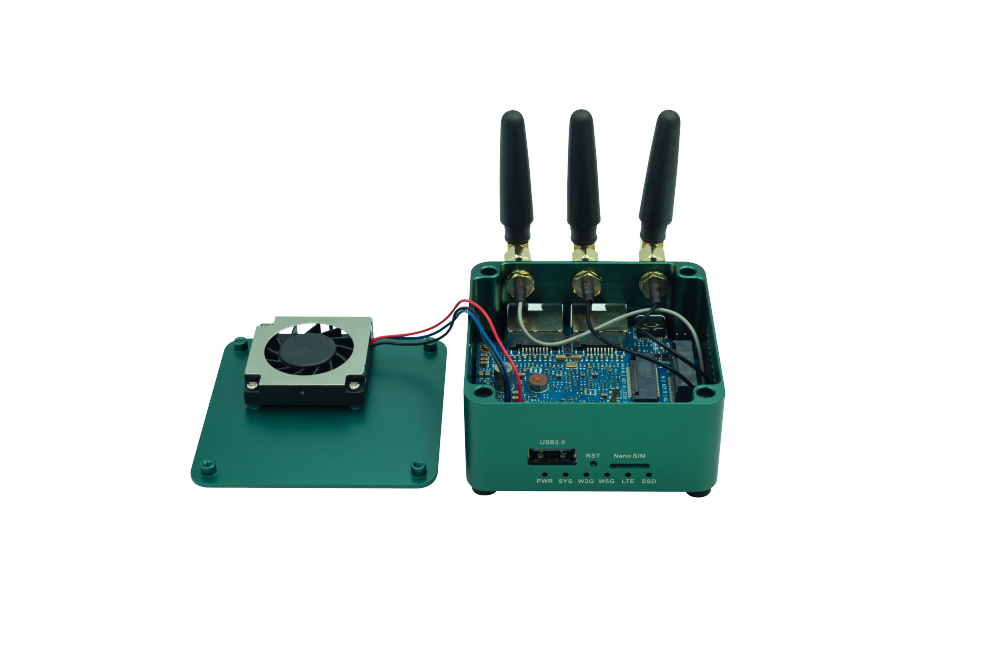

Banana Pi BPI-R3 Mini OpenSource Router Shell installation introduction
BPI-R3 Mini router board development board using Mediatek MT7986A(Filogic 830) quad-core ARM A53 chip design, onboard 2G DDR memory, 8G eMMC and 128MB SPI NAND storage, is a very high-performance open source router development board. It supports Wi-Fi6 2.4G/5G (MT7976C), two 2.5G network ports, NVME SSD(2230), 4G LTE, and 5G network expansion.
- MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53
- Wifi 6 2.4G/5G（MT7976C）
- 2G DDR RAM
- 8G eMMC flash
- 128MB Nand flash
- 2x 2.5GbE network port
- 1x M.2 Key B USB interface
- 1x M.2 KEY M PCIe interface
- 1x USB2.0 interface
Hardware spec
| HardWare Specification of Banana pi BPI-R3 Mini | |||
| CPU | MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53 | ||
| SDRAM | 2 GB DDR4 | ||
| On board Storage | 128MB SPI NandFlash，8GB eMMC | ||
| On board Network | 2x 2.5GbE Ethernet | ||
| Wifi | Wifi6 2x2 2.4G + 3x3 5G(MT7976C) | ||
| M.2 Key B | 1x M.2 Key B interface | ||
| M.2 Key M | 1x M.2 KEY-M PCIe inerface | ||
| USB | 1x USB 2.0 | ||
| Buttons | Reset button, boot switch | ||
| 5x Leds | Power ,System, Wifi 2G ,Wifi 5G ,4G Lte ,SSD | ||
| DC Power | 20W/12V,USB TypeC PD | ||
| Sizes | 65x65mm | ||
| Weight | 100g | ||
SSD and 5G support
Hardware interface:
Shipping List :
- Bare Board: BPI-R3 Mini Bare Board X1
- Board+Antenna: BPI-R3 Mini Bare Board X1 Dual Band Antennas X2
- Full Kit: BPI-R3 Mini Bare Board X1 Dual Band Antennas X2
Gray Enclosure X1
Serial Console Module (CH340) X1
Dupont Jumper Wires X1
20W PD Power Adapter (EU Plug) X1 PD Fast Charging Cable (1m) X1
