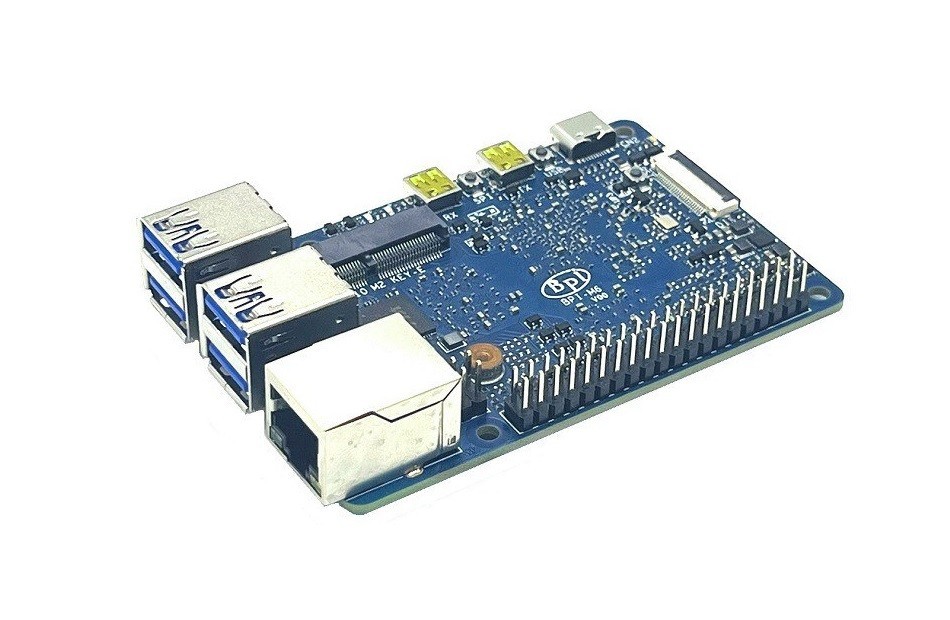

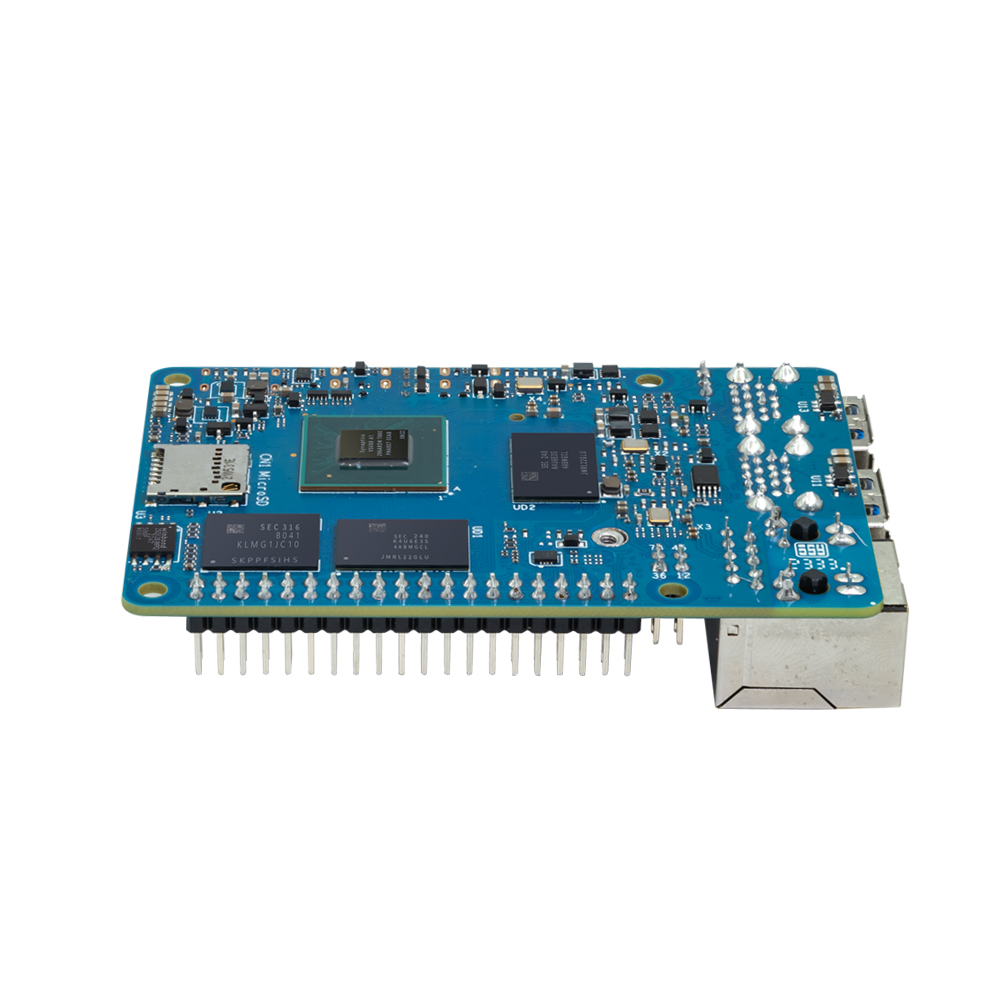

BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]
  • BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]
  • BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]
  • BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]
  • BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]
BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]

BPI-M6 SBC Single board computer with Senary(Synaptics) VS680 design ,onboard 4G LPDDR4 and 16G eMMC - [NEW]

Vendor: BPI
SKU: BPDPM6DB0001
Availability: In stock
$785.00
Shipping calculated at checkout.
Model: BPI-M6
Hurry up! Only 6 left
Product subtotal: $785.00

You may also like

main spec:

  • Senary(Synaptics) VideoSmart VS680 quad-core Cortex-A73 (2.1GHz) and One Cortex-M3 processor
  • Imagination GE9920 GPU
  • NPU for AI up to 6 .75Tops
  • 4GB LPDDR4
  • 16GB eMMC flash
  • M.2 Key E(PCIe + MIPI CSI)
  • 4 USB 3.0
  • 1 GbE ethernet
  • 1 HDMI in and 1 HDMI out

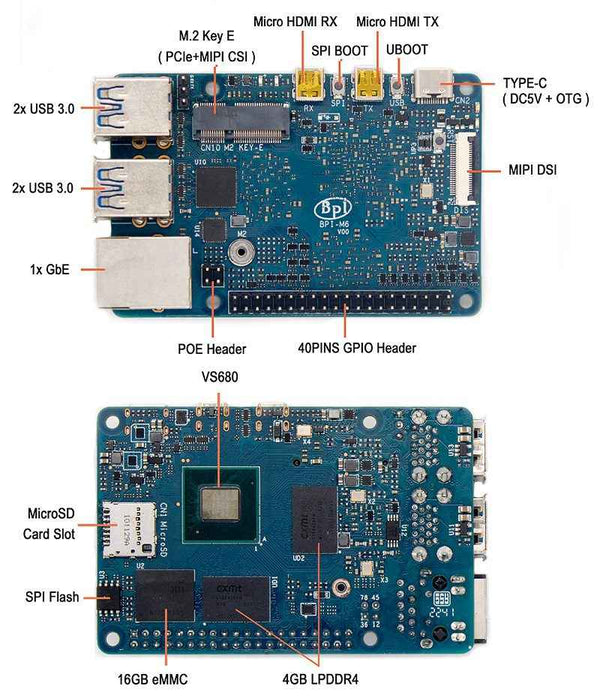

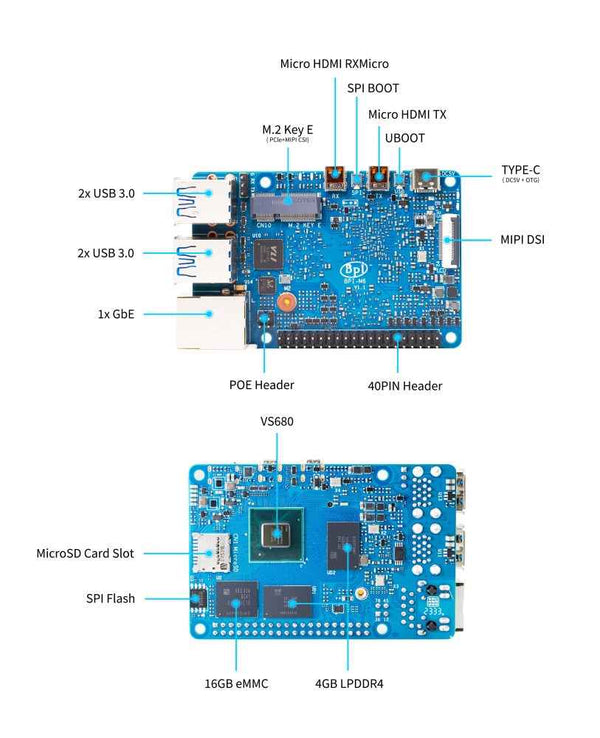

Hardware interface:



Hardware Specification of Banana pi BPI-M6
CPU Senary(Synaptics) VS680 quad-core Cortex-A73 (2.1GHz) and One Cortex-M3 processor
GPU Imagination GE9920 GPU
NPU for AI Up to 6 .75Tops
Memory 4 GB LPDDR4
Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network 10/100/1000 Mbit/s Ethernet,Optional WiFi USB dongle
Video 1 x HDMI 2.1 (up to 4K@60Hz?with HDR, CEC, EDID) out, and 1 HDMI in Port
Audio Output(s) 1 x HDMI digital output
Display MIPI DSI interface
M.2 interface M.2 Key E(PCIe + MIPI CSI)
USB ports USB 3.0 PORT (x4)
GPIO 40 Pin Header: GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches SPI boot and U-boot
LED Power Status and Activity status
Power Source 5 volt @3A TYPE C
Size & Weight 92x60mm, 48g
OS Android and Linux


Overview

The Banana Pi BPI-M6 is the next-generation 4K multimedia powerhouse designed for demanding edge computing and AIoT applications. Unlike standard SBCs, the BPI-M6 leverages the Synaptics VideoSmart VS680 SoC to deliver perceptive intelligence, combining high-fidelity 4K video processing with robust neural network acceleration.

Key Features

  • Synaptics VS680 SoC: Quad-core Cortex-A73 (2.1GHz) + Cortex-M3 coprocessor ensures smooth multitasking and real-time control.
  • Dedicated 6.75 TOPS NPU: Accelerates AI workloads for face ID, object recognition, and security monitoring directly on the device.
  • Dual HDMI (In & Out): Unique capability to receive HDMI input (4K@60Hz) and output simultaneously, perfect for KVM over IP or video processing.
  • High-Speed Connectivity: Equipped with 4 USB 3.0 ports and Gigabit Ethernet for fast data transfer.
  • Premium Graphics: Imagination GE9920 GPU supports advanced 3D rendering and Qdeo 4K video engines.

Technical Specifications

  • Processor: Synaptics VS680 / SL1680 (Quad-core Cortex-A73 @ 2.1GHz + Cortex-M3)
  • GPU: Imagination GE9920
  • Neural Processing Unit (NPU): Up to 6.75 TOPS
  • Memory: 4GB LPDDR4
  • Storage: 16GB eMMC Flash (Expandable via MicroSD up to 256GB)
  • Video Output: 1 x HDMI 2.1 (4K@60Hz, HDR, CEC)
  • Video Input: 1 x HDMI-RX (Capture/Passthrough)
  • Display Interface: MIPI DSI
  • Expansion: M.2 Key E (PCIe + MIPI CSI)
  • Network: 10/100/1000 Mbit/s Ethernet
  • USB: 4 x USB 3.0 Ports
  • GPIO: 40 Pin Header (Supports UART, I2C, SPI, PWM)
  • Power: 5V @ 3A (Type-C)
  • Operating Systems: Android, Linux (Armbian, Ubuntu)

Ideal Applications

  • Smart Home Hubs: Voice and video recognition for AI assistants.
  • Professional Media Streamers: 4K video set-top boxes and media centers.
  • Security Systems: Network Video Recorders (NVR) and smart cameras.
  • Industrial HMI: Human-Machine Interfaces with dual display support.

Package Contents

  • 1 x Banana Pi BPI-M6 Board

Please check this link https://youyeetoo.com/pages/shipping-delivery
  • 5 stars: 0 (0%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (100%)
  • 1 star: 0 (0%)
F
Frank Nash

Little to no documentation or help on this product.
I purchased on Amazon.
I received it and tried to start up.
I loaded Armbian and booted via SPI switch. It boots to Armbian. It won't boot unless I boot each time holding the SPI and power on. How do I get to boot from SD card? I also added an M2 WIFI and Bluetooth module. How do I get it to work. Armbian doesn't see it.
