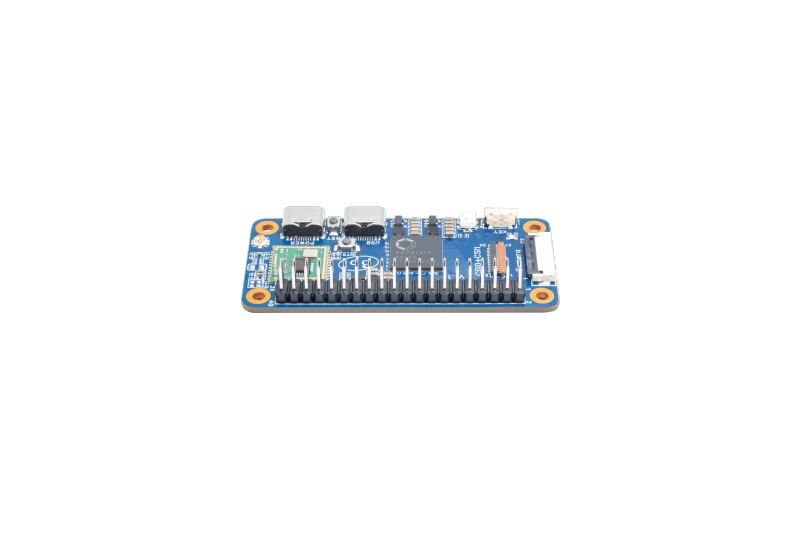

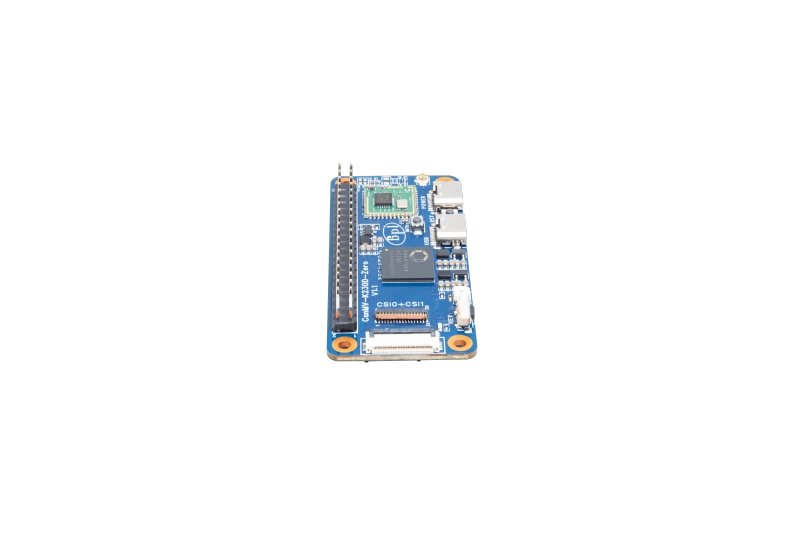

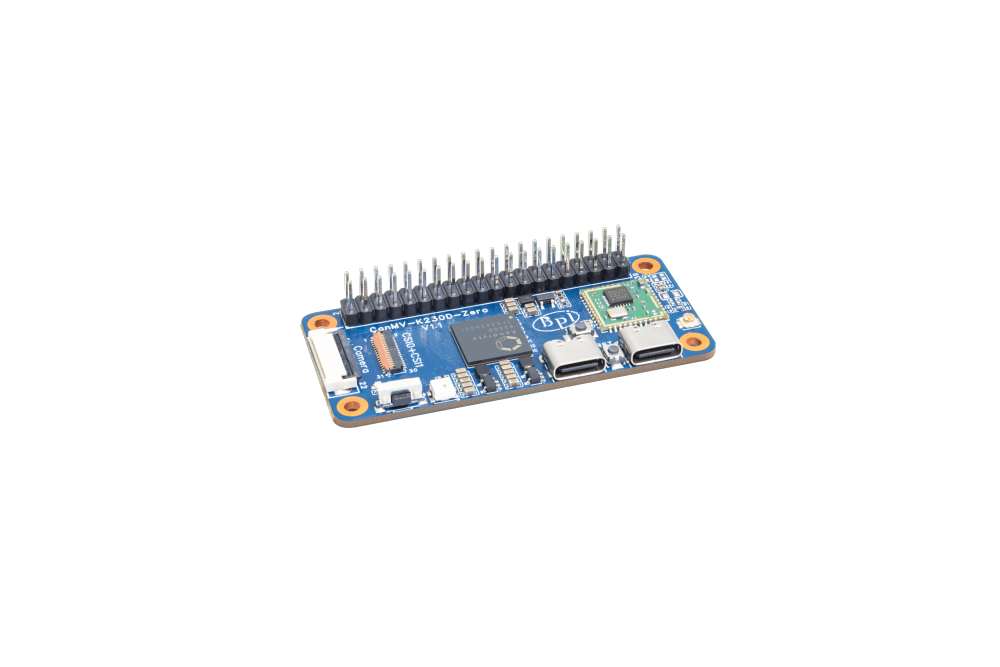

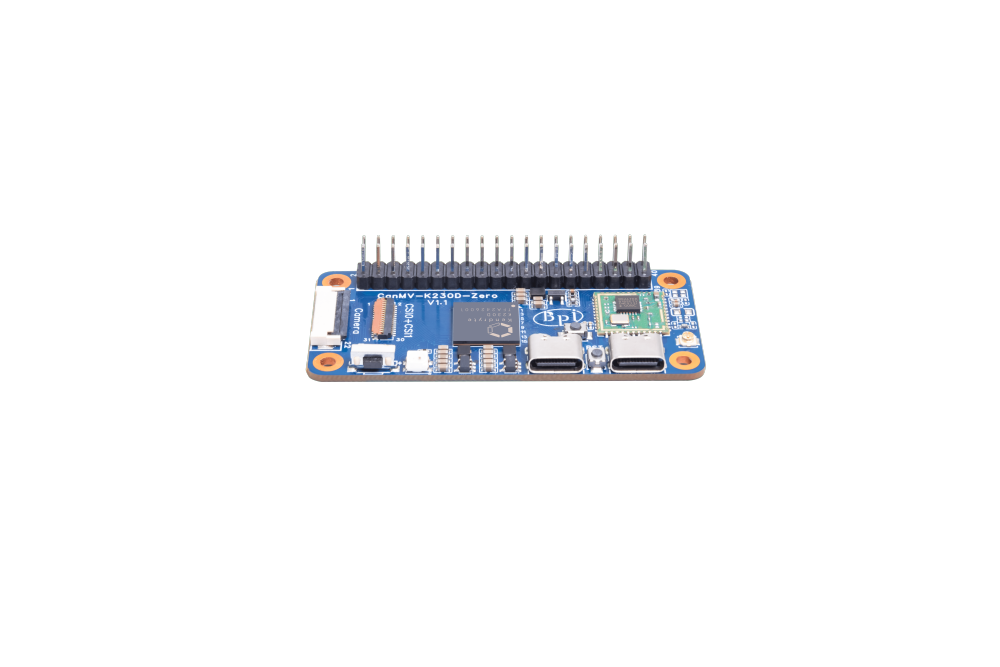

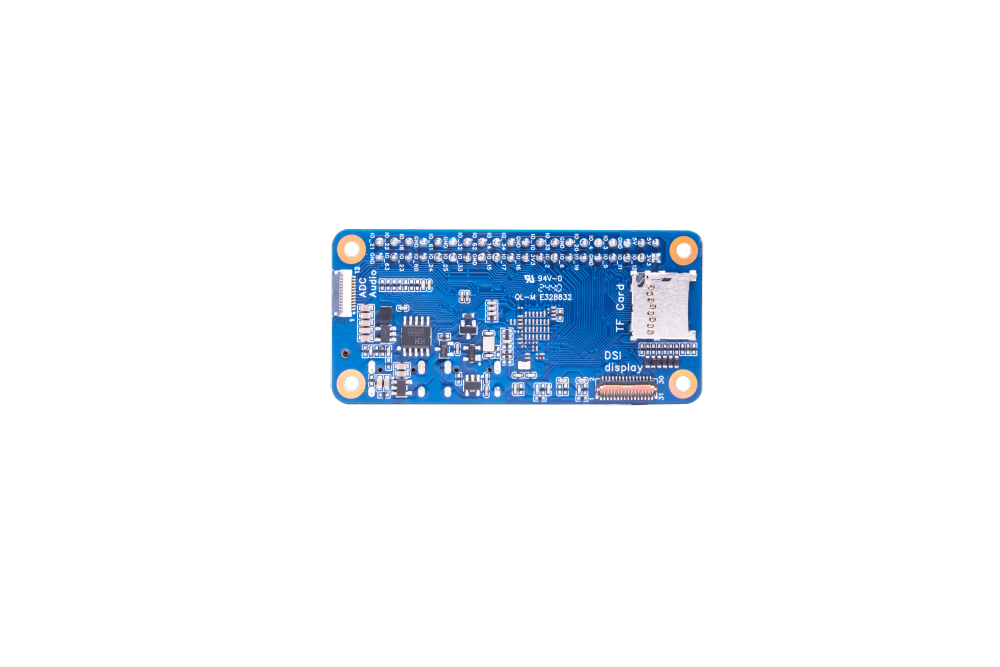

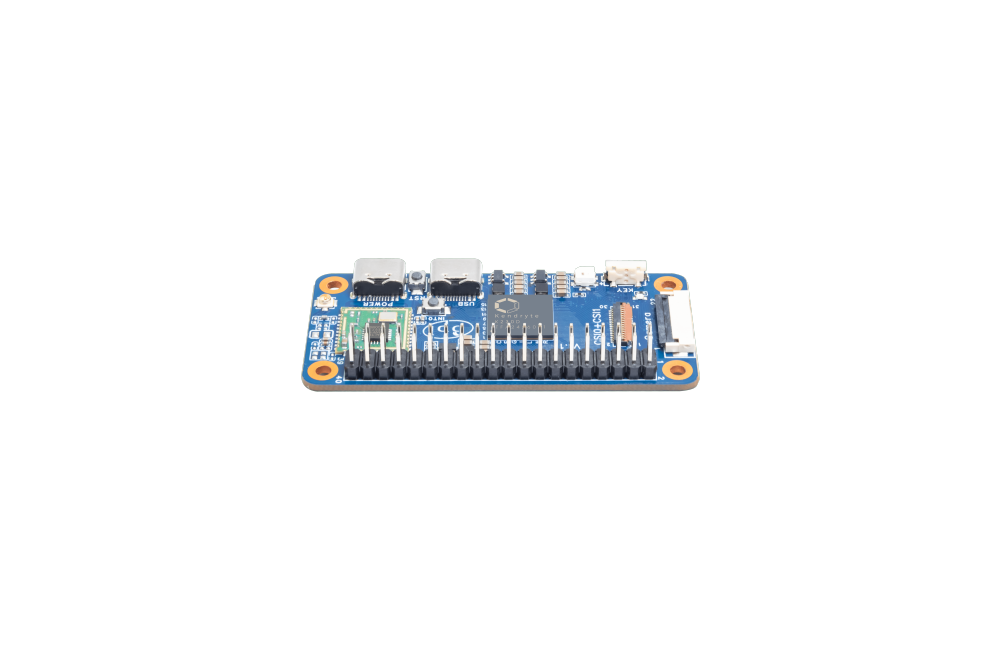

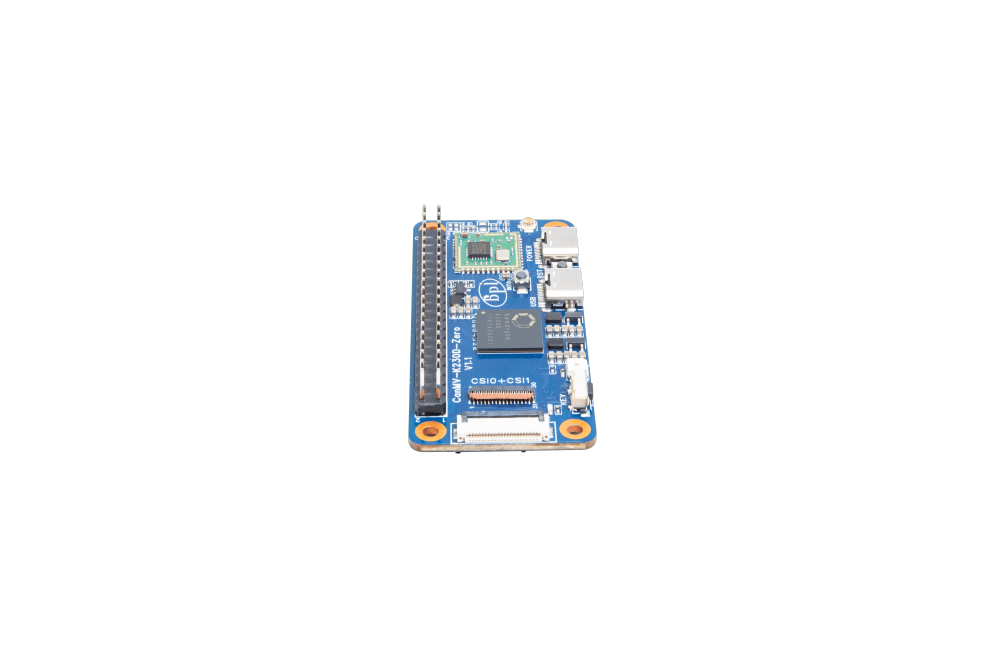

BPI-K230D-Zero - CANMV K230D Zero Form Version - Include 200W Camera
Introduction

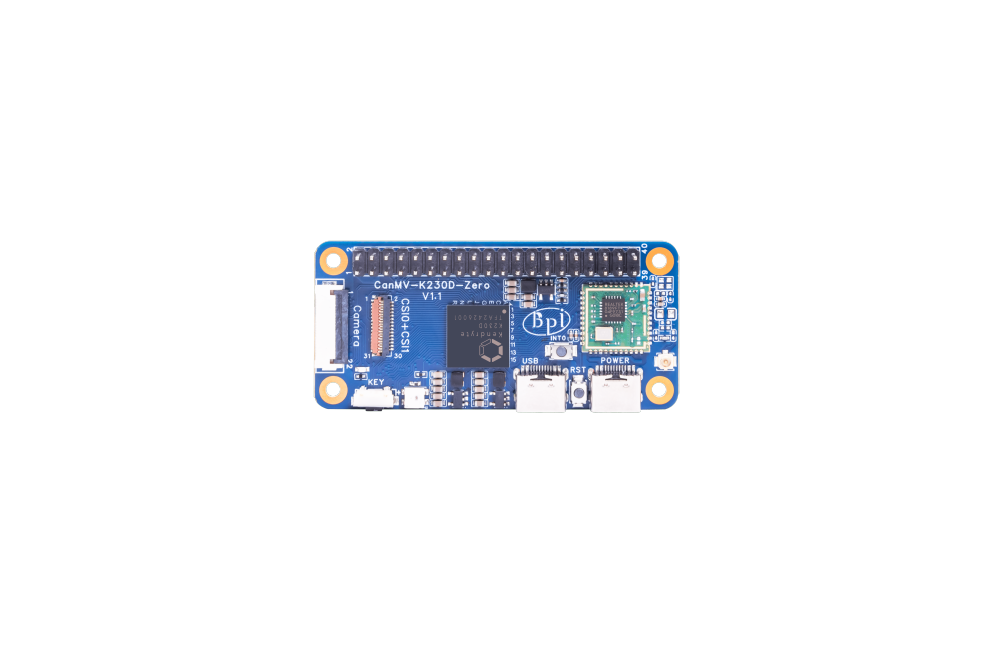

Banana Pi BPI-CanMV-K230D-Zero AIoT SBC design with Canaan K230D RISC-V chip. This board is designed by Canaan Technology and Banana Pi open source hardware community, featuring the advanced Kendryte K230D chip. The K230D chip boasts a dual-core XuanTie C908 RISC-V CPU and integrates a self-developed third-generation KPU, with 128MB of LPDDR4 memory, providing high-performance local AI inference computing support. The Canmv K230D Zero is designed to support a variety of DIY projects, AIoT devices, and embedded systems, with its rich development resources and compact size making it one of the most competitive development boards on the market. Whether for learning programming, innovating AI audio and video products, or performance evaluation, the Canmv K230D Zero helps you embark on a journey of innovation.
Features
Canaan K230D RISC-V chip
128MB RAM
Dual camera
MIPI CSI screen
Wifi onboard
40 Pin GPIO (Compatible with Raspberry Pi 40PIN)
ADC audio
Shipping List

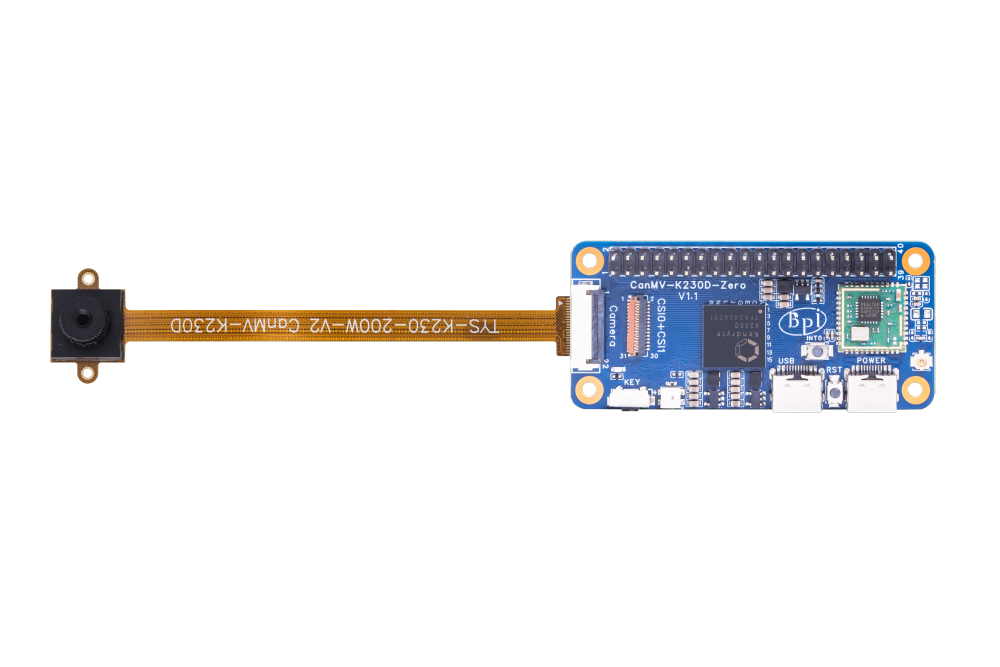

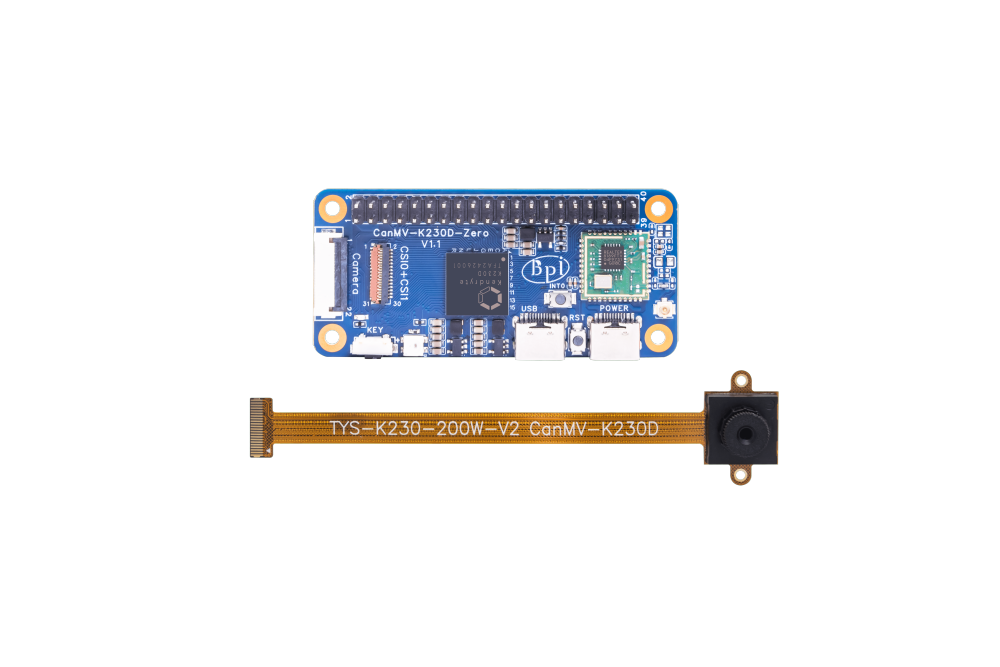

Standard: 1x BPI-K230D-Zero, 1x 200W MIPI Camera (GC2093 V2)
Dev Kit 1: Standard + 1x Type-C USB Cable, 32GB TF card with reader, 1x FPC ANT.
Dev Kit 2: Dev Kit 1 + 1x 40Pin GPIO (Color), 1x USB OTA Cable, 1x Metal Case.
Display: 3.5inch MIPI Display (touch optional)
Camera: 200W MIPI Camera (GC2093 V2),
Applications
These features make this SBC suitable for applications such as AI tasks such as image, video, and audio processing.
Specification
Hardware Specification of BPI-CanMV-K230D-Zero
Parameter
Description
CPU
XuanTie C908 dual-core RISC-V CPU;
CPU1: 1.6GHz, supports RVV1.0;
CPU2: 800MHz
KPU
Third-generation KPU, supports various data types such as INT8/INT16; Typical network performance: Restnet50 >= 85fp@INT8，Mobilenet_V2>=670fps@INT8; YoloV5s >= 38fps@INT8
DPU
Built-in 3D structured light depth engine, maximum up to 1920*1080
VPU
Built-in H.264/H.265 hardware encoder/decoder
Video Input
2 lane MIPI-CSI * 1 + 4 lane MIPI-CSI * 1; Maximum resolution up to 4K
Display Out
MIPI DSI interface supports up to 1080P display
RAM
128MB LPDDR4@2666Mbps
Storage
Onboard TF card expansion interface, supports up to 1TB
USB
1 channel USB 2.0 interface, supports OTG function
Network
2.4G Wi-Fi
Audio
Onboard microphone * 1
GPIO
40Pin expandable GPIO; supports I2C/UART/I2S/SPI/PWM/ADC/JTAG expansion conversion
Buttons
Function button * 1; Reset button * 1
Power Supply
USB Type-C 5V@2A
Dimensions
Length: 65mm Width: 30mm Height: 7mm
