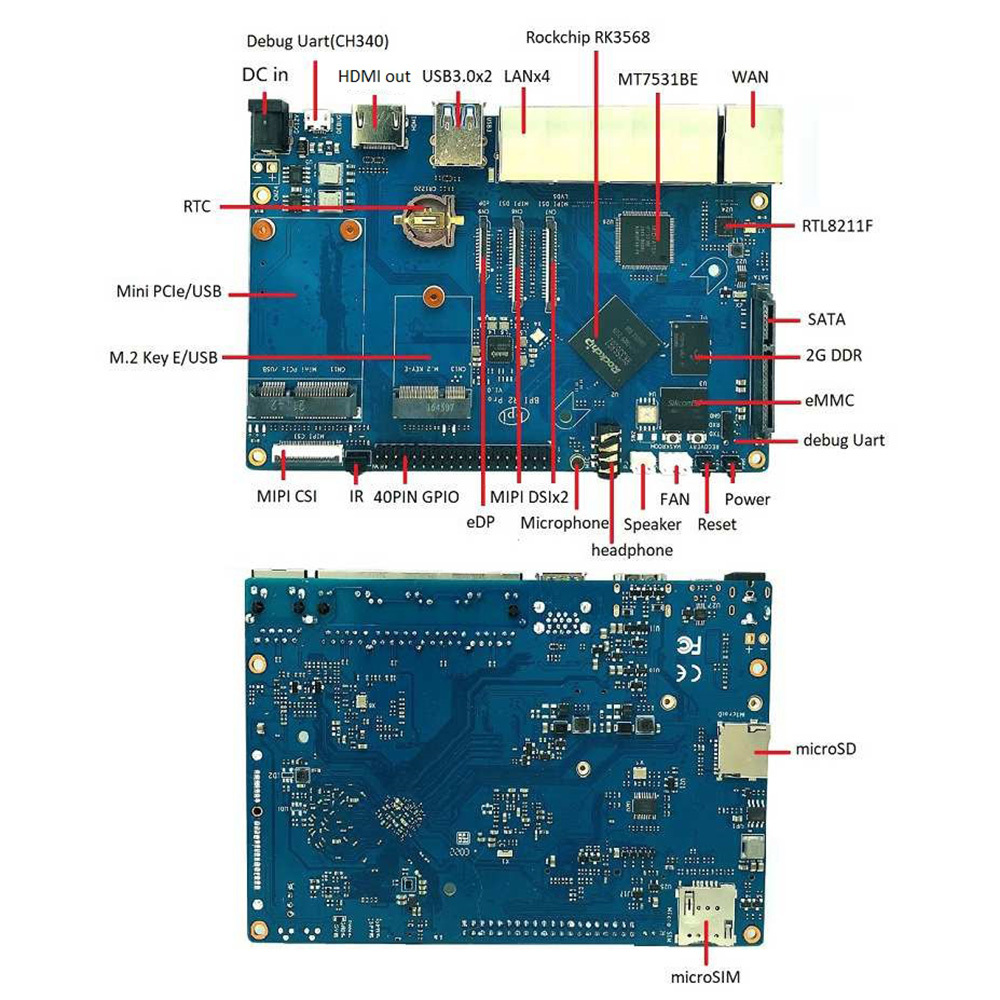

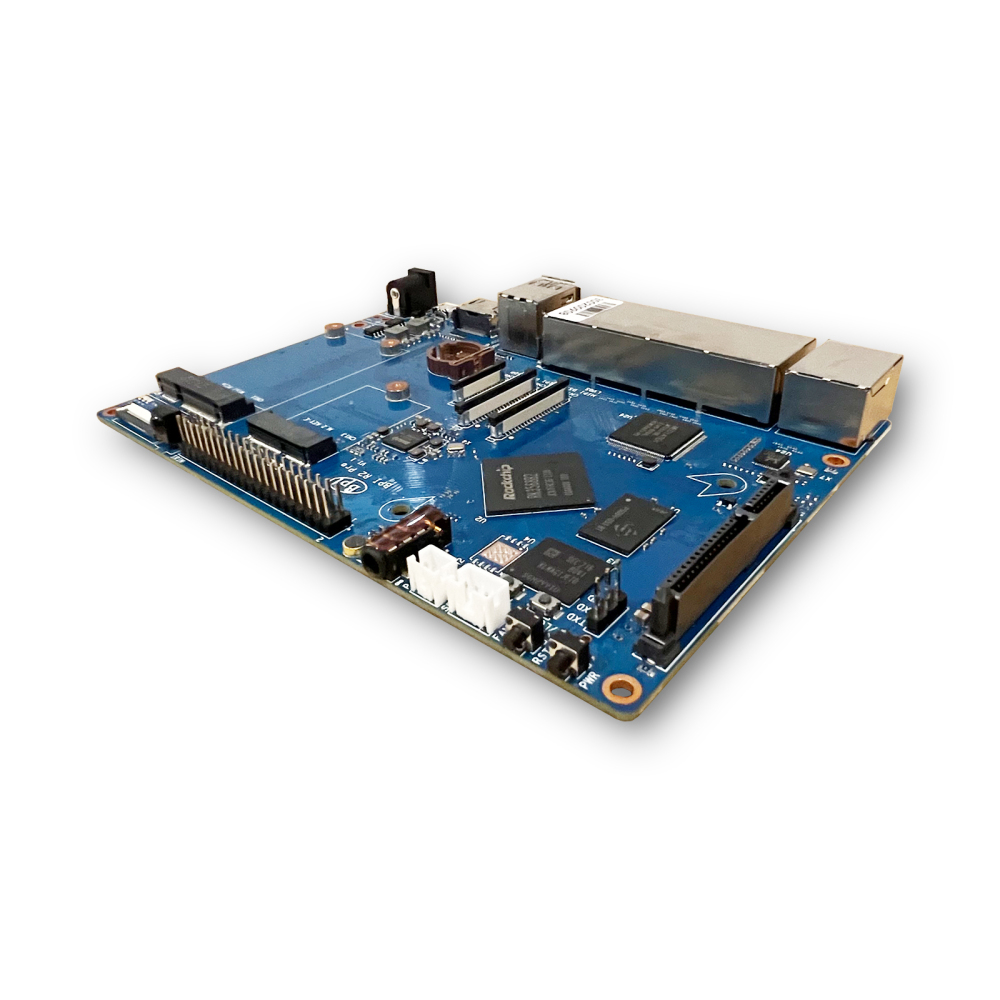

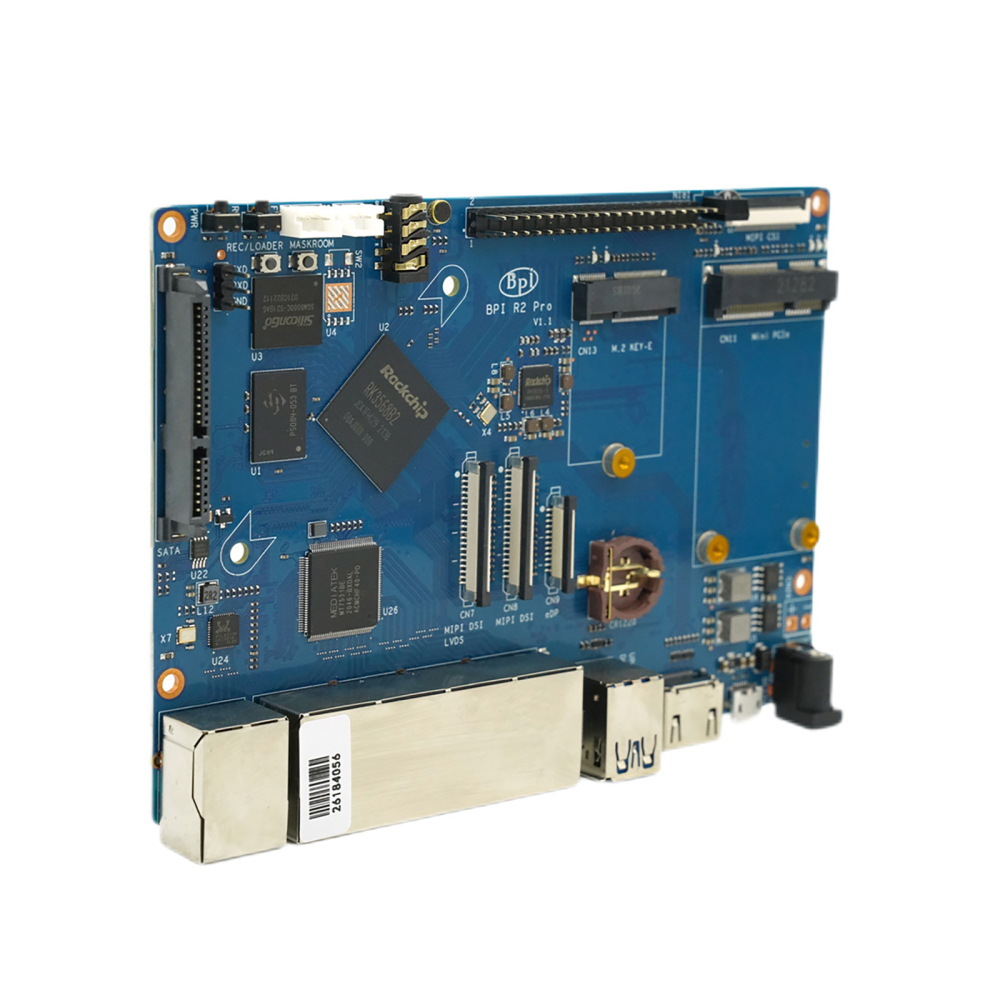

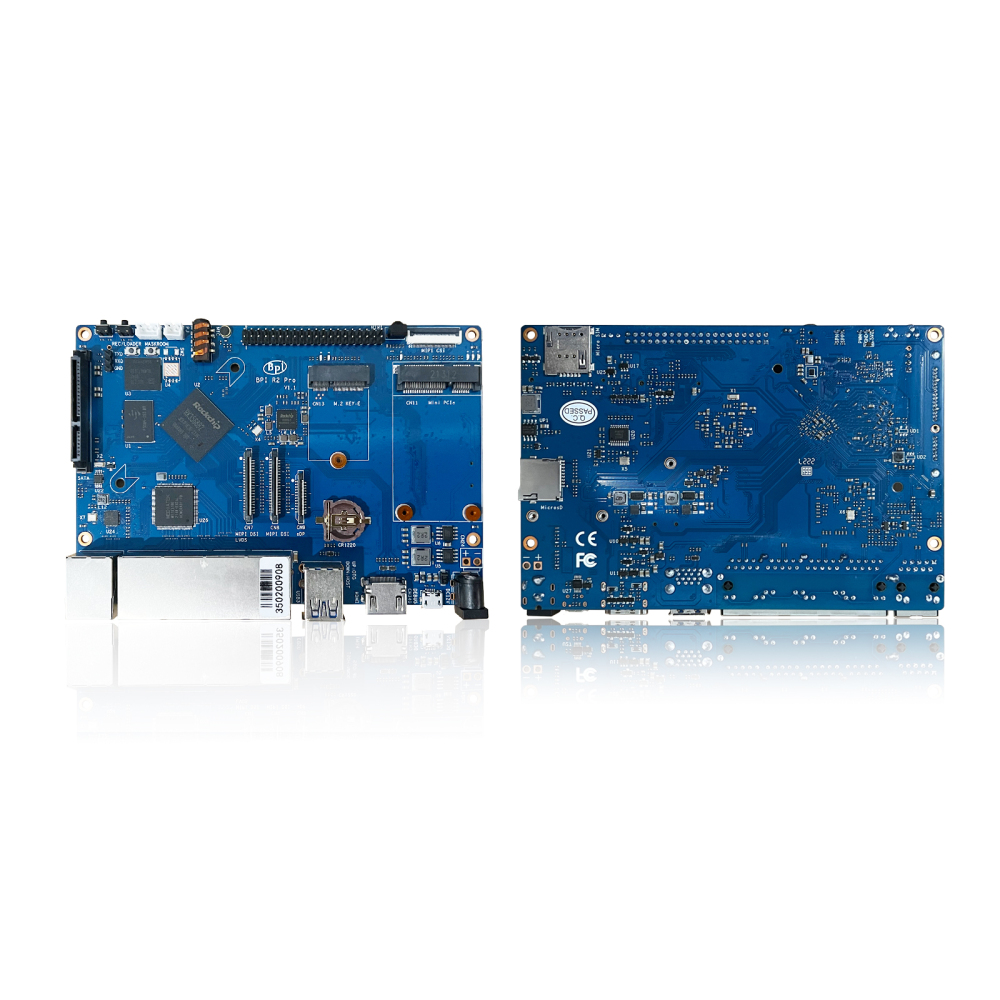

Banana PI BPI R2 Pro - Open Source Router Demo Board, Rockchip RK3568 , Support OpenWRT and Linux

Overview

The Banana Pi BPI-R2 Pro is the next-generation smart router development board designed for high-demand networking and AIoT applications. Built around the powerful Rockchip RK3568 SoC, this single-board computer (SBC) integrates a quad-core ARM Cortex-A55 CPU with a Mali-G52 GPU, offering robust processing and graphics capabilities. It is specifically optimized for developers requiring multiple network ports and extensive peripheral expansion.

Key Features (Benefit-Led)

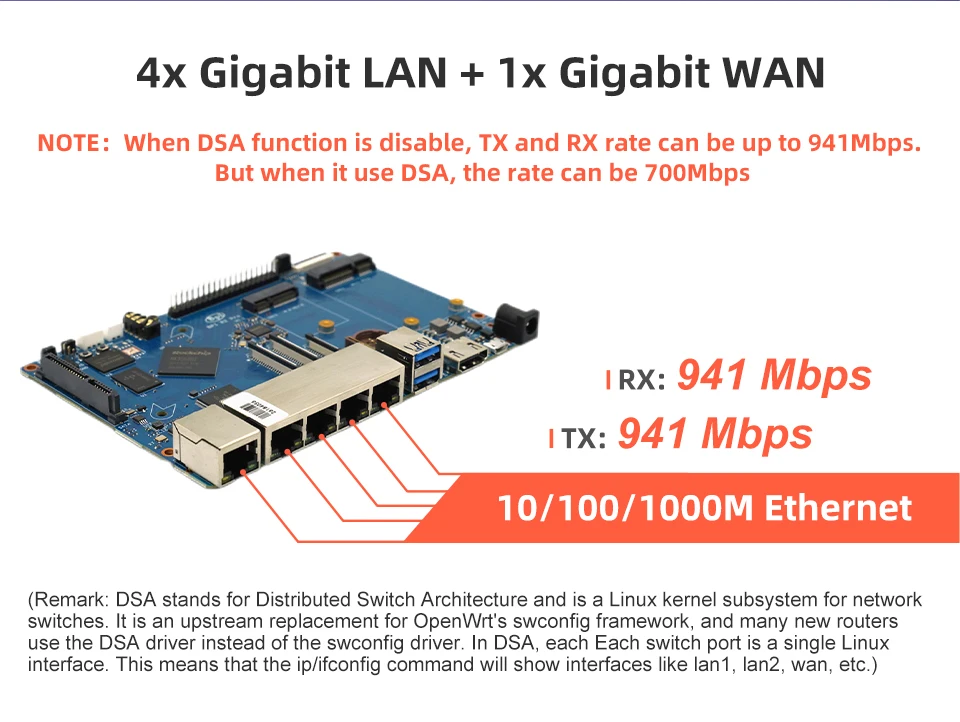

• High-Speed Multi-Network Connectivity: Equipped with 5 Gigabit Ethernet ports (10/100/1000 Mb/s), this board is perfect for building software routers, firewalls, or network gateways where multiple LAN/WAN connections are essential.
• Enhanced AI & Multimedia Performance: Features a built-in NPU for AI acceleration and supports 4K H.265 video decoding. The Mali-G52 GPU ensures smooth graphics rendering and video playback, suitable for multimedia centers or AI vision projects.

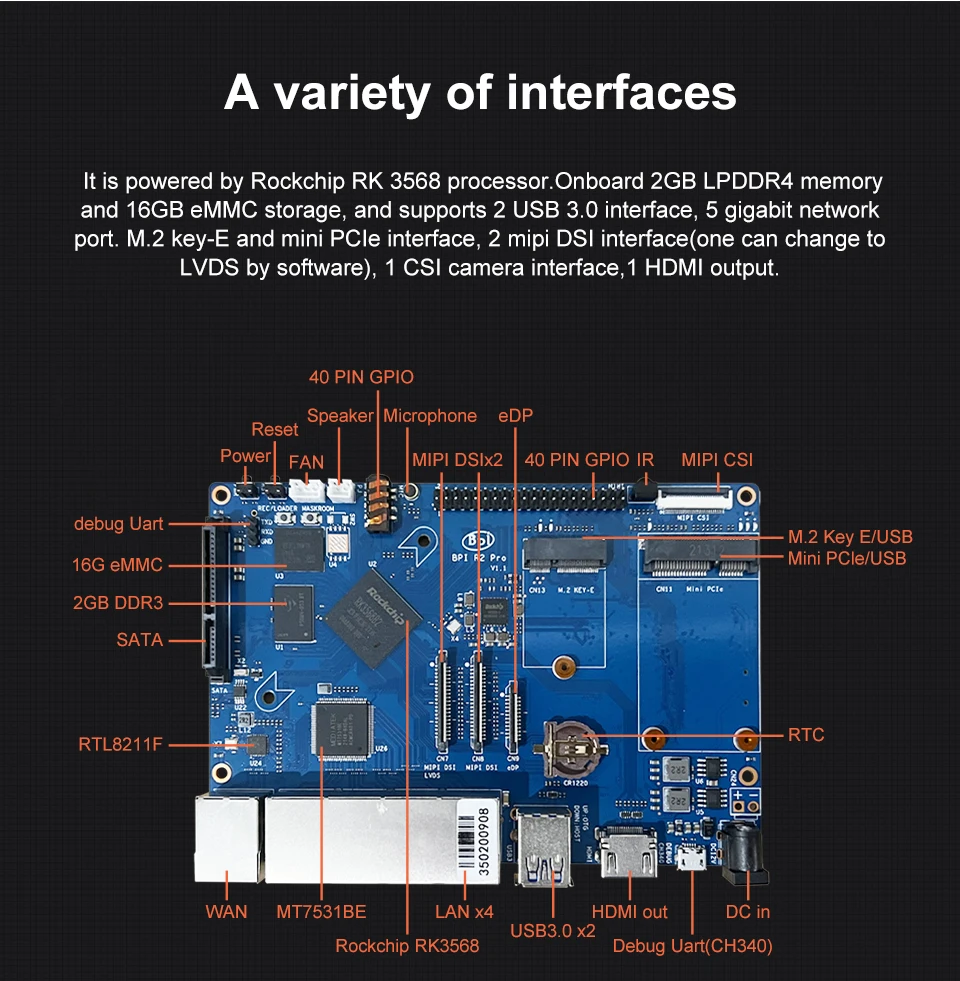

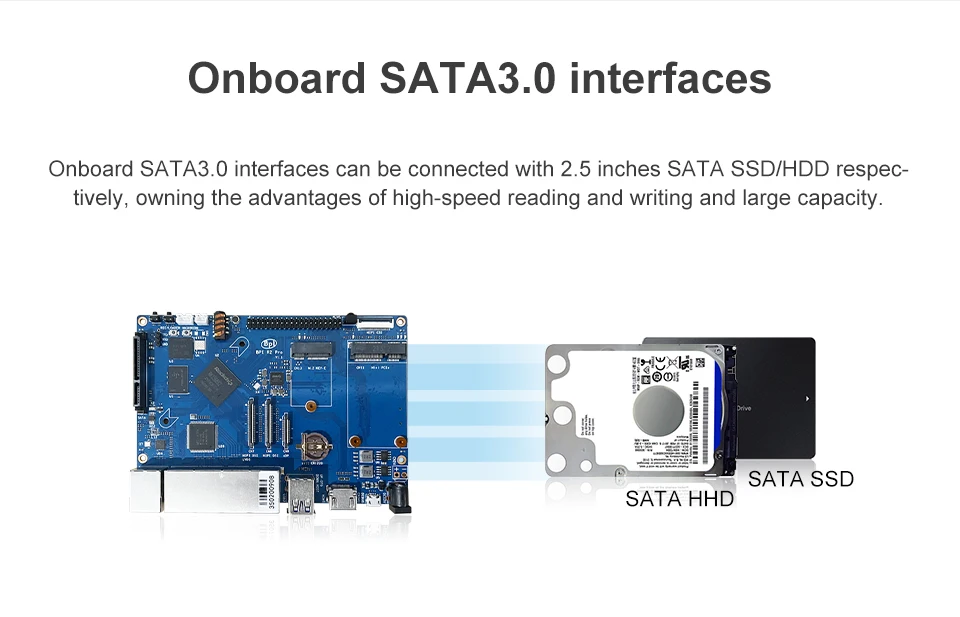

• Massive Expansion Capabilities: Offers a wide range of interfaces including 2 USB 3.0 ports, M.2 Key-E, Mini PCIe, and SATA 3.0. This allows for high-speed SSD storage, 5G modules, or various industrial expansion cards.
• Flexible Display Options: Supports HDMI 2.0, eDP, and dual MIPI DSI interfaces (one DSI can be switched to LVDS via software), enabling connection to various high-resolution displays or industrial panels.

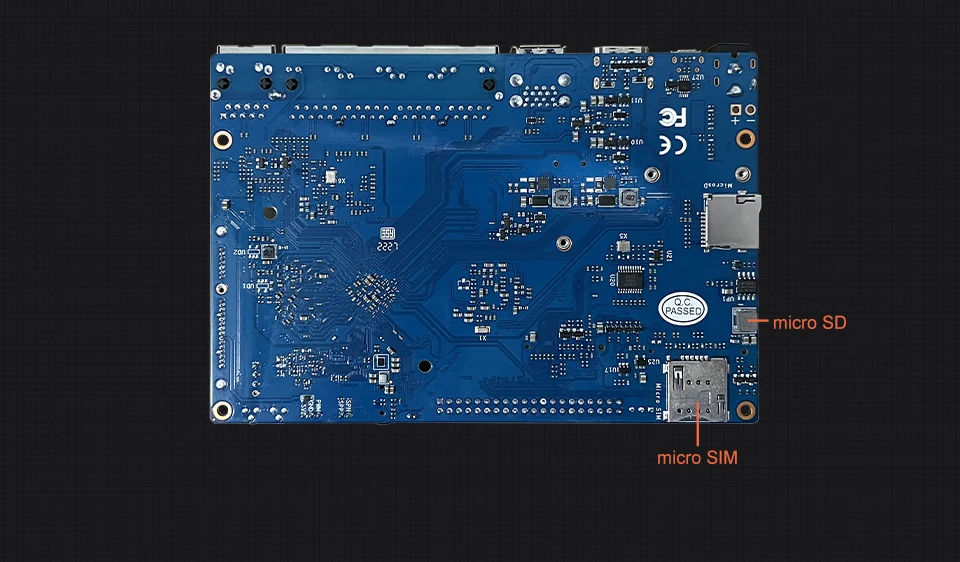

• Robust Storage & Memory: Onboard 2GB LPDDR4 SDRAM (optional 4GB) and 16GB eMMC flash (optional 16/32/64GB) provide fast and reliable performance, further expandable via MicroSD card (up to 256GB).

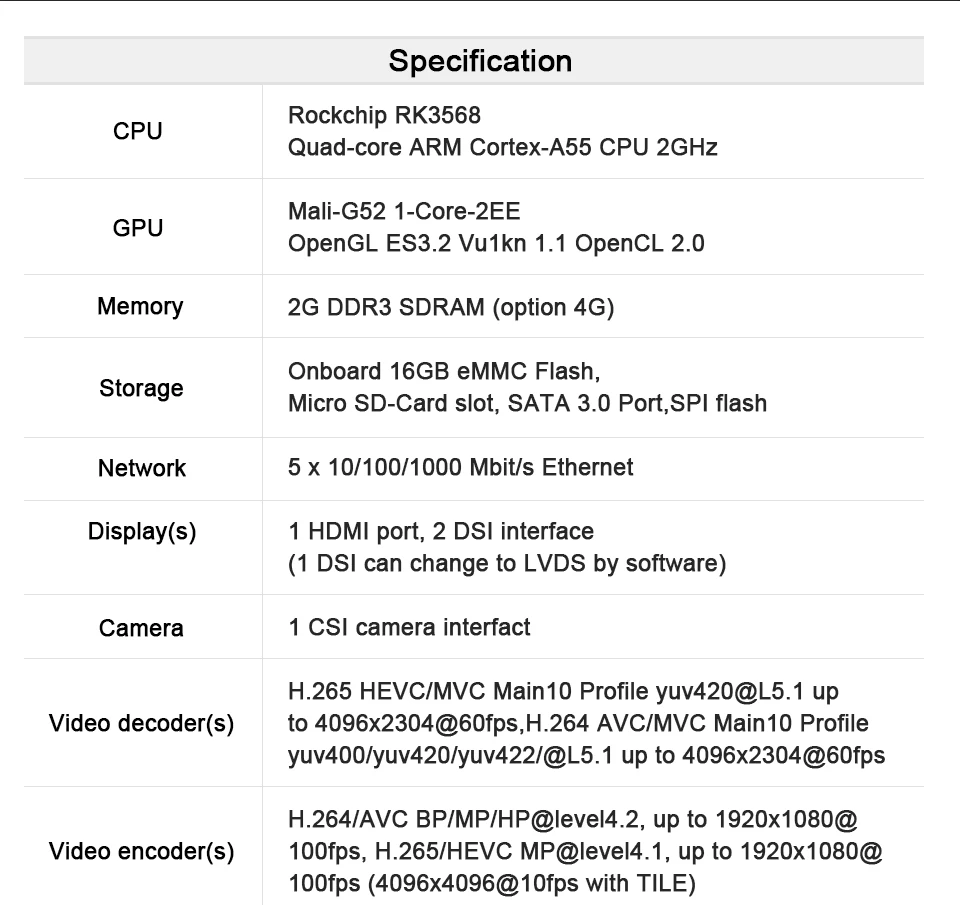

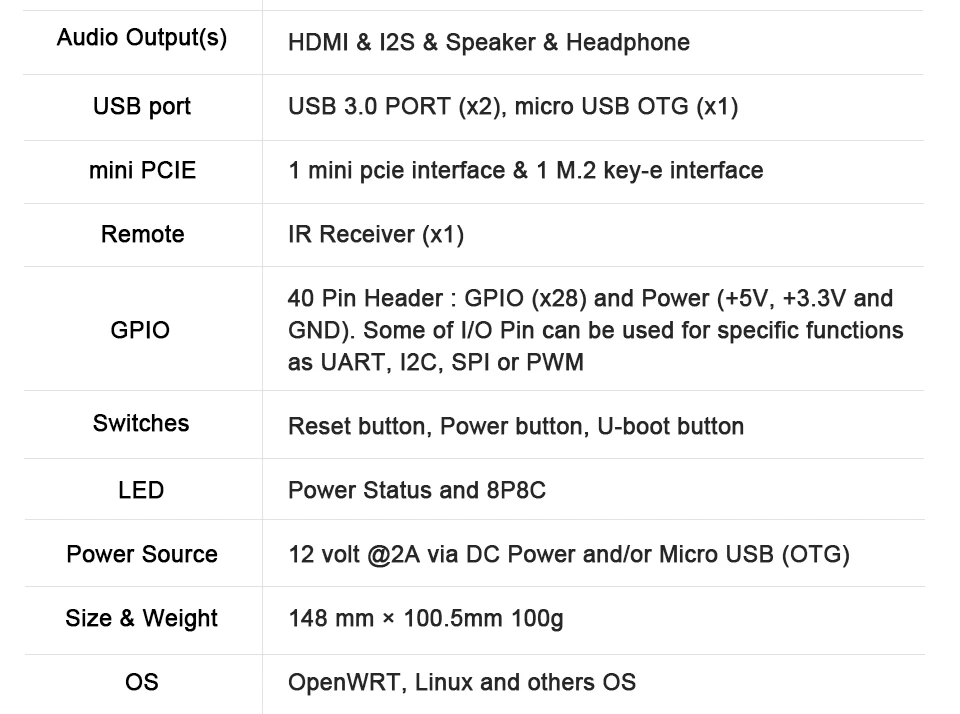

Technical Specifications

• CPU: Rockchip RK3568 Quad-core ARM Cortex-A55 (2GHz)
• GPU: Mali-G52 1-Core-2EE (OpenGL ES 3.2, OpenCL 2.0)
• Memory: 2GB LPDDR4 SDRAM (Optional 4GB)
• Storage: 16GB eMMC Flash (Optional 16/32/64GB), MicroSD Slot, SATA 3.0 Port
• Network: 5 x 10/100/1000M Ethernet Ports (RTL8211F & MT7531BE)
• Video Encode: H.264 / H.265 up to 1080P @100fps
• Video Decode: H.265 / H.264 up to 4K @60fps
• Display: 1 x HDMI 2.0, 2 x MIPI DSI (1 supports LVDS conversion), 1 x eDP
• Camera: 1 x MIPI CSI Interface
• USB Ports: 2 x USB 3.0, 1 x Micro USB 2.0 OTG
• Expansion: 1 x Mini PCIe, 1 x M.2 Key-E (for WiFi 6/BT), 1 x SATA 3.0
• GPIO: 40-Pin Header (Compatible with Raspberry Pi GPIO mapping)

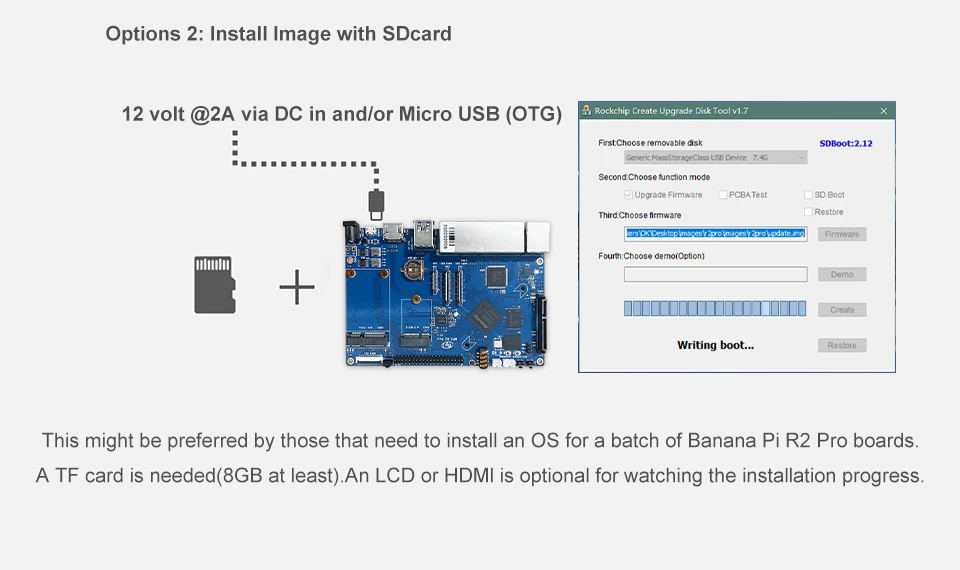

• Power: 12V/2A via DC Jack or Micro USB OTG

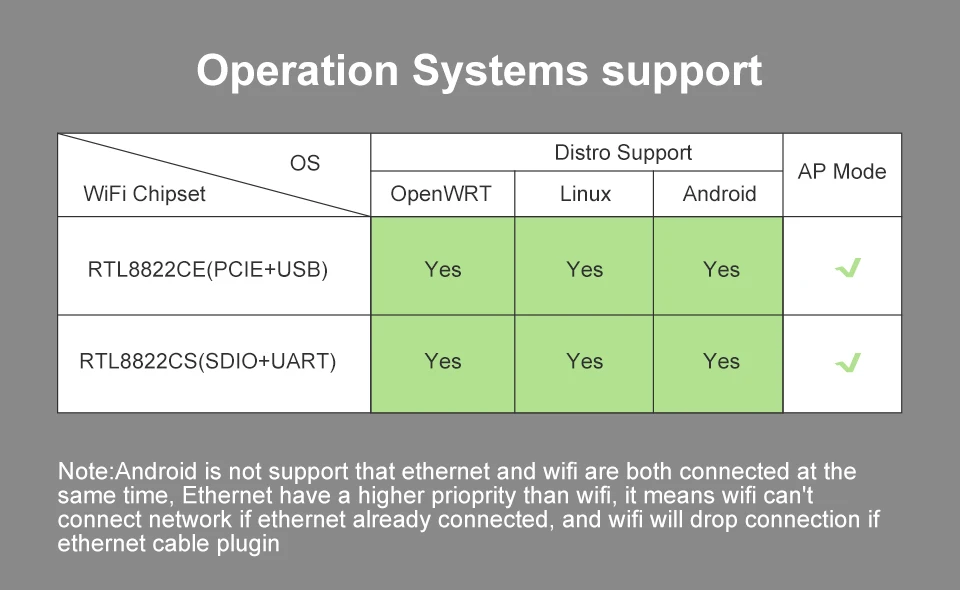

• Operating Systems: Android 11, Linux (Ubuntu, Debian, OpenWRT), OpenELEC

Ideal Applications

• Smart Home Routers & Gateways: Leverage the 5 Ethernet ports for advanced routing and network isolation.
• Edge Computing & AIoT: Utilize the NPU for lightweight AI inference in industrial control or smart vision.
• NAS & Media Centers: Combine SATA and M.2 interfaces for high-capacity storage solutions or run LibreELEC for 4K media playback.
• Industrial HMI: Use the LVDS/DSI interfaces for industrial touchscreens and control panels.

Package Contents

• Banana Pi BPI-R2 Pro Development Board

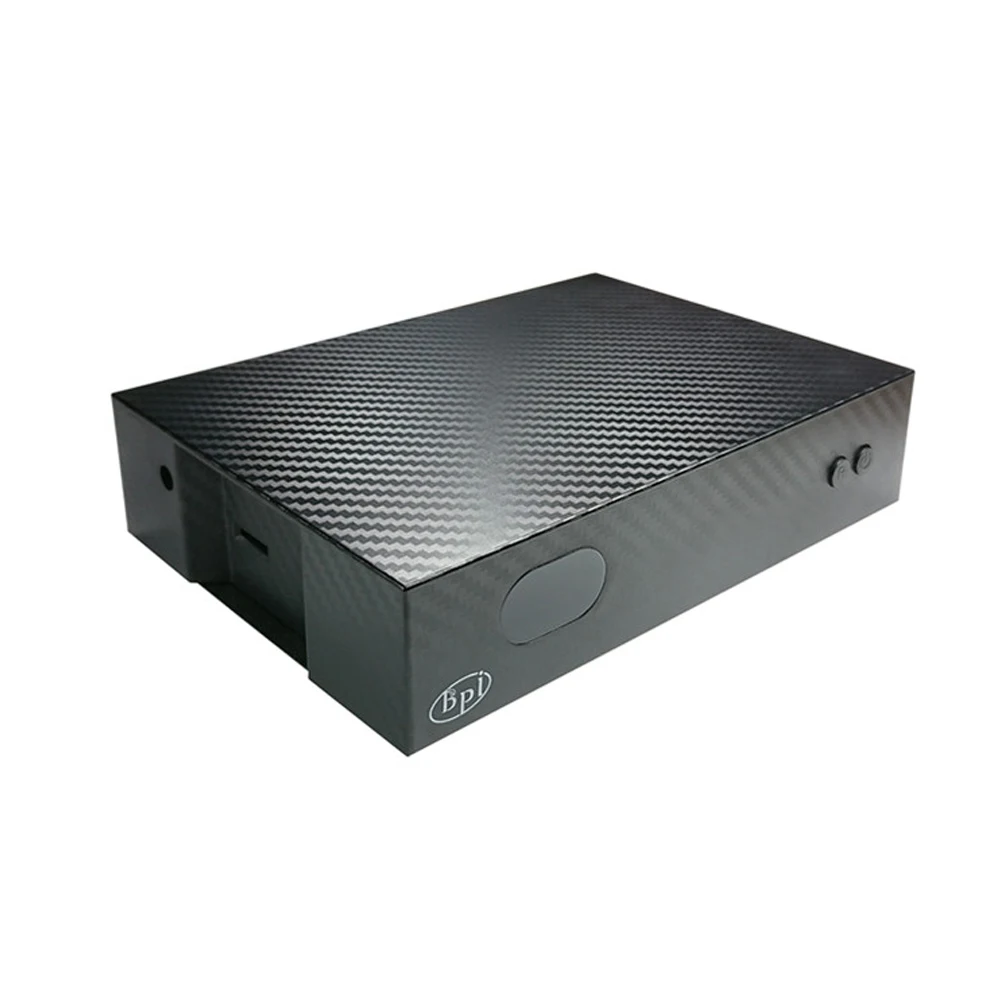

• (Note: Accessories such as power supply, case, and cables are typically sold separately. Please check the vendor for specific inclusions.)
