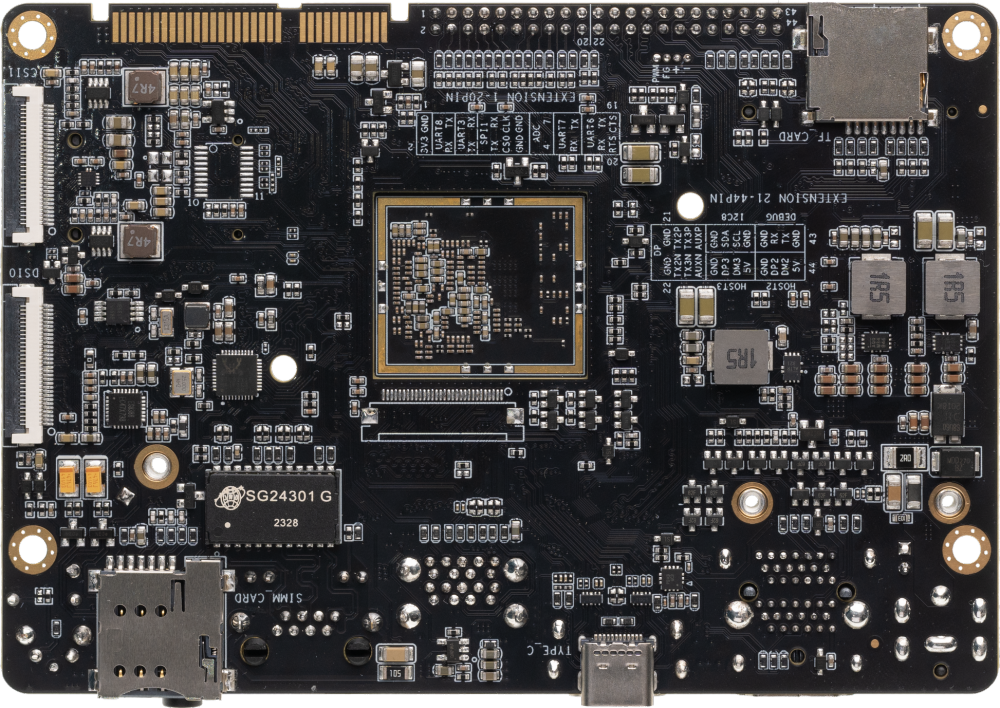

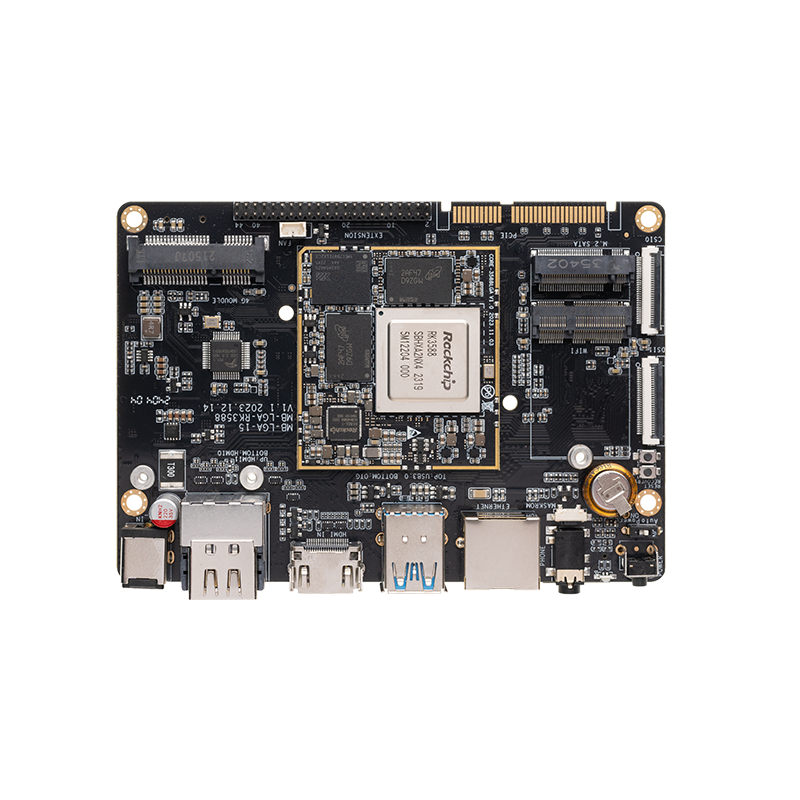

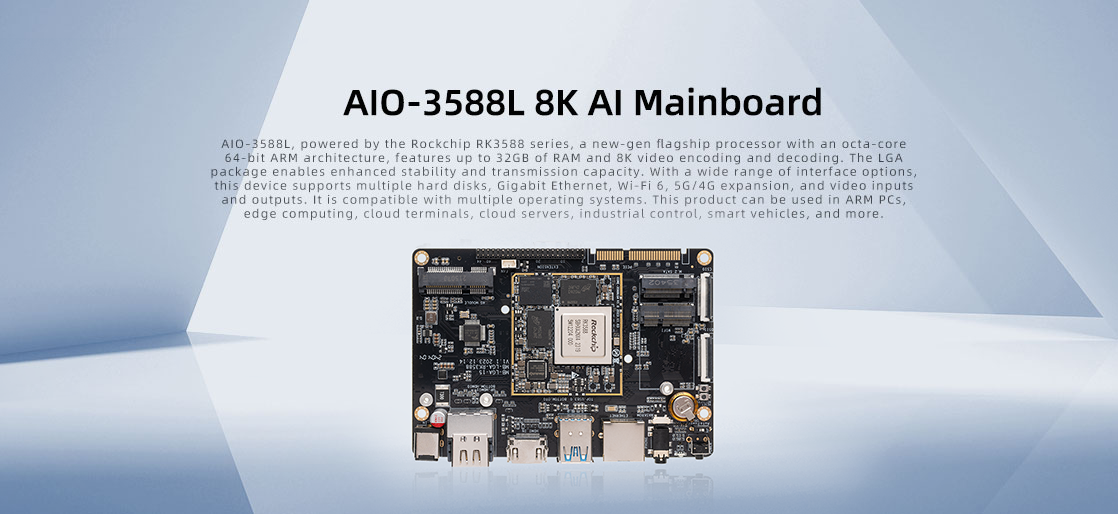

AIO-3588L, powered by the Rockchip RK3588 series, a new-gen flagship processor with an
octa-core 64-bit ARM architecture, features up to 32GB of RAM and 8K video encoding and
decoding. The LGA package enables enhanced stability and transmission capacity. With a wide
range of interface options, this device supports multiple hard disks, Gigabit Ethernet, Wi-Fi 6,
5G/4G expansion, and video inputs and outputs. It is compatible with multiple operating
systems. This product can be used in ARM PCs, edge computing, cloud terminals, cloud
servers, industrial control, smart vehicles, and more.

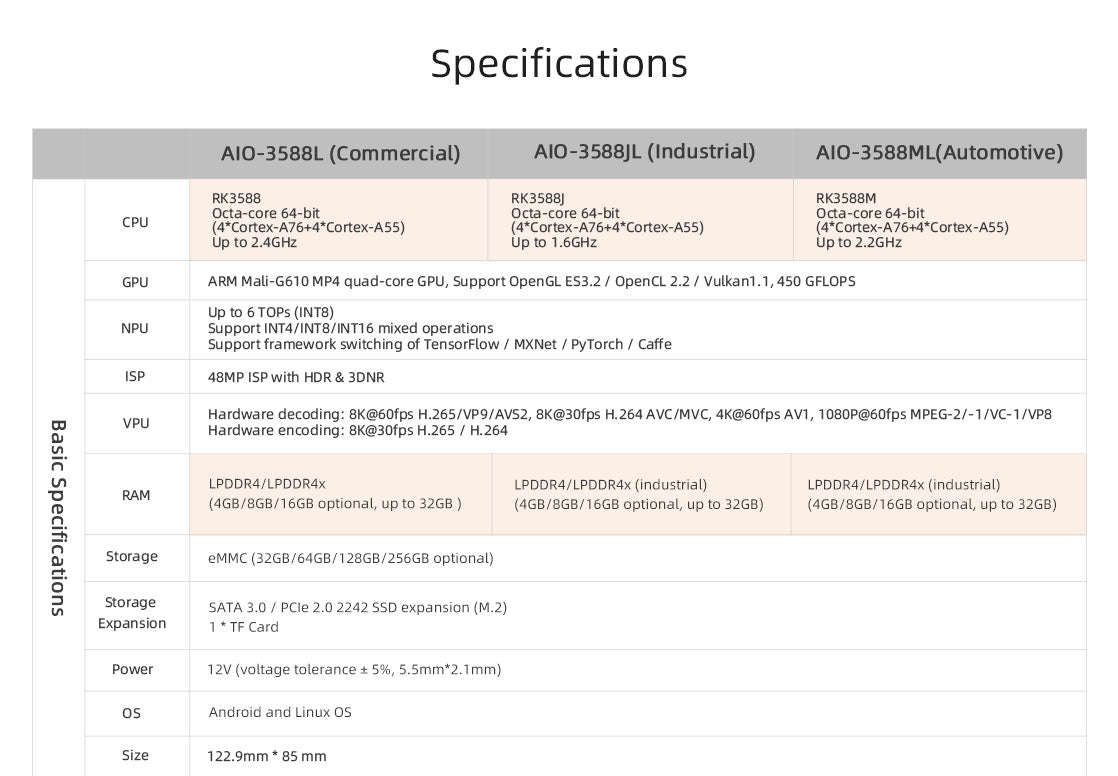

| AIO-3588L (Commercial) | AIO-3588JL (Industrial) | AIO-3588ML(Automotive) | |||
| Basic Specifications | CPU |
RK3588 Octa-core 64-bit (4*Cortex-A76+4*Cortex-A55) Up to 2.4GHz |
RK3588J Octa-core 64-bit (4*Cortex-A76+4*Cortex-A55) Up to 1.6GHz |
RK3588M Octa-core 64-bit (4*Cortex-A76+4*Cortex-A55) Up to 2.0GHz |
|
| GPU | ARM Mali-G610 MP4 quad-core GPU, Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS | ||||
| NPU |
Up to 6 TOPs (INT8) Support INT4/INT8/INT16 mixed operations Support framework switching of TensorFlow / MXNet / PyTorch / Caffe |
||||
| ISP |
48MP ISP with HDR & 3DNR |
||||
| VPU |
Hardware decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8 Hardware encoding: 8K@30fps H.265 / H.264 |
||||
| RAM |
LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB ) |
LPDDR4/LPDDR4x (industrial) (4GB/8GB/16GB optional, up to 32GB) |
LPDDR4/LPDDR4x (industrial) (4GB/8GB/16GB optional, up to 32GB) |
||
| Storage |
eMMC (32GB/64GB/128GB/256GB optional) |
||||
| Storage Expansion |

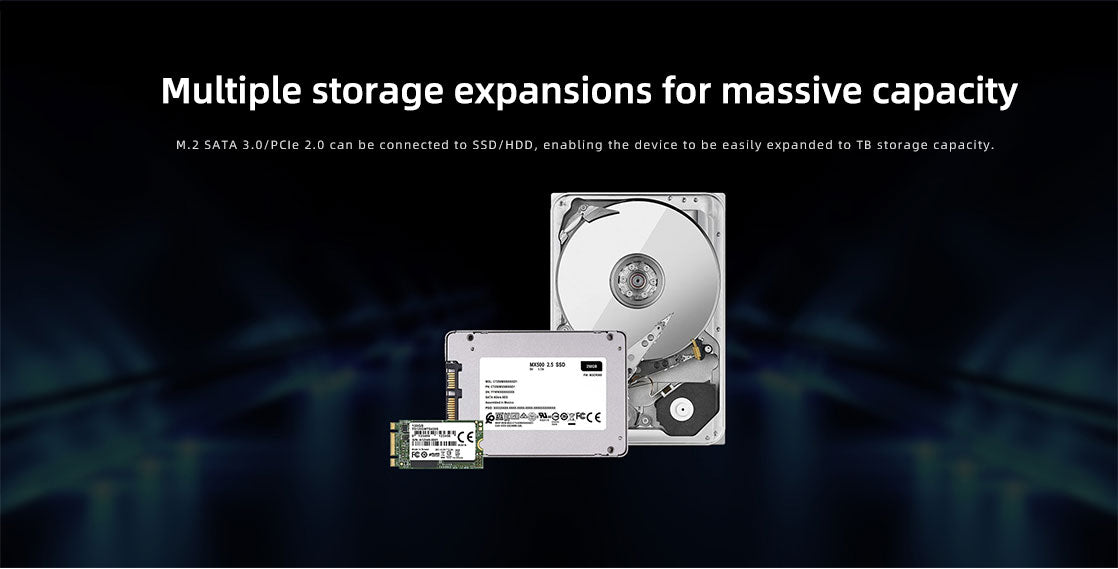

SATA 3.0 / PCIe 2.0 2242 SSD expansion (M.2) 1 * TF Card |
||||
| Power |
12V (voltage tolerance ± 5%, 5.5mm*2.1mm) |
||||
| OS |
Android and Linux OS |
||||
| Size |
122.9mm * 85 mm |
||||

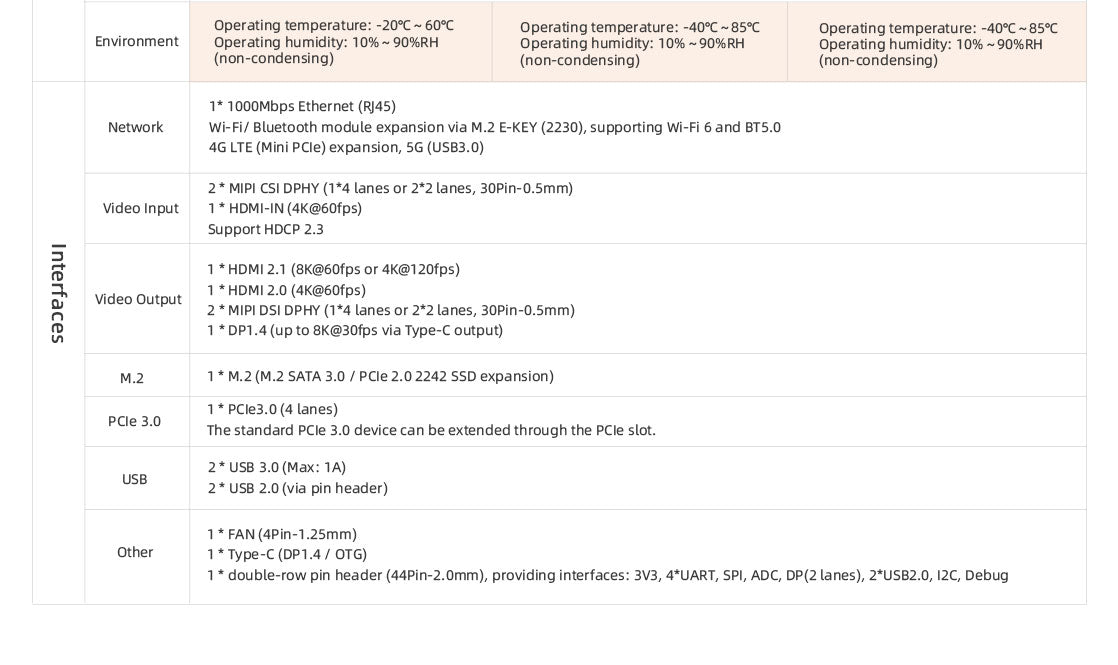

| Environment |
Operating temperature: -20℃～60℃ Operating humidity: 10%～90%RH (non-condensing) |
Operating temperature: -40℃～85℃ Operating humidity: 10%～90%RH (non-condensing) |
Operating temperature: -40℃～85℃ Operating humidity: 10%～90%RH (non-condensing) |
||

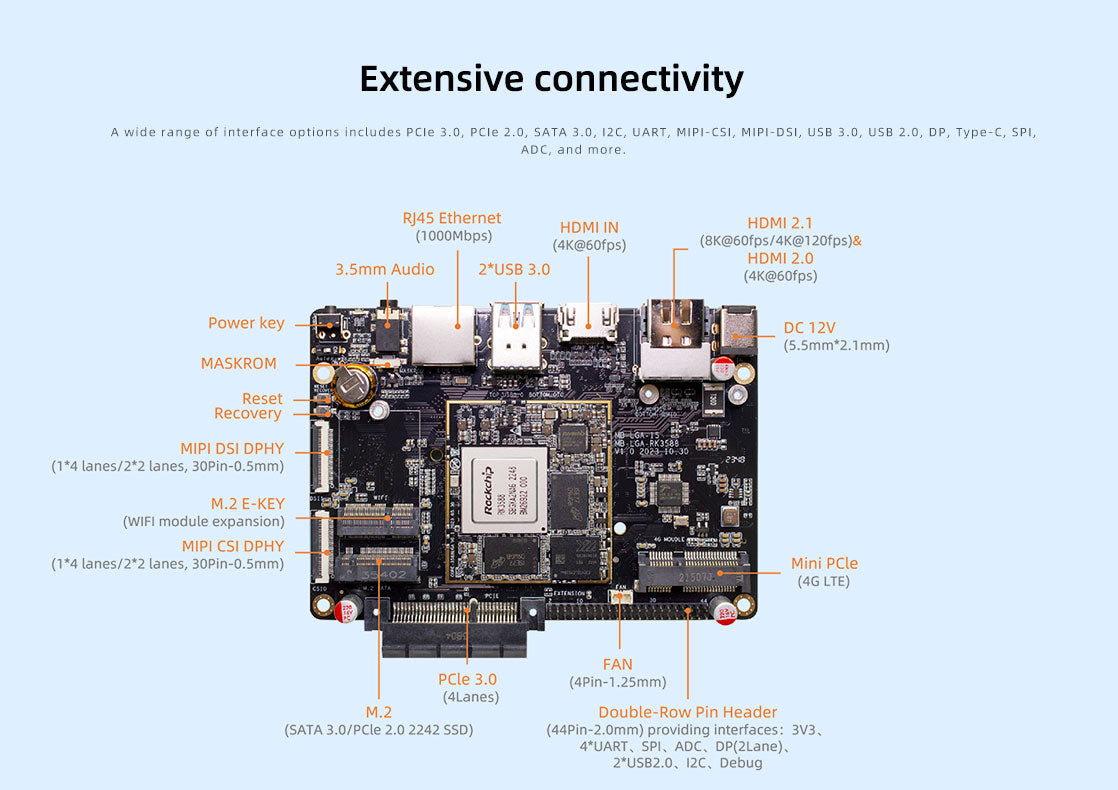

| Interfaces | Network |
1* 1000Mbps Ethernet (RJ45) Wi-Fi/ Bluetooth module expansion via M.2 E-KEY (2230), supporting Wi-Fi 6 and BT5.0 4G LTE (Mini PCIe) expansion, 5G (USB3.0) |
|||
| Video Input |
2 * MIPI CSI DPHY (1*4 lanes or 2*2 lanes, 30Pin-0.5mm) 1 * HDMI-IN (4K@60fps) Support HDCP 2.3 |
||||
| Video Output |

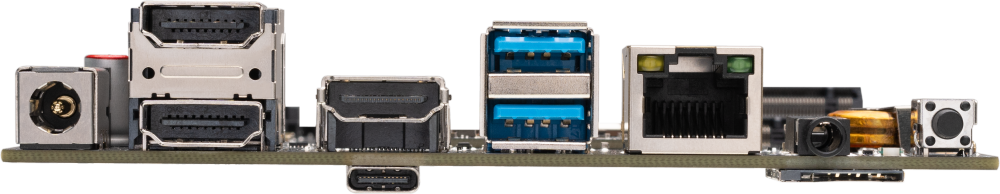

1 * HDMI 2.1 (8K@60fps or 4K@120fps) 1 * HDMI 2.0 (4K@60fps) 2 * MIPI DSI DPHY (1*4 lanes or 2*2 lanes, 30Pin-0.5mm) 1 * DP1.4 (up to 8K@30fps via Type-C output) |
||||
| M.2 |
1 * M.2 (M.2 SATA 3.0 / PCIe 2.0 2242 SSD expansion) |
||||
| PCIe 3.0 |
PCIe not installed by default (customizable 1*PCIe3.0 (4 lanes) ) |
||||
| USB |
2 * USB 3.0 (Max: 1A) 2 * USB 2.0 (via pin header) |
||||
| Other |
1 * FAN (4Pin-1.25mm) 1 * Type-C (DP1.4 / OTG) 1 * double-row pin header (44Pin-2.0mm), providing interfaces: 3V3, 4*UART, SPI, ADC, DP(2 lanes), 2*USB2.0, I2C, Debug |
||||
