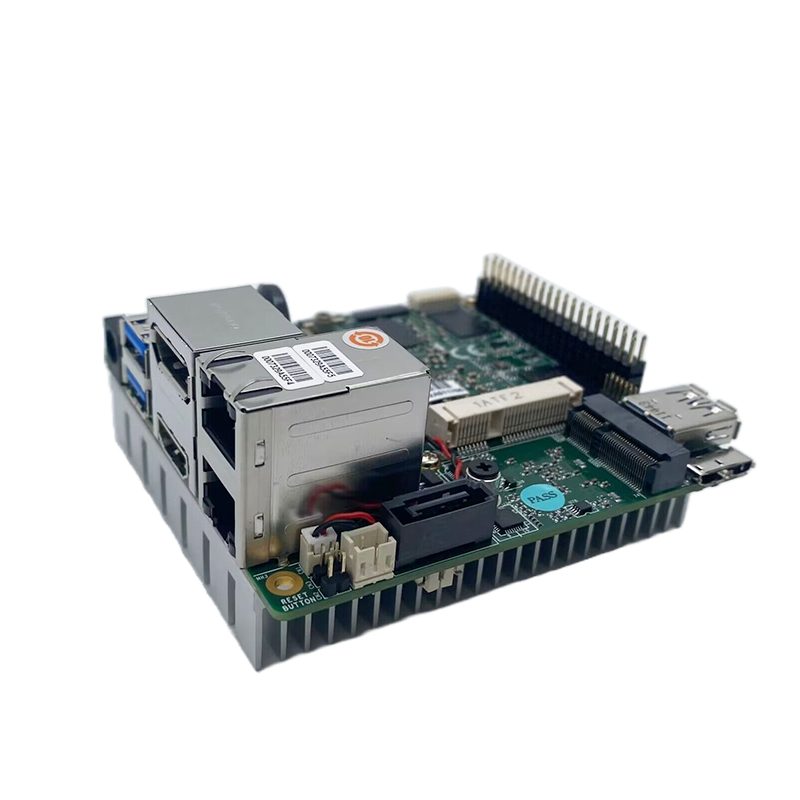

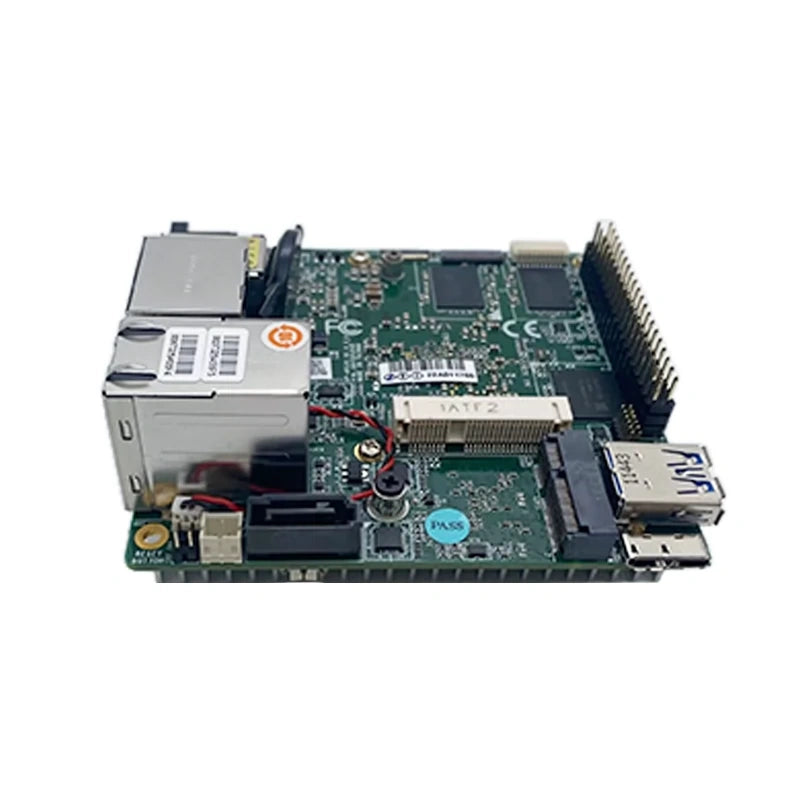

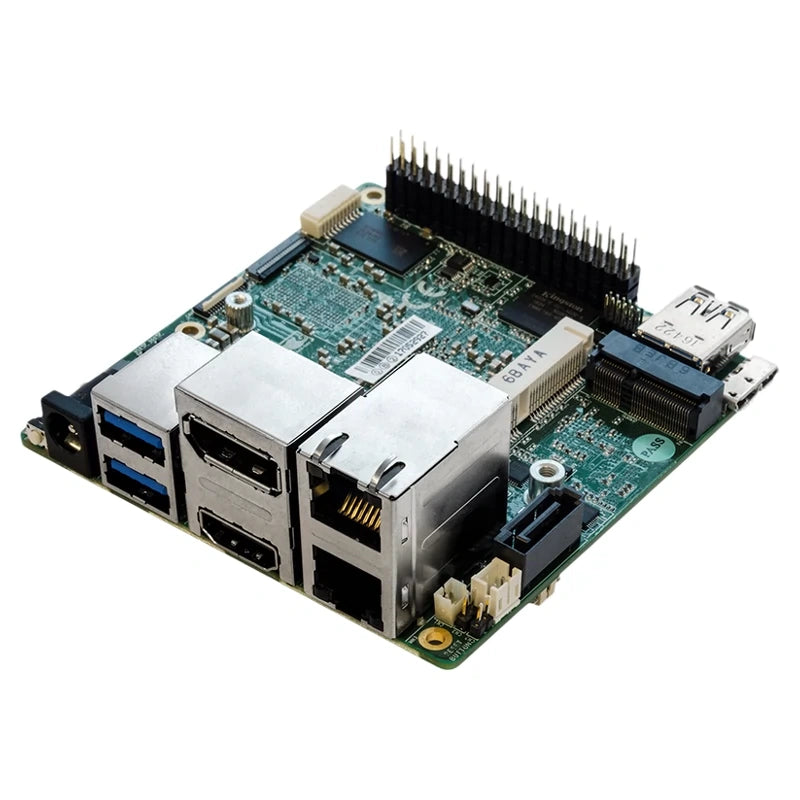

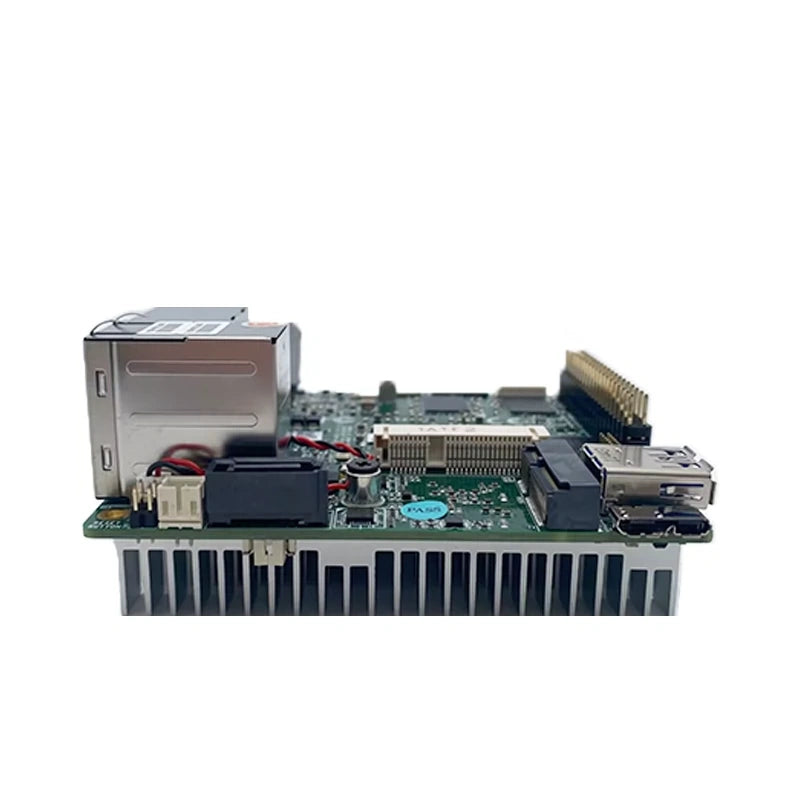

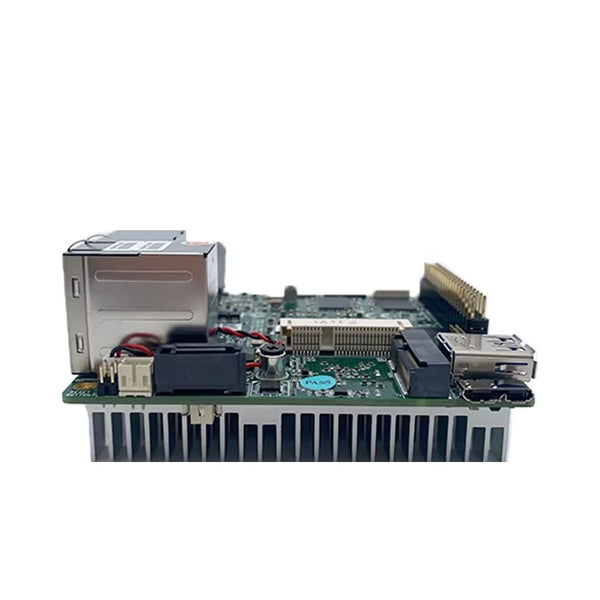

AAEON UP Squared 6000 - X86 Industrial Platform - Intel Pentium® and Celeron® N and J series processors - [NEW]
You may also like
![AAEON UP Squared 6000 - X86 Industrial Platform - Intel Pentium® and Celeron® N and J series processors - [NEW]](http://youyeetoo.com/cdn/shop/files/AaeonUPSquared6000MAIN01.png?v=1782524574&width=64)
AAEON UP Squared 6000 Edge Computing Kit
- Quick Start
- Tips
Introduction
The UP Squared 6000 is the latest addition to our extensive UP Squared lineup. Based on the latest Intel® Atom® x6000E series, Intel Pentium® and Celeron® N and J series processors (formerly Elkhart Lake),
UP Squared 6000 is built for automation, robotics, and industrial applications with Time-Sensitive Networking (TSN), Time-Coowned Computing (TCC)*, in-band ECC*, onboard TPM 2.0*, PSE applications Additional carrier boards* to unlock.
Features
- Powerful Engine: Equipped with the latest generation Intel® processors, 12W TDP, delivering exceptional performance.
- Graphics Upgrade: Intel UHD Graphics performance doubled, supporting 3 displays at 4kp60.
- Industrial-Level Security: 12V DC input, supports Intel® TSN, and TCC for real-time performance.
- Efficient Storage: Supports NVMe M.2 2280 for faster data transfer.
- AI Acceleration: Optional Intel® Movidius™ Myriad™ X VPU, compatible with OpenVINO.
Shipping List
Edge Computing Kit with Power
Applications
UP Squared 6000 is built for automation, robotics, and industrial applications with Time-Sensitive Networking (TSN), Time-Coowned Computing (TCC)*, in-band ECC*, onboard TPM 2.0*, PSE applications Additional carrier boards* to unlock.
Specification
-
Elkhart Lake SoC (one of the other)
- Intel Celeron N6210 dual-core processor @ 1.2 GHz / 2.6 GHz with 16EU Intel UHD graphics; 6.5W TDP
- Intel Pentium J6426 quad-core processor @ 1.8GHz / 3GHz with 32EU Intel UHD Graphics; 10W TDP
- Intel Atom x6413E quad-core processor @ 1.50 GHz / 3.0 GHz with 16EU Intel UHD Graphics; 9W TDP
- Intel Atom x6425RE quad-core processor @ 1.90 GHz with 32 EU Intel UHD Graphics; 12W TDP
- System memory – 2GB, 4GB, 8GB LPDDR4
- Storage capacity – 32GB or 64GB eMMC flash, 1x SATA port, 1x M.2 2280 socket for NVMe SSD
- AI accelerator – Optional UP AI Core XM 2280 with 2x Intel Movidius Myriad X
-
Display Interfaces
- 1x HDMI 2.0b, 1x DP 1.2
- Intel Atom x6413E, Intel Atom x6425RE only – 1x eDP
- Audio – Audio line in/out
-
Networking
- Celeron, Pentium – 1x GbE, 1x 2.5GbE via Intel WGI211AT and Intel.I225-V
- Intel Atom x6413E, Intel Atom x6425RE – 1x GbE, 1x 2.5GbE via Intel WGI210IT and I225-IT
- Optional WiFi 5/6 & Bluetooth via M.2 2230 socket
- Optional 5G, 4G LTE via M.2 3042/3052 socket and SIM card socket
-
USB
- 2x USB 3.1 Type-A ports
- Intel Atom x6413E, Intel Atom x6425RE only – 1x USB 3.1 OTG Type C port
- Serial (Intel Atom x6413E, Intel Atom x6425RE only) – 1x RS232/422 DB9 interface
-
Expansion
- 1x M.2 2242/2280 M Key (supports NMVe SSD),
- 1x M.2 2230 E Key
- 1x M.2 3042/3052 B Key
- 40-pin Raspberry Pi HAT-compatible header
- 100-pin GP bus (Intel Atom x6413E, Intel Atom x6425RE only) for carrier board support (SBC only, not Edge computer)
- Security – TPM 2.0 (Intel Atom x6413E, Intel Atom x6425RE only)
- Misc – UEFI BIOS, RTC, WoL (Wake-on-LAN), watchdog timer, PXE
- Power Supply – 12V DC up to 6A AT/ATX (default AT mode)
- Power consumption (typical) – 22W ~ 38W (depends on SKUs)
-
Dimensions
- SBC – 10.16 x 10.16 cm
- Edge Computer – 11.7 x 10.6 x 7 cm
-
Temperature Range
- SBC – Operating: 0°C to 60°C; storage: -40°C to 80°C
- Edge Computer – Operating: 0°C to 50°C; storage: -40°C to 80°C
- Humidity – 0% to 90% relative humidity, non-condensing
- Certifications – CE/FCC Class A, RoHS compliant
- Longevity – 2035
