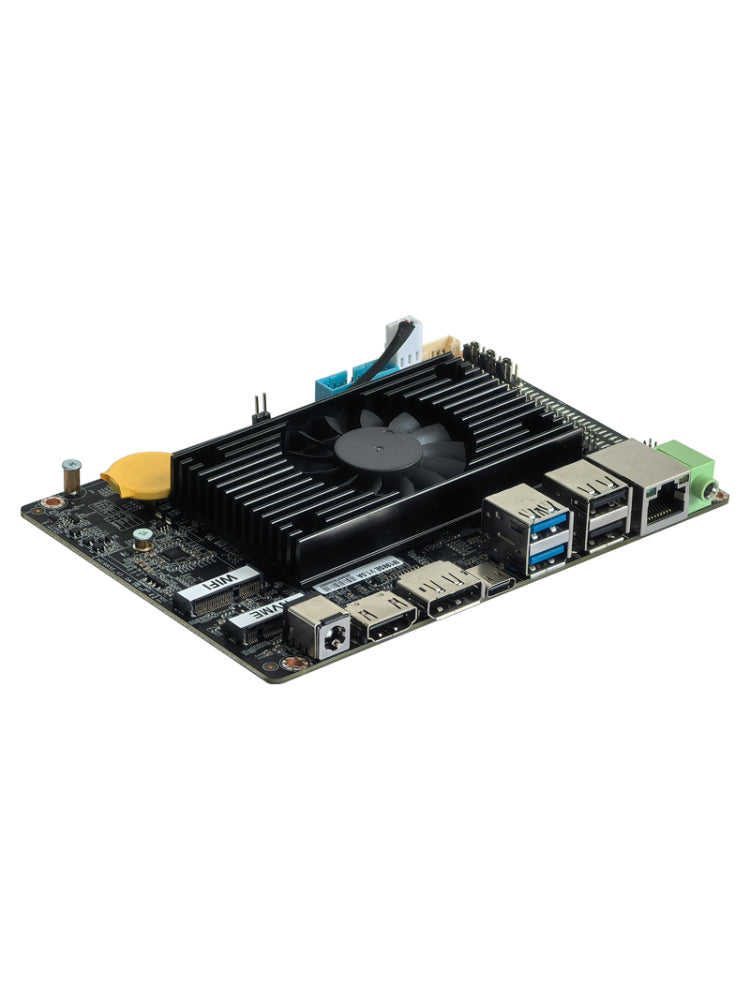

3.5 inch Industrial PC Motherboards - 6xCOM Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU, ELSKY M128SE

Quick Start: contact for help: shop@youyeetoo.com
Tips
- Windows 11 is not supported on the N100 and I3-N305.

Introduction

This high-performance motherboard, designed for modern computing demands, supports ONBOARD Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPUs with a compact form factor of 146mm x 102mm. It features a single NB-DDR5 SODIMM slot with up to 16GB memory support, catering to various memory speeds and capacity needs. Power management is robust with 12V-24V wide voltage input, accommodating CPUs with power consumption ranging from 55W to 115W. The display capabilities are enhanced with 1x HDMI 2.1/1x DP interfaces supporting 4K resolution and a Type-C interface for display and data transfer. Network connectivity is fortified with dual Gigabit Ethernet ports and optional support for additional network cards. Wireless connectivity is enabled through an M.2 WiFi interface supporting PCIe 3.0 and Bluetooth modules. Storage options include an NGFF interface for M.2 2280 SSDs with NVMe and SATA support. The audio system is powered by a Realtek ALC897 HD audio decoder for high-fidelity sound. USB connectivity is provided by two USB 3.2 Gen1 and two USB 2.0 ports. Expansion and control are facilitated through multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog with scheduled start-up and remote management features. It is compatible with a range of operating systems, including Windows 11, Windows 10, and Linux, making it suitable for diverse applications from home entertainment to professional workstations.

Features

Size and Compatibility: Compact design at 146mm x 102mm, Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU.
Memory Support: Single NB-DDR5 SODIMM slot supporting up to 16GB of memory at speeds of 4800 MHz.
Power Management: Wide voltage input of 12V-24V to accommodate CPUs with power consumption up to 115W.
Display Features: 1x HDMI 2.0 ports, 1x DP for 4K resolution and one Type-C port for display and data transfer.
Networking: Dual network interfaces with Intel 1215V and Realtek 8111H Gigabit Ethernet, with options for Intel I219V and YT 680.
Wireless Connectivity: M.2 WiFi interface for PCIe 3.0 and Key-E interface M.2 2230 WiFi Bluetooth modules.
Storage: NGFF interface for M.2 2280 SSDs with NVMe and SATA support.
Audio: Realtek ALC897 HD audio decoder for high-fidelity sound and MIC input.
USB Ports: Two USB 3.2 Gen1 ports at 5 Gbps and two USB 2.0 ports at 480 Mbps.
Expansion and Control: Multiple COM ports, GPIO pins, CPU fan control, and a hardware watchdog with timed start-up and remote control.
OS Support: Compatible with Windows 11, Windows 10, and Linux.

Shipping List

1x Motherboard

Specification

Feature	Description

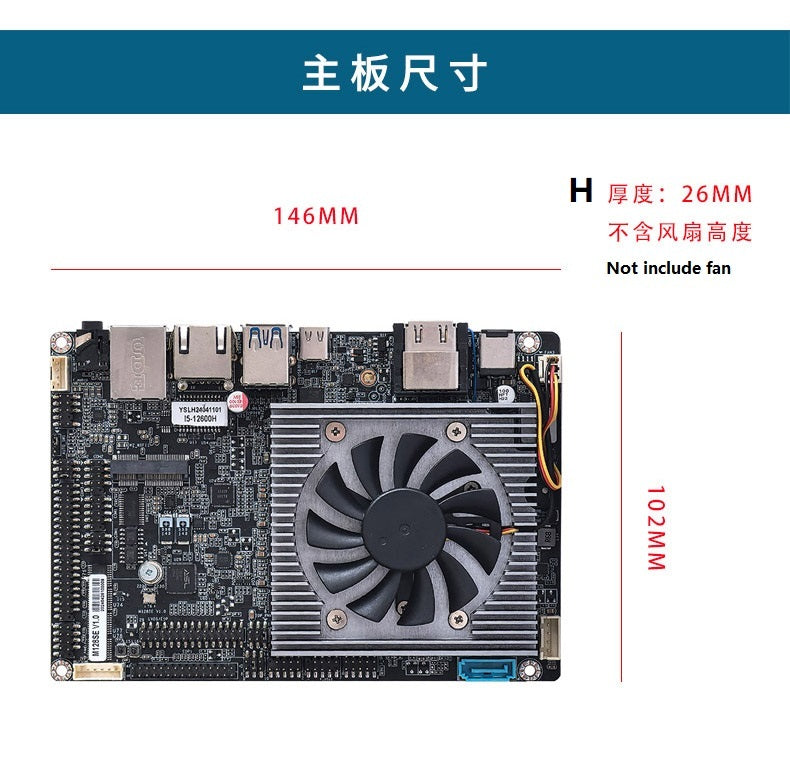

Size	146mm (L)102mm (W)23mm (H without a radiator)
CPU	Optional onboard Intel Alder Lake-N N200 N100 N97 N95 i3-N305 CPU

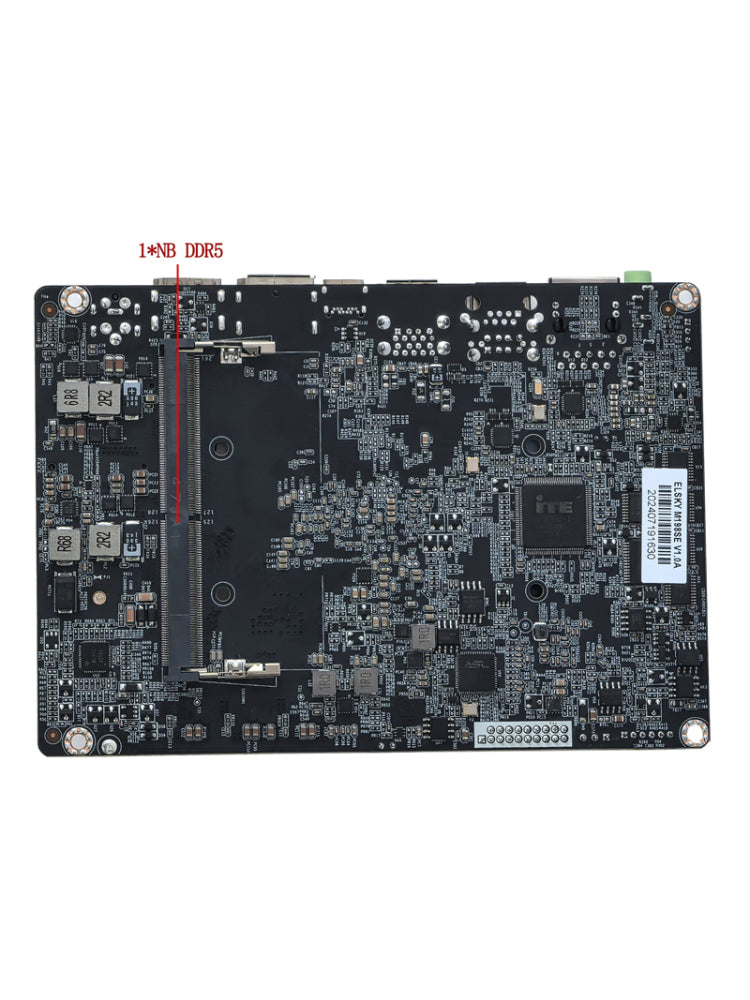

Memory	1*NB-DDR5 SODIMM memory, support 4800 memory, maximum support 16G
Power Supply	1*DC IN(5.5x2.5mm) supports 12V-24V wide voltage power supply by default
	Max 55W, recommended 12V 4A / 24V2A or above power supply
Graphics	Intel UHD Graphics Super core, support single display, double/three/four development replication, double/three/four development extension, SHELL double display

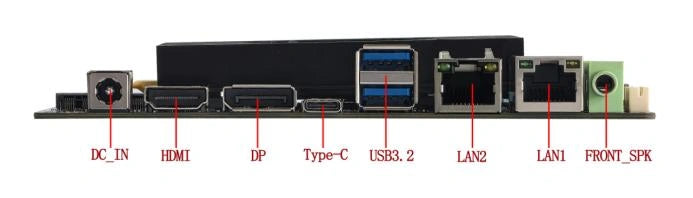

Display Function	1x HDMI 2.1 interface, 4K resolution 4096/3840/2160@60Hz 1x DP interface, do not support DP+++, 4K resolution 4096/3840@60Hz
	1x Type C interface supports display and USB data transmission
	1x VCC_SEL pin, EDP1 Operating voltage control pin (6Pin, 23Pin, 2.0mm)
	1x LVDS/EDP pin, support resolution 19201080@60Hz (30Pin, 2*15Pin, 2.0mm)
	1 xBKLT_CONN pin, LVDS Backlit switch control pin (6Pin, 16Pin, 2.0mm)
	1x EDP_PWR1 pin, LVDS/EDP Voltage control insert (6Pin, 23Pin, 2.0mm)
	LVDS or EDP, Shared pins EDP uses EDP-B screen line, EDP supports 4K resolution
	1xMIPI CSI, support CSI-2 Camera
Network Function	Dual network: default support for Realtek 8111H + Realtek 8111H Gigabit network card; Optional support YT 6801 Gigabit network card + YT 6801 Gigabit network card
	Single network: Realtek 8111H Gigabit network cardOptional support YT 6801 Gigabit network card
	Support network wake up and PXE no disk start function
Wireless Function	1x M2-WIFI interface, Support PCIE 3.0 signal, support Key-E interface M.2 2230 WiFi Bluetooth module
Hard Disk Function	1x NGFF interface, supports PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, default support NVME protocol and SATA protocol
Sound Function	Default support for Realtek ALC897 HD digital audio decoder, G-channel high-fidelity audio controller
	1x LINE OUT interface, LINE_OUT output and MIC_IN input
	1x F_AUDIO pin, Standard audio insert (9Pin, 25Pin, 2.0mm)
	1x INT_SPK pin, The amplifier supports 8Ω 5W horn dual channel output (4Pin, 14Pin, 2.0mm)

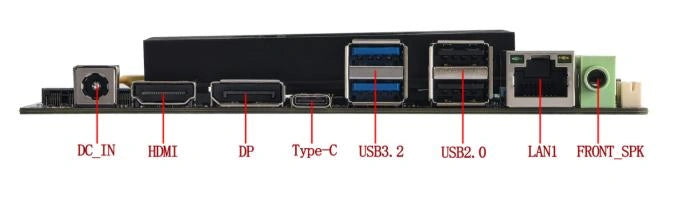

USB Function	2x USB3.2 interface, Rear standard USB3.2 Gen1 interface, max transmission bandwidth of 5 Gbps
	2x USB2.0 interface, Rear standard USB2.0 interface, max transmission broadband of 480Mbps (Dual-network motherboard does not have this interface)
	1x F_USB1 pin, Front USB2.0 pin, (9Pin, 2x5Pin, 2.0mm) 1x F_USB2 pin, Front USB2.0 pin, (9Pin, 2x5Pin, 2.0mm) 1x F_USB3_A pin, Front USB3.2 pin, (19Pin, 2x5Pin, 2.0mm)
Switching Function
1*F_USB2 pin	Front USB2.0 pin, one group has 2* USB2.0 (9Pin, 2*5Pin, 2.0mm)
1*F_PANEL pin	Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.0mm)
1*AUTO_SW pin	Hardware control power-on boot pin (3Pin, 1*3Pin, 2.0mm)

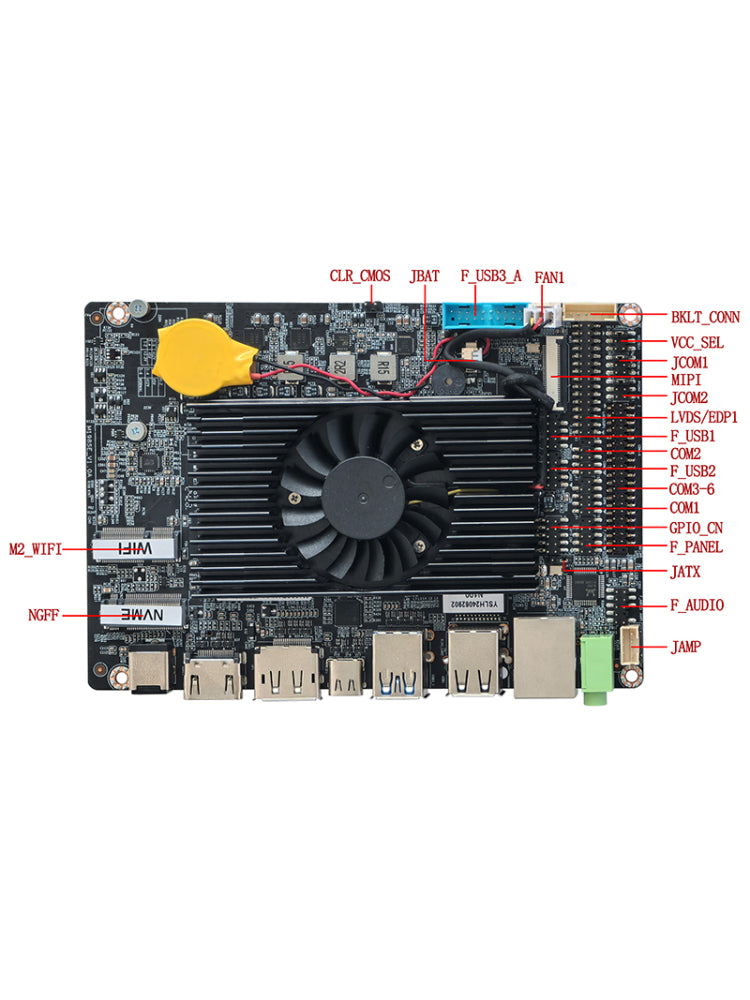

Other I/O
1*COM1 pin	Serial port, COM1 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.0mm)
1*COM2 pin	Serial port, supporting the standard RS232 (9Pin, 2*5Pin, 2.0mm)
1*COM3-6 pin	Serial port, supporting the standard RS232 (39Pin, 2*20Pin, 2.0mm)
All serial ports	With variable hardware support TTL
1*JCOM1/2 pin	The COM1/2 ninth pin voltage can be controlled at 0V/5V/12V (6Pin, 2*3Pin, 2.0mm)
1*CLR_CMOS pin	Motherboard reset, discharge plug pin (3Pin, 1*3Pin, 2.0mm)
1*FAN3 pin	CPU fan pin, support for temperature control (3Pin, 1*3Pin, 2.54mm)
1*J-GPIO pin	GPIO Control pin (10Pin, 2*5Pin, 2.0mm)
Operating Environment	Operating temperature: -10℃~60℃; Operating humidity: 5%~95% relative humidity, no condensation
BIOS	AMI BIOS supports power-on, timed startup, remote switch on and off intelligent device identification
Watch Dog	Watchdog programming supports the hardware reset function (256 level, 0~255 seconds)
Operating System	Support Windows 11, Windows 10, Linux etc.
