YDLIDAR X3 Lidar Sensor - 8 Meter, 360°,TOF, Robot ROS teaching and research

Overview

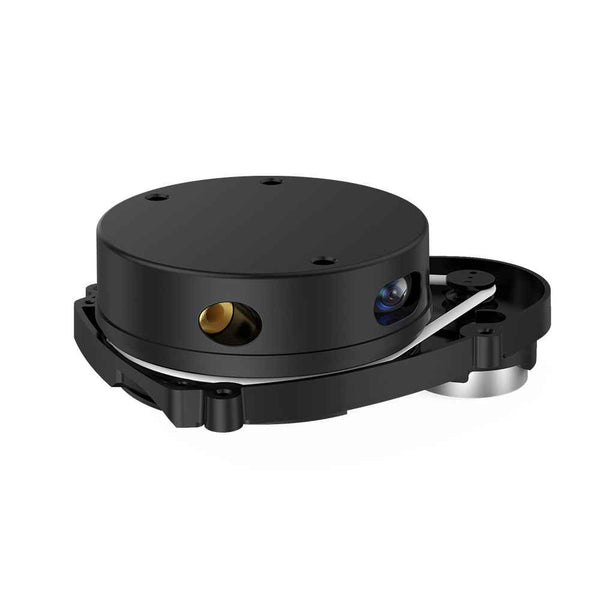

The YDLIDAR X3 is a 360-degree two-dimensional rangefinder designed for high-frequency and high-accuracy distance measurement. Based on laser triangulation principles, it features a rotating mechanical structure that continuously outputs angle information and point cloud data. This makes it a reliable choice for developers working on indoor mobile robots, educational kits, and environmental scanning solutions.

Key Features

• 360° Omnidirectional Scanning: Achieve full coverage with a 360° laser scanning angle, allowing the robot to detect obstacles and contours in its entire surrounding environment.
• 8-Meter High-Performance Range: With a ranging distance of up to 8 meters, this LiDAR is perfectly suited for most indoor project scenarios, providing ample data for safe navigation.
• High-Frequency Data Output: Boasts a sampling frequency of 3000 times per second with an adjustable scanning frequency (5Hz~10Hz), ensuring smooth and responsive mapping.
• ROS & Multi-Platform Support: Fully compatible with Robot Operating System (ROS) and supports various main control boards including Raspberry Pi, NVIDIA Jetson series, and industrial PCs.
• Industrial Grade Stability: Features strong resistance to ambient light interference and low power consumption. The laser meets Class I safety standards, ensuring safe operation.

Technical Specifications

• Model: YDLIDAR X3 (SKU: EAIDPX30001)

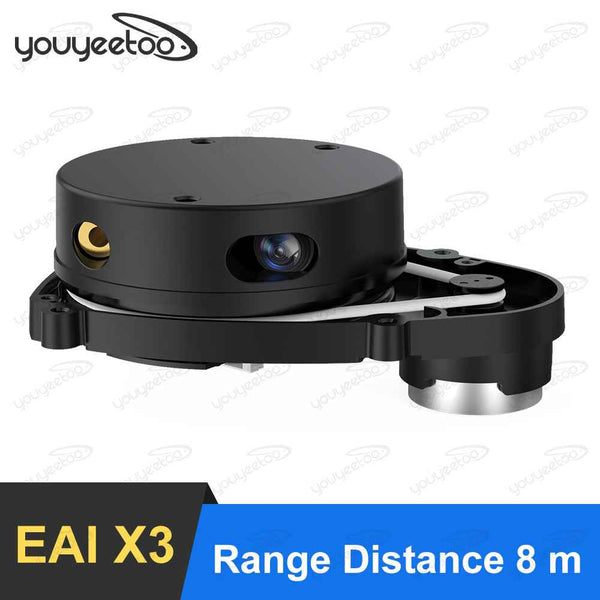

• Ranging Range: 8 Meters
• Scan Angle: 360°
• Sampling Frequency: 3000 times/s
• Scanning Frequency: Adjustable (5Hz ~ 10Hz)
• Technology: Laser Triangulation / TOF
• Interface: USB Type-C (Data & Power), PHD1.25_4P Receptacle
• Applications: ROS Robots, UAV Obstacle Avoidance, 3D Reconstruction, Vacuum Cleaners

Ideal Applications

• Robot navigation and obstacle avoidance
• ROS teaching and research
• Regional security monitoring
• Environmental scanning and 3D reconstruction
• Smart home appliances (e.g., Robot Vacuum Cleaners)

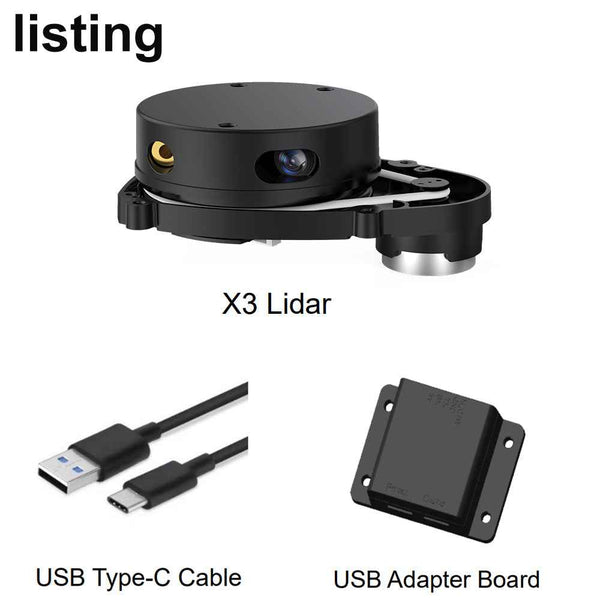

Package Contents

• YDLIDAR X3 x1
• USB Type-C Cable x1
• USB Adapter Board x1
