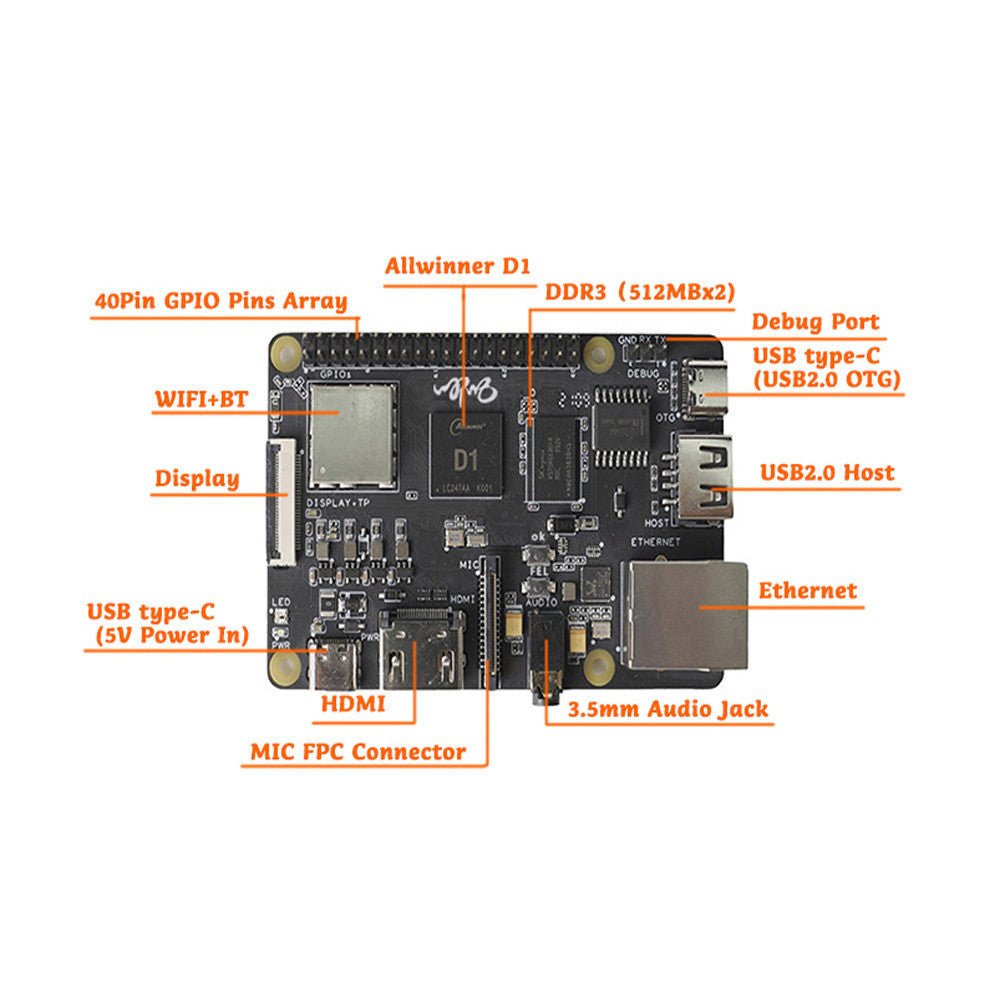

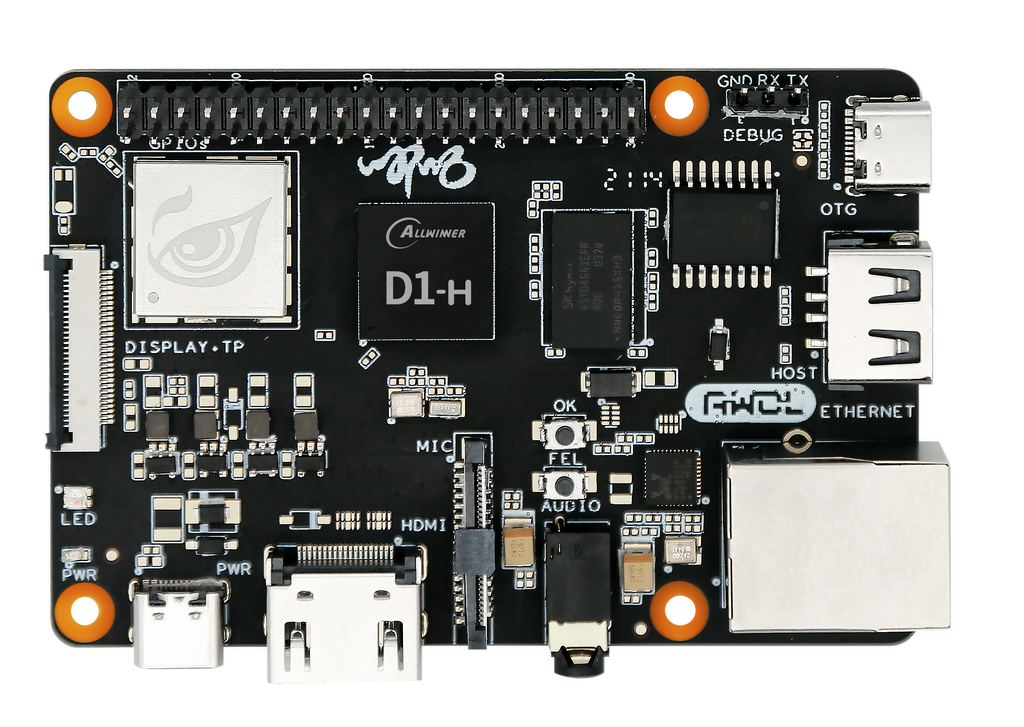

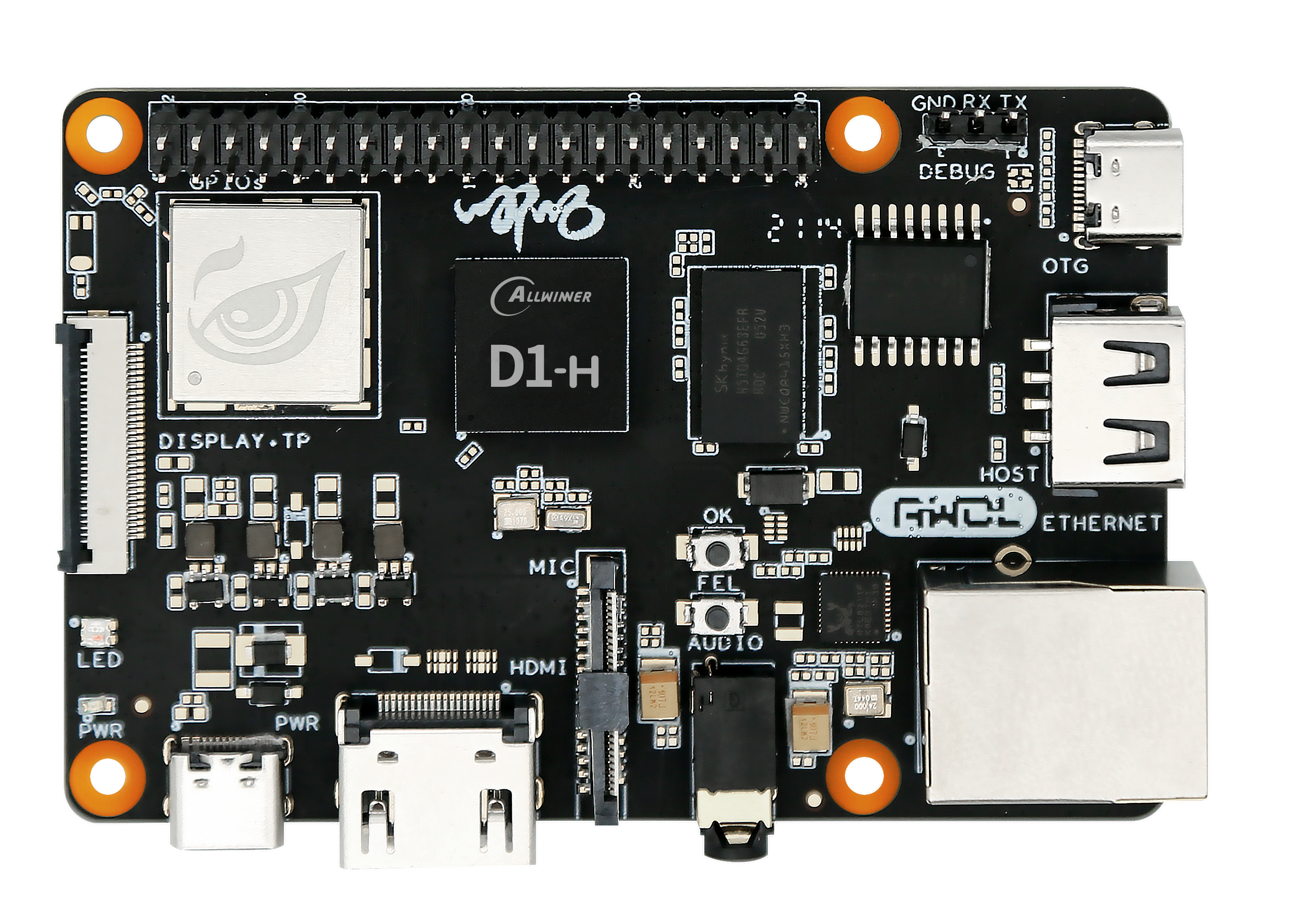

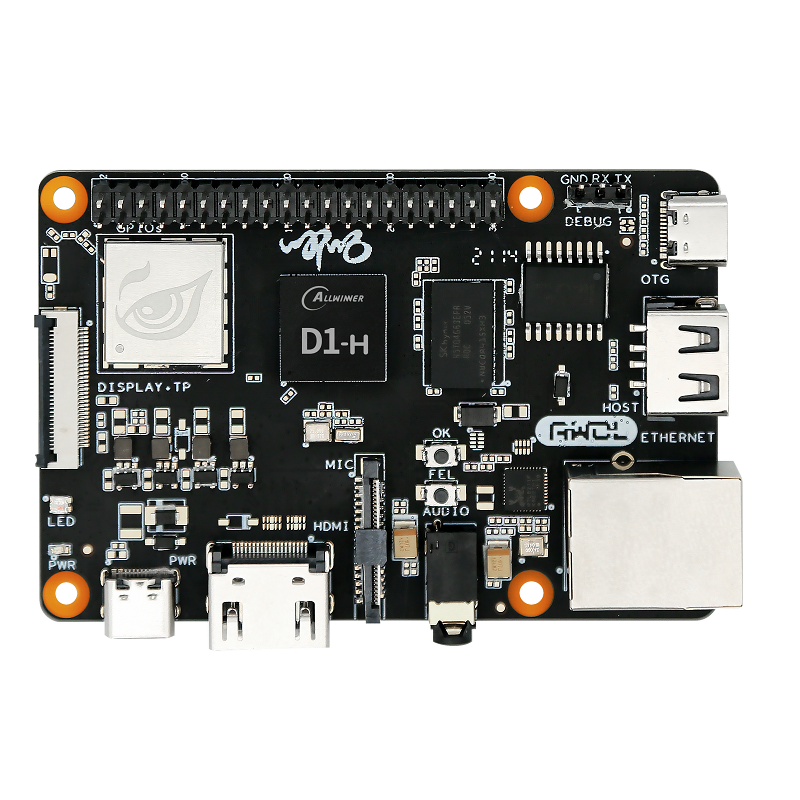

Sipeed Nezha D1 64bit RISC-V Linux SBC Board Allwinner D1 Support Ubuntu/Tina/Debian System

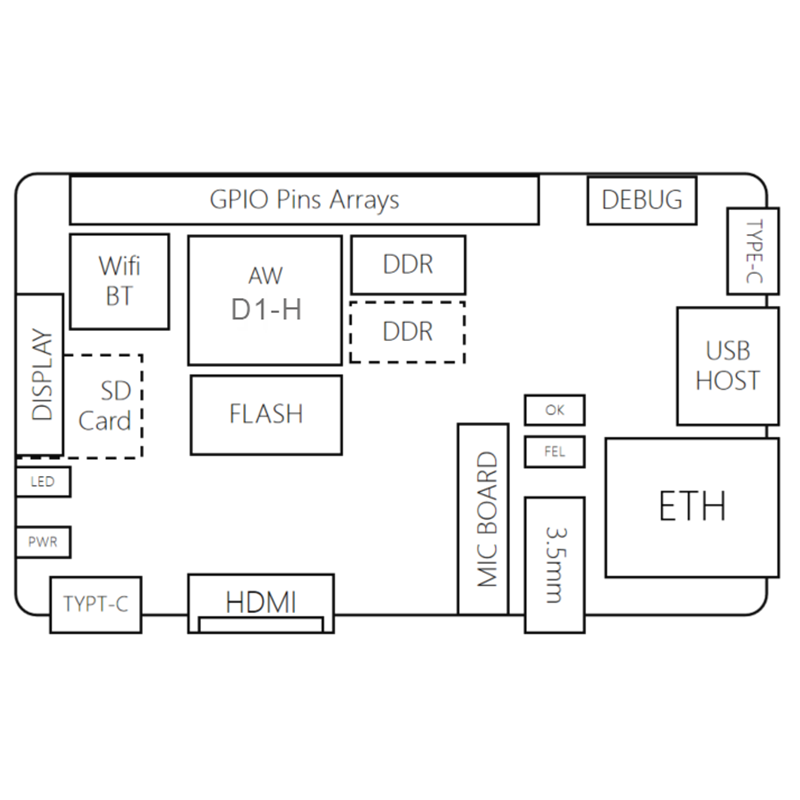

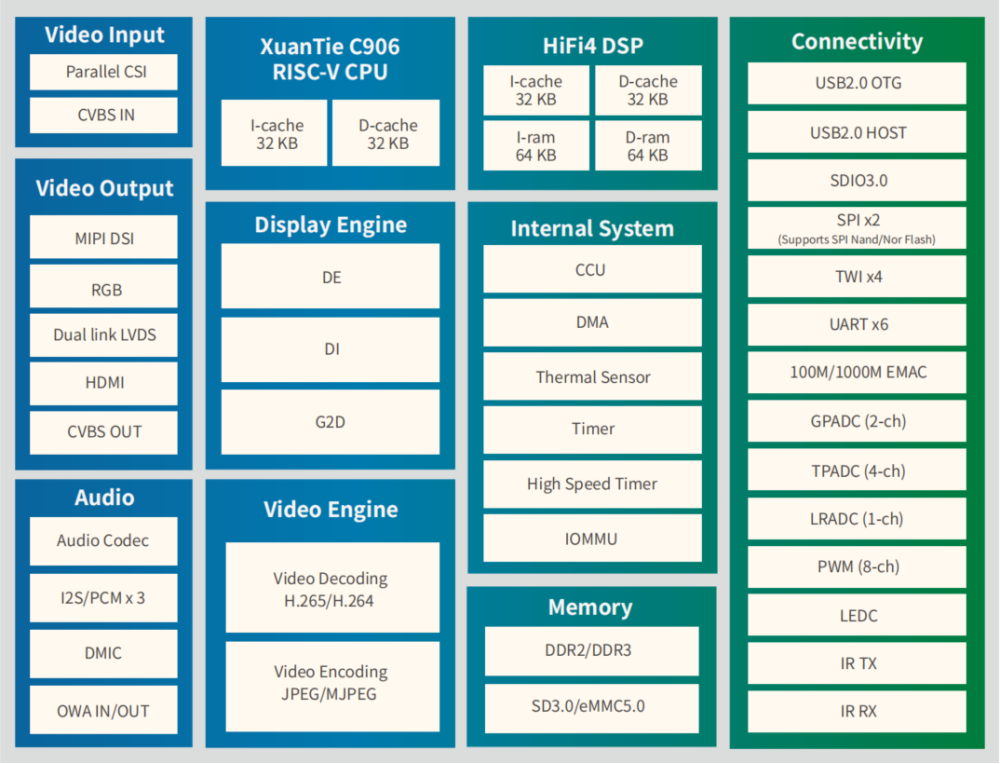

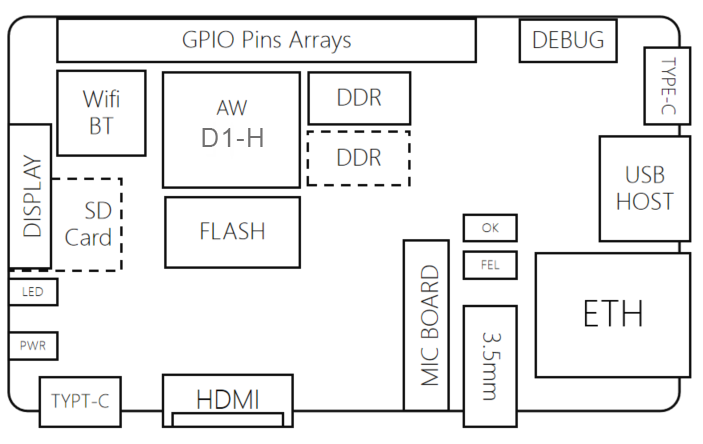

Development Board block diagram

Specifications

• Main control: Allwinner D1-H C906 RISC-V 1GHz
• DRAM: DDR3 1GB/2GB
• Storage: Onboard 256MB spi-nand, support USB external U disk and SD card to expand storage
• Network: Support Gigabit Ethernet, support 2.4G WiFi and Bluetooth, onboard antenna
• Display: Support MIPI-DSI+TP screen interface, support HDMI output, support SPI screen
• Audio: Microphone daughter board interface * 1, 3.5mm headphone jack * 1 (CTIA)
• Board size: length 85mm?width 56mm?thickness 1.7mm
• PCB layer: 6 layers
• Support Tina Linux, based on the Linux 5.4 kernel

System

Official support Tina Linux System, which is based Linux 5.4 & uboot-2018

Tina Linux introduces: Tina Linux introduce
