youyeetoo 01 Studio Canmv K230 AI development board camera visual recognition module 6T equivalent efficiency,1GB ultra-large memory
You may also like

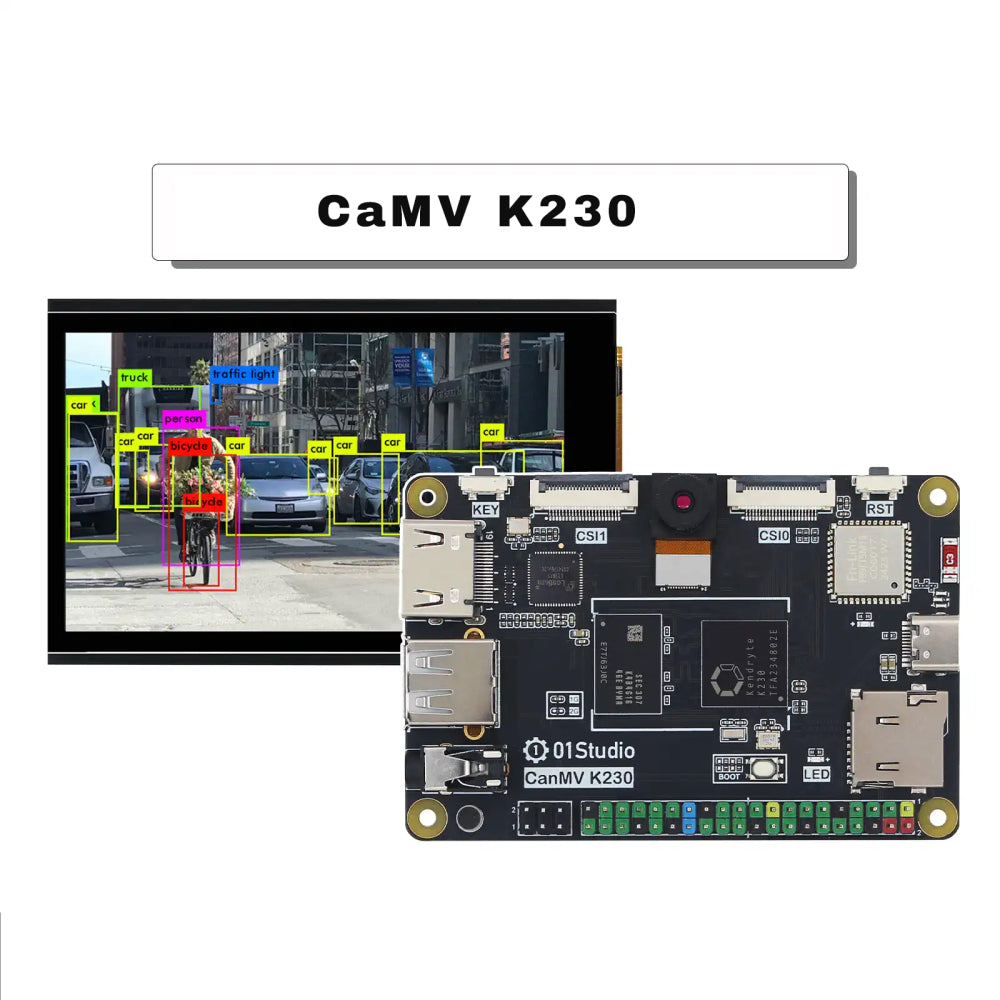

01 Studio Canmvk230 AI Development Board is based on Jianan Technology.
The new K230 edge computing chip (performance can reach 13.7 times that of K210). Shop 1080p/60fps
HD camera can be connected to the display screen and 1080P HDMI display. The size is only a business card size
Easy to deploy various AI visual application scenarios.
Canmv K230 uses Python programming development. Users do not need to master the AI model algorithm
Easy to play with color recognition, object count, barcode/QR code recognition, face detection, face recognition
Several visual applications such as digital recognition and self-classification training.

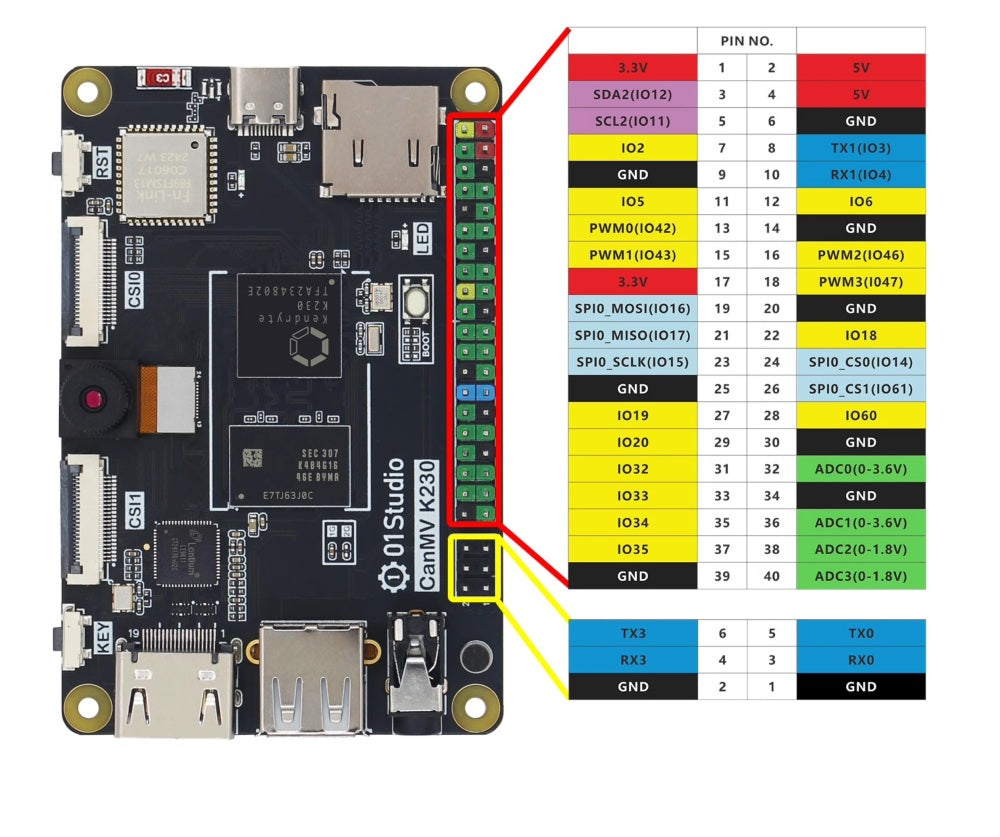

Module reserves serial port/12C interface. You can follow the computer upper machine, STM32, ESP32, Arduino, and various main control communication such as Raspberry Pi Use.
[Package 1 Shopping List]
SD card x1
3.5-inch capacitor touchscreen X1
K230 x1
[Screen only Shopping List]
3.5-inch MIPI screen x1

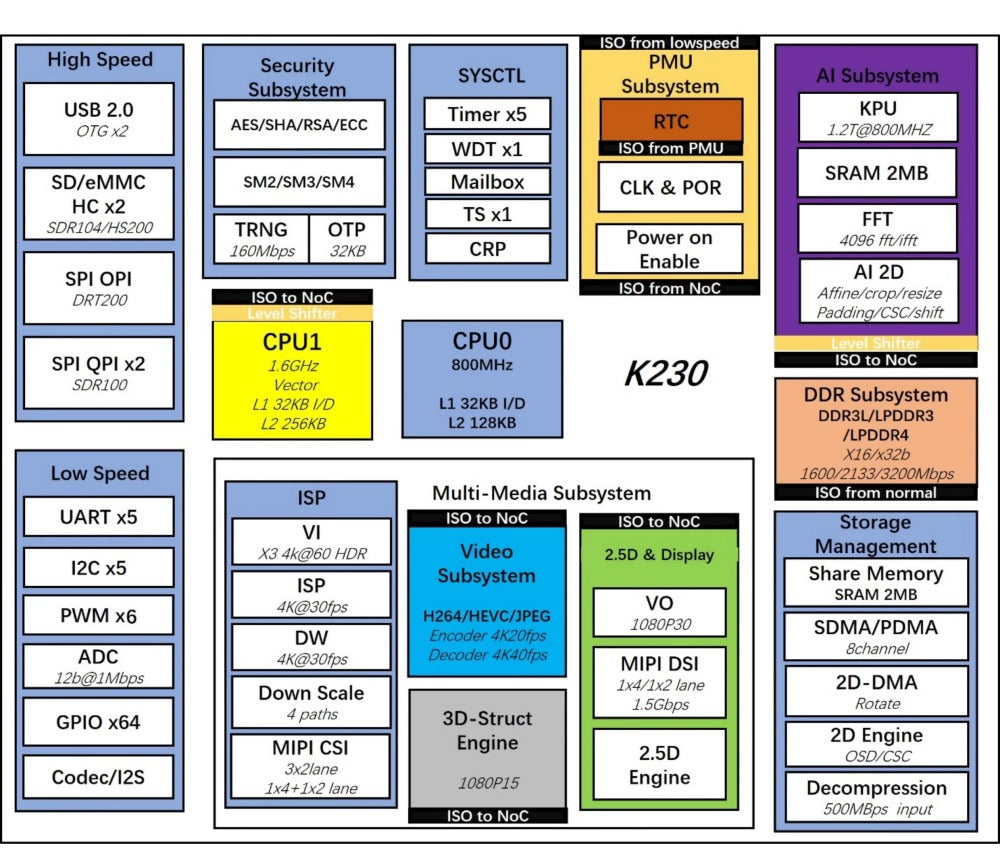

| K230 Chip Parameters | |
|---|---|
| CPU | ● CPU1: RISC-V , 1.6GHz, 32KB I-cache, 32KB D-cache, 256KB L2 Cache, 128bit RVV 1.0 ● CPU0: RISC-V , 800MHz, 32KB I-cache, 32KB D-cache, 128KB L2 Cache |
| KPU | 6TOPS Equivalence，Support INT8 & INT16 Typical network performance： Resnet50 ≥ 85fps @ INT8；Mobilenet_v2 ≥ 670fps @ INT8；YOLO V5s ≥ 38fps @ INT8 |
| DPU | 3D structured light depth engine supports up to 1920x1080 |
| VPU | H.264 and H.265 video codec, suports up to 4096x4096Encoder Encoder performance：4K@20fps Decoder performance：4K@40fps JEPG codec： supports up to 8K(8192x8192) |

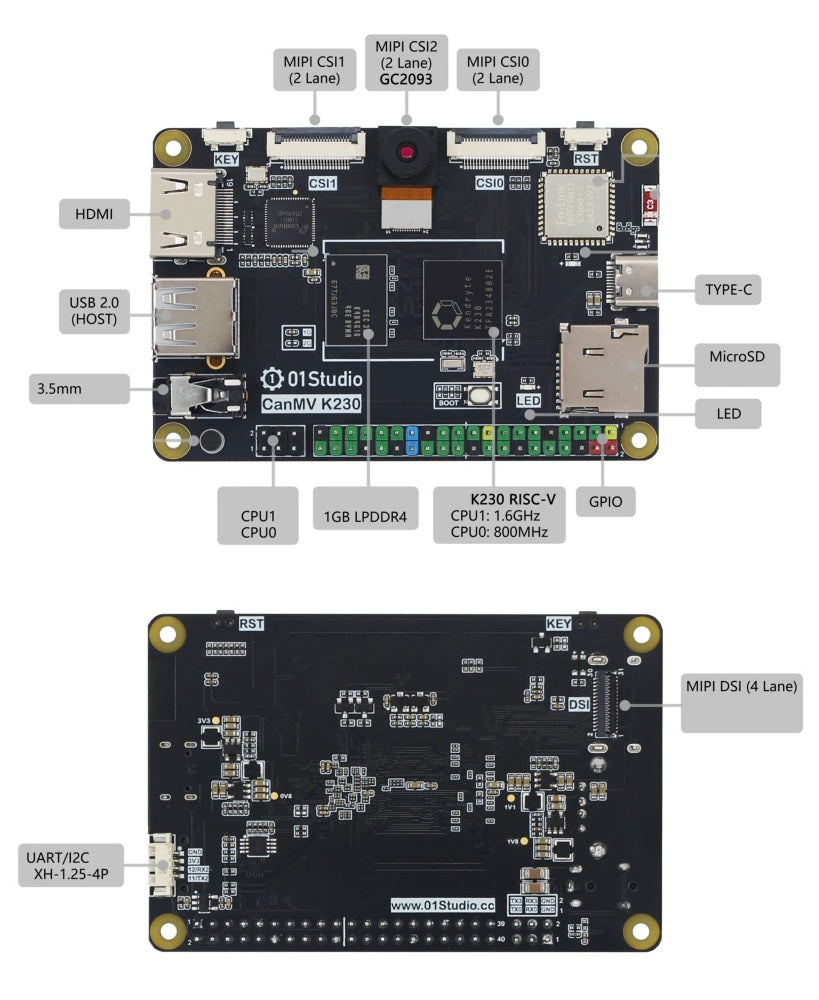

| Image Input | Support 3 Interfaces MIPI CSI input：1x4 lane+1x2 lane or 3x2 lane |
| Display Output | 1 x MIPI DSI (1x4lane or 1x2lane), up to 1920x1080 |
| Peripheral | ● 5 x UART ● 5 x I2C ● 1 x I2S ● 6 x PWM ● 64 x GPIO + 8 x PMU GPIO ● 2 x USB 2.0 OTG ● 2 x SDxC: SD3.0, EMMC 5.0 ● 3 x SPI: 1 x OSPI + 2 x QSPI ● Timer / RTC / WDT |
