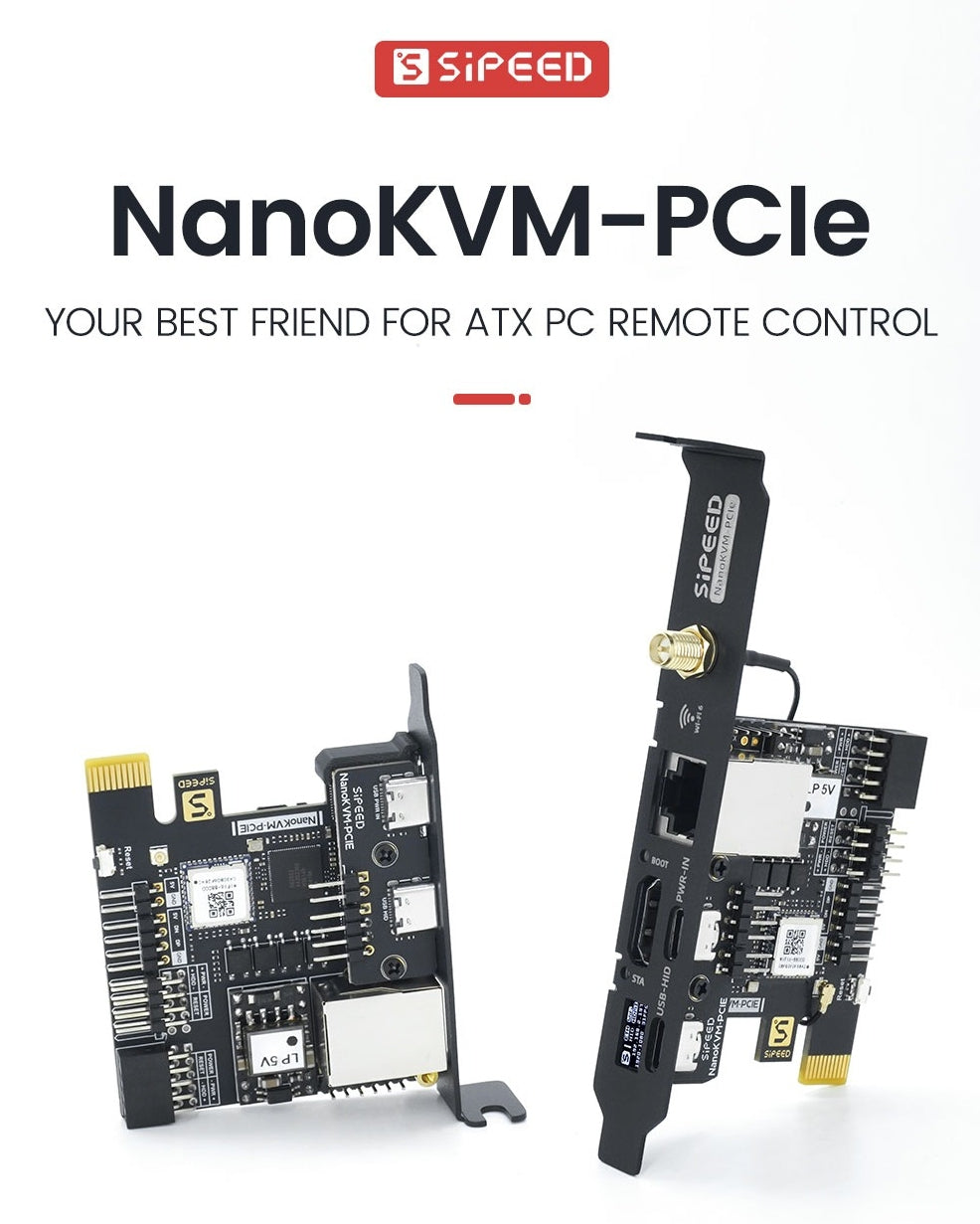

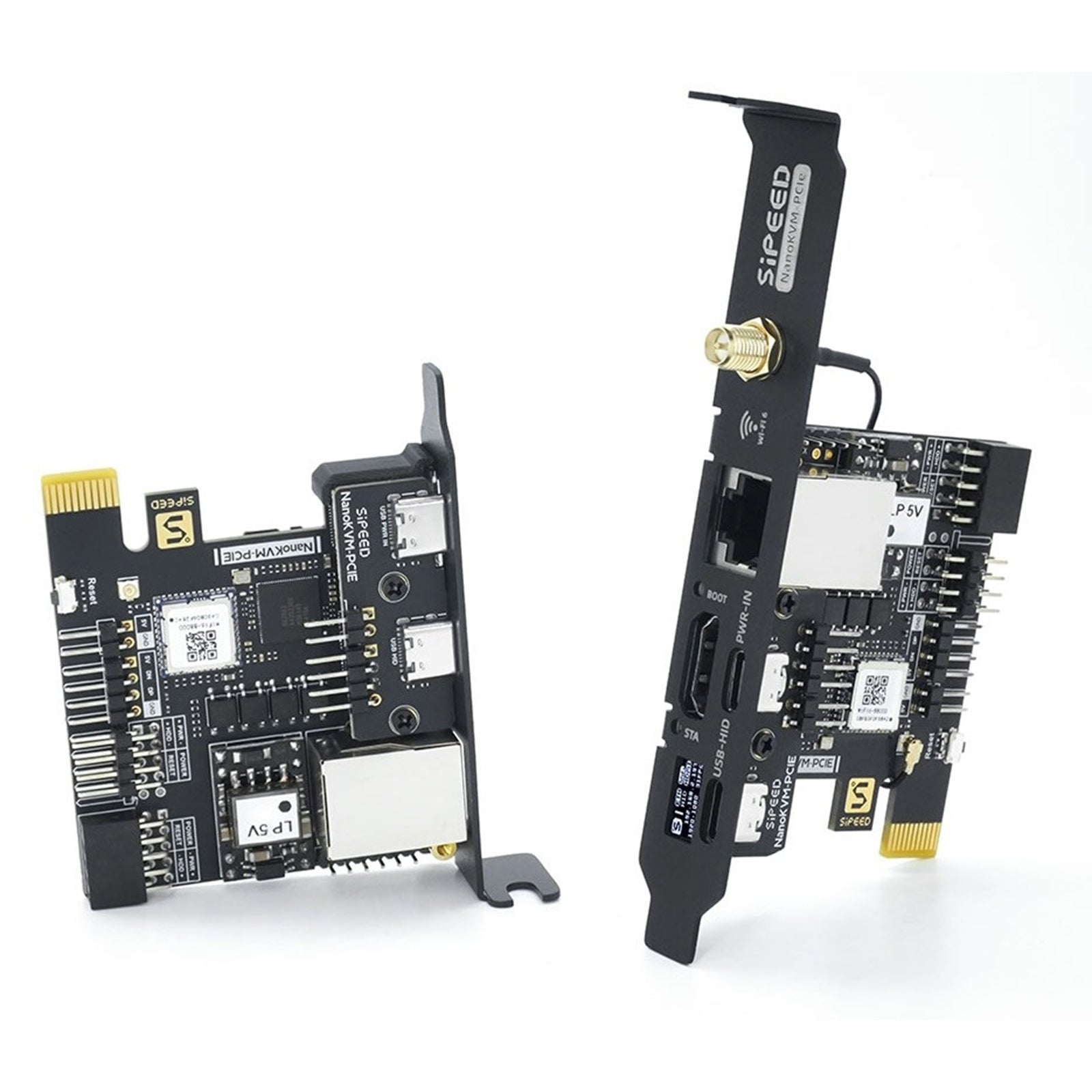

Sipeed NanoKVM PCIE Version

• Quick Start: Click Here
• Tips


  Amazon US Link, Amazon DE Link Click here
  Attention:If you need this item in a hurry, please visit our Amazon store to place your order.



Introduction

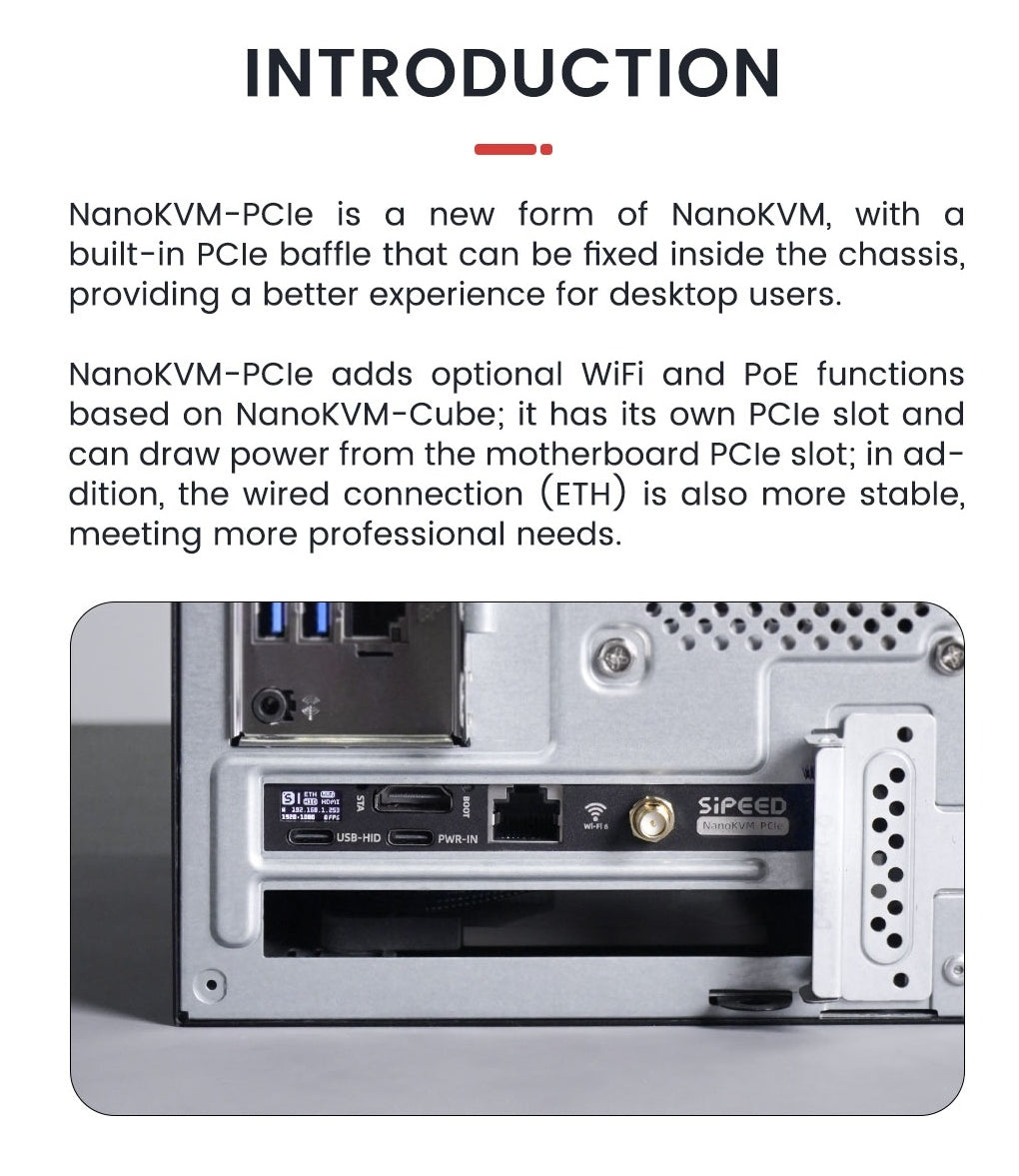

NanoKVM-PCle is the second product in the NanoKVM series, designed specifically for ATX PC cases and 2U servers.
It offers extremely easy installation and is compatible with both low-profile and high-profile PCle brackets.
With ultra-low power consumption, it can operate via PCle 3.3V aux(375mA limit)even when the Pc is powered off. It also supports power from PoE, USB, or 9-pin, giving you flexible options.
Featuring both Ethernet and WiFi6 for wired or wireless connectivity, NanoKVM-PCle also includes a compact 0.49-inch OLED display for lP and status information.
NanoKVM-PCle is your best friend for ATX PC remote control!

Features

1. Compatibility: Designed specifically for ATX PC cases and 2U servers, it is compatible with both low-profile and high-profile PCIe brackets.

2. Easy Installation: It offers extremely easy installation, allowing users to effortlessly integrate it into their systems.

3. Ultra-Low Power Consumption: Capable of operating via PCIe 3.3V aux (with a 375mA limit) even when the PC is powered off, and supports power from PoE, USB, or a 9-pin connection, providing flexible power options.

4. Diverse Connectivity: Features both Ethernet and WiFi 6 for wired or wireless connectivity, offering versatility in how you can connect.

5. OLED Display: Includes a compact 0.49-inch OLED display for showing IP and status information, making it convenient for users to monitor and manage remote ATX PCs.

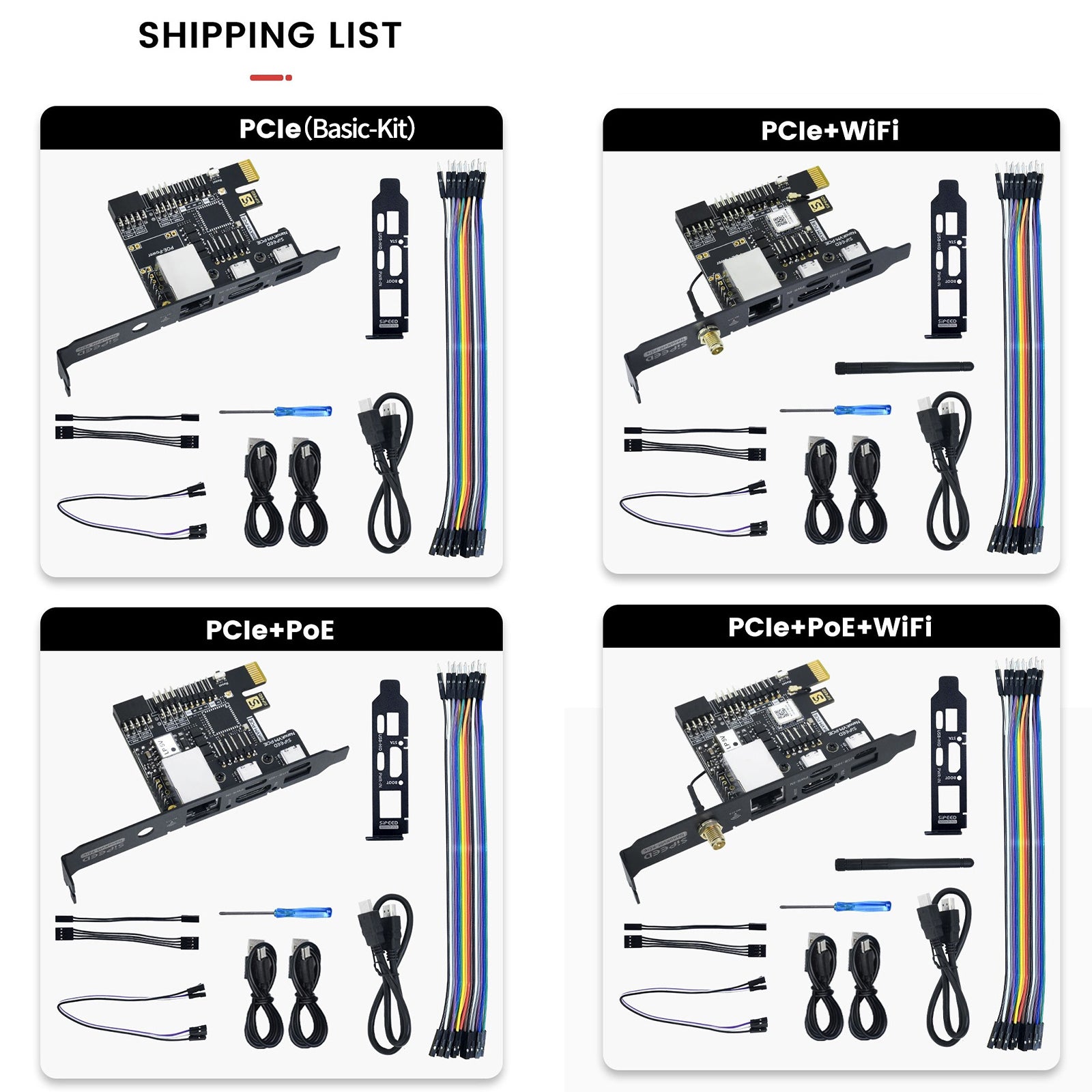

Shipping List

1x NanoKVM PCIE

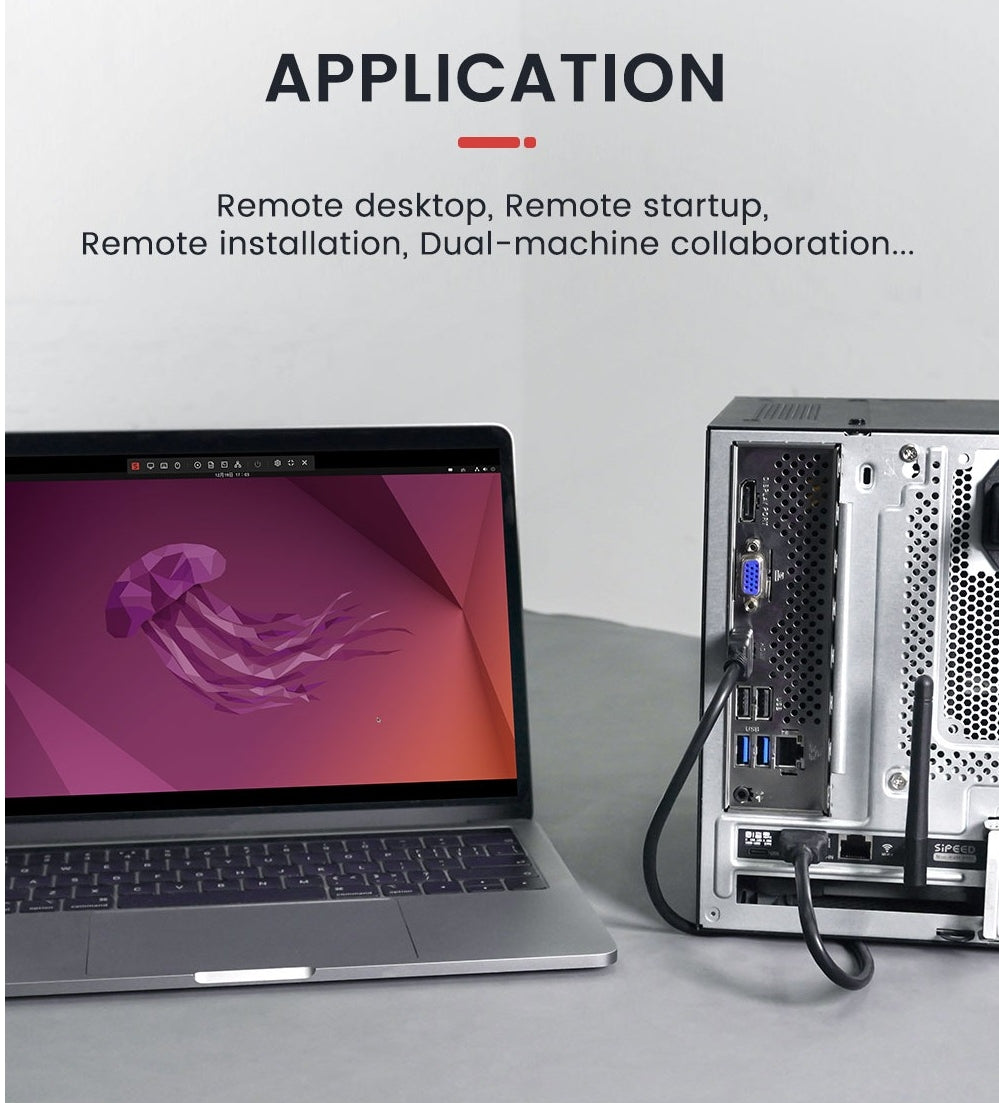

Applications

ATX PC remote control

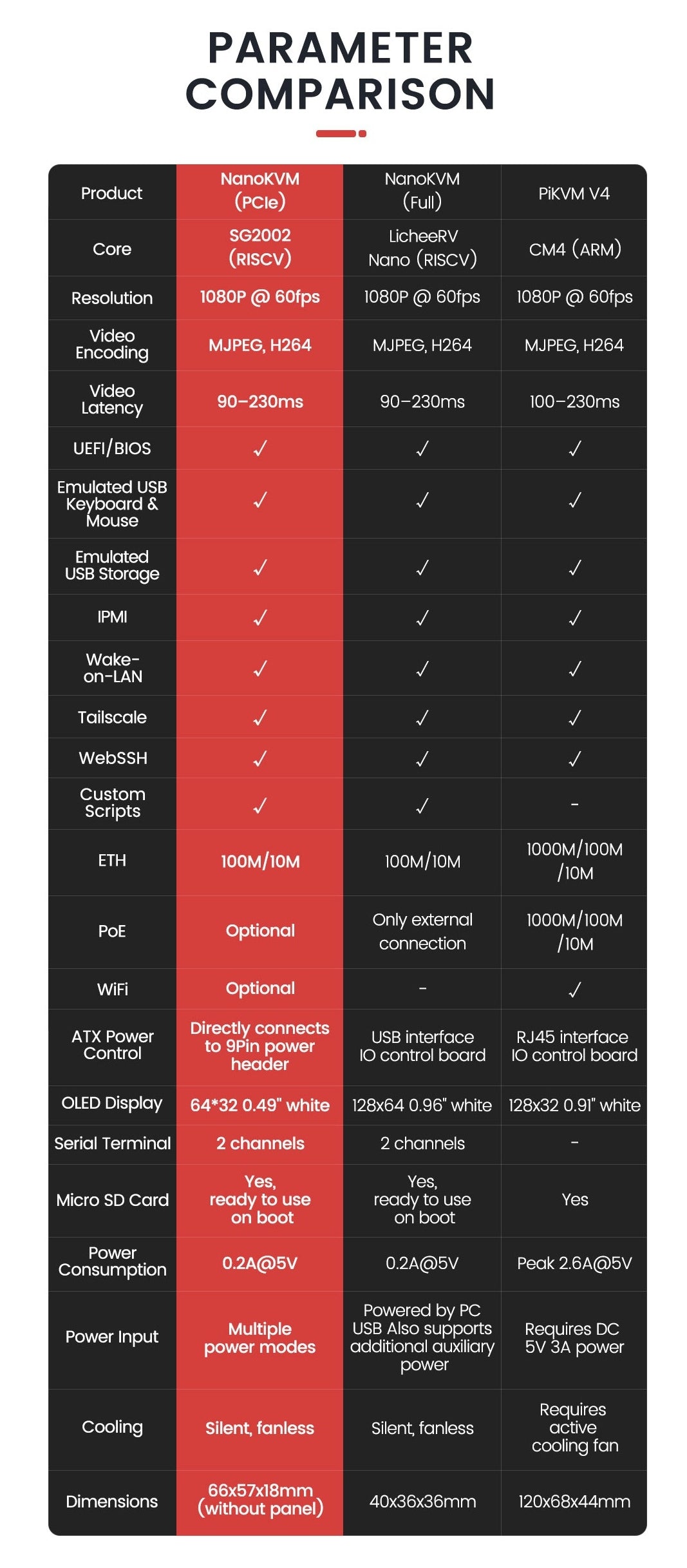

Specification

ProductNanoKVM (PCIe)NanoKVM (Full)PiKVM V4Computing UnitSG2002 (RISCV)LicheeRV Nano (RISCV)CM4 (ARM)Resolution1080P @ 60fps1080P @ 60fps1080P @ 60fpsVideo EncodingMJPEG, H264MJPEG, H264MJPEG, H264Video Latency90–230ms90–230ms100–230msUEFI/BIOS✓✓✓Emulated USB Keyboard & Mouse✓✓✓Emulated USB Storage✓✓✓IPMI✓✓✓Wake-on-LAN✓✓✓Tailscale✓✓✓WebSSH✓✓✓Custom Scripts✓✓-ETH100M/10M100M/10M1000M/100M/10MPoEOptionalOnly external connection1000M/100M/10MWiFiOptional-✓ATX Power ControlDirectly connects to 9Pin power headerUSB interface IO control boardRJ45 interface IO control boardOLED Display64*32 0.49" white128x64 0.96" white128x32 0.91" whiteSerial Terminal2 channels2 channels-Micro SD CardYes, ready to use on bootYes, ready to use on bootYesPower Consumption0.2A@5V0.2A@5VPeak 2.6A@5VPower InputMultiple power modesPowered by PC USBAlso supports additional auxiliary powerRequires DC 5V 3A powerCoolingSilent, fanlessSilent, fanless
Requires active cooling fanDimensions66x57x18mm (without panel)40x36x36mm120x68x44mm
