  Introduction

The Lichee NanoKVM is an IP-KVM product based on the LicheeRV Nano, inheriting its compact size and powerful features.

NanoKVM includes an HDMI input interface that can be recognized as a monitor by a computer, capturing the computer's screen. It has a USB 2.0 interface to connect to the computer host, is recognized as an HID device like a keyboard, mouse, and touchpad, and uses extra storage space on the Micro SD card, mounted as a USB flash drive. It comes with a 100 Mbps Ethernet port for video and control signal transmission. Additionally, the Full version features an ATX power control interface (USB-C form) for remote control and monitoring of the host's power status. Under the full version's shell, there is an OLED display showing the device's IP and KVM-related status.

Features

• Server Management: For real-time monitoring and control of servers.
• Remote Desktop and Power Control: Provides remote control functionality without requiring the host to be networked or run specific software.
• Remote Installation: Simulates a USB flash drive to mount installation images and set up the system, also allows BIOS access.
• Remote Serial Port (Not exposed in Full beta version): Provides two serial ports for IPMI use or connecting other development boards for web-based serial terminal interaction. More features are coming soon (e.g., live streaming), stay tuned.

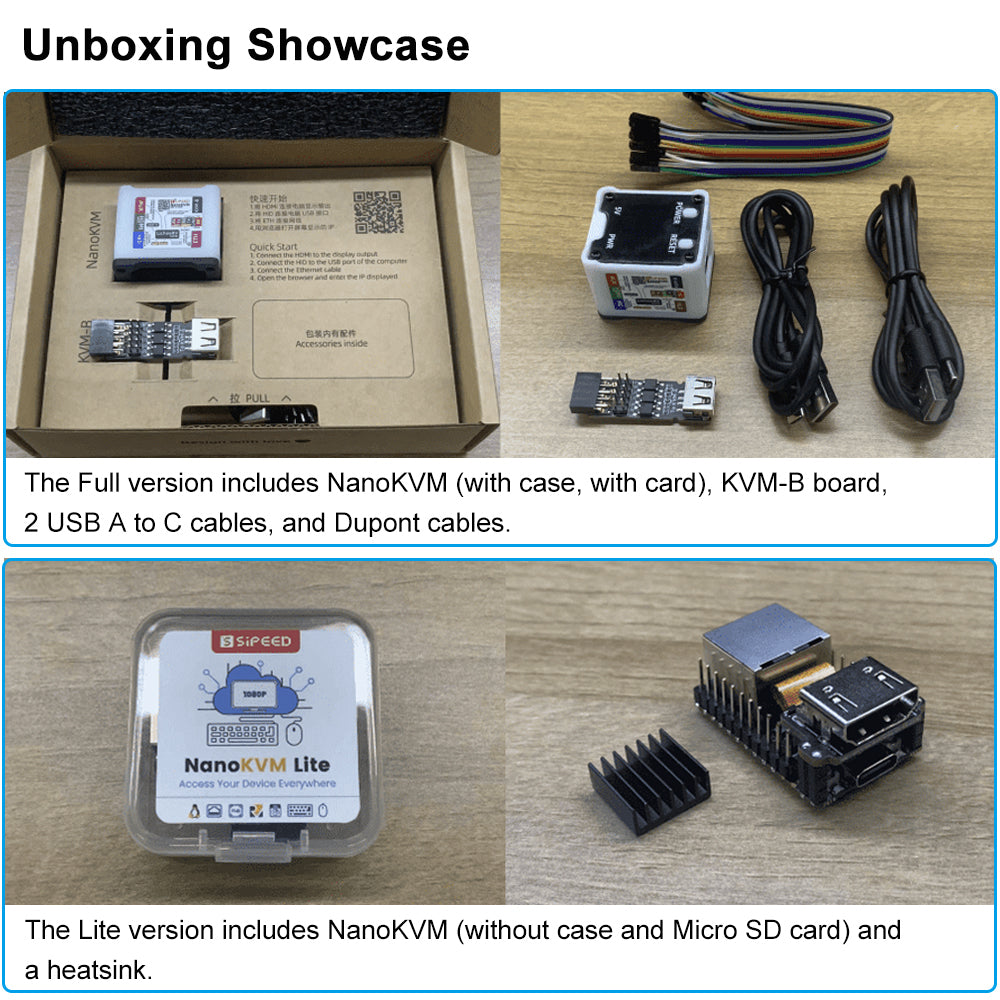

Shipping List

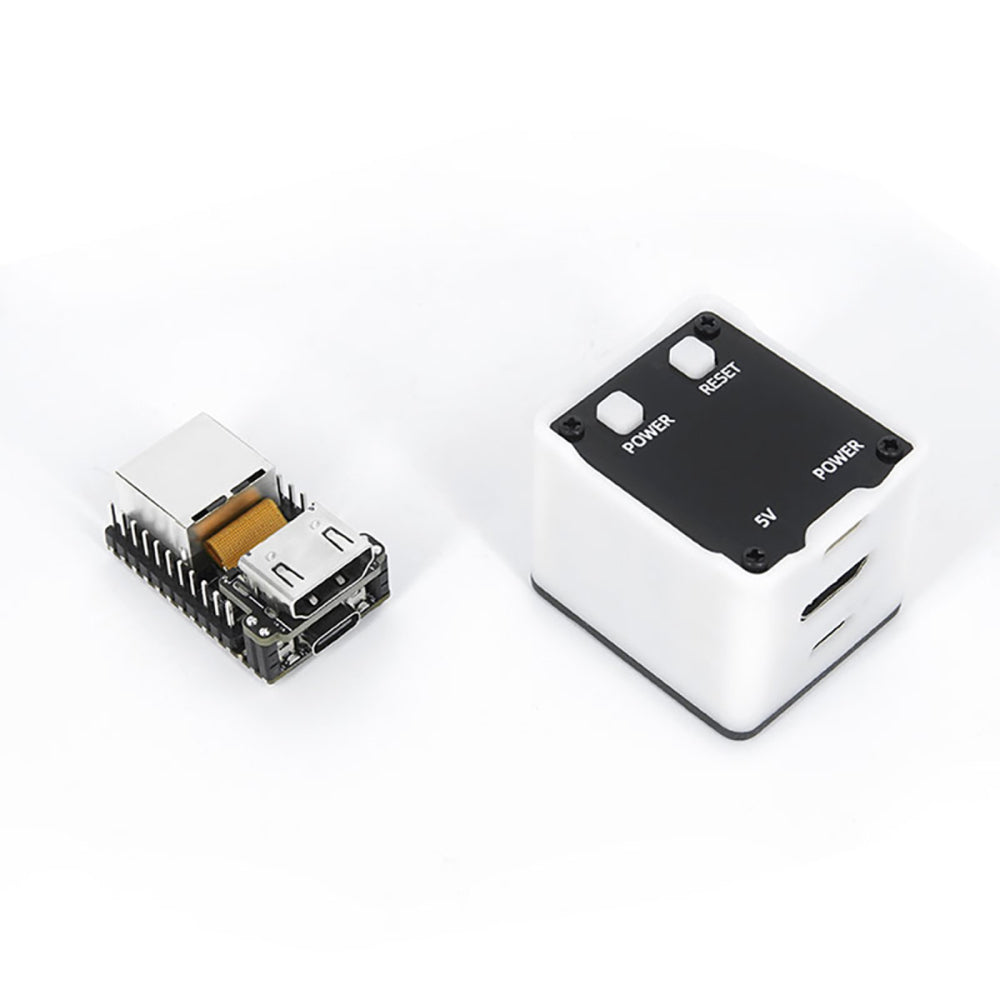

• NanoKVM Lite: Basic version suitable for DIY enthusiasts and enterprises with bulk requirements.

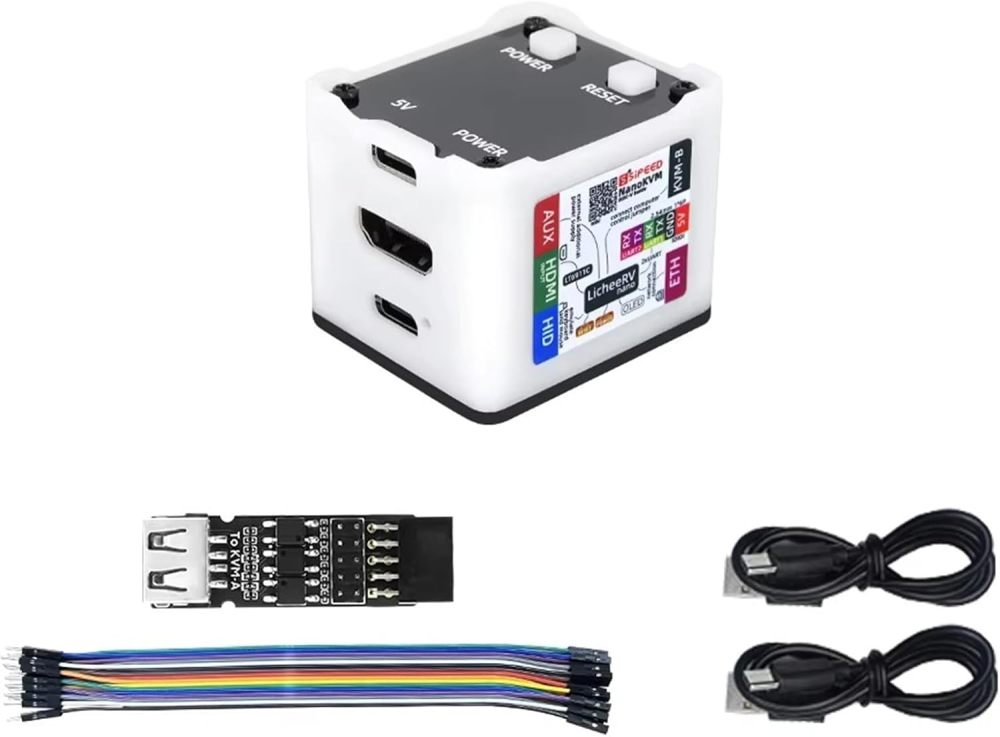

• NanoKVM Full: Complete version with a sleek shell and full accessories, including a pre-installed system image card, recommended for individual users.

Specification

📦 NanoKVM (Lite) Specifications

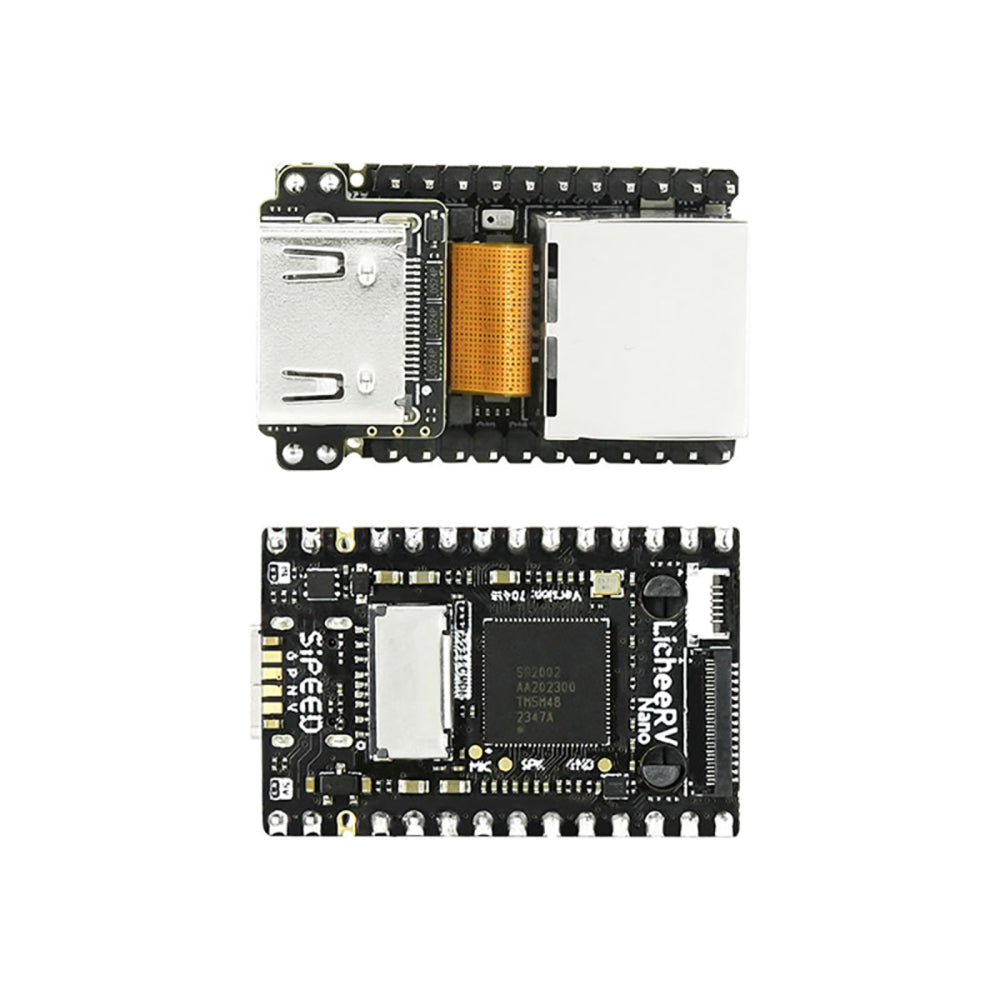

• Computing Unit: LicheeRV Nano (RISC-V Architecture)
• Video Performance: 1080P @ 60fps (MJPEG; H264 WIP)
• Video Latency: 90-230ms
• Key Features: UEFI/BIOS Access, Emulated USB Keyboard/Mouse/Storage, IPMI, Wake-on-LAN, Tailscale, WebSSH, Custom Scripts Support
• Network: 10/100Mbps Ethernet
• ATX Power Control: None (User-configurable wiring required)
• Display & Storage: No built-in OLED (User-expandable); Micro SD Card not included (User-provided)
• Serial Terminal: 2 Channels
• Power Source: Powered directly by Target PC USB Port (No external adapter needed)
• Power Consumption: 0.2A @ 5V (Ultra-low power)
• Cooling: Silent, Fanless Design
• Dimensions: 23 x 37 x 15 mm (Ultra-compact, ~1/30 the size of PiKVM V4)

📦 NanoKVM (Full) Specifications

• Computing Unit: LicheeRV Nano (RISC-V Architecture)
• Video Performance: 1080P @ 60fps (MJPEG; H264 WIP)
• Video Latency: 90-230ms
• Key Features: UEFI/BIOS Access, Emulated USB Keyboard/Mouse/Storage, IPMI, Wake-on-LAN, Tailscale, WebSSH, Custom Scripts Support
• Network: 10/100Mbps Ethernet (PoE expansion capable)
• ATX Power Control: Built-in USB Interface IO Control Board (Plug & Play)

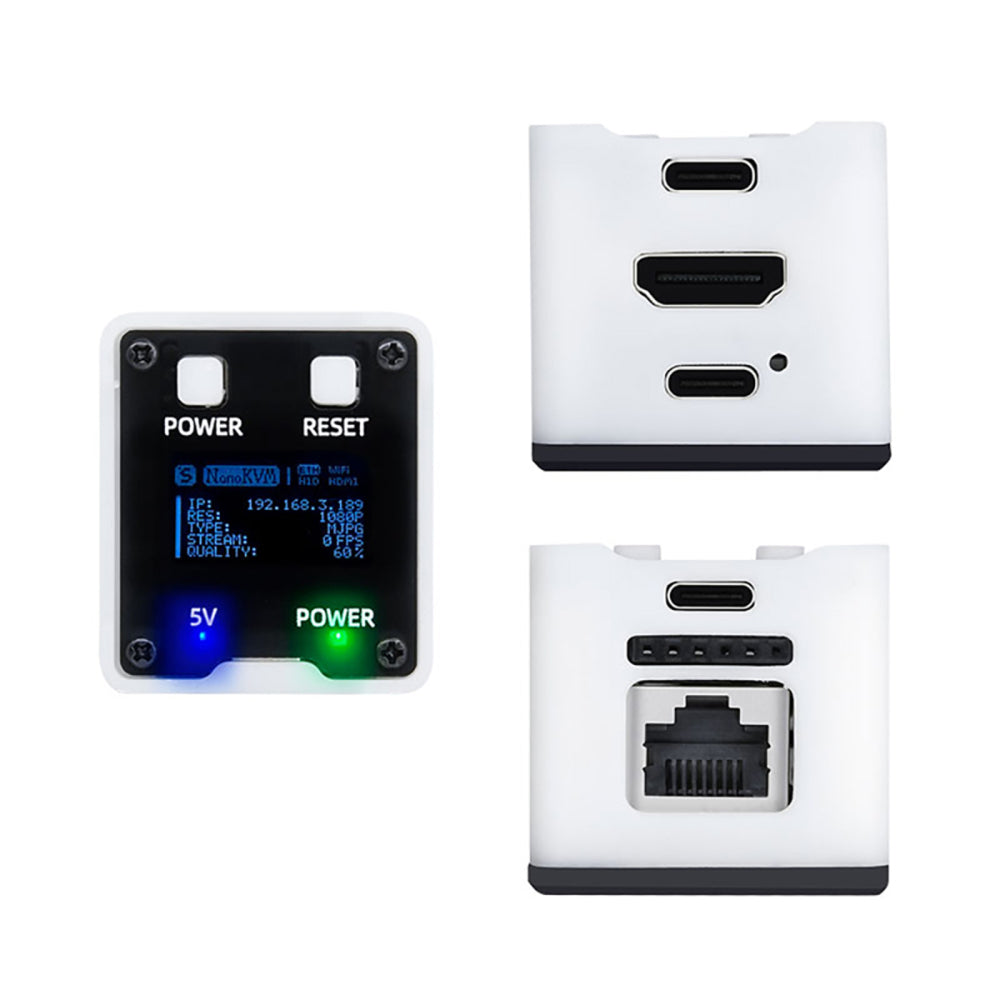

• Display & Storage: Built-in 128x64 0.96" White OLED; Micro SD Card Included (Pre-loaded)
• Serial Terminal: 2 Channels
• Power Source: Powered directly by Target PC USB Port
• Power Consumption: 0.2A @ 5V
• Cooling: Silent, Fanless Design
• Dimensions: 40 x 36 x 36 mm (Compact, ~1/7 the size of PiKVM V4)
