Detailed Descriptions

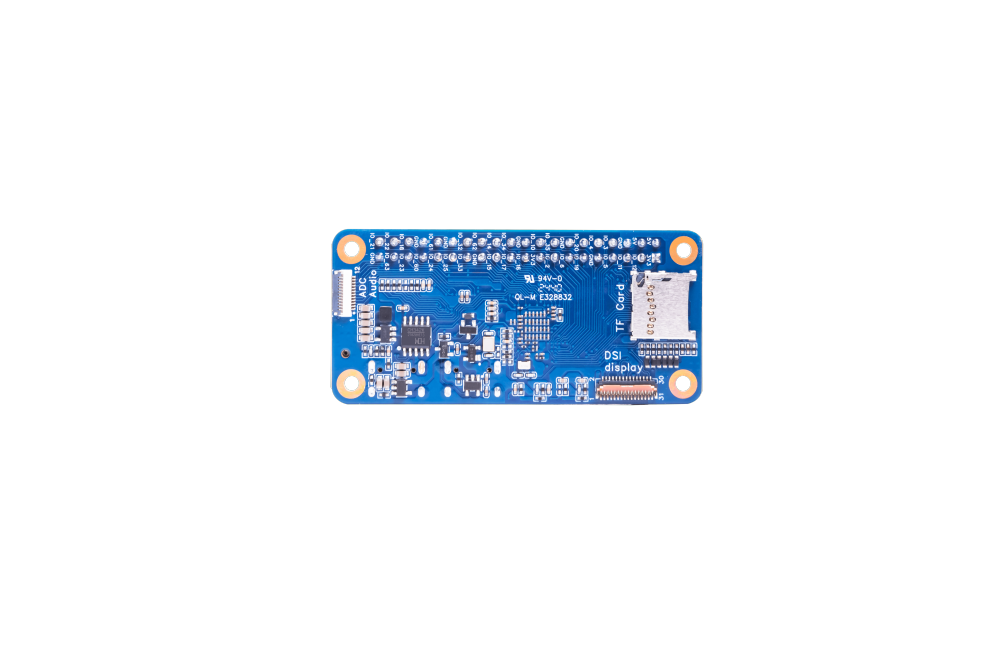

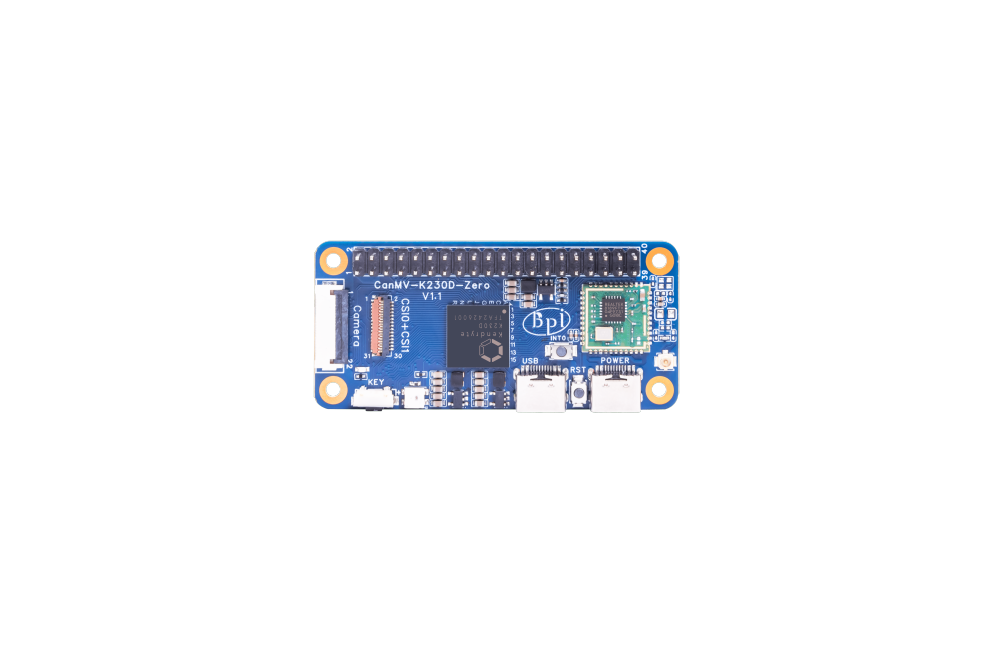

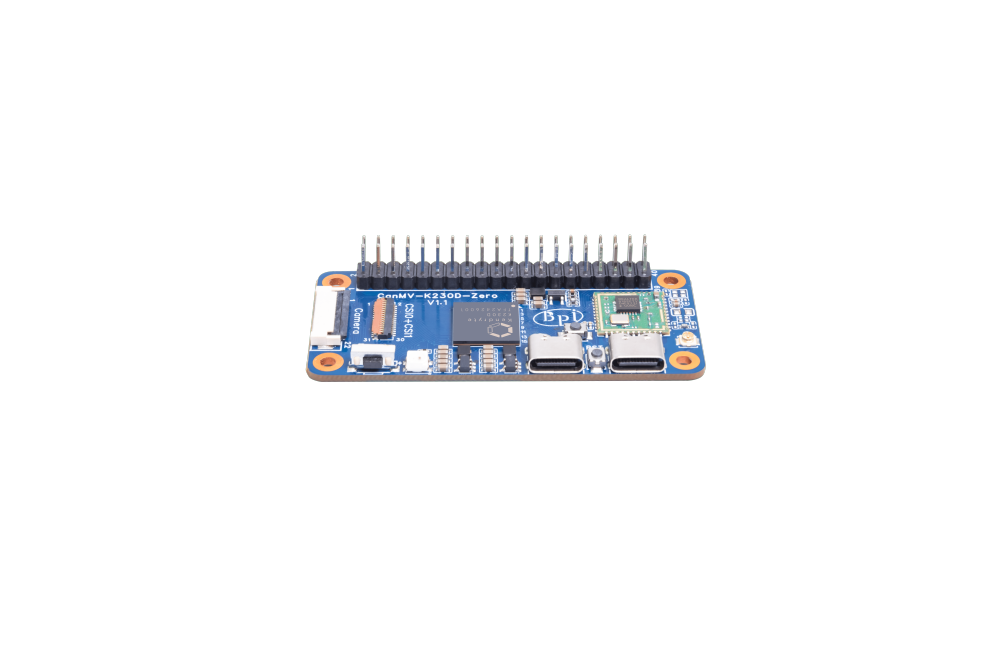

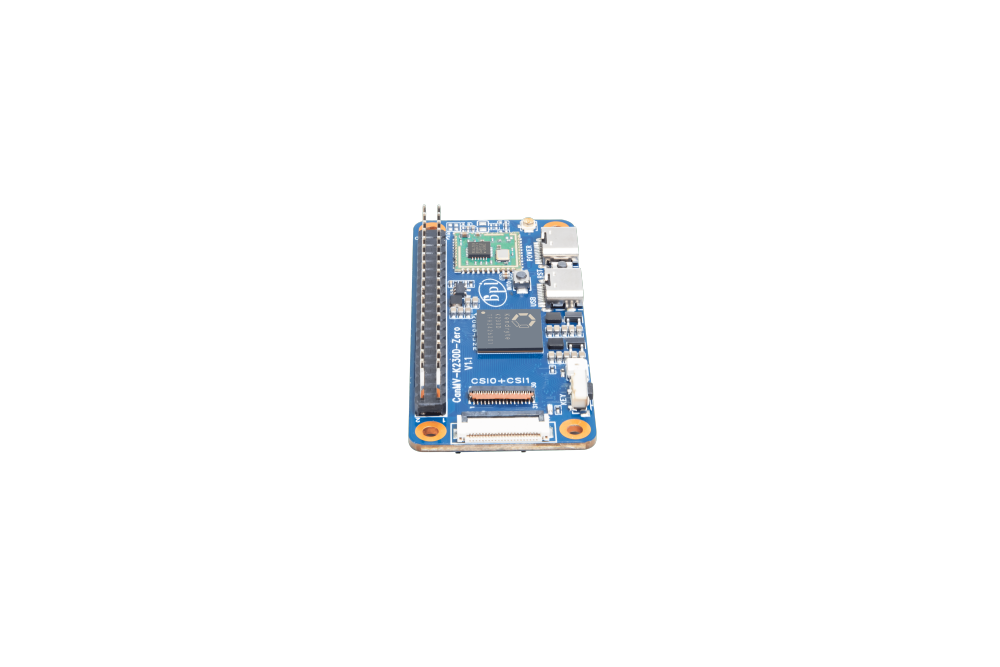

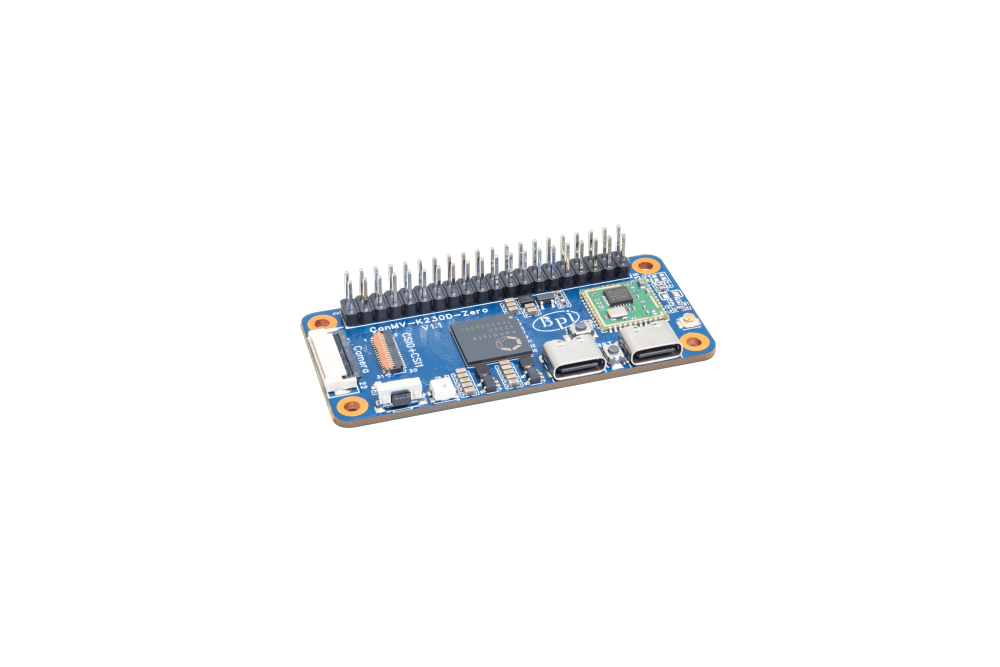

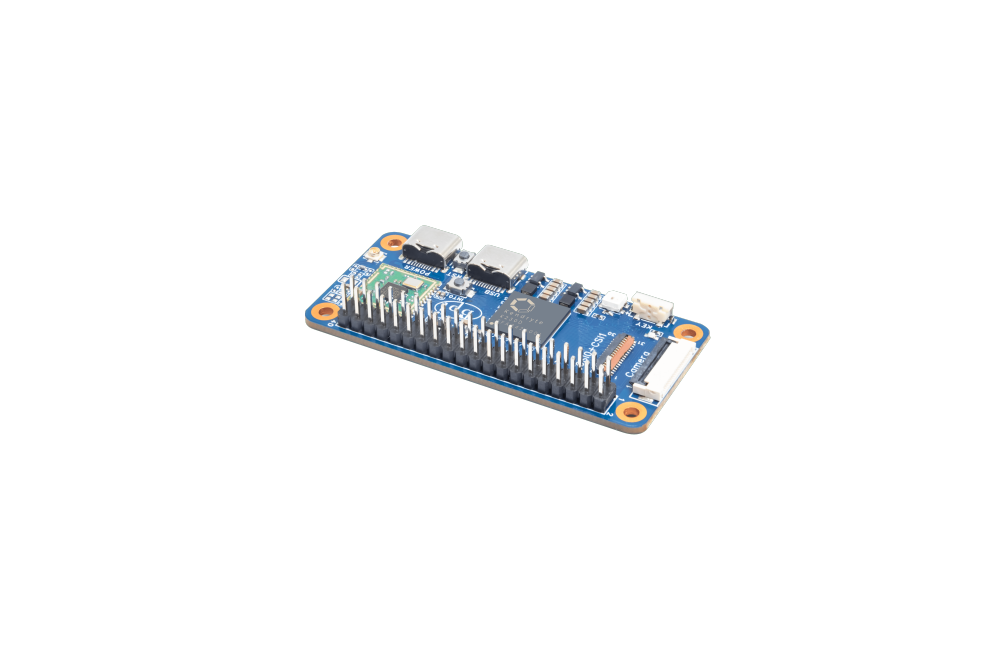

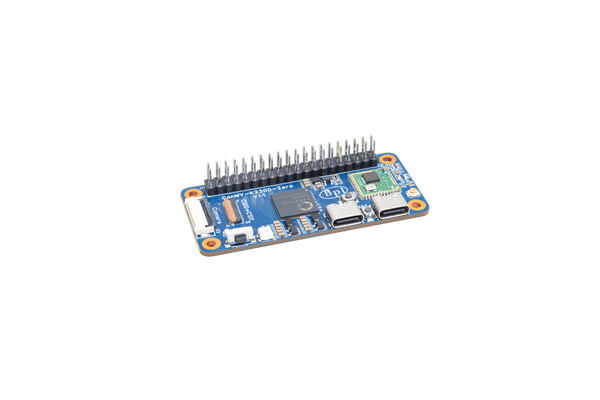

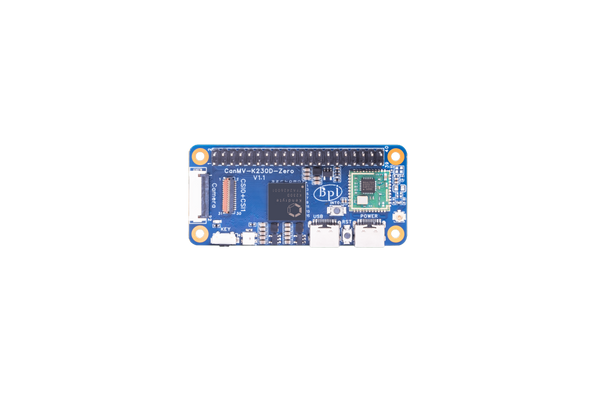

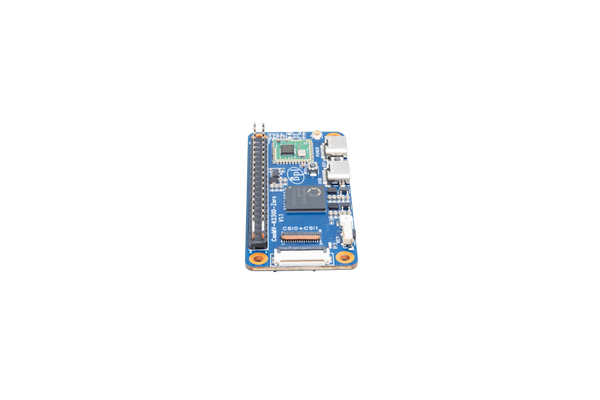

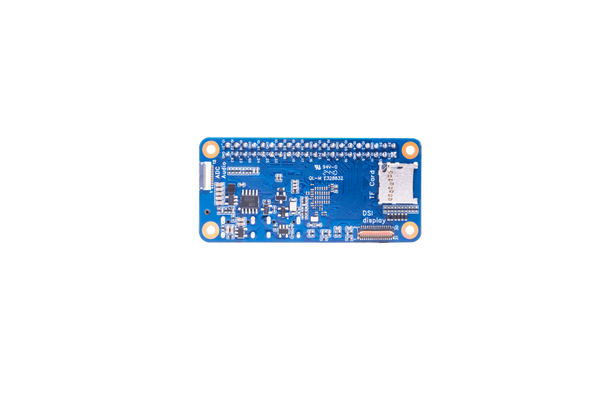

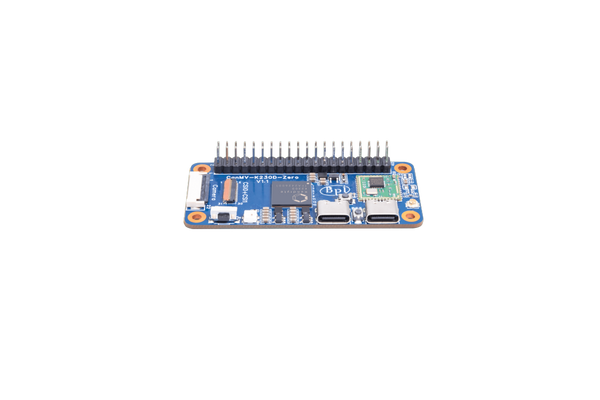

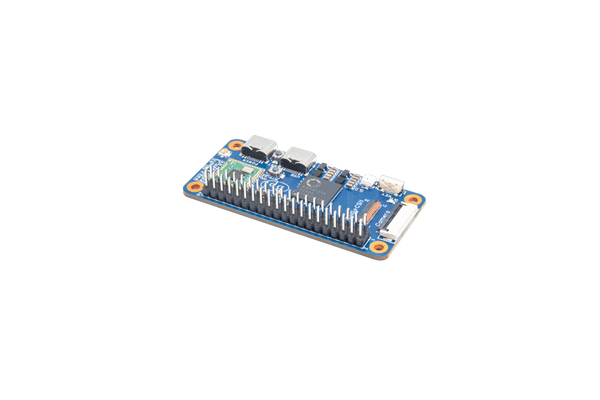

BPI-K230D-Zero - CANMV K230D Zero Form Version - Include 200W Camera


Introduction

Banana Pi BPI-CanMV-K230D-Zero AIoT SBC design with Canaan K230D RISC-V chip. This board is designed by Canaan Technology and Banana Pi open source hardware community, featuring the advanced Kendryte K230D chip. The K230D chip boasts a dual-core XuanTie C908 RISC-V CPU and integrates a self-developed third-generation KPU, with 128MB of LPDDR4 memory, providing high-performance local AI inference computing support. The Canmv K230D Zero is designed to support a variety of DIY projects, AIoT devices, and embedded systems, with its rich development resources and compact size making it one of the most competitive development boards on the market. Whether for learning programming, innovating AI audio and video products, or performance evaluation, the Canmv K230D Zero helps you embark on a journey of innovation.


Features


  • Canaan K230D RISC-V chip

  • 128MB RAM

  • Dual camera

  • MIPI CSI screen

  • Wifi onboard

  • 40 Pin GPIO (Compatible with Raspberry Pi 40PIN)

  • ADC audio


Shipping List

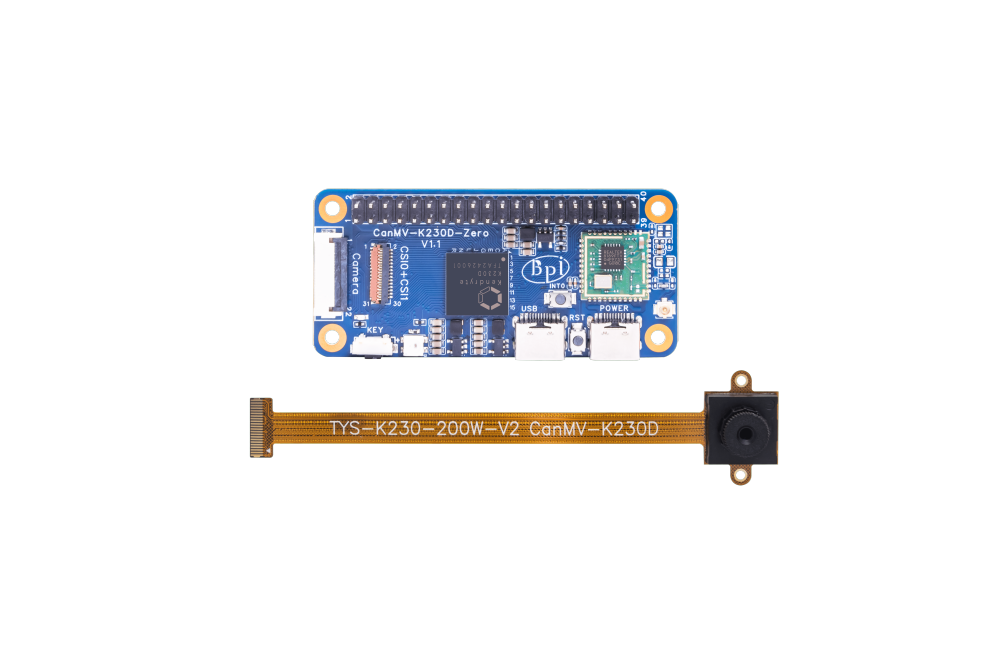

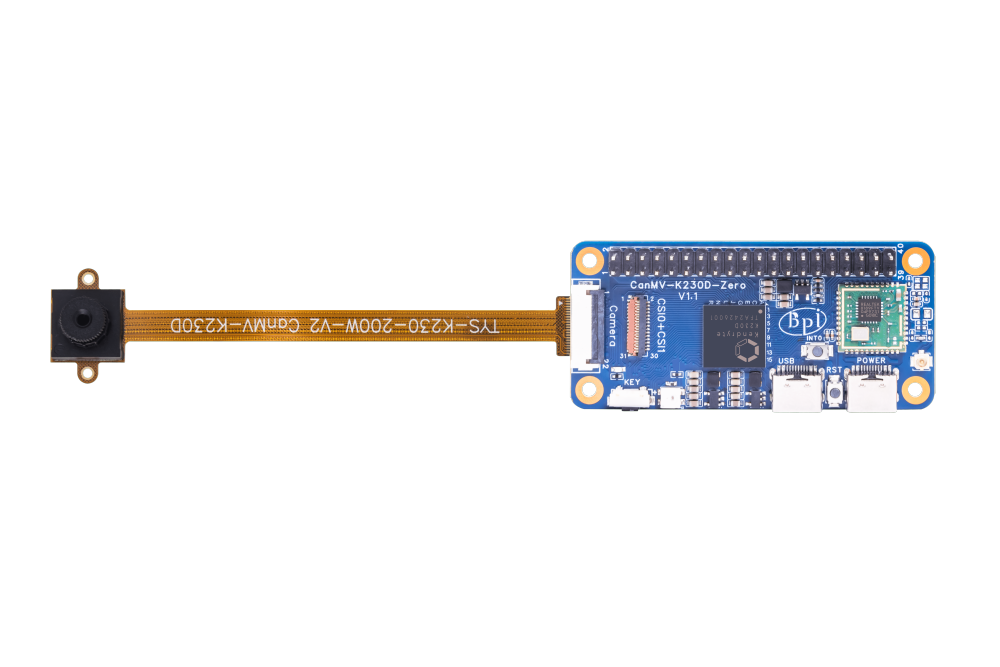

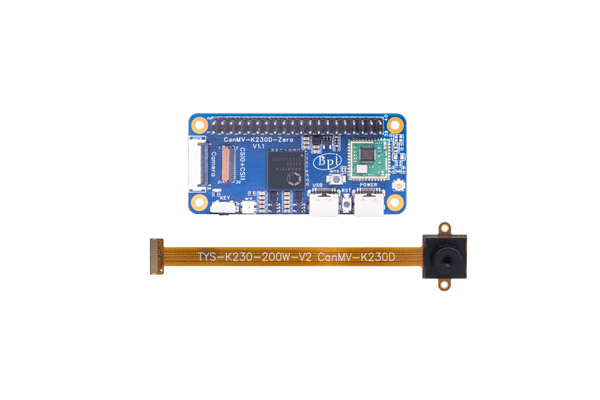

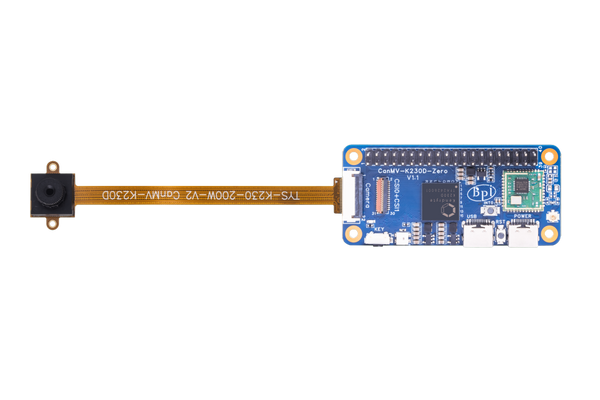

Standard: 1x BPI-K230D-Zero, 1x 200W MIPI Camera (GC2093 V2)
Dev Kit 1: Standard + 1x Type-C USB Cable, 32GB TF card with reader, 1x FPC ANT.
Dev Kit 2: Dev Kit 1 + 1x 40Pin GPIO (Color), 1x USB OTA Cable, 1x Metal Case.
Display: 3.5inch MIPI Display (touch optional)
Camera: 200W MIPI Camera (GC2093 V2),


Applications

These features make this SBC suitable for applications such as AI tasks such as image, video, and audio processing.


Specification

Hardware Specification of BPI-CanMV-K230D-Zero

Parameter

Description

CPU

XuanTie C908 dual-core RISC-V CPU;

CPU1: 1.6GHz, supports RVV1.0;

CPU2: 800MHz

KPU

Third-generation KPU, supports various data types such as INT8/INT16; Typical network performance: Restnet50 >= 85fp@INT8,Mobilenet_V2>=670fps@INT8; YoloV5s >= 38fps@INT8

DPU

Built-in 3D structured light depth engine, maximum up to 1920*1080

VPU

Built-in H.264/H.265 hardware encoder/decoder

Video Input

2 lane MIPI-CSI * 1 + 4 lane MIPI-CSI * 1; Maximum resolution up to 4K

Display Out

MIPI DSI interface supports up to 1080P display

RAM

128MB LPDDR4@2666Mbps

Storage

Onboard TF card expansion interface, supports up to 1TB

USB

1 channel USB 2.0 interface, supports OTG function

Network

2.4G Wi-Fi

Audio

Onboard microphone * 1

GPIO

40Pin expandable GPIO; supports I2C/UART/I2S/SPI/PWM/ADC/JTAG expansion conversion

Buttons

Function button * 1; Reset button * 1

Power Supply

USB Type-C 5V@2A

Dimensions

Length: 65mm Width: 30mm Height: 7mm
