Vendor: BPI
SKU: BPDPF3DB0416
Availability: Out of stock
$730.00
Model: 4GB RAM + 16GB EMMC
Other: No
Product subtotal: $730.00

You may also like

Banana Pi BPI-F3 - Industrial grade RISC-V SBC

  • Quick Start: WIKI
  • Tips
    • Armbian image currently only supports SD card startup.
    • Baudrate:115200
    • bianbu os username/password: root/bianbu
    • 12V3A DC PSU Purchase LINK
    • PD power supply is recommended to choose one that can output 12V3A.


Introduction

Banana Pi BPI-F3 is an industrial-grade RISC-V development board, it is designed with a SpacemiT K1 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 8G DDR and 16G eMMC onboard.2x GbE Ethernet port, 4x USB 3.0 and PCIe for M.2 interface, support HDMI and Dual MIPI-CSI Camera.




Features

  • 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power

  • Single-core general computing power equivalent to 1.3 times Cortex-A55

  • Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory

  • 4K decoding and encoding

  • 5-lane PCIE2.1 expansion capability

  • 1x USB 3.0 + 2x USB 2.0 interfaces

  • 12x UART serial ports

  • Operating temperature range: -40°C to 85°C


Shipping List

1x Banana Pi BPI-F3


Applications

  • NAS

  • Laptop

  • Intelligent robotics

  • Industrial control

  • AI edge computing

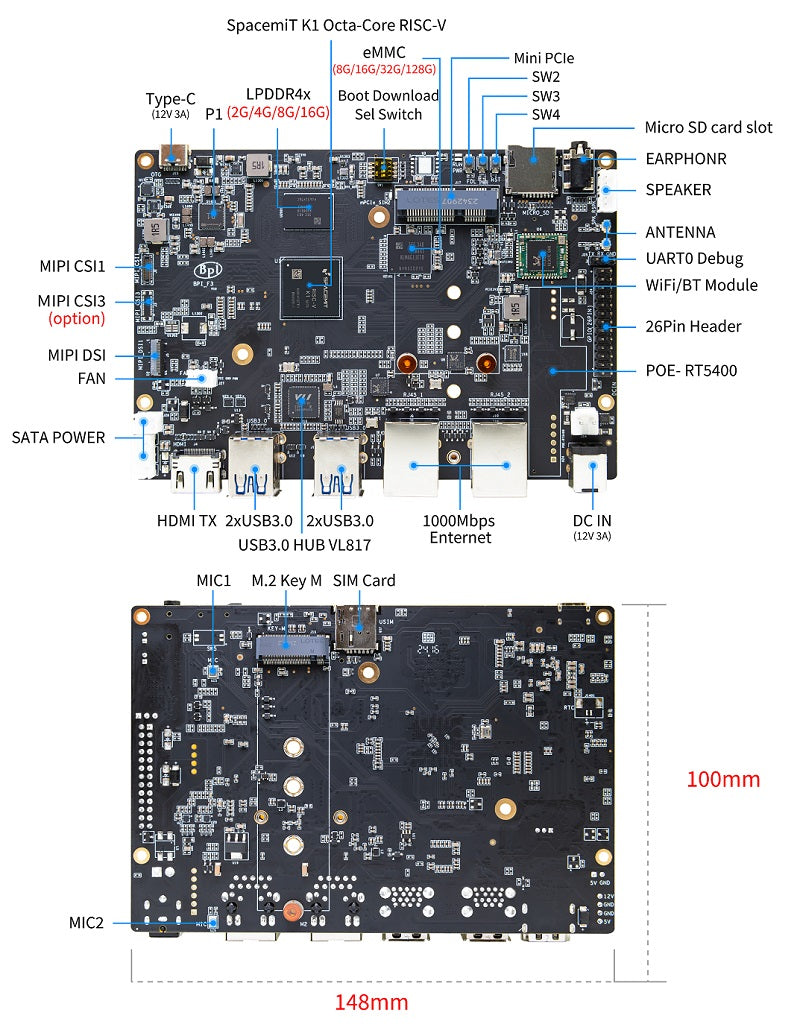

Specification

CPU

SpacemiT K1 8-core RISC-V chip

AI

2.0Tops from RlSC-V Core

Memory

4 GB LPDDR4 (Supports up to 8G LPDDR4)

Storage

16G eMMC flash,4M SPI NOR,32M SPI NAD

SD card

MicroSD card slot (Greater than 256MB)

Wireless

2.4G/5G WiFi and Bluetooth 4.2

Ethernet

2x GbE Ethernet port(supports PoE with add-on PoE HAT)

HDMI

1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps )

Audio

Speaker, Mic， Earphone

Camera

MIPI-CSI, Dual-shot support

USB

4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG

PCIe

PCIE2.1 2lane * 2.
PCIEB 2lane connect M.2 KEY M( Support JMB582 expansion card to SATA )
PCIEC 1lane connect MINI PCIE

GPIO

26-pin header

Buttons

Reset, Power, and Burn

LED

Power Status

Power

12V3A 5521 DC and TYPE-C in

Size

148x100 mm

Weight

200g

Detailed Descriptions



Overview

The Banana Pi BPI-F3is a high-performance Single Board Computer (SBC) designed for the next generation of computing. Built on the SpacemiT K1 processor, it leverages the open RISC-V architecture to provide a versatile platform for developers and industrial engineers. Whether you are building a smart gateway, an AI edge node, or a RISC-V desktop workstation, the BPI-F3 offers the connectivity and processing power required for demanding tasks.

Key Features

  • 🚀 SpacemiT K1 Octa-Core Performance: Experience high-speed processing with the X60 core (RVA22 compliant). The integrated 2.0 TOPS AI engine allows for efficient machine learning inference at the edge without additional accelerators.
  • 💾 Massive Memory & Storage: Configurable with up to 16GB LPDDR4/4X RAM, ensuring smooth multitasking for heavy workloads. Onboard eMMC options (up to 128GB) combined with a MicroSD slot provide flexible storage solutions.
  • 🔗 Extensive Connectivity: Equipped with Dual Gigabit Ethernet ports for robust networking, WiFi 6 (RTL8852BS) for high-speed wireless, and 4x USB 3.0 ports for fast peripheral connections.
  • 🎨 Rich Multimedia Interfaces: Supports HDMI 1.4 output (1080p@60fps) and IMG BXE-2-32 GPU, making it capable of driving displays for desktop use. Dual MIPI-CSI interfaces allow for simultaneous camera inputs.
  • ⚙️ Industrial Expansion: Features PCIe 2.1 interfaces (M.2 Key M and Mini PCIe), enabling connections to 4G modules, NVMe SSDs, or other industrial expansion cards.

Technical Specifications

CategorySpecification

Processor SpacemiT K1 Octa-core X60 (RISC-V RV64GCVB, RVA22)

AI Acceleration2.0 TOPS (Integrated)

GPUIMG BXE-2-32 @ 819MHz

Memory LPDDR4/4X (Options: 2GB / 4GB / 8GB / 16GB)

Storage Onboard eMMC (8/16/32/128GB), MicroSD Slot

Video Output: HDMI 1.4 (1080p@60fps), MIPI DSI

Camera2x MIPI-CSI (Support 16M/8M sensors)

USB4x USB 3.0 Type-A, 1x USB 2.0 Type-C (OTG)

Network2x GbE (PoE supported), WiFi 6, Bluetooth 4.2

ExpansionM.2 Key M (PCIe 2.1), Mini PCIe

Power Supply 12V DC Jack or Type-C

Ideal Applications

  • AI Edge Computing: Running lightweight AI models locally using the integrated NPU.
  • Industrial Control: Stable performance for automation and robotics.
  • NAS & Storage Servers: Dual LAN and USB 3.0 make it ideal for home or small business servers.
  • RISC-V Development: A reference platform for software porting (Ubuntu, Debian, OpenWrt).

Package Contents

  • 1x Banana Pi BPI-F3 Board
  • Standard packaging (Heatsink/Cooling solution may vary by SKU
