NanoPi R4S Mini Portable Travel Router - OpenWRT Mainline, Dual-Gbps Ethernet Ports 4GB LPDDR4

• Quick Start: WIKI
• Tips

  Due to the shortage of the chip that has a unique built-in MAC address, we no longer list the R4S board with a unique MAC address for retail sales. If you want to order the R4S board with a unique MAC address, you have to place an order with a minimum order quantity of 100 pieces. Please contact shop@youyeetoo.com for more info.


Introduction

• The NanoPi R4S(as "R4S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.
• The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications etc.

Shipping List

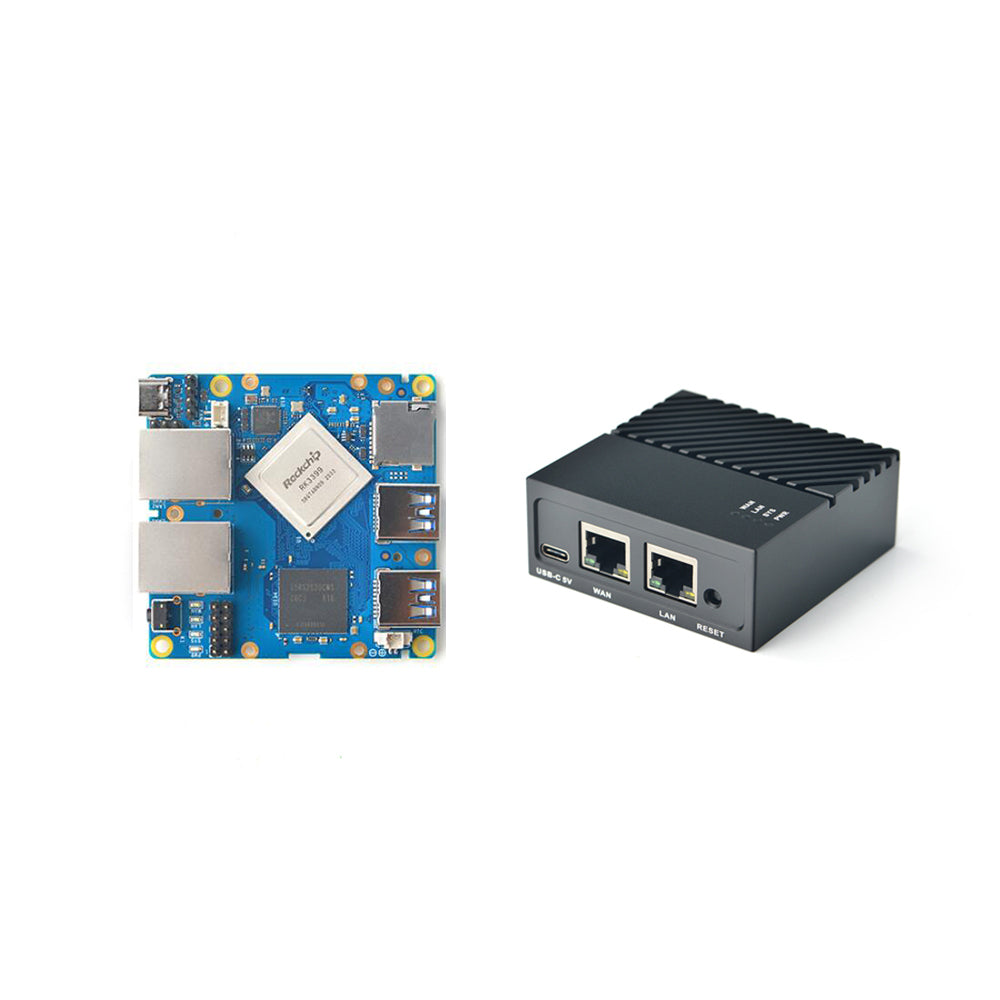

1x NanoPi R4S bare board
or

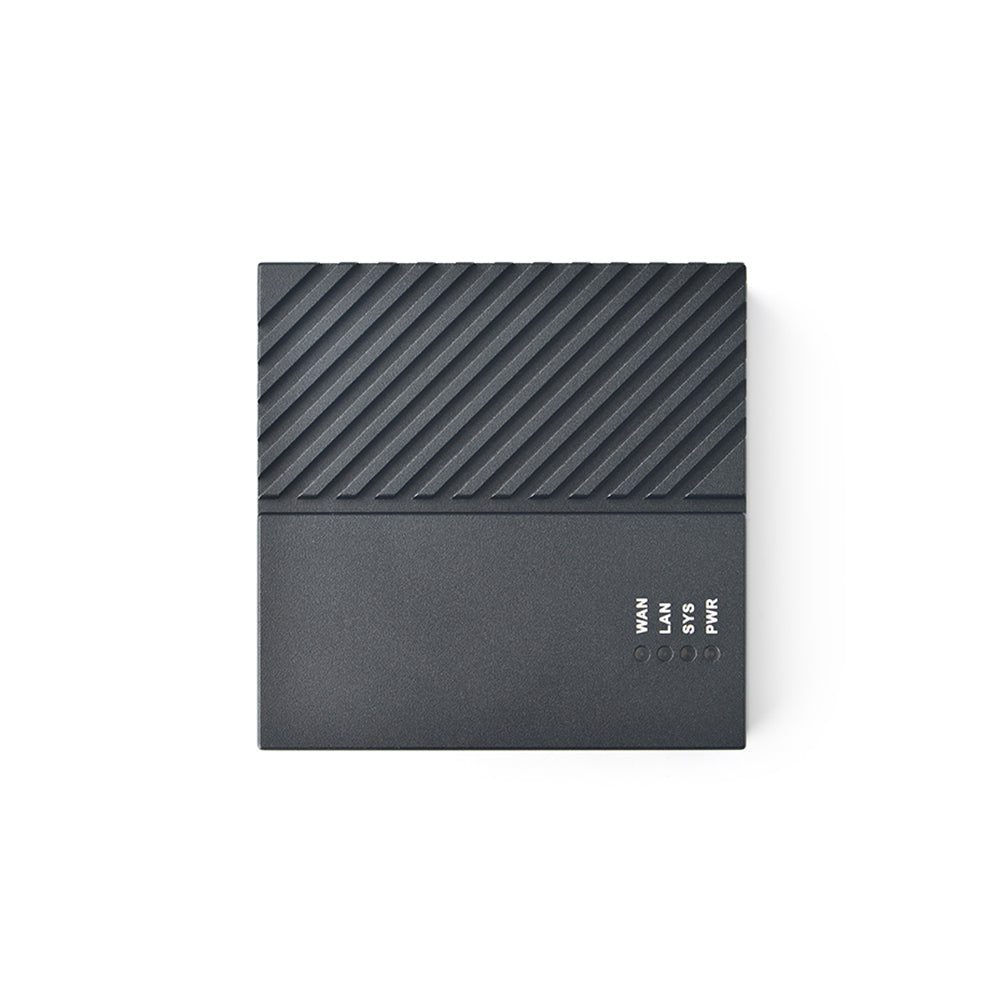

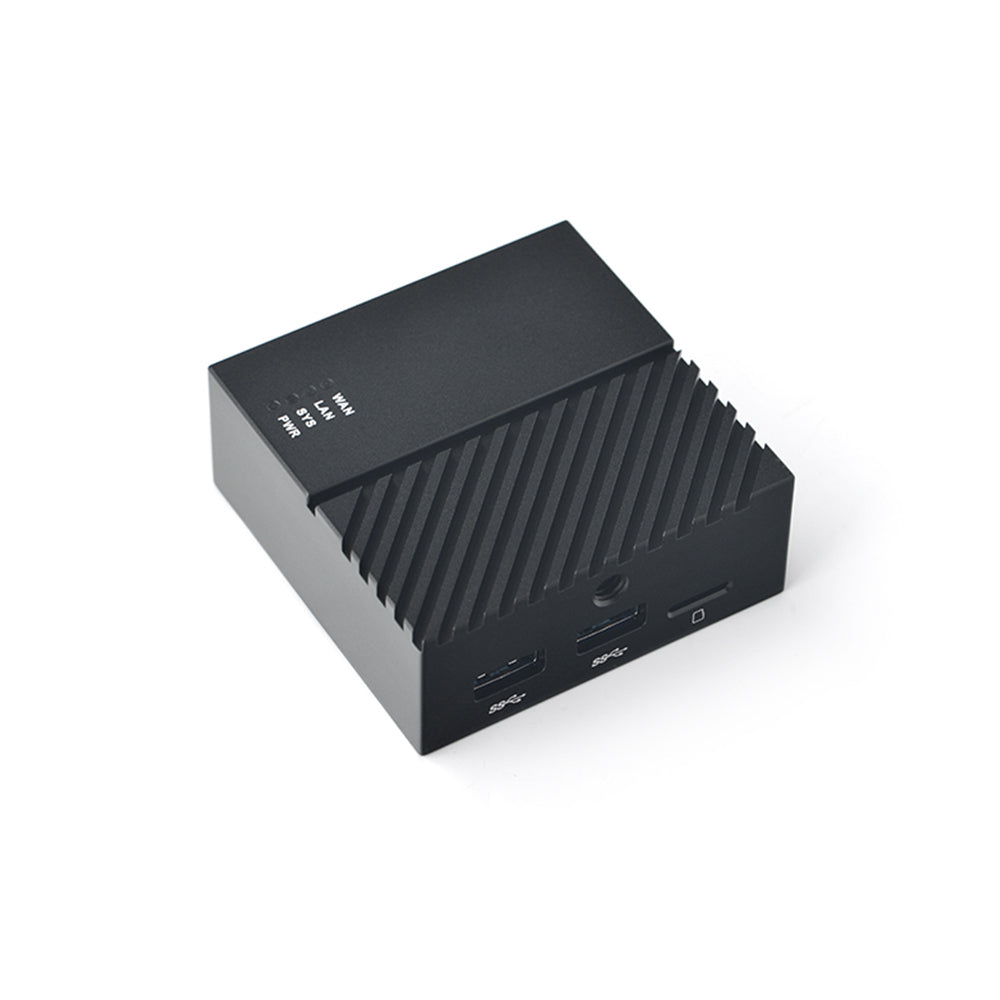

1x NanoPi R4S with Metal Case

Applications

Router, NAS

Specification

• SoC: Rockchip RK3399

  CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
  GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
  VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc


• PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
• RAM: 1GB DDR3/4GB LPDDR4
• Flash: no Onboard eMMC
• Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet

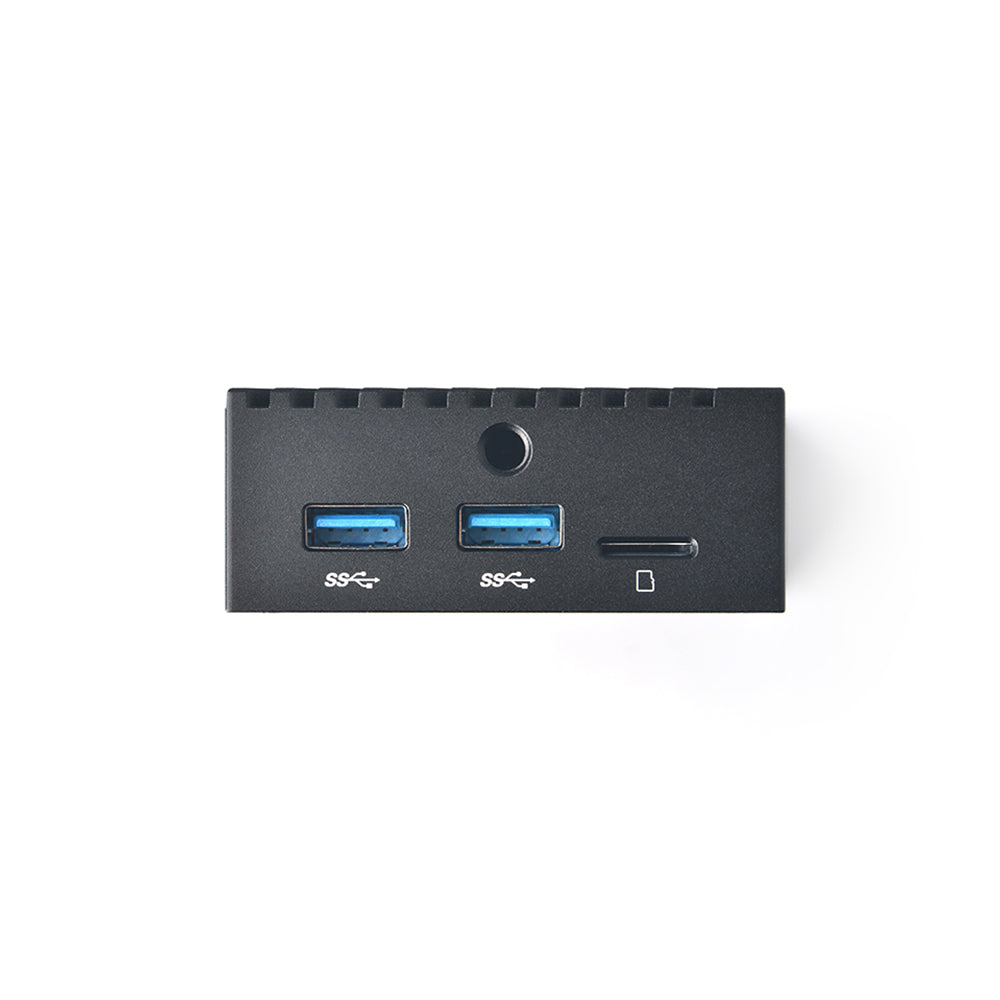

• USB: two USB 3.0 Type-A ports
• Pin header extension interface

  2x5-pin header: SPI x 1, I2C x 1
  4-pin header: USB 2.0


• microSD Slot x 1
• Debug: one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
• LEDs: 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
• others:

  2 Pin 1.27/1.25mm RTC battery input connector
  One User Button
  One 5V Fan connector


• Power supply: DC 5V/3A, via USB-C connector or Pin header
• PCB: 8 Layer, 66 mm x 66 mm
• Temperature measuring range: 0℃ to 80℃
