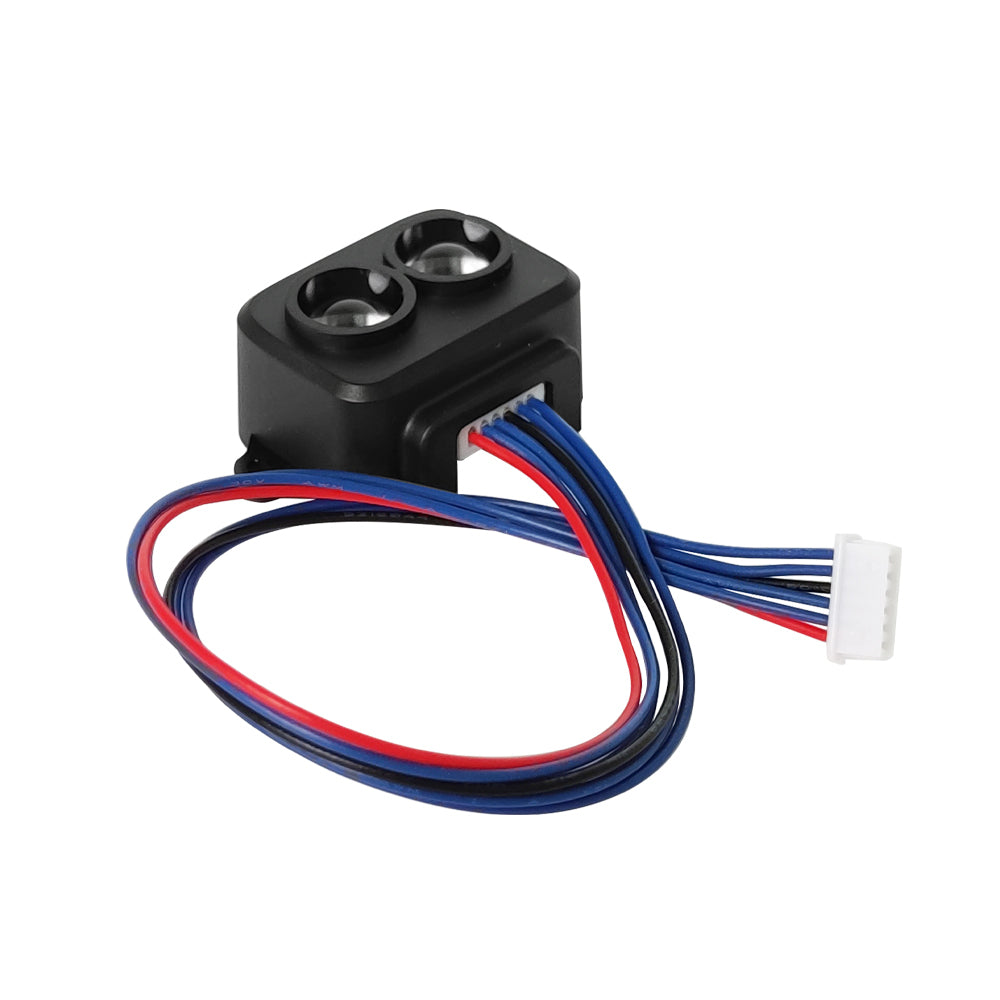

TF-Luna - 0.2~8 Meter Lidar Sensor

• Quick Start[Datasheet]: https://wiki.youyeetoo.com/en/Lidar/TF-Luna
• [Tutorials]: https://drive.google.com
• Tips

  Tech Feedback: forum.youyeetoo.com



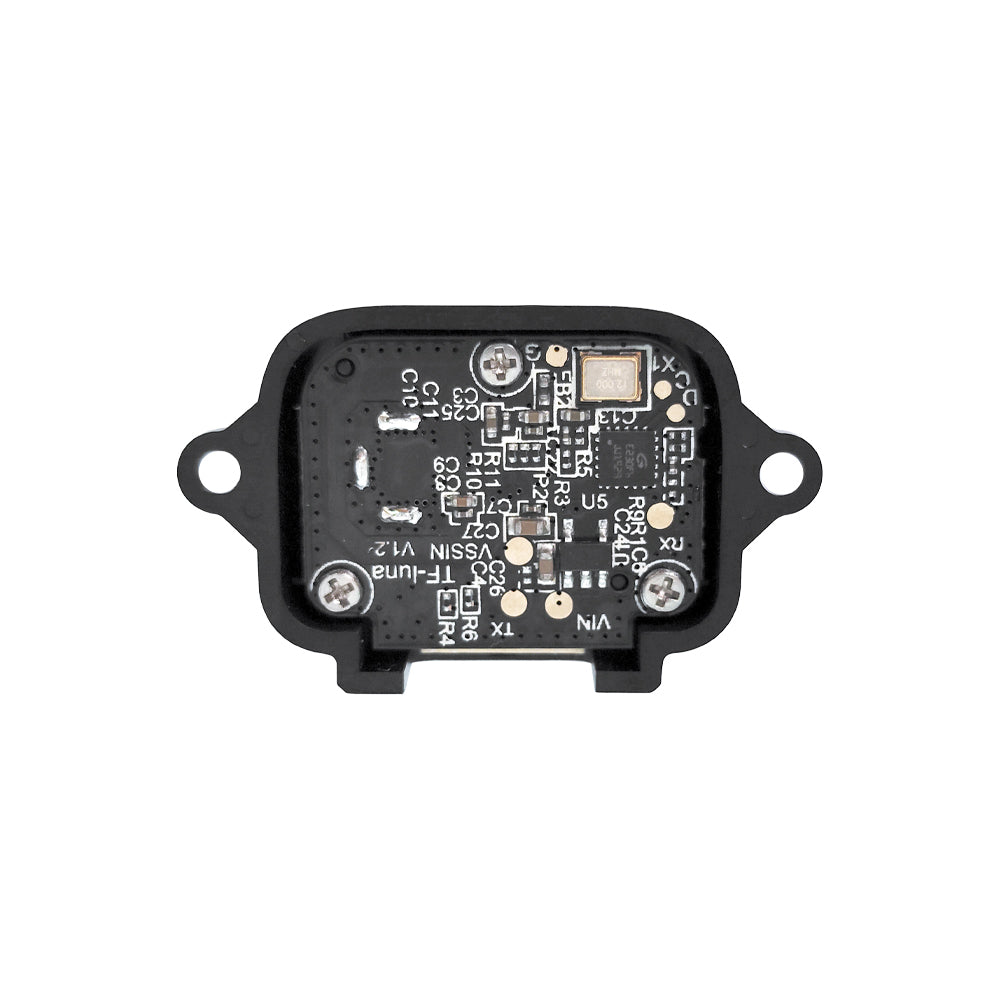

Introduction

TF-Luna is a single-point ranging Lidar based on the TOF principle. With its unique optical and electrical design, it adopts an 850nm infrared light source to achieve stable, accurate, and highly sensitive distance measurements.
TF-Luna LiDAR Range Sensor has built-in adaptation algorithms for a variety of application environments and targets and is open to a variety of adjustable configurations and parameters. It can ensure excellent range performance in complex environments and meet the needs of customers in complex application scenarios.

Features

• Compact structure
• Lightweight
• Low-power consumption
• Cost-effective

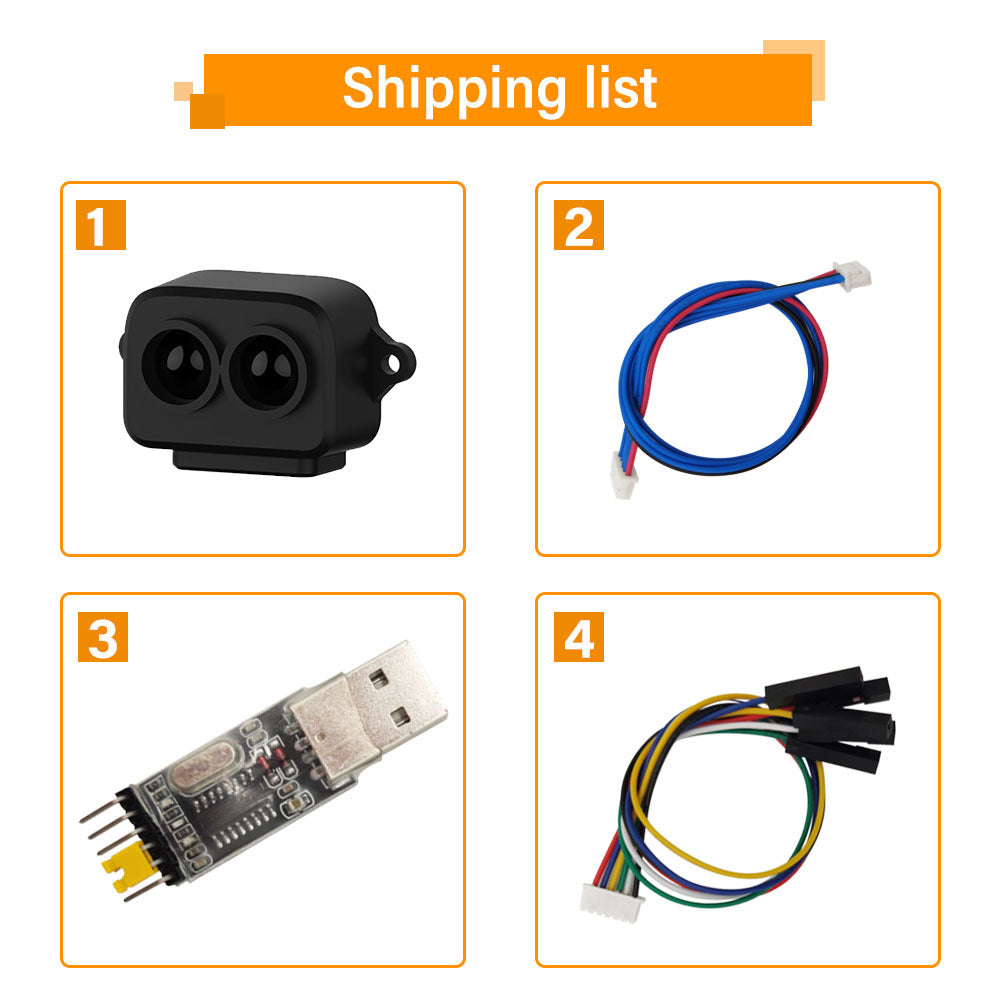

Shipping List

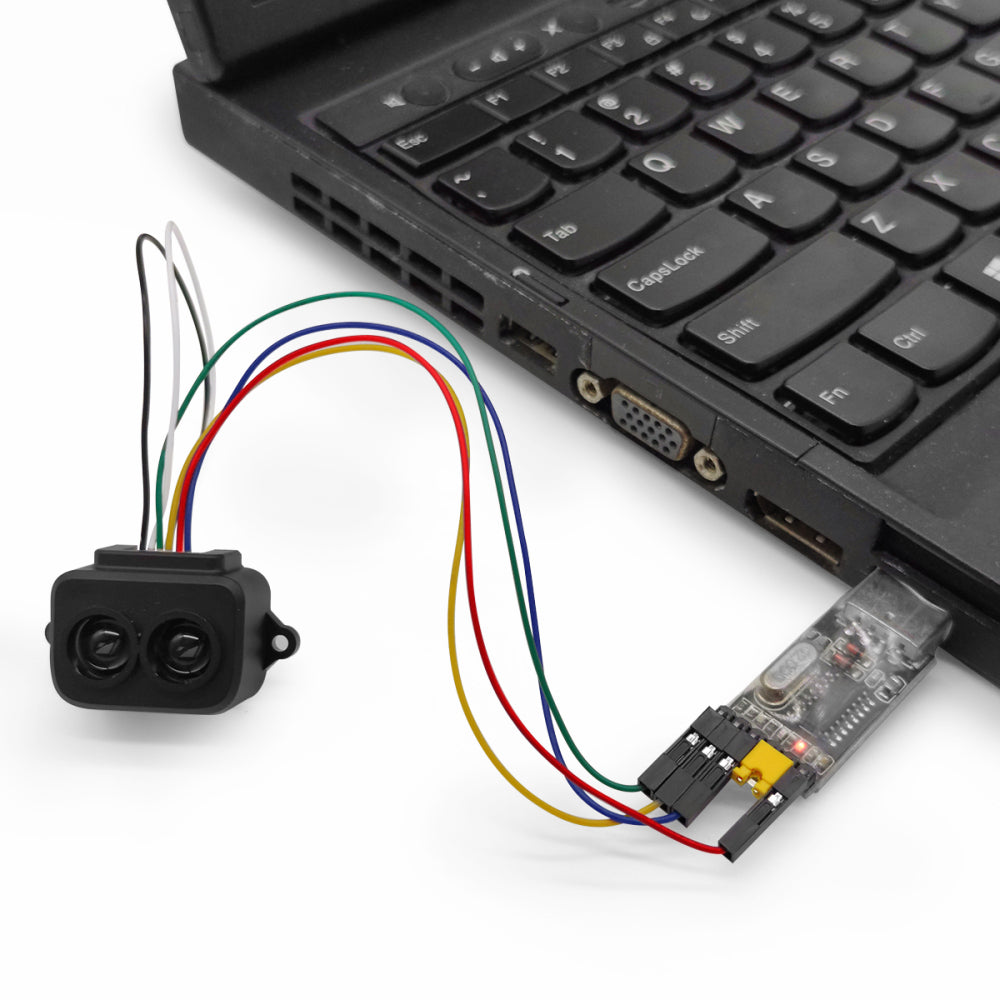

TF-Luna x1
USB to TTL adapter x1
Cable x2

Applications

• Assisted Focusing
• Elevator projection
• Intrusion detection
• Level measurement

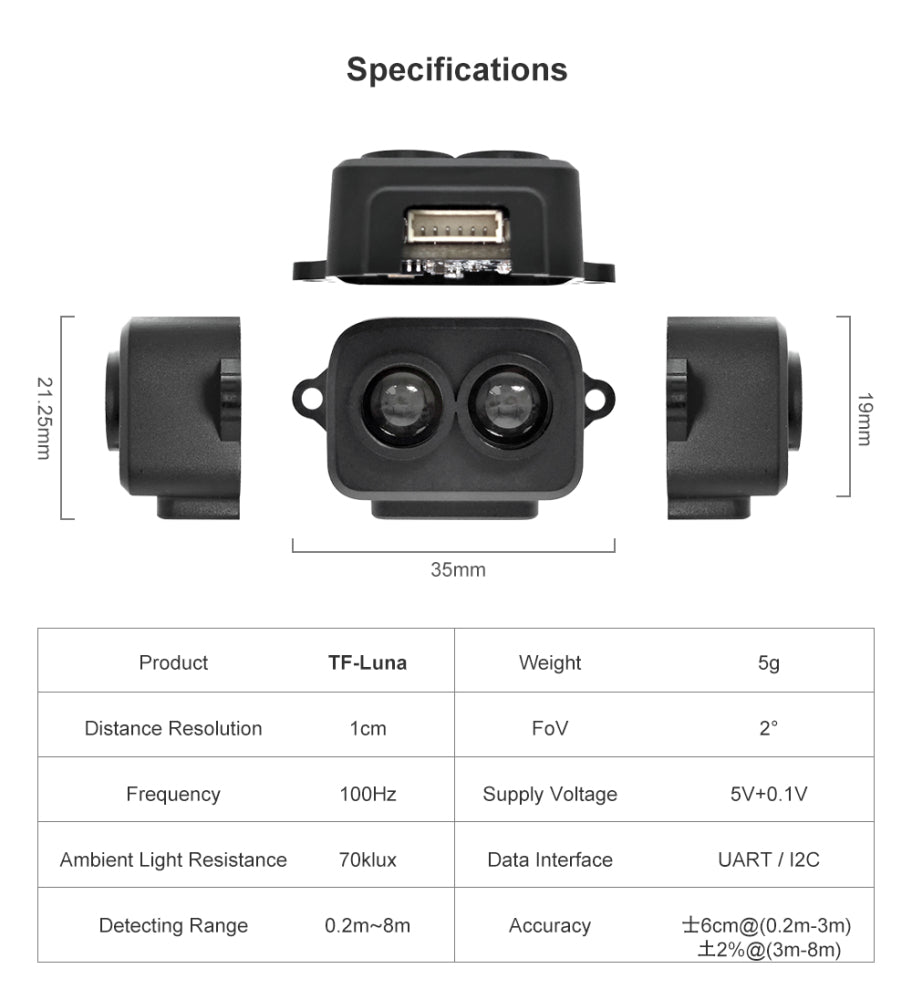

Specification

Product performance

• Operating range: 0.2 m ~8 m (90%reflectivity)1
• Accuracy: ±6cm at (0.2 - 3 m) 2 | ±2% at (3 - 8 m)
• Distance resolution: 1 cm
• Frame rate: 1-250 Hz3
• Ambient light immunity: 70 Klux
• Operating temperature: -10 ~60 °C

Optical parameters

• Light source: VCSEL
• Central wavelength: 850 nm
• Photobiological safety: Class1 (IEC60825)
• FOV: 2°4

Electrical parameters

• Supply voltage: 3.7 - 5.2 V
• Average current: 70 mA
• Power consumption: 0.35 W
• Peak current: 150 mA
• Communication level: LVTTL (3.3V)
• Communication interface: UART / I2C

Other

• Housing: ABS+PC
• Storage temperature: -20 ~75 °C
• Weight: <5 g
