Introduction

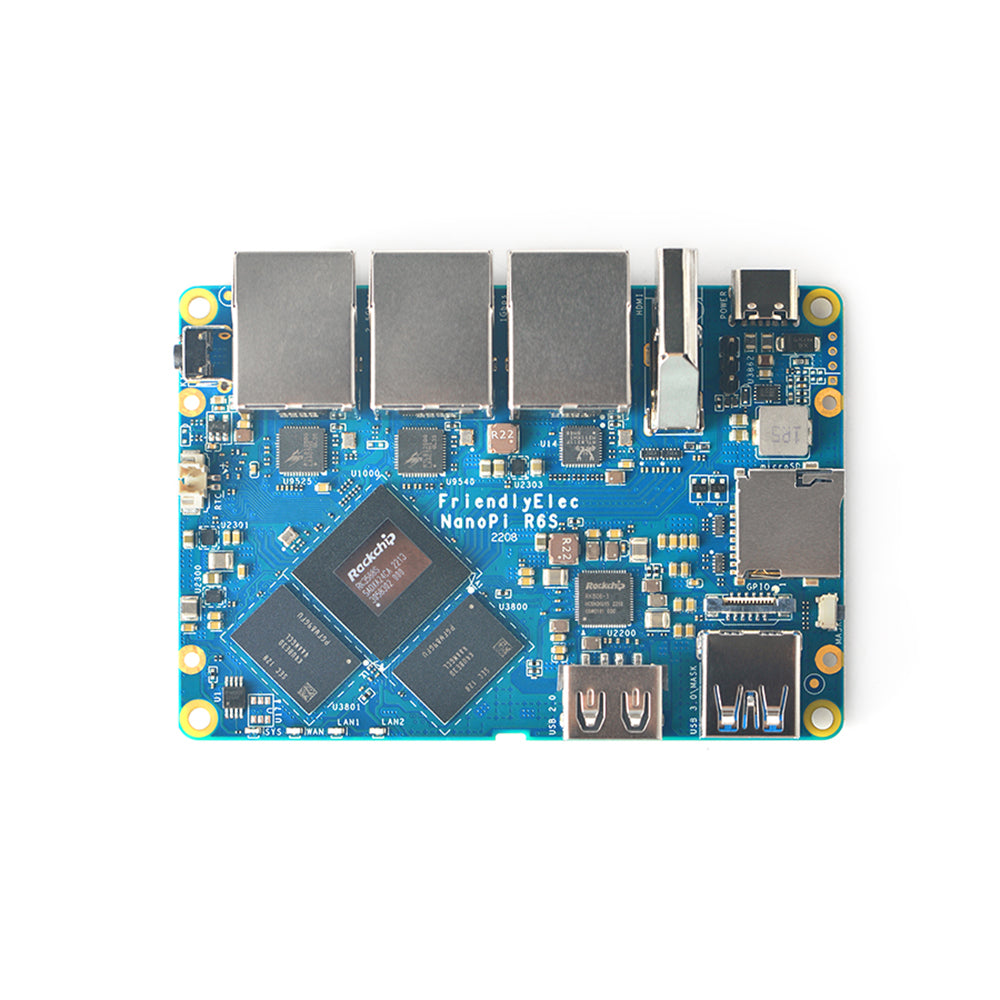

The NanoPi R6S (as “R6S”) is an open-sourced mini IoT gate way device with two 2.5G and one Gbps Ethernet ports, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3588S CPU, 8GB LPDDR4x RAM and 64GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

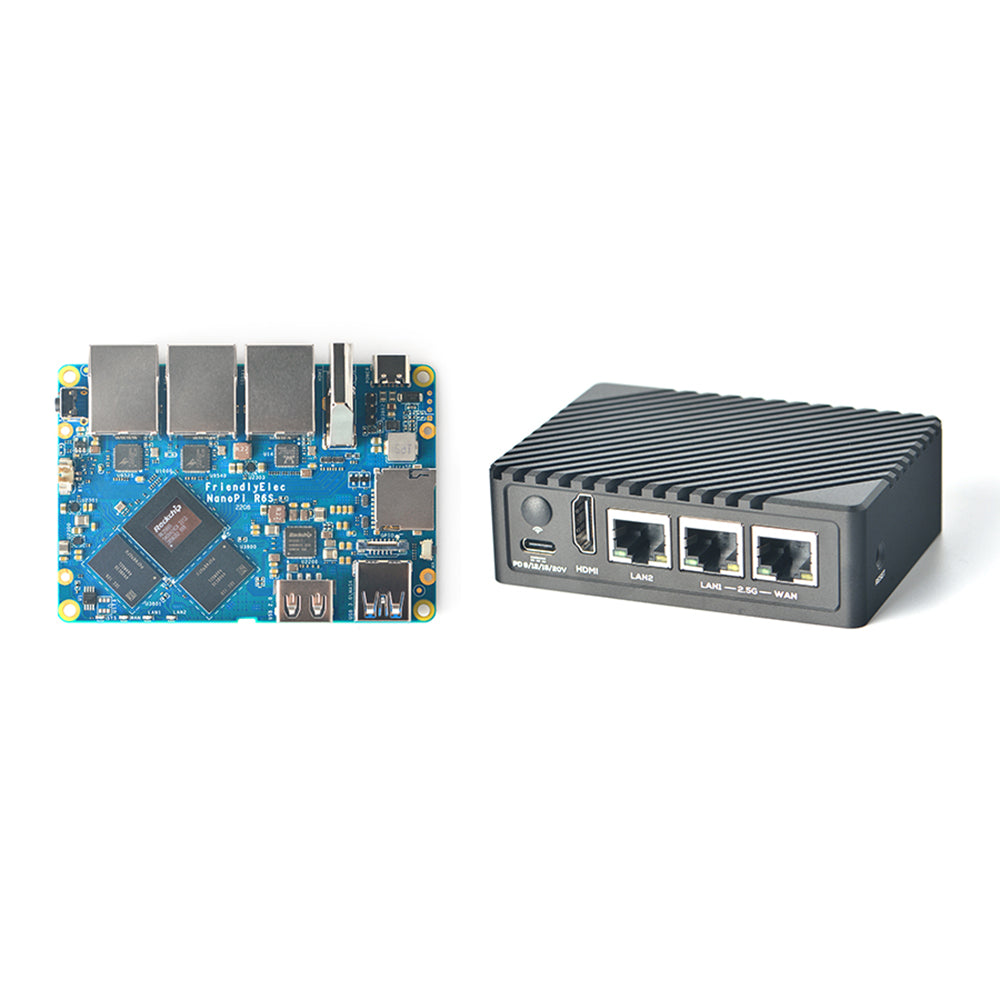

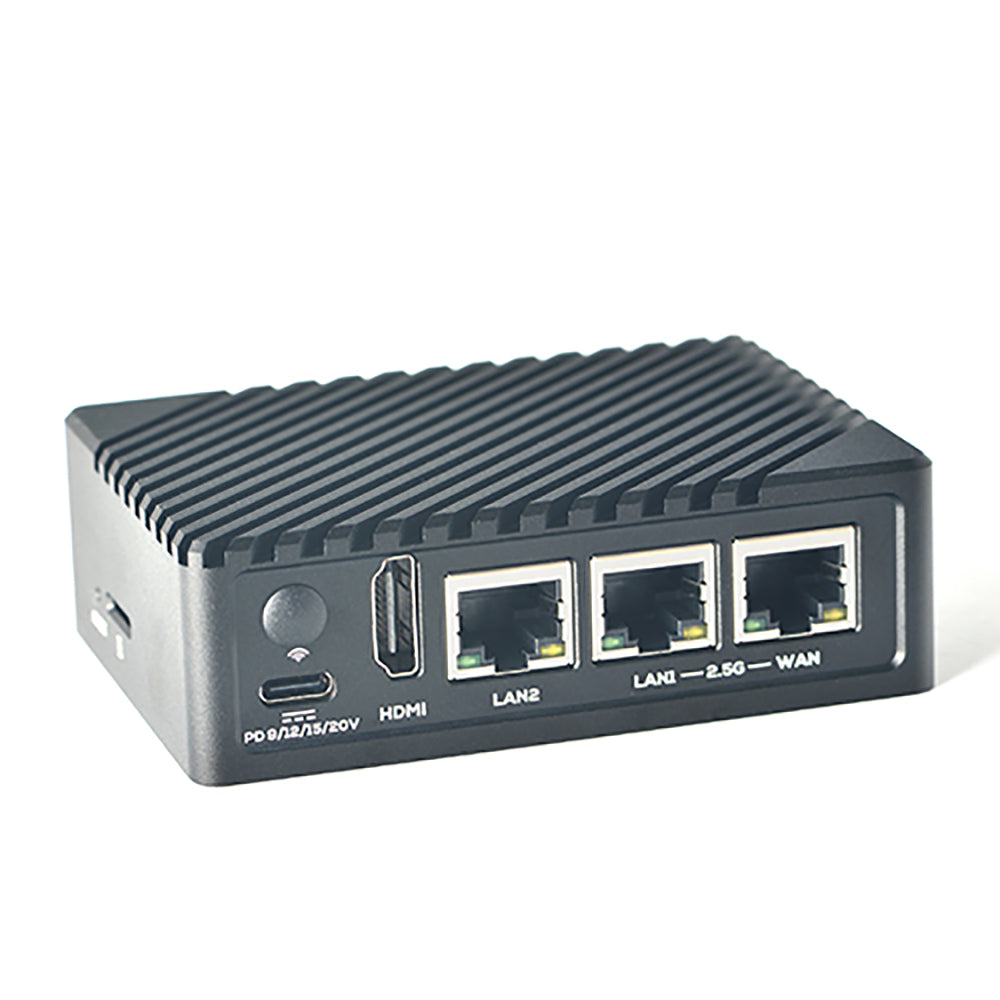

The NanoPi R6S has rich hardware resources with a compact size of 90 x 62 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Debian Desktop and Ubuntu etc and works with headless systems as well. It supports decoding 8K60 H.265/VP9 formatted videos.
The NanoPi R6S has two USB ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.
All in all, the NanoPi R6S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
Hardware Spec
SoC: Rockchip RK3588S
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 8GB LPDDR4X at 2133MHz
Flash: 64GB eMMC, at HS400 mode

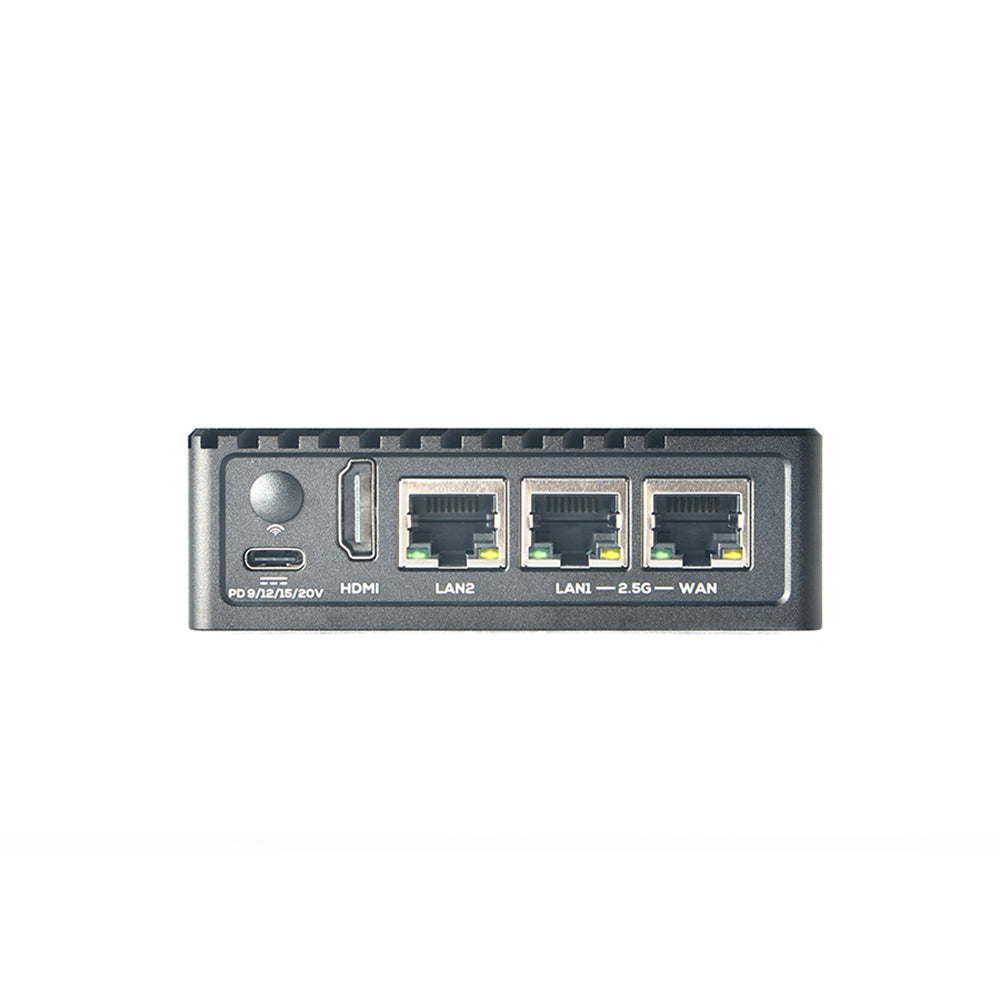

Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5G Ethernet
USB: one USB 3.0 Type-A and one USB 2.0 Type-A
HDMI:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
microSD: support up to SDR104 mode
GPIO:
12-pin 0.5mm FPC connector
with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 8x GPIOs
Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

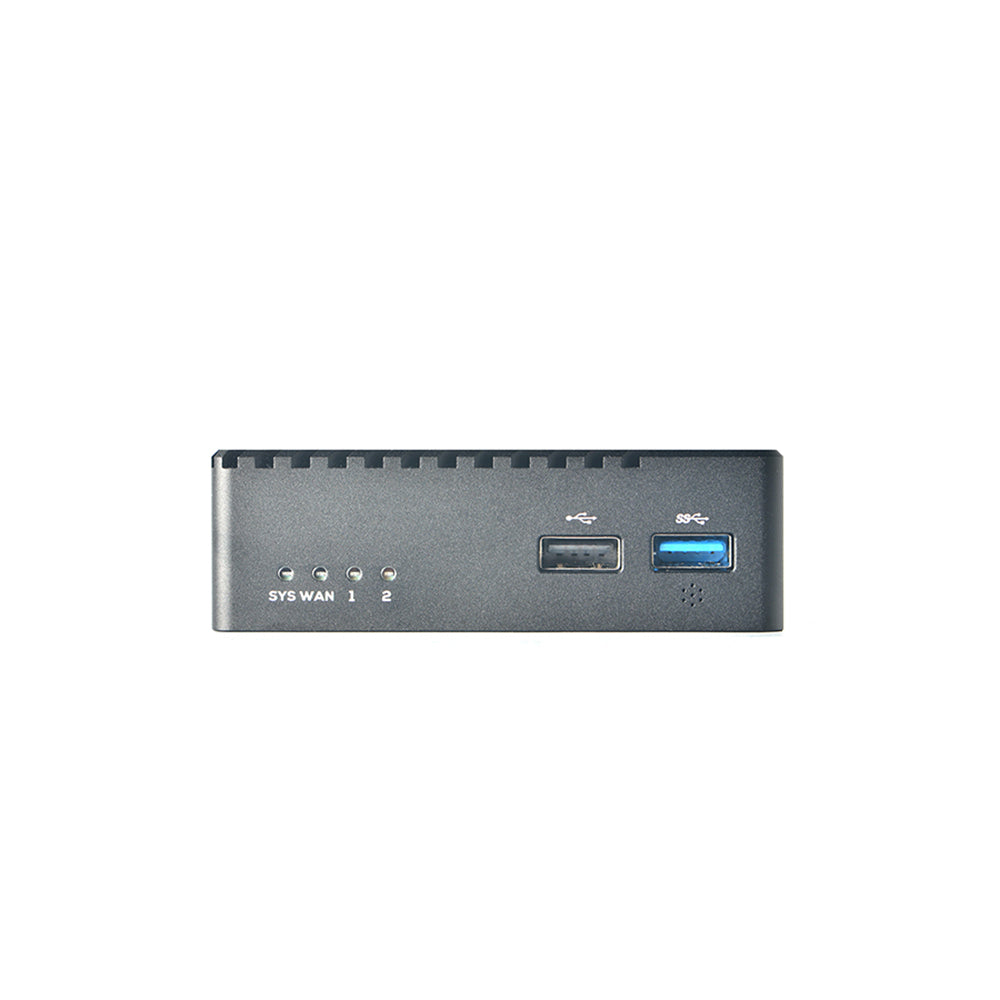

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
one IR receiver and the carrier frequency is 38Khz
MASK button for eMMC update
one user button
one 5V Fan connector
Power supply: USB-C, support PD, 5V/9V/12V/20V input
PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0℃ to 70℃
