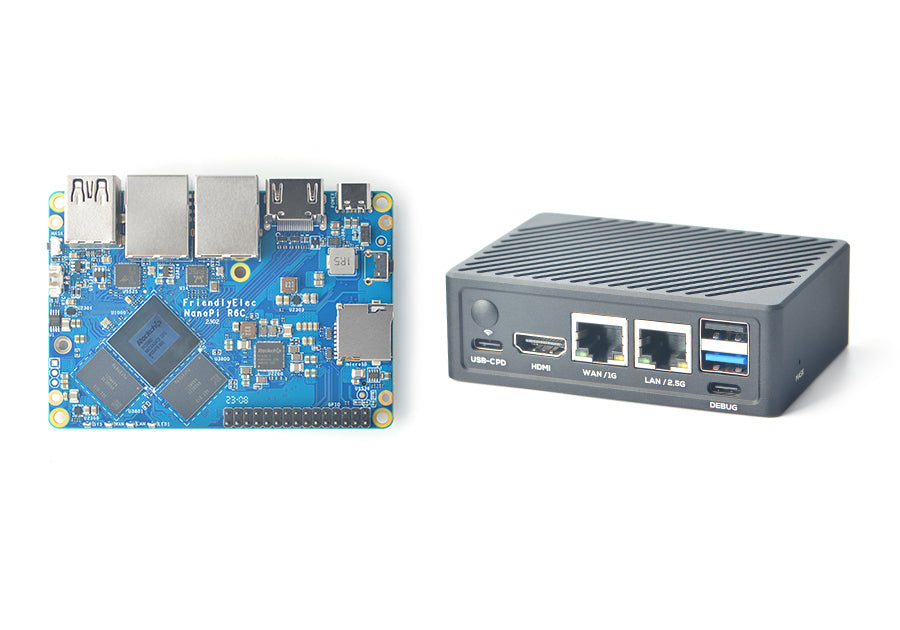

The NanoPi R6C (as “R6C”) is an open-sourced mini IoT gateway device with one 2.5G and one Gbps Ethernet ports, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3588S CPU, 4GB/8GB LPDDR4x RAM, and 32GB eMMC flash or none. It supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.

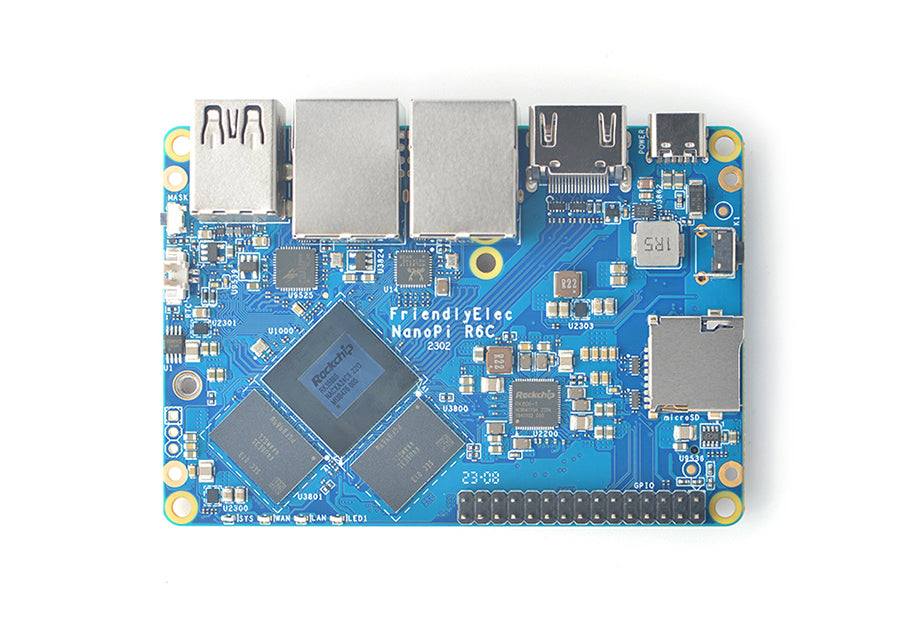

The NanoPi R6C has rich hardware resources with a compact size of 90 x 62 mm, a 30-pin header is provided to expose hardware resources for secondary development, including interfaces such as GPIO, I2C, I2S, PWM and SPI, It alsa has one HDMI port. It supports decoding 8K@60fps H.265/VP9 and 8K@30fps H.264 formatted videos.

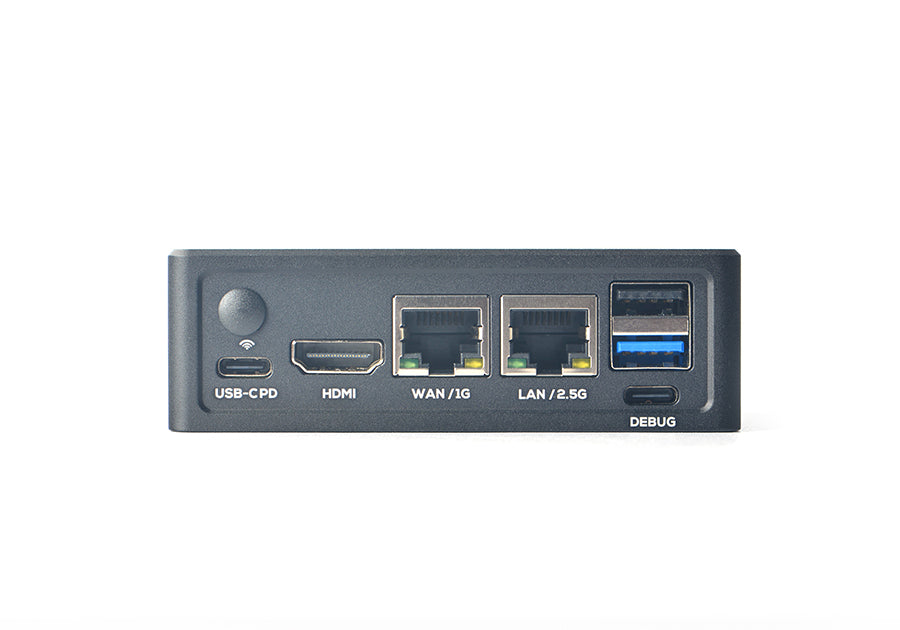

The NanoPi R6C has one M.2 NVME port and two USB ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos. FriendlyElec has released a carefully-designed custom CNC housing for it.
All in all, the NanoPi R6C is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHz
Flash: 32GB/None eMMC, at HS400 mode
Ethernet: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet
USB: one USB 3.0 Type-A and one USB 2.0 Type-A

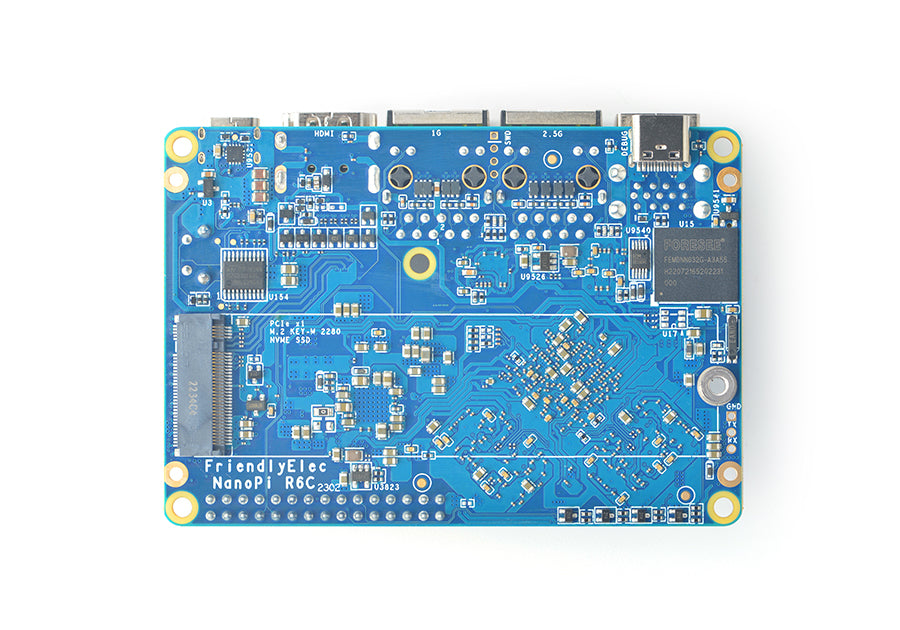

PCIe: one M.2 Key M connector with PCIe 2.1 x1
HDMI:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
microSD: support up to SDR104 mode
GPIO:
30-pin 2.54mm header connector
up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header, or on-board USB-C to UART

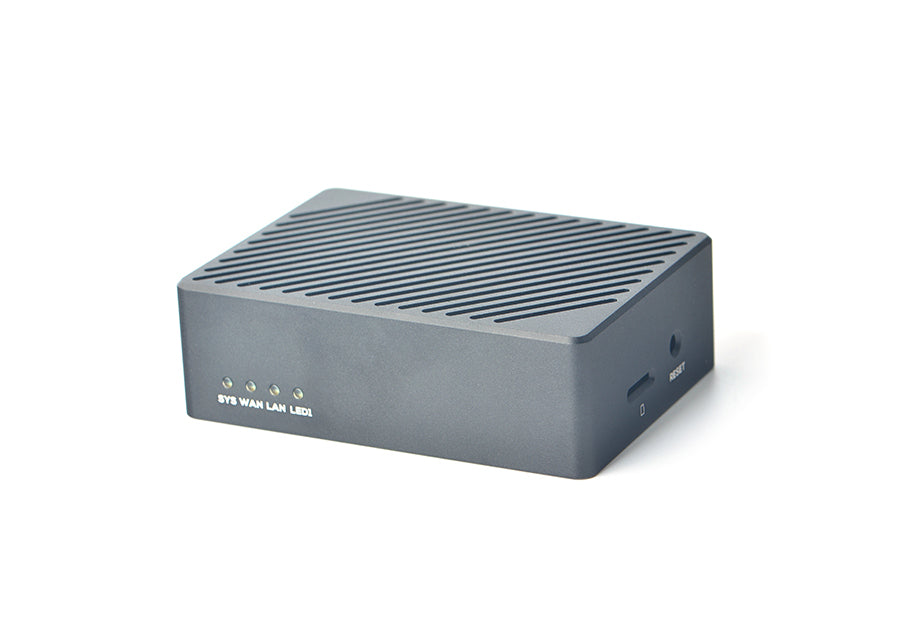

LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)
others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
one user button
Power supply: USB-C, support PD, 5V/9V/12V/20V input
