Introduction

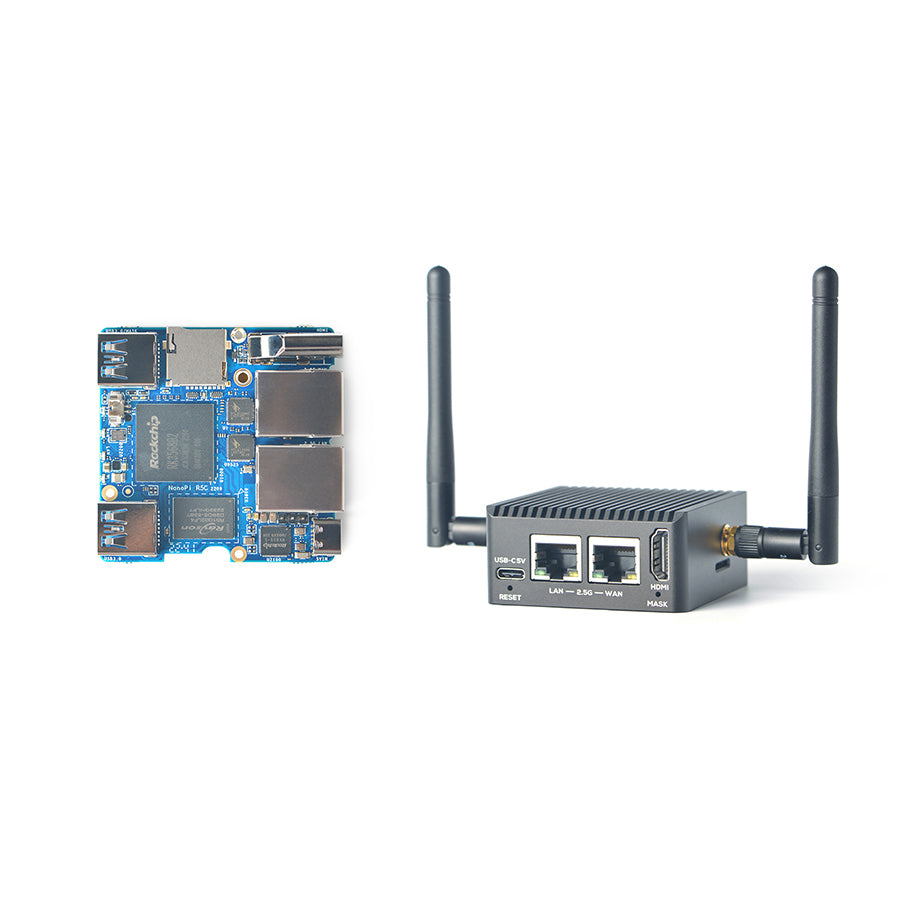

The NanoPi R5C (as “R5C”) is an open-sourced mini IoT gateway device with two 2.5G, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3568B2 CPU, 4GB LPDDR4x RAM, and 32GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

The NanoPi R5C has rich hardware resources with a compact size of 58 x 58 mm. FriendlyElec has released a carefully designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop Buildroot, etc, and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

The NanoPi R5C has one M.2 E-Key port and two USB 3.2 Gen 1 ports. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5C is a board featuring multiple Ethernet ports, light NAS, and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans, and developers.

Features

1.
   High-Performance Processor: The NanoPi R5C is powered by a Rockchip RK3568B2 CPU, which includes a quad-core ARM Cortex-A55 CPU running up to 2.0GHz and a Mali-G52 GPU. It also features an NPU supporting 0.8T of computing power, making it suitable for AI and IoT applications.

2.

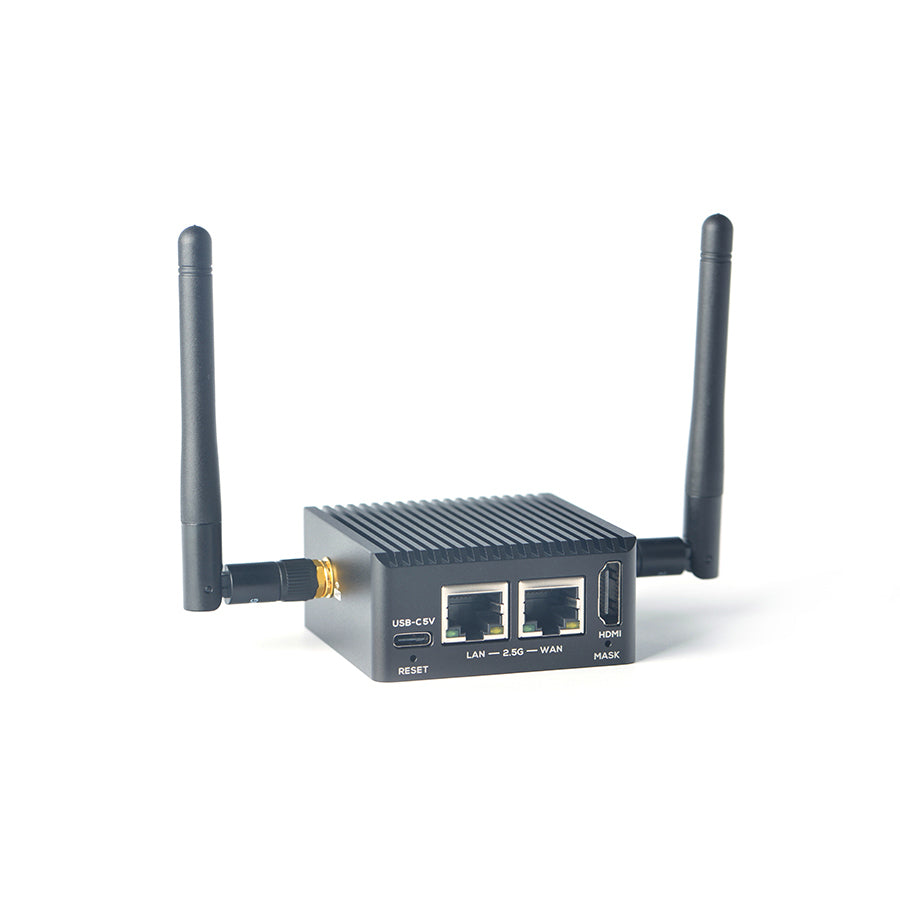

   Rich Connectivity Options: The device comes with two PCIe 2.5Gbps Ethernet ports, two USB 3.2 Gen 1 Type-A ports, and an M.2 Key E slot for additional storage or wireless connectivity options. It also supports Wi-Fi and Bluetooth through an M.2 module.

3.
   Onboard Storage and Memory: The NanoPi R5C includes 4GB of LPDDR4x RAM and 32GB of eMMC flash storage. It also has a microSD card slot for expandable storage.

4.
   Multiple Operating System Support: The device supports various operating systems including Debian, Ubuntu, Android, and FriendlyWrt, offering flexibility for different use cases and developer preferences.

5.
   Compact and Versatile Form Factor: With a size of 58 x 58 mm, the NanoPi R5C is compact and can be used in a variety of environments. It is designed for applications such as edge computing, AI, smart home, IoT gateways, and industrial automation.


Shipping List

1x NanoPi R5C Openwrt Router
OR
1x NanoPi R5C Openwrt Router With WIFI module

Applications

Router, NAS, Server

Specification

• SoC: Rockchip RK3568B2

  CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
  GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
  VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
  NPU: Support 0.8T


• RAM: 4GB LPDDR4X
• Flash: 32GB eMMC

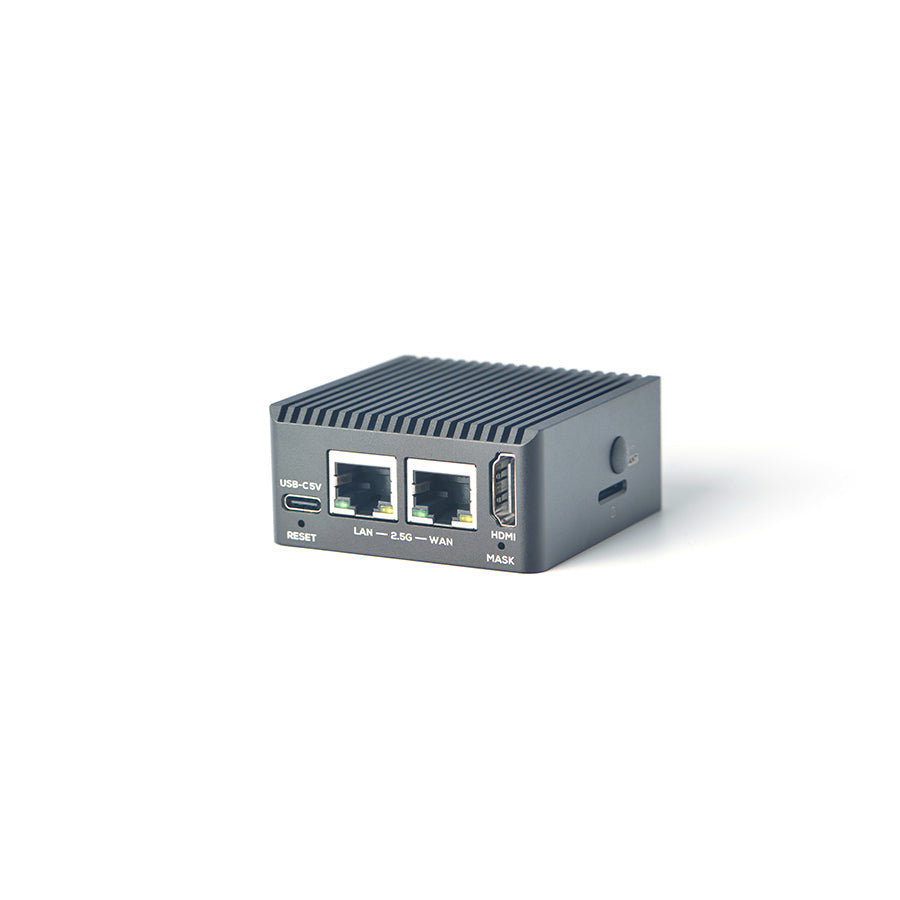

• Ethernet: two PCIe 2.5Gbps Ethernet
• USB: two USB 3.2 Gen 1 Type-A ports
• HDMI:

  support HDMI1.4 and HDMI2.0 operation
  support up to 10 bits of Deep Color modes
  support up to 1080p@120Hz and 4096x2304@60Hz
  support 3-D video formats

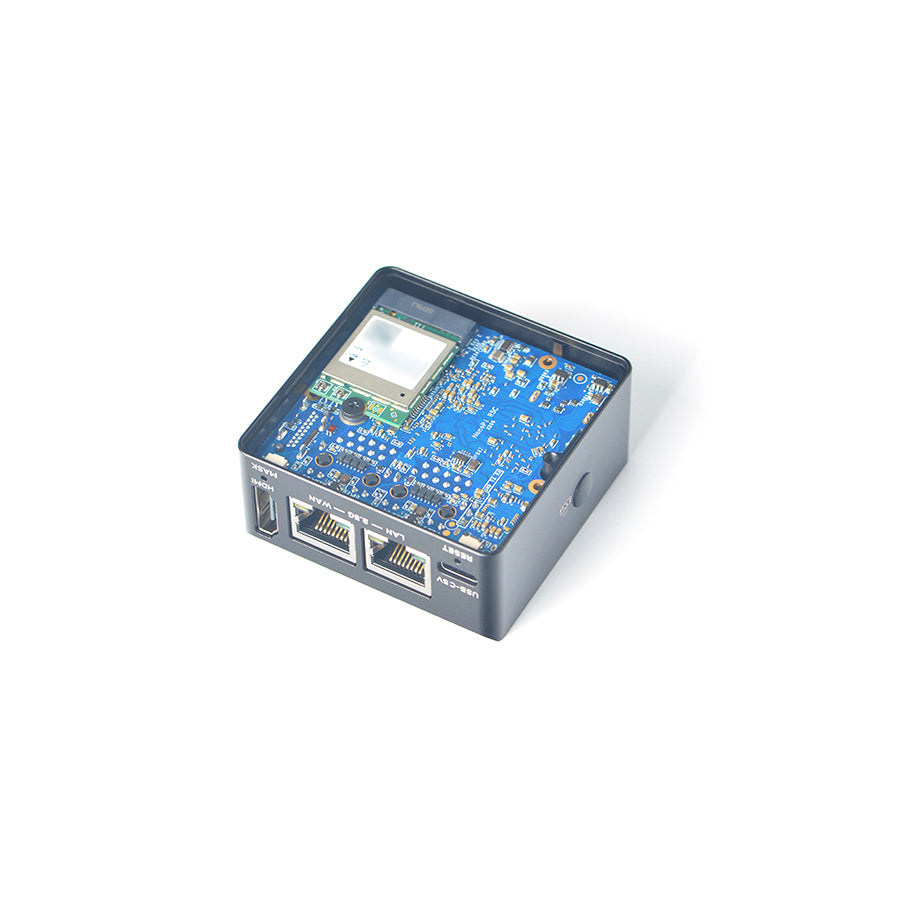

• M.2 Key E: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.
• microSD: support UHS-I
• Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

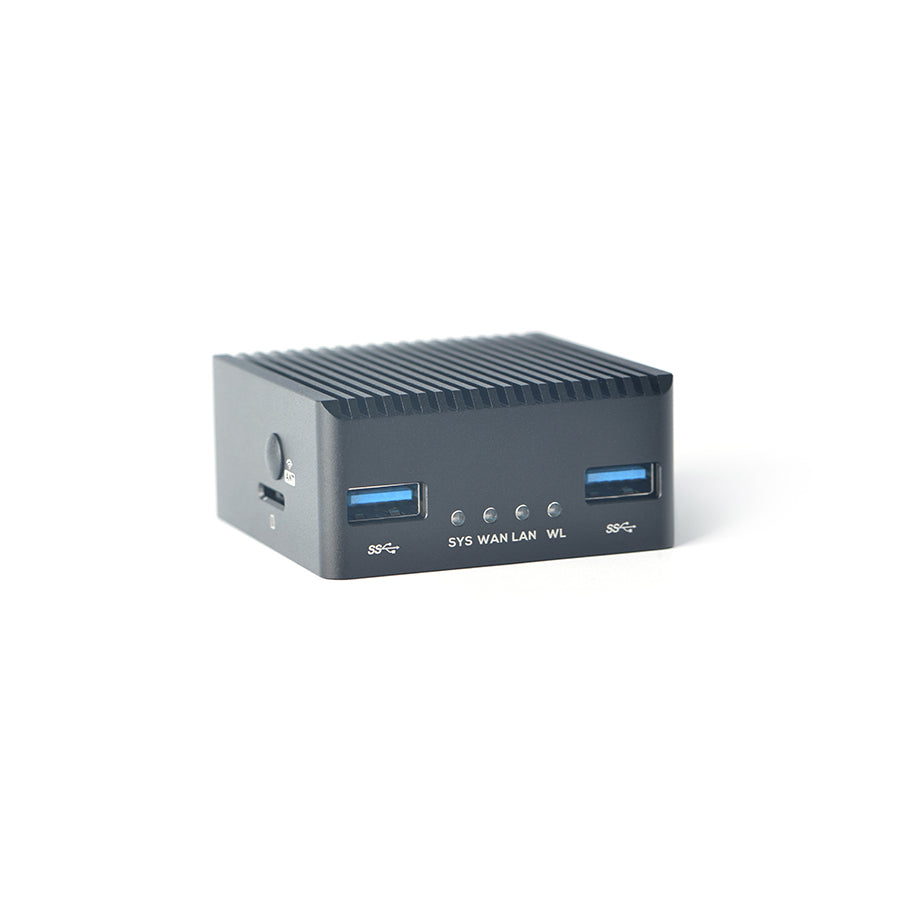

• LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)
• others:

  2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
  MASK button for eMMC update
  One User button


• Power supply: USB-C 5V input
• PCB: 8 Layer, 58x58x1.6mm
• Ambient Operating Temperature: 0℃ to 70℃
