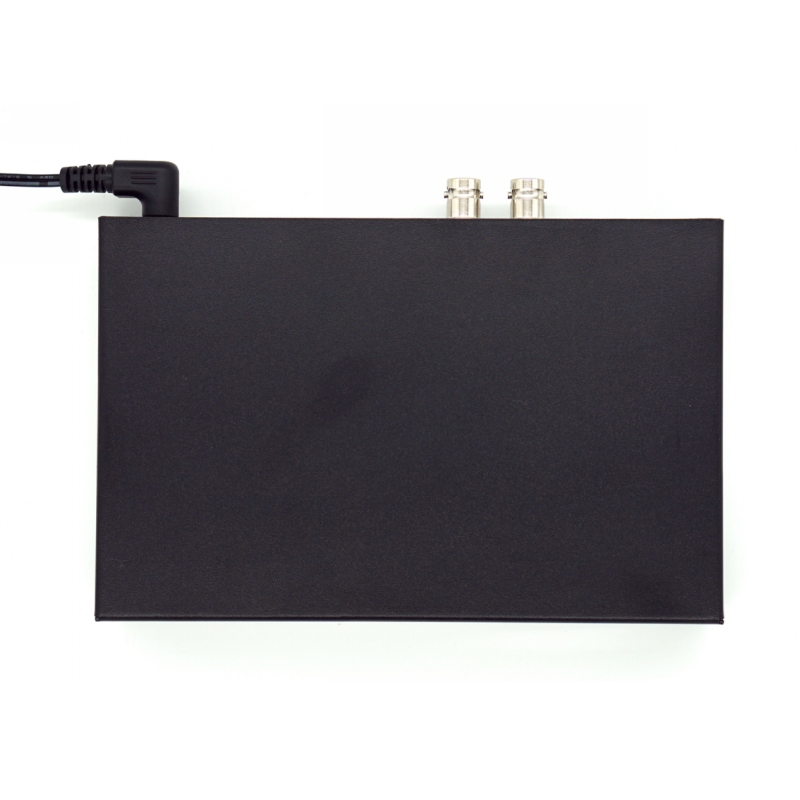

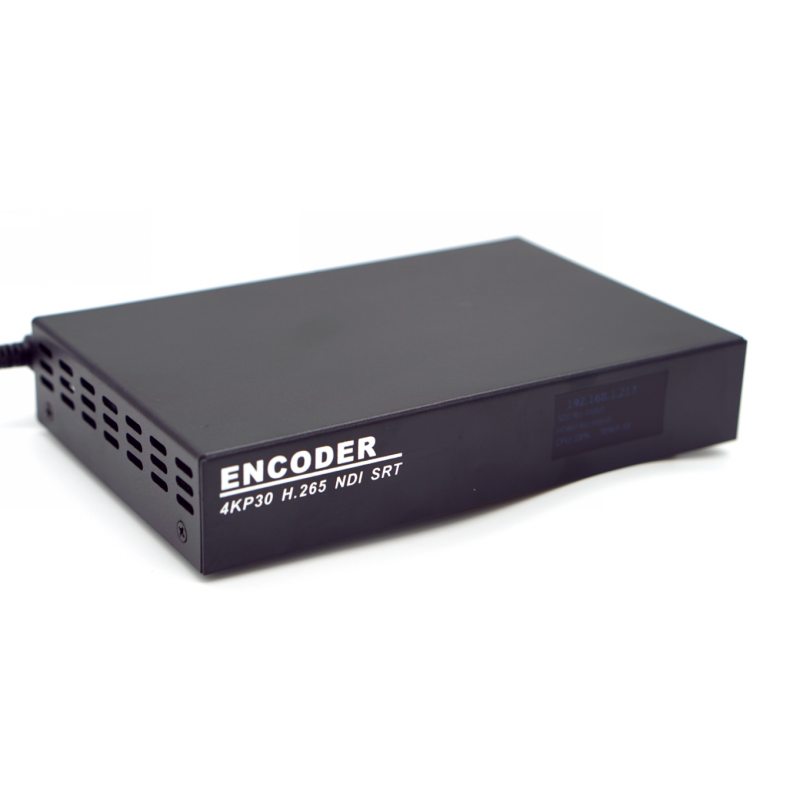

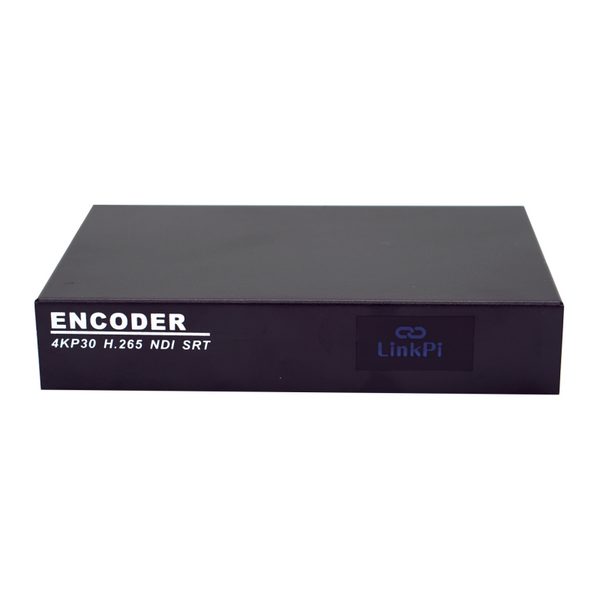

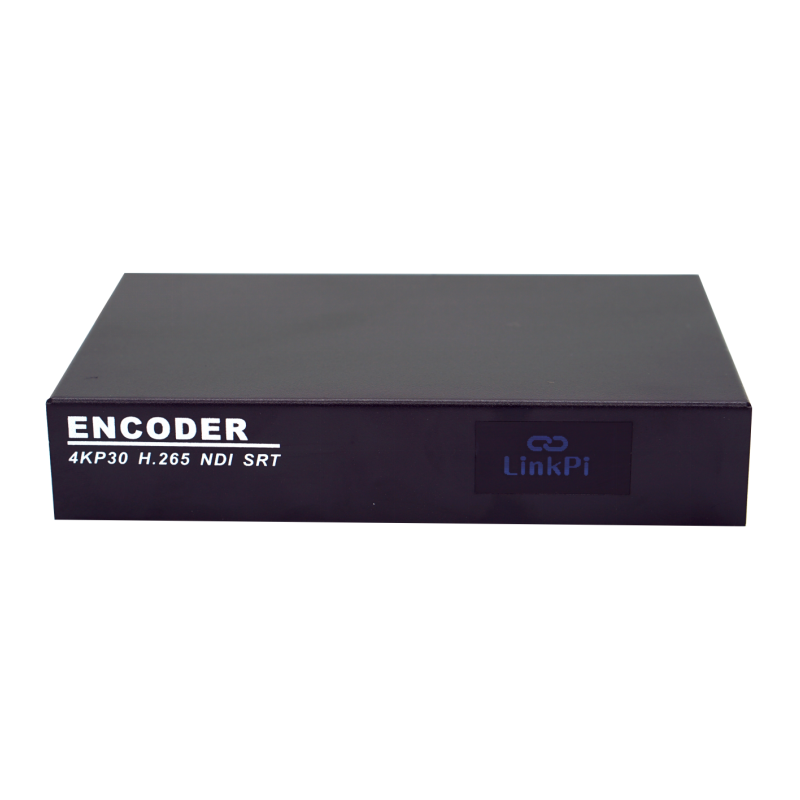

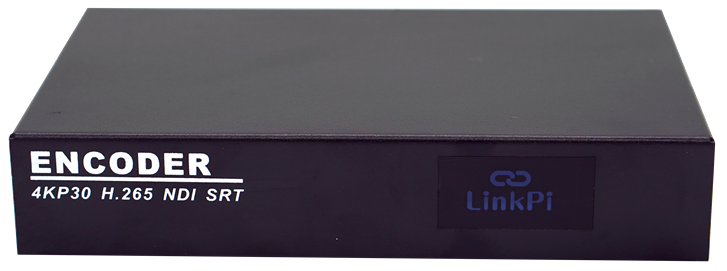

LinkPi ENCSH - NDI Encoder Live broadcast,Decoder HD 4K30Hz support NDI,SRT,RTMP,HTTP
Couldn't load pickup availability
You may also like
You may also like
WIKI: https://wiki.youyeetoo.com/en/LinkPi
FAQ How to activate an NDI licence
Tips:
- After purchasing, please back up the NDI authorization code, one code per machine to avoid loss.
- You can also use NDI DEMO without purchasing an NDI license. It can be used for 30 minutes after startup, and the screen will be black after 30 minutes, and it can be used again for 30 minutes after restarting. But this only affects NDI, not other protocols (such as SRT, RTMP, RTSP, HTTP, UDP, etc.).
Introduction
Product Features Ultra-clear input Multi-protocol live broadcast Support NDI, SRT High compression rate Advanced functions Main chip: Hi3521DV100 CPU: ARM Cortex-A7@1.3GHz 32KB I-Cache, 32KB D-Cache Memory: 1GB DDR3 .
Product Features
|
Ultra clear input |
Multi-protocol live broadcast |
Support NDI, SRT |
High compression ratio |
Advanced Features |
|
4K30 |
srt/ndi/rtsp/rtp/ http/hls |
Compatible with software such as vMix |
H.265+smartP |
Watermark subtitles, video mixing |

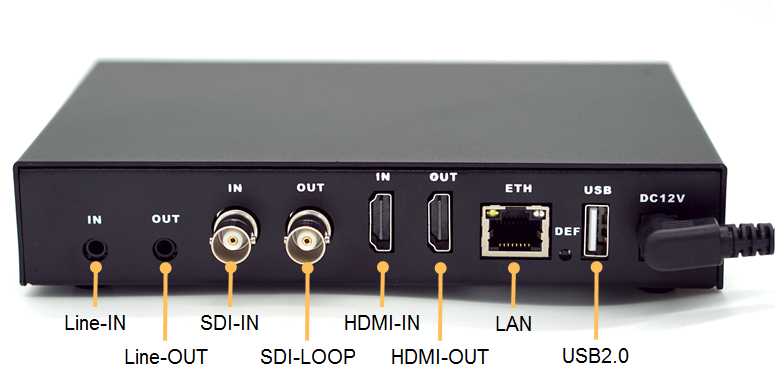

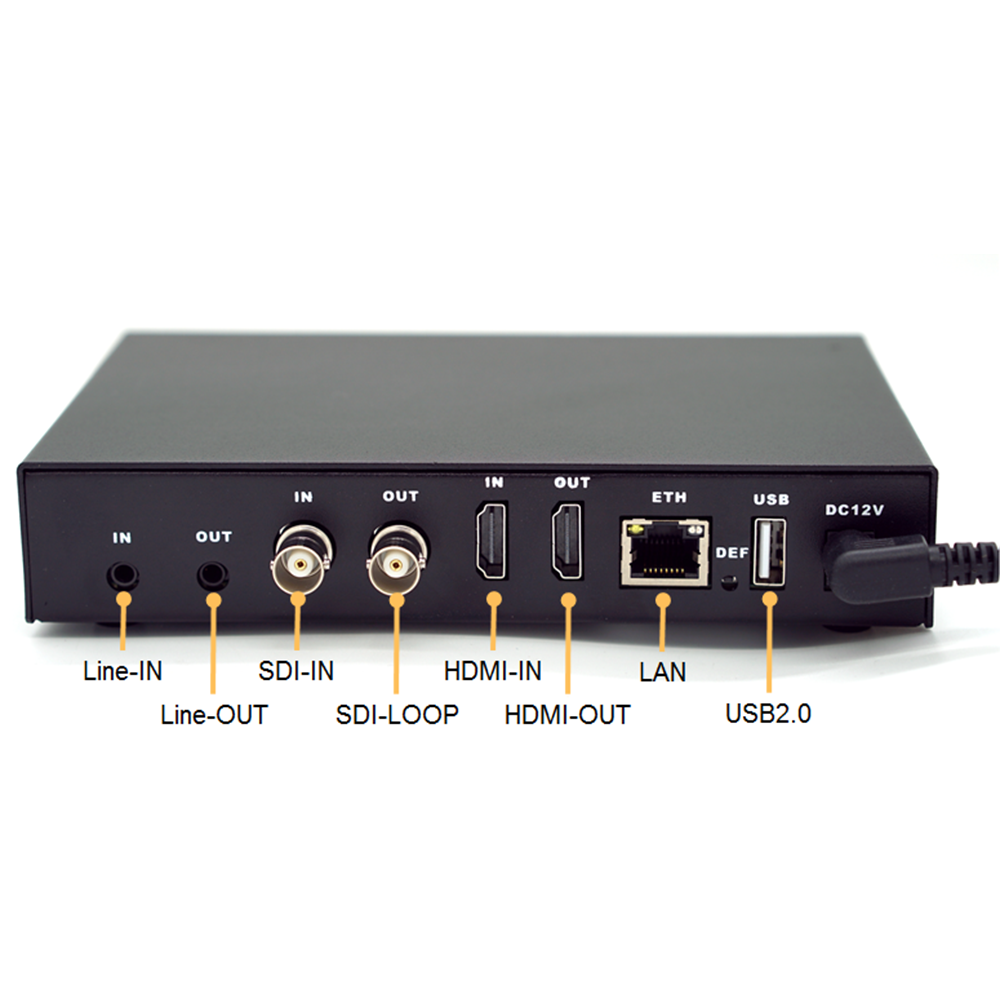

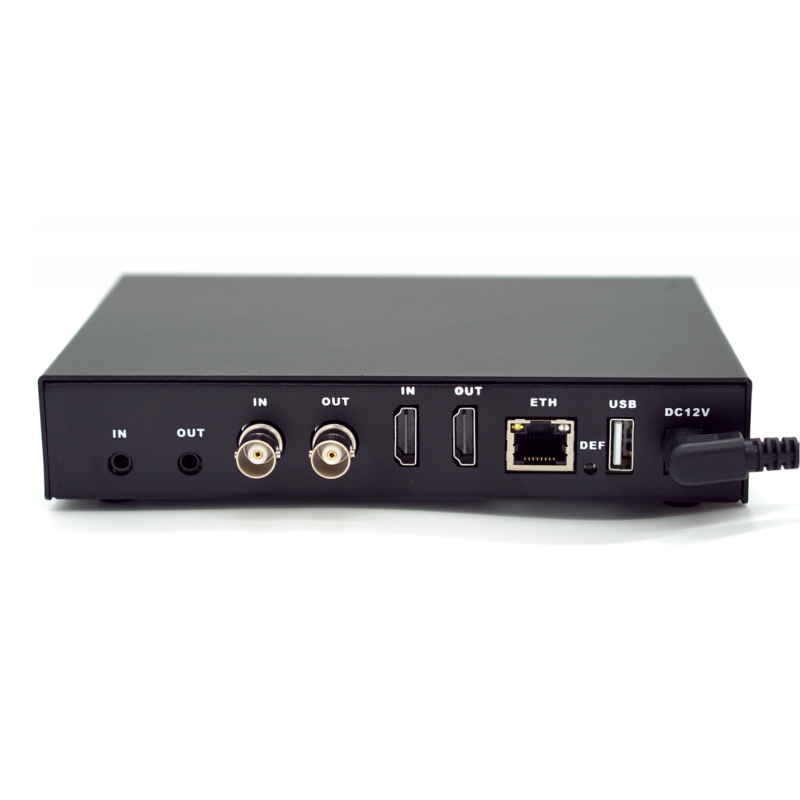

Interface definition
Performance parameters
|
Core performance |
|
|
main chip： |
Hi3521DV100 |
|
CPU： |
ARM Cortex-A7@1.3GHz |
|
|
32KB I-Cache，32KB D-Cache |
|
Memory： |
1GB DDR3 |
|
FLASH： |
128MB SPI Nand Flash |
|
Video parameters |
|
|
HDMI input: |
HDMI 1.4 supports up to 4K@30fps |
|
SDI input： |
3G-SDI, up to 1080P60 |
|
HDMI output： |
Support up to 4K60 |
|
SDI output： |
Loop out SDI input video |
|
Resolution： |
4K30、1080P、720P、1080i、720i、1600×1200、1440×900、1366×768、1280×1024、1024×768、800×600、 640×480 |
|
Encoding format： |
H.264 Baseline profile |
|
|
H.264 Main profile |
|
|
H.264 High profile |
|
|
H.265 Main profile |
|
|
MJPEG/JPEG Baseline |
|
Decoding format： |
H264、H265、MJPEG |
|
encoding resolution： |
Main：4K、1080P、720P、360P |
|
|
Sub：720P、360P |
|
frame rate： |
1~60 adjustable |
|
Multiple reference frames： |
Support SmartP, DualP |
|
Maximum bit rate： |
40Mbps |
|
rate control： |
CBR/VBR/AVBR/FIXQP/QPMAP |
|
audio parameters |
|
|
input interface: |
HDMI, SDI, 3.5mm Line-In, audio can be used simultaneously |
|
Output Interface: |
HDMI, 3.5mm Line-Out, audio can be used at the same time |
|
Sampling Rate: |
48K、44.1K、32K、16K、8K |
|
Encoding format： |
AAC、MP3、MPEG2、PMCA、PMCU |
|
Network parameters |
|
|
wired interface： |
10/100/1000M RJ45 network port |
|
WIFI： |
Optional (link below) |
|
4G： |
Support (Huawei E8372) |
|
Transfer Protocol： |
RTSP, RTMP, HTTP, HLS, UDP, Unicast, Multicast |
|
ONVIF： |
support |
|
SRT： |
support |
|
NDI： |
support |
|
file storage |
|
|
Storage interface: |
U disk |
|
Recording format： |
MP4、TS、FLV、MOV、MKV、AVI |
|
Basic parameters |
|
|
power supply： |
DC 12V 2A |
|
Power consumption： |
<8W |
|
Operating temperature： |
0~70℃ |
|
size： |
170×110×30（mm LxWxH） |
|
Software function |
|
|
basic skills： |
WEB configuration, parameter hot update, firmware upgrade, network setting, password management |
|
Image adjustment： |
Brightness, Contrast, Saturation, Color Temperature, Noise Reduction, Sharpening |
|
special effects overlay： |
Logo, Watermark, Subtitle, Rolling Caption, Mosaic, Timestamp |
|
Resource management： |
Customize fonts, upload watermark Logo images |
Product ManualNot
only the manual, but also a wealth of application scenarios and detailed explanations to help you remove all obstacles.
Supports multiple peripherals
Most encoder models already support HDCP and can be connected to PS4, Blu-ray players and other devices.
Note: Mobile phone access requires additional purchase of MHL converters or Apple-specific converters, wireless screen projectors, etc.
wireless network transmission
Special protocol support
Our company has been certified and authorized by NewTek Company. One device supports any multi-channel NDI encoding output, and supports one NDI receiving and decoding. Purchase an NDI authorization to enjoy both functions of NDI encoder and decoder.
Note: According to NewTek's authorization regulations, users who have not purchased NDI authorization can only use it for 30 minutes each time.
?
By opening the SRT protocol, users can connect any channel of the encoder to OBS, vMix and other software for secondary editing and publishing, which is suitable for live broadcast, director and other scenarios ?
Support mobile phone control
No installation, scan the code on the mobile phone (see the manual) to open most of the functions on the web side of the applet can automatically discover all encoders in the local area network through the operation of the applet.
special function
Multi-platform live broadcast
Only one encoder is needed to push live streams to any number of platforms simultaneously
Full frame rate deinterlacing supports 1080i60/50 to 1080P6050 and 720i60/50 to 720P60/50
In addition to the input video of each HDMI, USB, network and other channels, the system also supports arranging and mixing the pictures of multiple channels and can guide and switch in real time.
Group management When there are multiple encoding devices in the network, the device will automatically network to access any one to manage all encoders and generate a unified program list
?
Remote assistance One-click remote assistance, no need to log in to the PC to use on demand, convenient and fast, and ensure privacy and security
?
