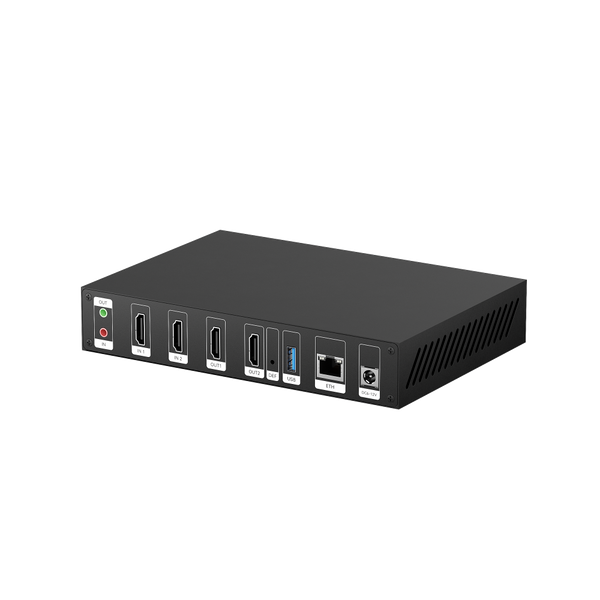

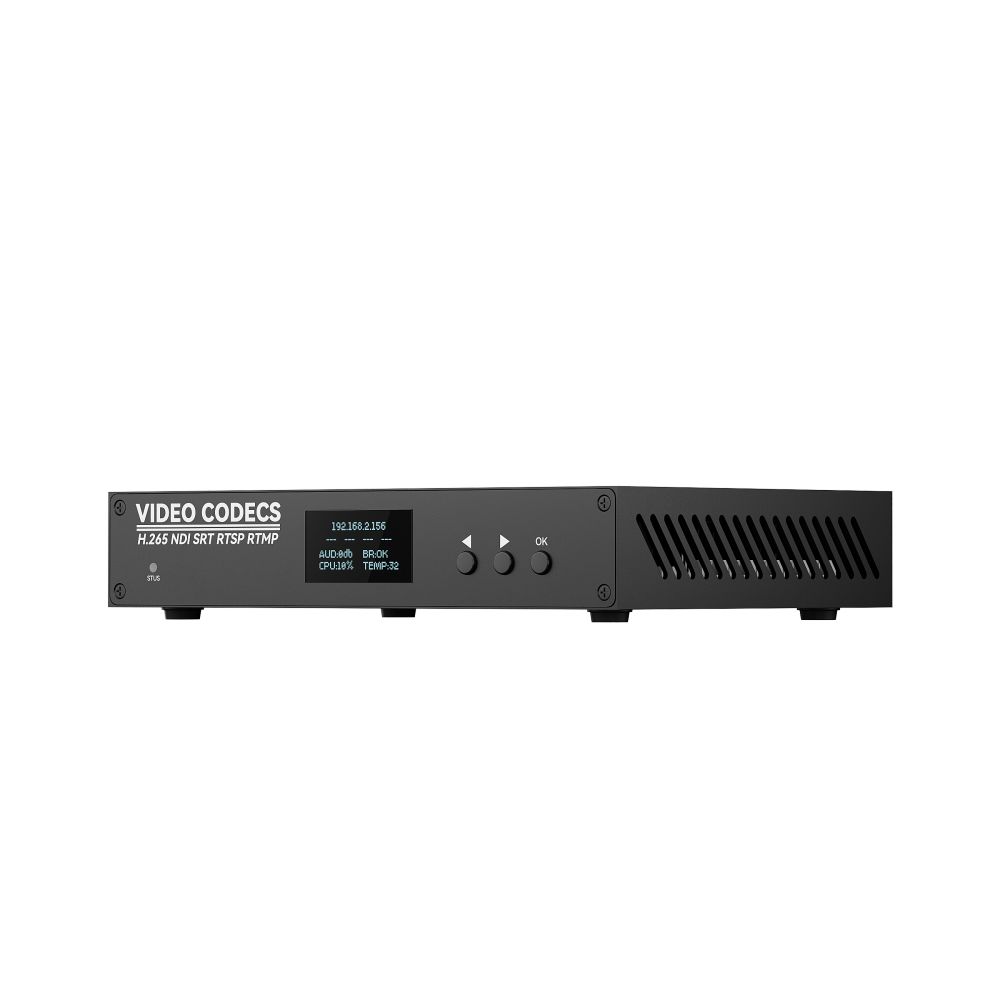

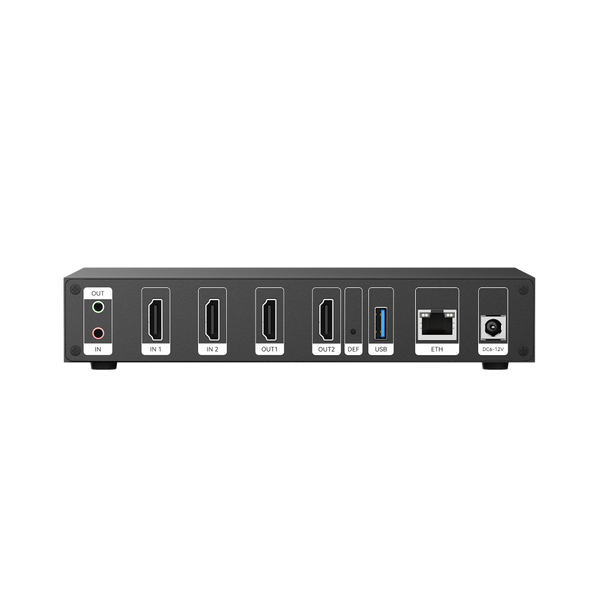

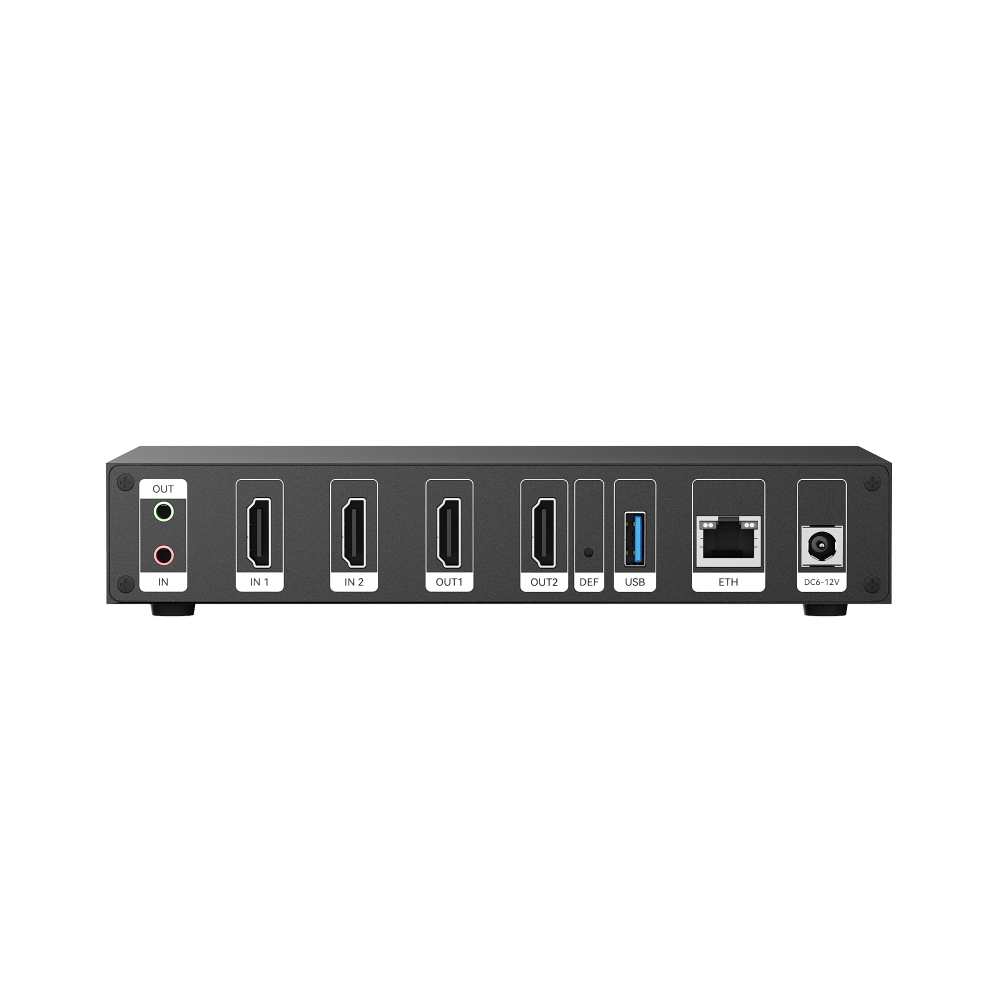

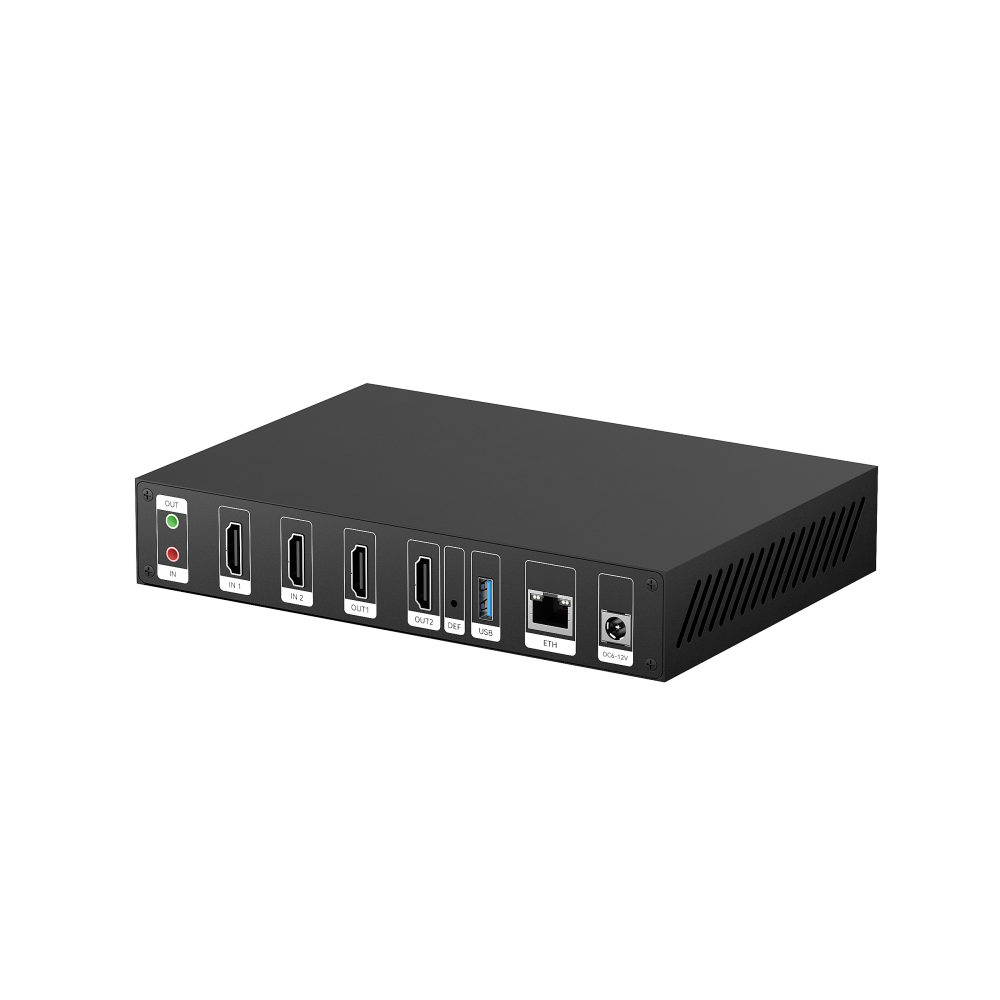

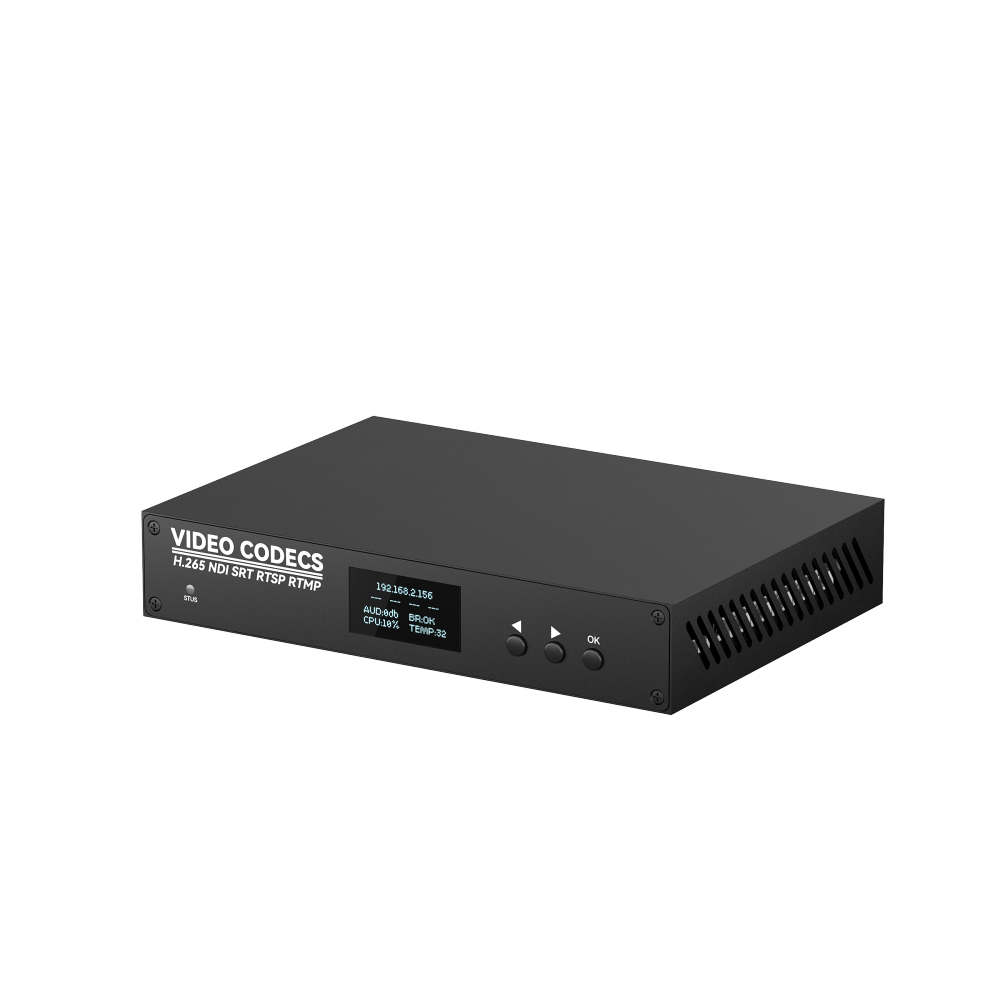

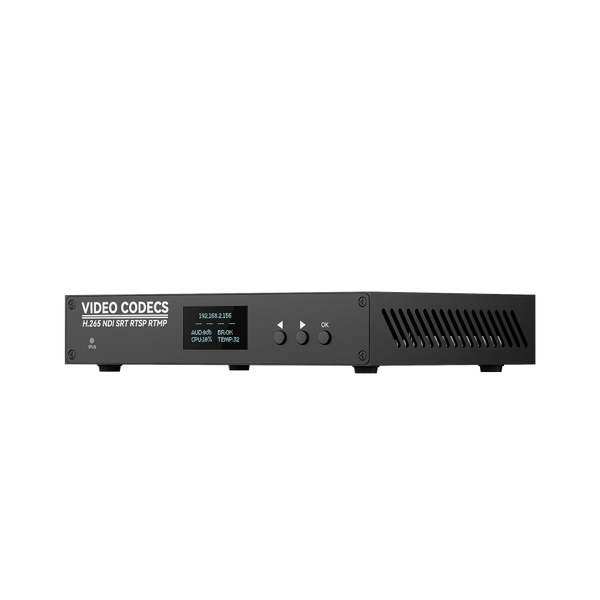

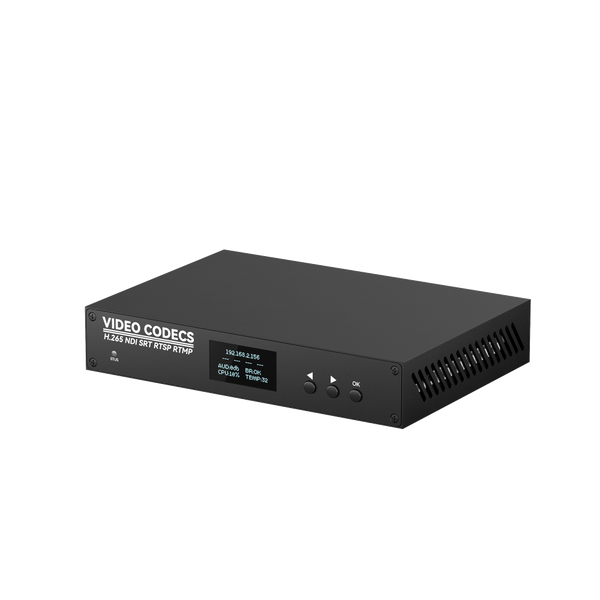

LinkPi ENC2_V3 Dual HDMI Encoder

Quick StartWIKI: https://wiki.youyeetoo.com/en/LinkPi

Introduction

Dual HDMI Inputs: Supports two channels of high-definition HDMI signal input, with each channel supporting up to 4K30 frame video resolution, suitable for multi-signal source environments.

4K Encoding Capability: Capable of encoding 4K video, supporting a variety of resolutions and frame rates, including 4K, 1080P, 720P, etc., to meet the needs of different scenarios.

Multiple Encoding Formats: Supports H.264 Baseline profile, H.264 Main profile, H.264 High profile, H.265 Main profile, and MJPEG/JPEG Baseline, offering flexible encoding options.

Network Transmission Protocols: Supports SRT, NDI, RTSP, RTMP, RTMPS, HTTP, HLS, UDP, and other transmission protocols, suitable for stable transmission in unstable network environments.

Audio Encoding: Supports AAC, MP3, MPEG2, PMCA, PMCU, and other audio encoding formats to ensure audio quality.

Software Features: Provides WEB configuration, parameter hot updates, firmware upgrades, network settings, password management, and other functions, as well as special effects such as logo, watermark, subtitles, scrolling subtitles, mosaic, and timestamp overlays.
