Khadas VIM3L SBC: Amlogic S905D3-N0N Soc With 1.2 TOPS Performance NPU | 2GB + 16GB

KHADAS ONLY FEATURES UNIQUE TO VIM3L:Khadas TST Enter upgrade mode just by pressing the function key 3 times!One-click script for building Linux distributions for Khadas SBCs.Control boot-up with Khadas Bootloader Instructions (KBI).
Price:
$89.99
    Please select the information you wantX
Quantity:
-
+
(200 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Specifications
Brand Name: Khadas Demo Board Type: 2G RAM & 16G eMMC Memory: 16G eMMC USB: USB2.0 OTG & USB PD GPU: ARM G31 MP2 GPU CPU: Amlogic 5905D3-NON System: Android Pie (9.0) Connectivity: 2T2R MIMO Wi-Fi, Bluetooth5.0, 10/100/1000 LAN, Infrared
VIM 3L
Freedom loving, all-in-one, DIY Home Theatre PC


VIM3L 001

v3l01

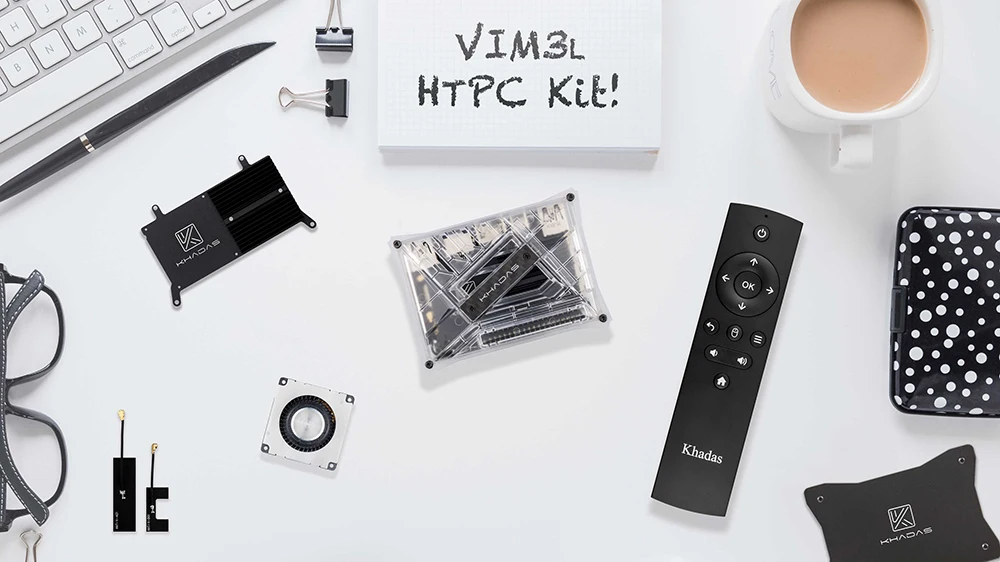

HTPC KIT
USE VIM3L AS A HTPC, STRAIGHT OUT OF THE BOX!

VIM3L3 2.0

  •  VIM3L HTPC is smaller than a notepad, comes with CoreELEC pre-installed.

  • Background photograph by Freepik (1:1 scale relative to objects).


OS FREEDOM
FREEDOM TO CHOOSE YOUR HTPC OPERATING SYSTEM

VIM3L4 2.0

  • Android 9.0 and CoreELEC will be capable of OTA (over-the-air) updates.

  • CoreELEC (Kodi) is pre-installed on the HTPC Kit, streaming content is not included.

  • Android 9.0 is pre-installed on the bare-board.

vim3L 1

HTPC KIT
USE VIM3L AS A HTPC, STRAIGHT OUT OF THE BOX!

VIM3L5 2.0

  • CoreELEC is a stripped-down OS designed to run Kodi efficiently, content not included.

  • PLEX is a content-streaming app available for Android OS, content local and/or streamed.

  • Content can also be loaded via external storage, or cast from mobile phones via 3rd party apps.

​RETRO GAMING
INSTALL A RETRO GAMING OS FOR NOSTALGIC FUN!

VIM3L6.2

  • Install a Console Emulation OS, e.g. Lakka / CoreELEC, into VIM3L to run "retro game ROMs".

  • Most hardware game controllers are supported via USB cable, Bluetooth support is less universal.

  • Many "retro game ROMs" are free online, or their android versions can be downloaded from Google Play.

​HIGH CLARITY 4K HDR10+
4K PROCESSING UP TO 75FPS, ULTRA-HD, LIFE-LIKE VIEWING EXPERIENCE

VIM3L7.2

  • Supported on Android 9.0 and CoreELEC (Kodi) only.

  • Background photograph by Pixabay.

​TONE BOARD
VIM3L + TONE BOARD + VOLUMIO = HI-FI AUDIO PLAYER

VIM3L8.2

  • Volumio is a custom-made OS designed for Hi-Fi audio playback (e.g. DSD, FLAC, WAV, etc).

  • Tone Board is equipped with the ESS9038Q2M DAC, capable of decoding DSD256 and PCM384.

  • Android and Linux are also compatible with the Tone Board (XMOS USB Drivers).

V3L 2

Tone Board                                                             Volumio                                                 RcA to 3.5mm Converter


SUPER COOL
PASSIVELY COOLED HTPC, OR ACTIVELY COOLED SBC

VIM312


  • S905D3 is capable of operating in passive cooling mode whilst running Android OS

  • If booting Linux, or 3rd party distros, adding the 3705 Cooling Fan for active cooling is recommended

  • Metal Plate can be used with DIY Case and Heat Pad (not included in HTPC Kit) for stronger passive cooling.




MAKER FRIENDLY
ADDITIONAL FEATURES FOR DEVELOPERS



VIM3L 12 2.0

  • M2X Extension Board connects via the bottomside M.2 slot, and adds PoE, 4G LTE, and SSD support.

  • TS050 Touchscreen connects via MIPI-DSI and TP, providing a separate non-HDMI 1080P display.

  • Khadas Docs provides developers with continually updated open source documentation.

​INTERFACES

VIM3L 15

CONNECTIVITY

            VIM3L002



KHADAS ONLY
FEATURES UNIQUE TO VIM3L

                    VIM3L 003

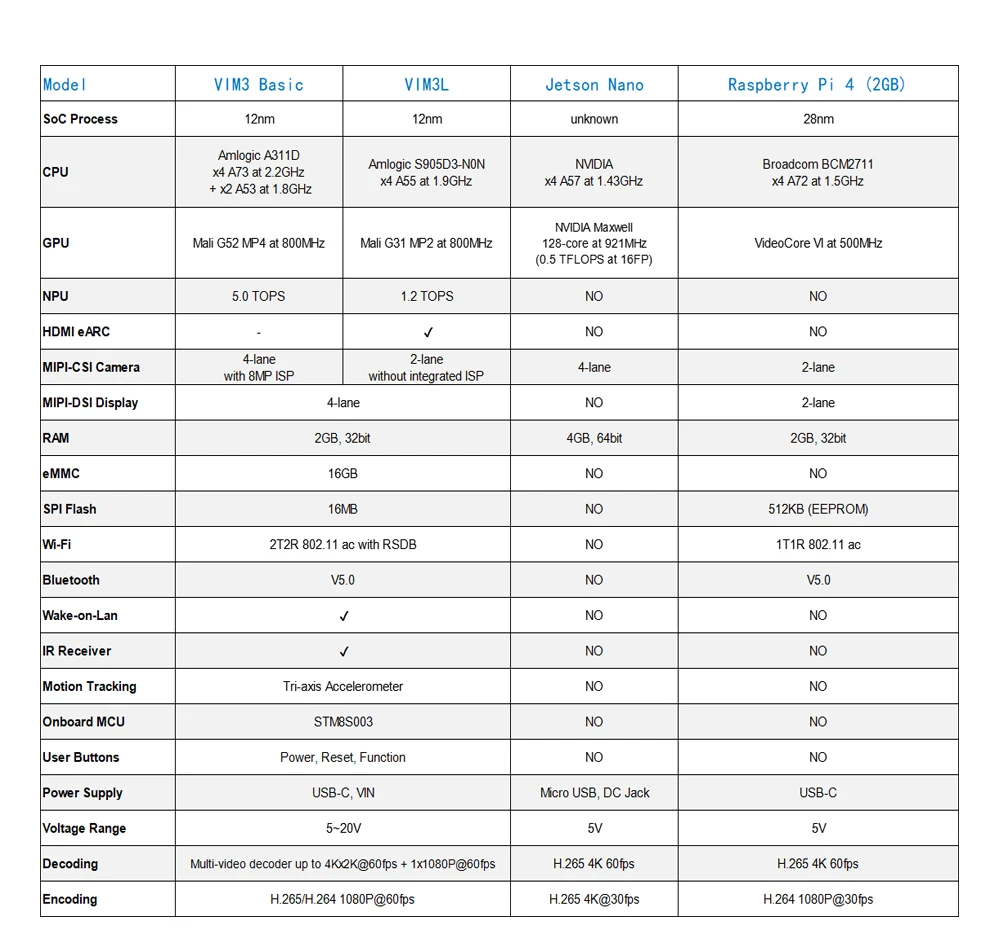

SBC COMPARISON
SEE HOW VIM3L IS DIFFERENT FROM VIM3, JETSON NANO, & RPI4



VIM3LC

VIM3LSPEC

[1] MCU: Power management, EEPROM for customization, and boot media(SPI Flash or eMMC) setup.
[2] LPDDR4 or LPDDR4X RAM will be selected randomly during manufacturing.
[3] RSDB: Real Simultaneous Dual Band, which lets VIM3 and other devices transmit and receive data over two bands at the same time.
[4] WOL: Power on or wake up VIM3 remotely over Lan through APP or webpage.
[5] The Khadas TST feature enables developers to enter upgrade mode easily: simply press the function key 3 times within 2 seconds, and it works even if the boot loader is damaged.
[6] Khadas KBI: Switch the "combo interface" between PCIe and USB 3.0.
[7] Fenix Script: One-click script for building of Linux Distributions.

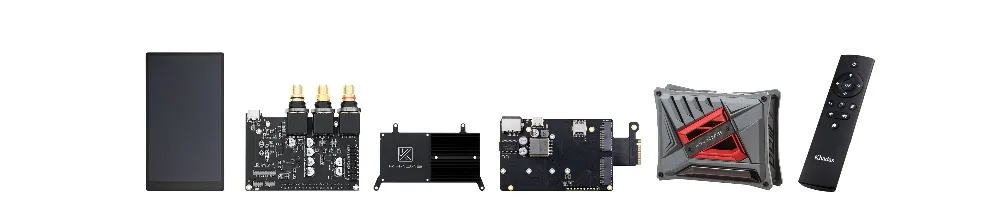

ACCESSORIES
EXPAND THE CAPABILITIES OF YOUR VIM3L SBC.

VIM3L16
