CC-A80 Mini PC Cubieboard4 inside Development Board/Cubieboard A80 Cortex A15x4 up to 2.0GHz, A7x4 /2GB DDR 8G EMMC

Cubieboard4 also named CC-A80, is an open source Mini PC or single board computer which has ultra-powerful performance. The main chipset Allwinner A80 is a 28nm Octa-Core A15/A7 big. LITTLE architecture application processor with a CPU dominant frequency
Price:
$149.00
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Specifications
Brand Name: CubieTech Demo Board Type: CC-A80, CB4

This item is CubieBoard4 + metal shell

if you need the Cubieboard4 only,click here

CC-A80-4CC-A80-3

    Cubieboard4 also named CC-A80, is a open source Mini PC or single board computer which has ultra-powerful performance. The main chipset Allwinner A80 is a 28nm Octa-Core A15/A7 big.LITTLE architecture application processor with a CPU dominant frequency of 2GHz. It also has the amazing GPU 64-core GPU graphics core PowerVR G6230 which supports openGL ES, openGL, even openCL. CC-A80 has the standard interfaces like desktop computer, such as HDMI&VGA, 100M/1000M RJ45, 4 USB2.0 host ports,1 USB3.0 OTG port, Audio output, Microphone input, dual-band wifi and bluetooth 4.0, micro SD card. It has 2GB DDR3 on-board memory and support Li-Po battery UPS powerinput, so that we can say it's a good mobie development platform.

zhixian

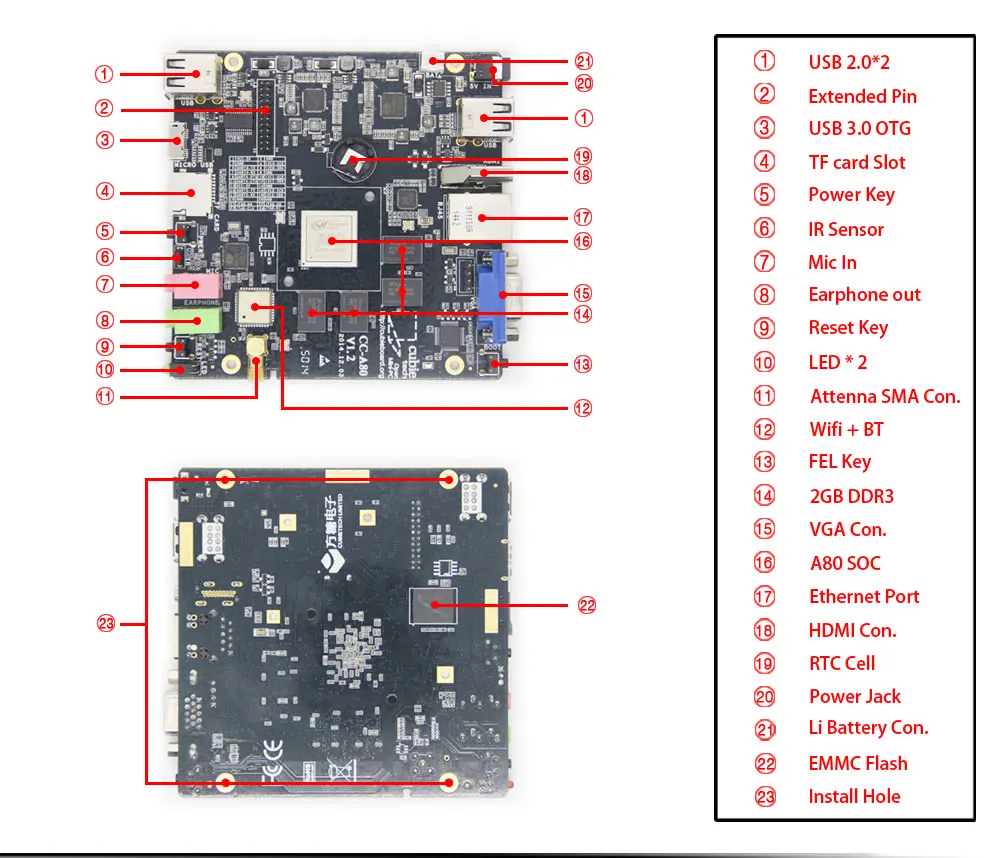

Features

1. SOC:        AllWinner  A80,ARM® big.LITTLE Octa-Core Cortex™-A15 Qual-Core,2.0GHz,       Cortex™-A7 Qual-Core, upto 1.3 GHz,Imagination PowerVR® G6230 64-core, Complies with OpenGL ES 2.0/3.0, OpenGL, OpenGL

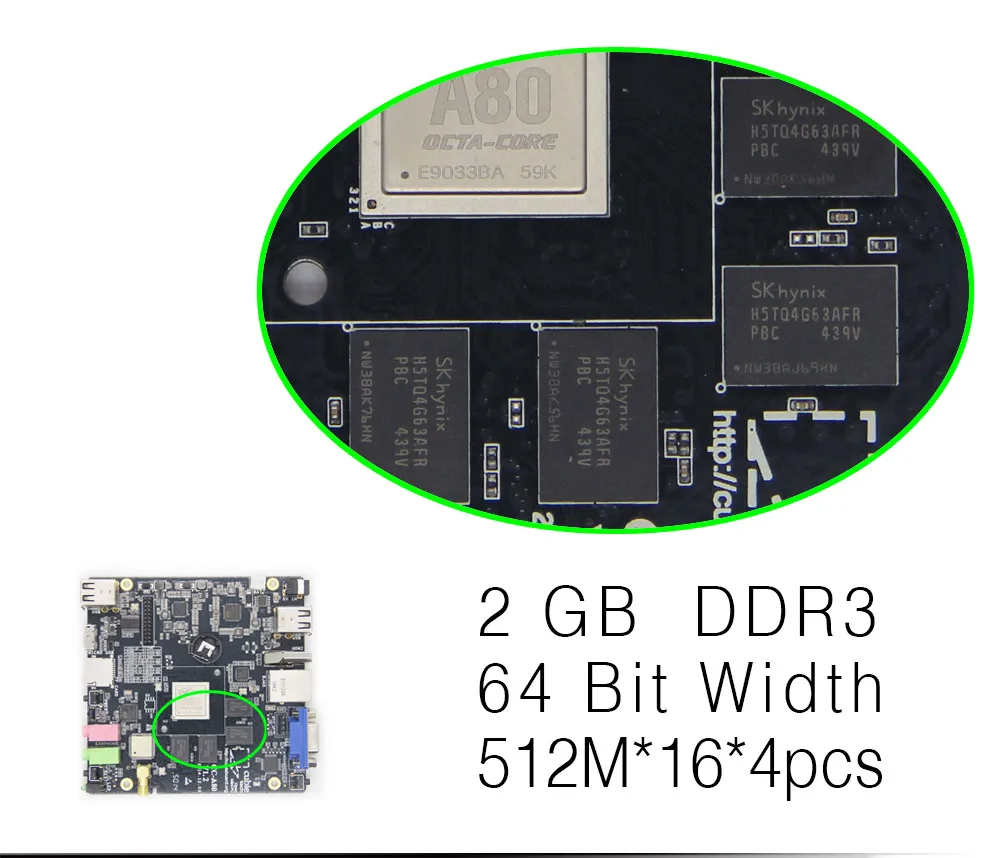

2. Memory:   2GB DDR3@800MHz (1600MTPS)
3. Storage:   EMMC, up to 64GB, default 8GB, write/read speed 25MB/s
4. TF Card:   Micro SD card slot
5. Display:    HDMI Port A, HDMI V1.4a 4K@30Hz, VGA, support 1080P@60Hz resolution output
6. Ethernet:  100M/1000M RJ45
7. Wireless:  Wifi: 2.4G/5G, Dual Band, 300Mbps with external antenna. BT4.0+EDR
8. IR:            Infrared remote receiver Philip standard
9. RTC:      Support 1220 size rechargeable button cell
10. Audio:    Support 3.5 headphone jack for Audio output, Support 3.5 jack for Microphone
11. Power:   DCIN 5V@4A power, Support USB 3.0 jack power input, Support 3.7V Li-Po battery
12. Keys:     Power key, Reset key, uboot key for reflashing the image
13. LEDs:    Power Led x 1, User Led x 2
14. Others:  2x UART0, 2x I2C, JTAG and 5V, 3.3V power

CC-A80-8CC-A80-9CC-A80-10CC-A80-11CC-A80-12CC-A80-13CC-A80-14CC-A80-15CC-A80-16
Software
Linux
CC-A80-17
Android
CC-A80-18

Download: http://dl.cubieboard.org/model/CubieBoard4/
zhixian

OS:

  1,android4.4

  2,lubuntu

  3,debian



Android source code:

bitbucket
https://bitbucket.org/cubietech/cc-a80-android4.4_android.git
https://bitbucket.org/cubietech/cc-a80-android4.4_lichee.git
git hub code:
git clone https://bitbucket.org/cubietech/cc-a80-android4.4_android.git
git clone https://bitbucket.org/cubietech/cc-a80-android4.4_lichee.git

2

Guide Doc:
http://dl.cubieboard.org/model/CubieBoard4/Doc/android/

Linux source code:
CC-A80-linux-sdk
================

$ mkdir CC-A80-linux-sdk
$ cd cc-a80-linux-sdk

$git clone https://github.com/cubieboard/CC-A80-kernel-source
$git clone https://github.com/cubieboard/CC-A80-products
$git clone https://github.com/cubieboard/CC-A80-tools
$git clone https://github.com/cubieboard/CC-A80-binaries
$git clone https://github.com/cubieboard/CC-A80-rootfs.git

Sdk guide:http://dl.cubieboard.org/model/CubieBoard4/Doc/ubuntu-linaro/
Downloads  (SDK Source, Tools, Firmware, Documentation) :
     https://mega.nz/#F!ZtwxCCJC!AIYHcTqz-ucjuzKnE9qD7A





zhixian

Other Specifications

Operating Temperature:     -20℃~70℃

Environment Friendly:        RoHS

Radio Standard:                 Fcc & CE compatible

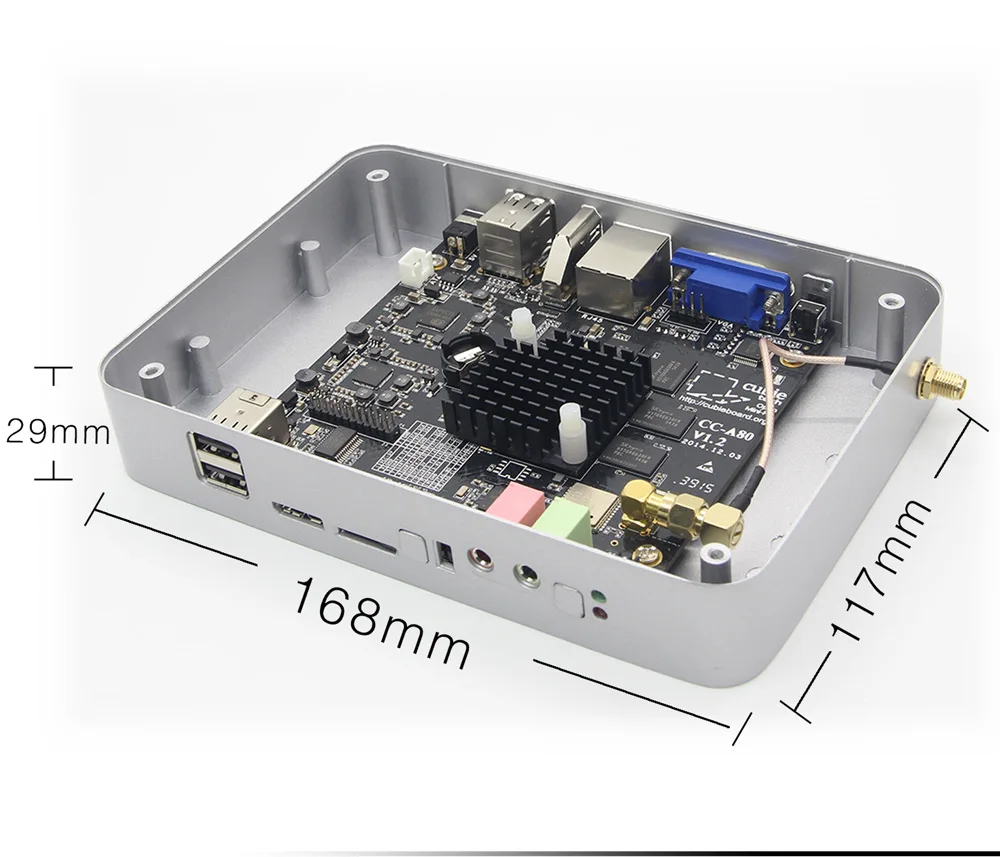

Device Size:                       168mm*117mm*30mm

Packing Weight:                 750g

Packing Size:                     228mm*152mm*90mm

Pack_List

CC-A80-7CC-A80-6

zhixian

HTB1LRDnHFXXXXaPXVXXq6xXFXXXn

[Tech-Support]
Expert Support: vip@youyeetoo.com
Skype: meiqiao_1
Wiki: https://youyeetoo.com/blog/
Forum: youyeetoo.net
