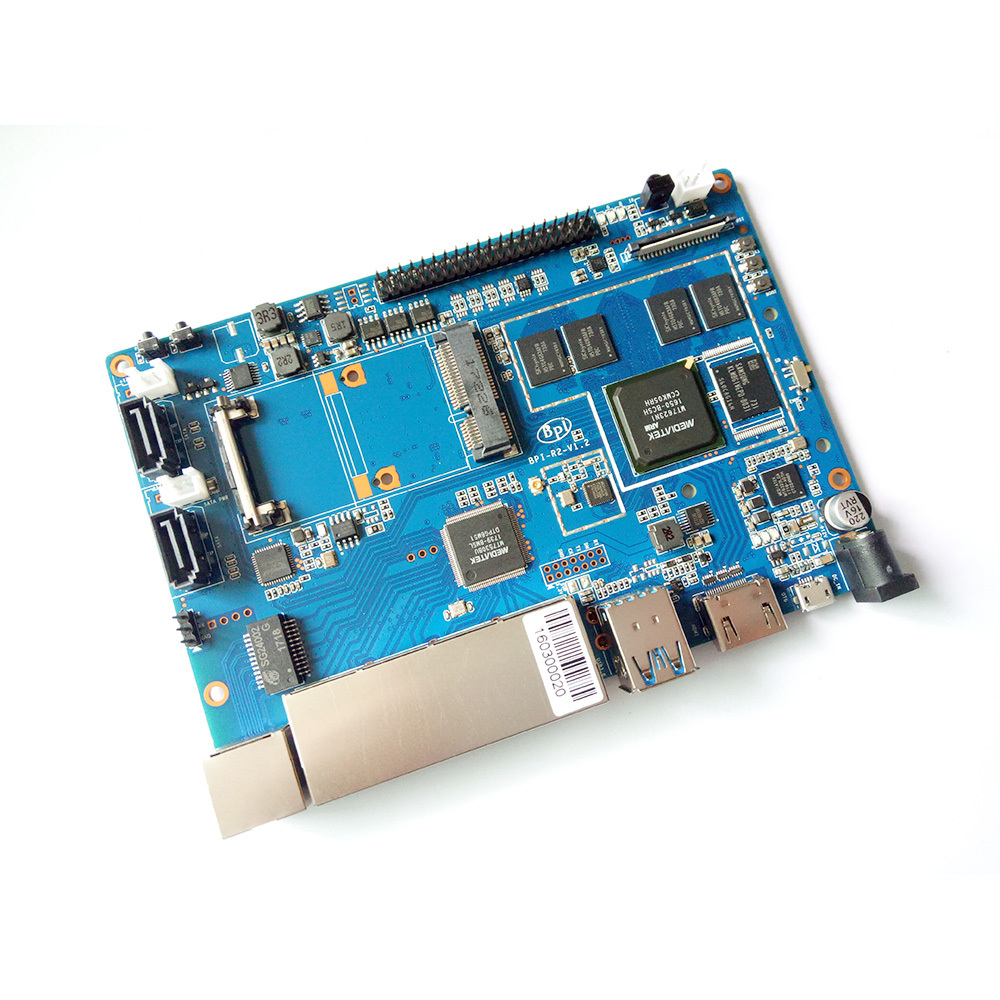

Banana PI BPI R2

Banana PI BPI-R2 is a highly integrated multimedia network router;it can be used for high wireless performance, homeentertainment,home automation and so on.

BPI-R2 integrate a Quad-core ARM Cortex-A7 MPcore operating up to 1.3GHz, The Router also inclu
Sold:256
Price:
$149.90
Wholesale:
100+
$88.90
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Specifications
Brand Name: BananaPi, BananaPiR2 BPI R2, BPI R2 Demo Board Type: R2

Overview



The first version includes 5 gigabit ports and also 2 SATA interface.The second version of router board contains Mediatek MT7623N.processor up to 1.3GHz (quad-core Cortex A7), which includes Mali-450 GPU, 2 GB RAM, eMMC 8 GB FLASH, also 5 gigabit ports,2 SATAs and you can find USB 3.0 as well. On the board is PCIe connector for connections eg WiFi 802.11 ac/n.For internet connection you can use of course ethernet port as well as WiFi 82.11a/ b/g/n and also Bluetooth 4.1.the R2 supports Android 5.1 and also OpenWRT, Debian, Ubuntu and Raspbian.

BPI-R2 contains HDMI connector which supports up to 1080p.

02





Introdution



Banana PI BPI-R2 is a highly integrated multimedia network router;it can be used for high wireless performance, homeentertainment,home automation and so on.

BPI-R2 integrate a Quad-core ARM Cortex-A7 MPcore operating up to 1.3GHz, The Router also includes a variety of peripherals, including HDMI TX, MIPI DSI, PCIe2.0, USB2.0 OTG, USB3.0 Port, SATA port,5 Gbps Port Gigabit Ethernet port, 802.11a/b/g/n wifi & BT4.1 onboard, also support 802.11ac/n WLAN connection thru mini PCI-e port

BPI-R2 can run with Android5.1 smoothly, it also can run OpenWRT,Debian,linux,Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-R2 same as BPI-R1, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3.

0708







card emulation

R2 Spe

03

BPI-R2 hardware interface



BPI-R2 Interface





BPI-R2 GPIO Pin define

Banana Pi BPI-R2 40-pin GPIO

Banana Pi BPI-R2 has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:



011





BPI-R2 micro SD card slot

BPI-R2 have support a TF card slot. you can burn image to TF card ,and use it boot BPI-R2 same as raspberry pi.

Note: support 8G 16G 32G 64G,please choose class 10 TF card for banana pi.

Banana Pi BPI-R2 eMMC flash

BPI-R2 have support 8G eMMC flash on board by defaults.for customization user , we can add 4-64G emmc on board.



BPI-R2 USB 3.0 interface

BPI-R2 have two USB 3.0 interface on board.so you can connect Keyboard,mouse, USB camera and ... on BPI-R2

USB 3.0 Port also can used be PCIE interface , PCIE 2 PIN define.



013

ues pcie pin with BPI-4G module

add 4G module on BPI-R2 :(If you want to buy 4G module, click here)



TIM20180124114259



05

46













Pack list

Banana Pi R2 Board x1
Power adapter x1
Arylic Case x1
Antenna x1
USB to RS232(TTL) x1 ------giveaway
R2 1 shipping list update 500x
