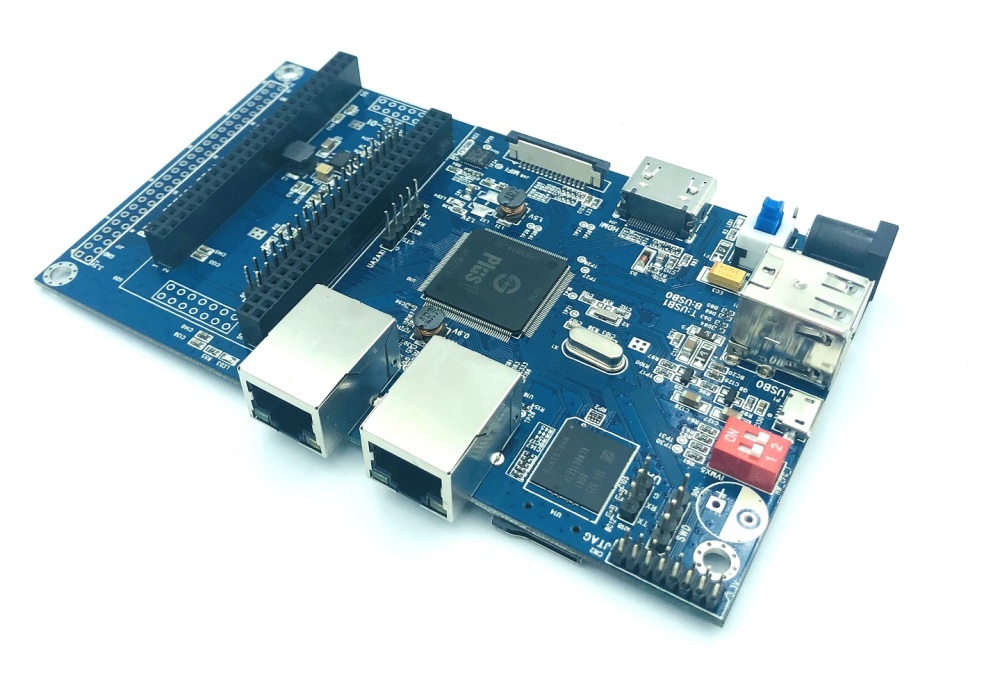

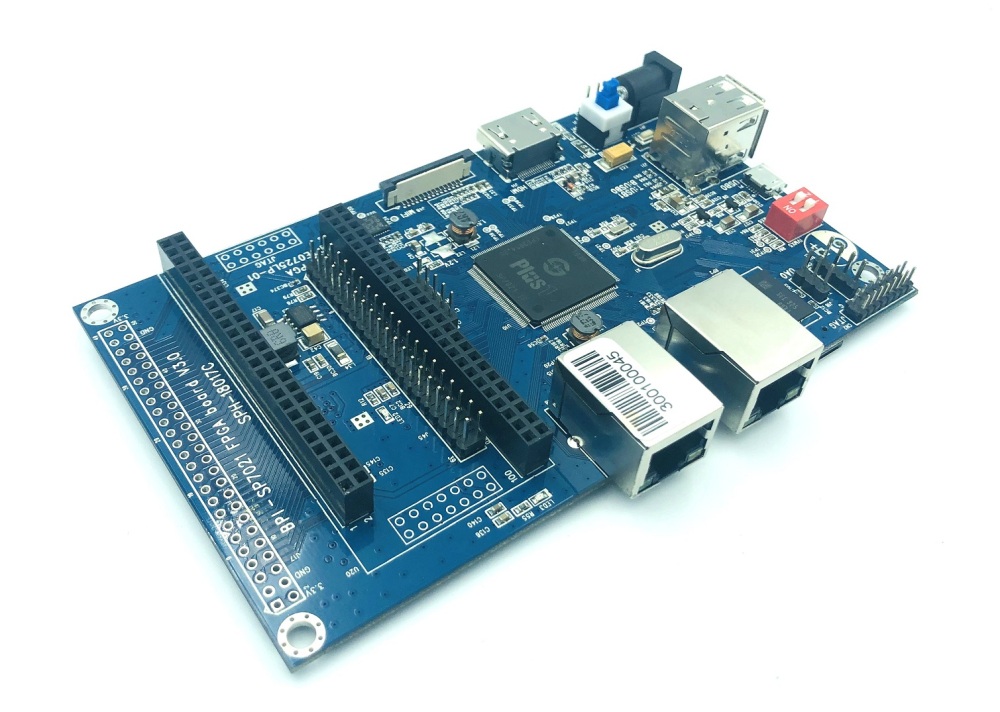

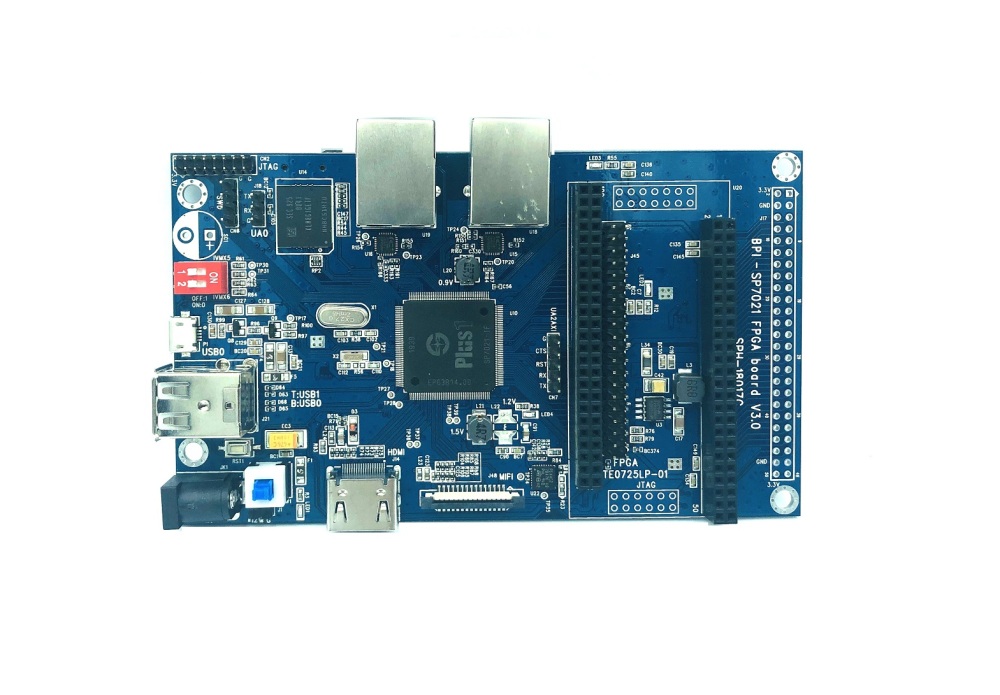

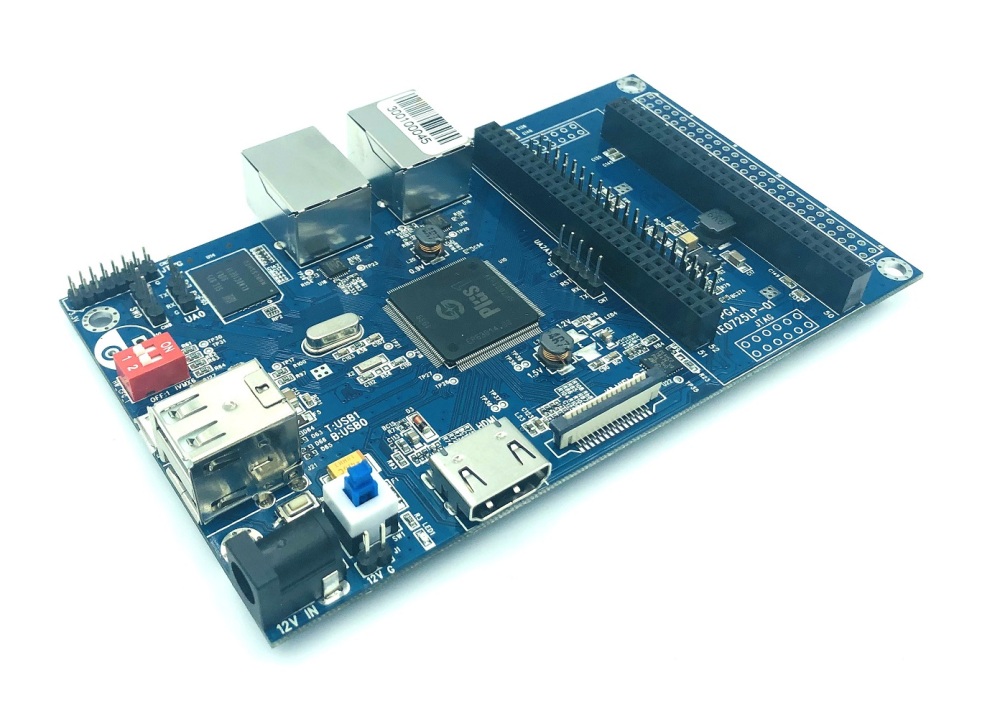

Banana PI BPI F2S industrial-grade board use Plus1

Banana Pi BPI-F2S is the first board with Banana Pi team and SunPlus, this is a industrial-grade board. Using the Plus1(sp7021) design.
Price:
$75.00
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Specifications
Brand Name: Banana Pi Demo Board Type: ARM

Introduction

Banana Pi BPI-F2S is the first board withBanana Pi teamandSunPlus, this is a industrial-grade board. use Plus1(sp7021) design. this is a industrial-grade board. we also design a Xilinx Artix-7 FPGA extend board.

Application direction

  • IoT/Industrial Internet control

  • Smart Audio

  • Smart Payment system

  • FPGA education and development

  • Vehicular networking technology and applications

About SunPlus SP7021

SunPlus sp7021 is a revolutionary SoC that has the power of a Linux-grade chip and the integration simplicity of a microcontroller.it with ARM Cortex-A7 Quad core,ARM926 real-time core,8051 low-power core

Conceived by Sunplus Technology in collaboration with Tibbo Technology, PLUS1 takes all the sophisticated elem. typically found in modern industrial-grade embedded Linux chips, adds a plethora of features targeting IoT and industrial control applications, and delivers the resulting design in a simple microcontroller-like package that needs few external components, simplifies the schematic diagram, and reduces the PCB complexity.

SP7021 is a SoC solution of industrial control. It meets customers’full demand on function but with low cost so that will improve customers’ competitiveness in the market. SP7021 provides rich GPIOs, storage and USB interface. And it provides MIPI CSI interface for video input and HDMI interface for video output. It also provides FPGA interface for function extension. SP7021 also has 4 Ethernet ports providing customers a high competitive solution.

Characteristics of the SP7021

  • Easy-to-use LQFP package.

  • Quad-core 1GHz Cortex-A7 CPU, plus A926 and 8051 cores.

  • Single 3.3V power*.

  • Integrated 128MB or 512MB DDR3 DRAM.

  • Eight 8-bit 5V-tolerant IO ports, plus one high-current port.

  • Flexible Peripheral Multiplexing (PinMux).

  • Dual PinMuxable Ethernet MACs.

  • Four PinMuxable Enhanced UARTs, plus one console UART.

  • Industrial operating temperature range: -40C ~ +85C.

  • Low EMI simplifies certification.

  • Modern, Yocto-based Linux distribution.

  • 10-year supply guarantee.

  • Robust ready-to-run modern Linux distribution available

  • And much more...

Hardware

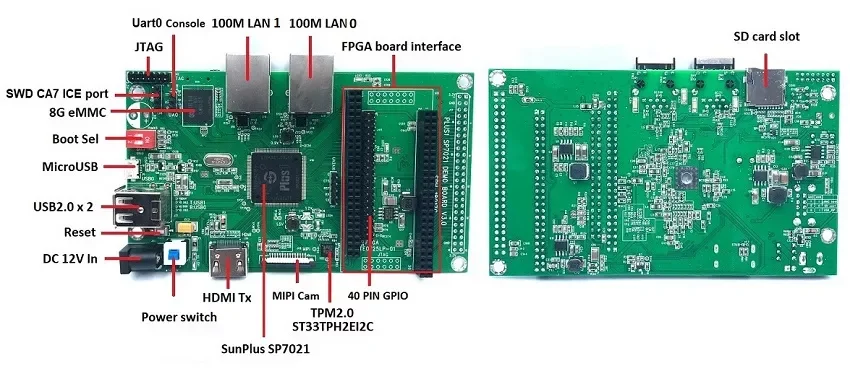

Hardware interface

Image link is broken

note : 40 PIN GPIO compitable Raspberry Pi

Hardware spec

  • SoC – Sunplus SP7021 “Plus1” with a quad-core Cortex-A7 processor @ 1.0 GHz, one Arm A926 microprocessor, an 8051 core to handle I/Os, and 128MB or 512MB DDR3 DRAM.

  • Storage – 8GB eMMC flash, microSD card slot

  • Video Output – HDMI 1.4 output

  • Camera I/F – MIPI CSI connector

  • Connectivity – 2x 10/100M Ethernet

  • USB – 2x USB 2.0 host ports, 1x micro USB port

  • Expansion

40-pin GPIO header compatible with Raspberry Pi header2x 50-pin FPGA interface for Trenz Electronic TE0725LP-01-100-2D Artix 7 FPGA boardUnpopulated, undocumented 50-pin header that’s appears to be routed to one of the headers for the optional FPGA board

  • Debugging – 3-pin header for UART console, 10-pin JTAG header, SWD ICE port

  • Security – TPM 2.0 via ST33TPH2EI2C secure elem.

  • Misc – Power switch, reset button, boot selection dip switch

  • Power Supply – 12VDC via power barrel jack

  • Dimensions –135x80mm

  • Temperature Range – -40C ~ +85°C

SOC education and training practice suite

SunPlus SP7021 development suite is a set of development platform with high integration of single chip based on sunplus 7021 SOC.With high performance, low Characteristics of power consumption;Embedded Linux Embed system, suitable for voice image processing, communication, portable industrial control equipment and other applications.With high performance processor, especially suitable for AI artificial intelligence, machine vision and other applications requiring strong computing power;Expandable FPGA module, can Layout, small board area, easy to field test application
