ASUS SBC Tinker board S RK3288 SoC 1.8GHz Quad Core CPU, 600MHz Mali-T764 GPU, 2GB LPDDR3 16GB eMMC TinkerboardS

1AL-TinkS-B2
The Tinker board is a single board computer designed for SBC hobbyists, makers & IOT enthusiasts. It features a quad core 1.8GHz SoC with 2GB DDR3 RAM, non shared Gbit LAN, Wi-Fi with upgradable IPEX antenna support & color coded GPIO connectivity. The PC
Price:
Wholesale:
100+
$91.00
    Please select the information you wantX
  • Bundle:
    Bundle1
    Bundle2
    Bundle3
    Bundle4
    Bundle5
    Bundle6
  • Displayer:
    NONE
    7"TOUCH SCREEN
    10.1HDMI touch screen
Quantity:
-
+
(32900 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews(8)
Specifications
Brand Name: ASUS Demo Board Type: ARM Memory(DRAM): 2GB Dual Channel DDR3 CPU: Rockchip RK3288 ROM Capacity: 16GB eMMC Network connectivity: GB LAN port for true Gigabit WIFI 802.11a/b/g/n/ac Bluetooth Item model number: Tinker Board S Item Dimensions L x W x H: 4.5 x 6 x 1.62 inches Processor Count: 4



Note:If you need European or American power, please leave a message.Thank you.





Bundle 1: 2G LPDDR3+Heat Sink

Bundle 2: 2G LPDDR3+TF Card+Acrylic Case+Cooling Fan+Power Supply+Micro USB Cable+Heat Sink

Bundle 3:  2G LPDDR3+Metal Case+Cooling Fan+Power Supply+Micro USB Cable+Heat Sink+Screws

Bundle 4:  2G LPDDR3+TF Card+Metal Case+Cooling Fan+Power Supply+Micro USB Cable+Heat Sink+Screws

Bundle 5:  2G LPDDR3+8MP Camera Module+Power Supply+Micro USB Cable+Heat Sink

Bundle 6:  2G LPDDR3+10.1 inch touch Screen+Power Supply+Micro USB Cable+Heat Sink





Overview





The new and improved Tinker Board S is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.



6_



More Durable

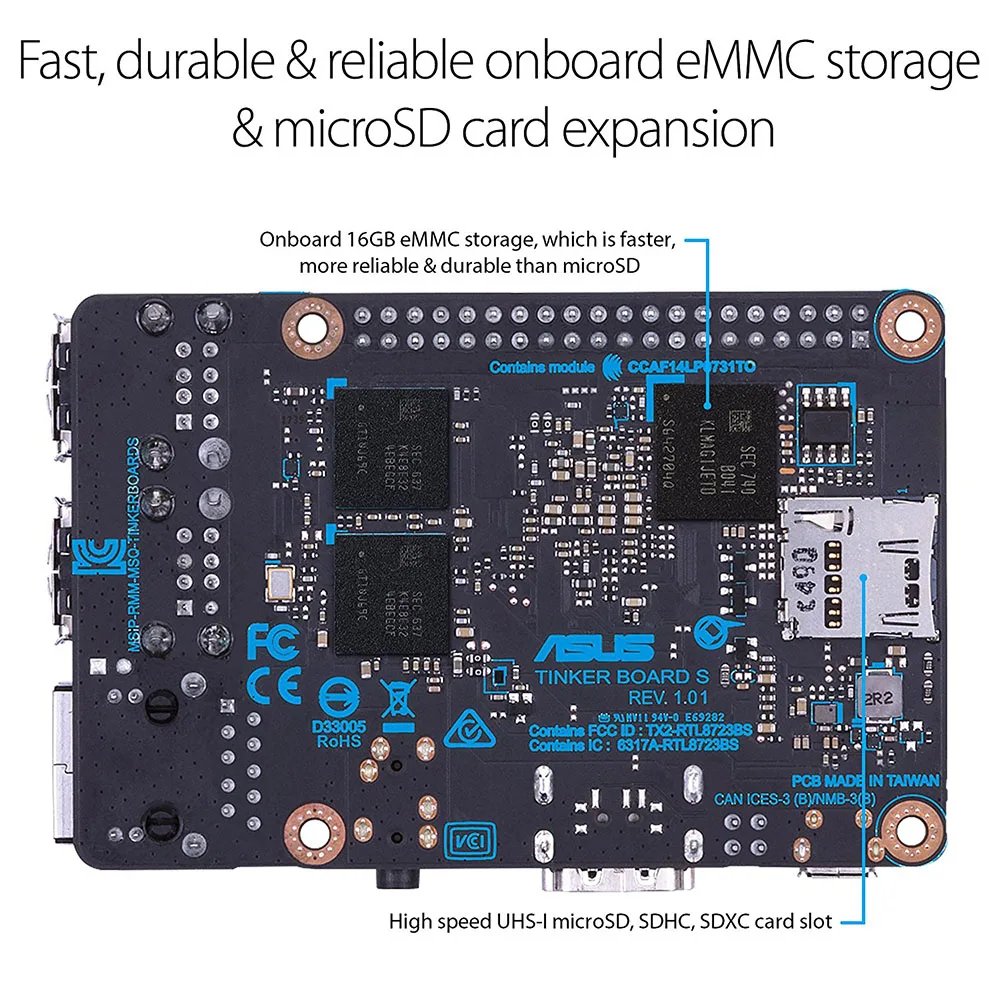

• Onboard 16GB eMMC storage to enhance performance and stability, plus a microSD slot for greater flexibility

• Low-voltage input detection to avoid power issue and ensure system stability if using a non-qualified* power supply


Better User Experience

• HDMI-CEC-ready for complete video entertainment, allowing users to command both Tinker Board S and a TV with a single remote control

• Audio jack plug-in detection and auto-switch to 3.5mm audio jack from other interfacesher interfaces


Always Moving Forward with Makers



Onboard power-on pin for makers giving more freedom when bringing their ideas to life.

• Enhanced I2S pin with Slave mode and an improved software API for better compatibility

later
CPU Performance

Tinker Board S features an ARM-based RK3288 SoC and is equipped with four cores to enhance multithread application performance. It operates at frequencies of up to 1.8GHz, improving performance across all applications. This increase in CPU core count, along with an increase in processor frequency, helps to enable significantly faster performance across a wide range of applications, extending and enhancing project capabilities. As a result, typical PC tasks are faster and more responsive.

chart-1-01

07

Introduction



  • Class Leading Performance

With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288 — Tinker Board S offers significantly improved performance versus other popular SBC boards. To provide the flexibility needed for different builds and projects, Tinker Board S features 2GB of LPDDR3 dual-channel memory and is equipped with an onboard 16GB eMMC and SD 3.0 interface that offer significantly faster read and write speeds for the OS, applications and file storage.

4



Tinker board is a single-board computer in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The tinker board offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering ideas into reality.

10





  • GPU Performance



Featuring a powerful but energy-efficient design, Tinker Board S supports next-generation graphics and GPU computing API's. Powered by an ARM-based Mali-T760 MP4 GPU, Tinker Board S' GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.

Tinker Board S has HDMI CEC hardware circuit implemented, with the supported software, it allowing multimedia enthusiasts to control TV outputs using a single remote control for a better entertainment experience. Other fixed functions include H.264 and H.265 playback support, as well as HD and UHD video playback.*
2







  • HD Audio Quality

Further improving on key areas found lacking on many SBC boards, Tinker Board S is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module. The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.



  • Maker-Friendly, with loT Connectivity
Tinker Board S also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Blue tooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.

Tinker Board S also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
5






  •  Enhanced DIY Design

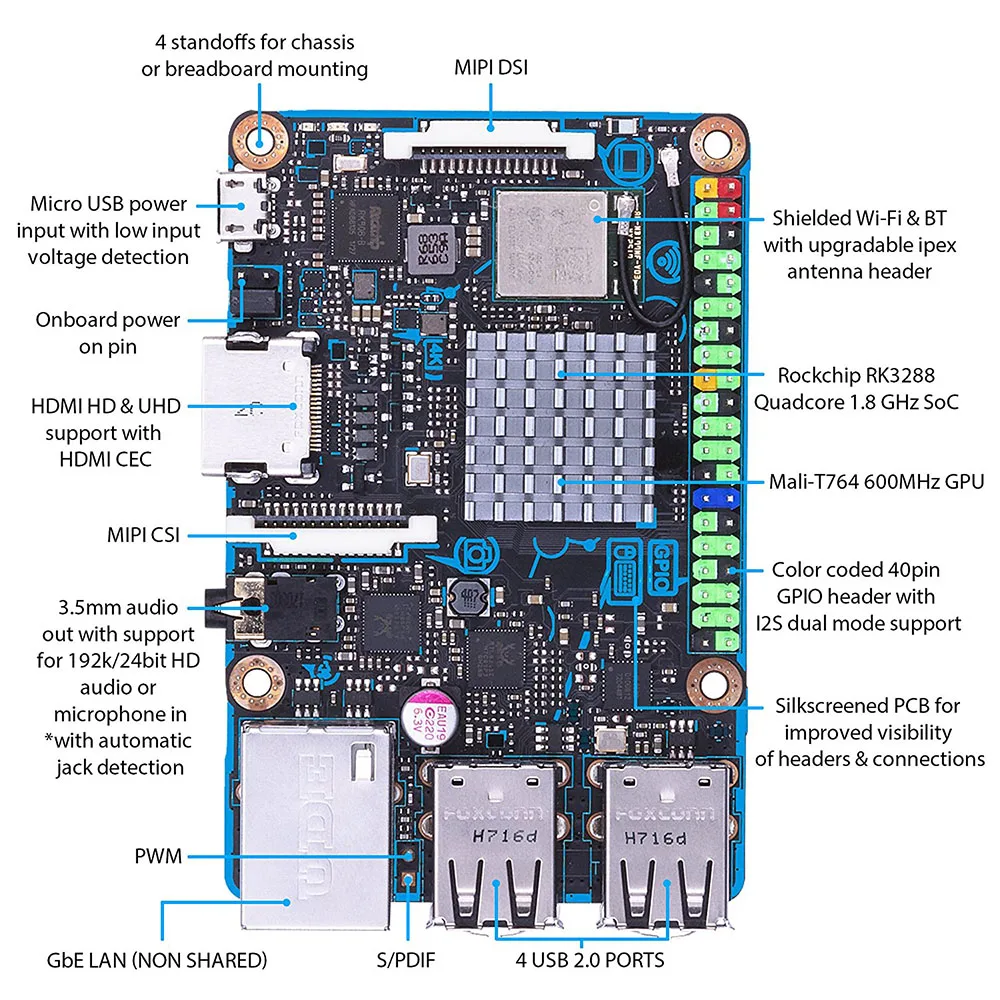

    Careful consideration went into the design and development of the Tinker Board S to ensure that it provides a superior user experience for first-time builders or for seasoned hobbyists. Builders will appreciate the color-coded GPIO header, which makes it easy to recognize respective pin headers.

    The PCB dimensions and topology of the Tinker Board S align with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.

    Tinker Board S also includes a heatsink, which helps improve heat dissipation under heavy loading or in hot ambient environments.
    3


11

  • TinkerOS ‧ Supported OS‧ Applications

A Debian-based distribution ensures a smooth and functional experience, directly out of the box. Whether it's browsing the web, watching videos, or writing scripts, TinkerOS is a great starting point for your next project or build.


Furthermore TinkerOS has been carefully designed to be extremely lightweight and responsive. Running on top of the base Debian 9 is a the LXDE desktop environment. This GUI is optimized specifically for SBC boards. It also features plug & play NTFS support allowing for easy access to Windows based flash drives and external hard drives. The included web browser has also been carefully selected and optimized. It based on Chromium allowing for speed and stability along with a number of extensions. The ASUS team has help to enable hardware acceleration of the browser allowing for improved web rendering and video playback including HD resolutions in YouTube.



05


TinkerOS also includes a number of popular applications allowing for easy programming and development. These include IDLE / Python as well as Squeak / Scratch.

Beyond TinkerOS and its Debian Linux offering Tinker Board S also support the Android Operating system. This allows for an entirely different usage scenarios ranging from media playback, gaming, and much more.

Tinker Board S is also working closely with a wide range of popular applications to enable support & optimize functionality.
04


specification

Tinker board spec





2

Tinker

7



Features

  • Power Supply

The Tinker Board S requires 5V/2~3A power via the micro-USB port. The exact amount of current (mA) the Tinker Board S requires will depend on what's connected to it. For general use, a 2A power supply from a reputable retailer will provide ample power to run your tinker board.Typically, Tinker Board S uses between 700 to 1000mA, depending on which peripherals are connected. It may use as little as 500mA when no peripherals are attached. Maximum power for the Tinker Board S is 1A. If you need to connect a USB device to bring power requirements above 0.5A, then you must connect to it via an externally powered USB hub.

01

  • USB
The Tinker Board S is equipped with four USB 2.0 ports. These are connected to the GL852G USB Hub from the upstream USB port via the RK3288.
The USB ports enable the attachment of peripherals such as keyboards, mice and webcams. This provides the board with additional functionality.
There are some differences between the USB hardware on the Tinker Board S and the USB hardware on desktop computers, laptops and tablets.

The USB host port inside the Tinker Board S is for power supply only, RK3288, was originally intended to be used in the mobile market, e.g. the single USB port on a phone for connection to a PC, or to a single device. In essence, the OTG hardware is simpler than the equivalent hardware on a PC.
OTG typically supports communication to all types of USB devices, but to provide an adequate level of functionality for most of the USB devices that one might plug into a tinker board, the system software has to do more work.


  • GPIO

One powerful feature of the Tinker Board S is the available GPIO (general purpose input/output) pins along the edge of the board. These pins are a physical interface between the Tinker Board S and the outside world. At the simplest level, you can think of them as switches that can be turned on or off. Of the 40 pins, 28 are GPIO pins (shared with SPI/UART/I2C pins). The Tinker Board S is equipped with one SPI bus that offers two chip selects. The SPI bus is available on the onboard 40-pin header.

pic_gpio





Wiki

Wiki

012



[   Large Inventory   ]



[   Official Sole Agnecy ]



 2019

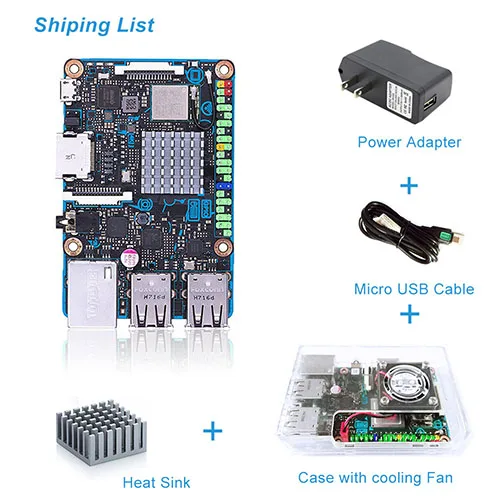

Pack list
